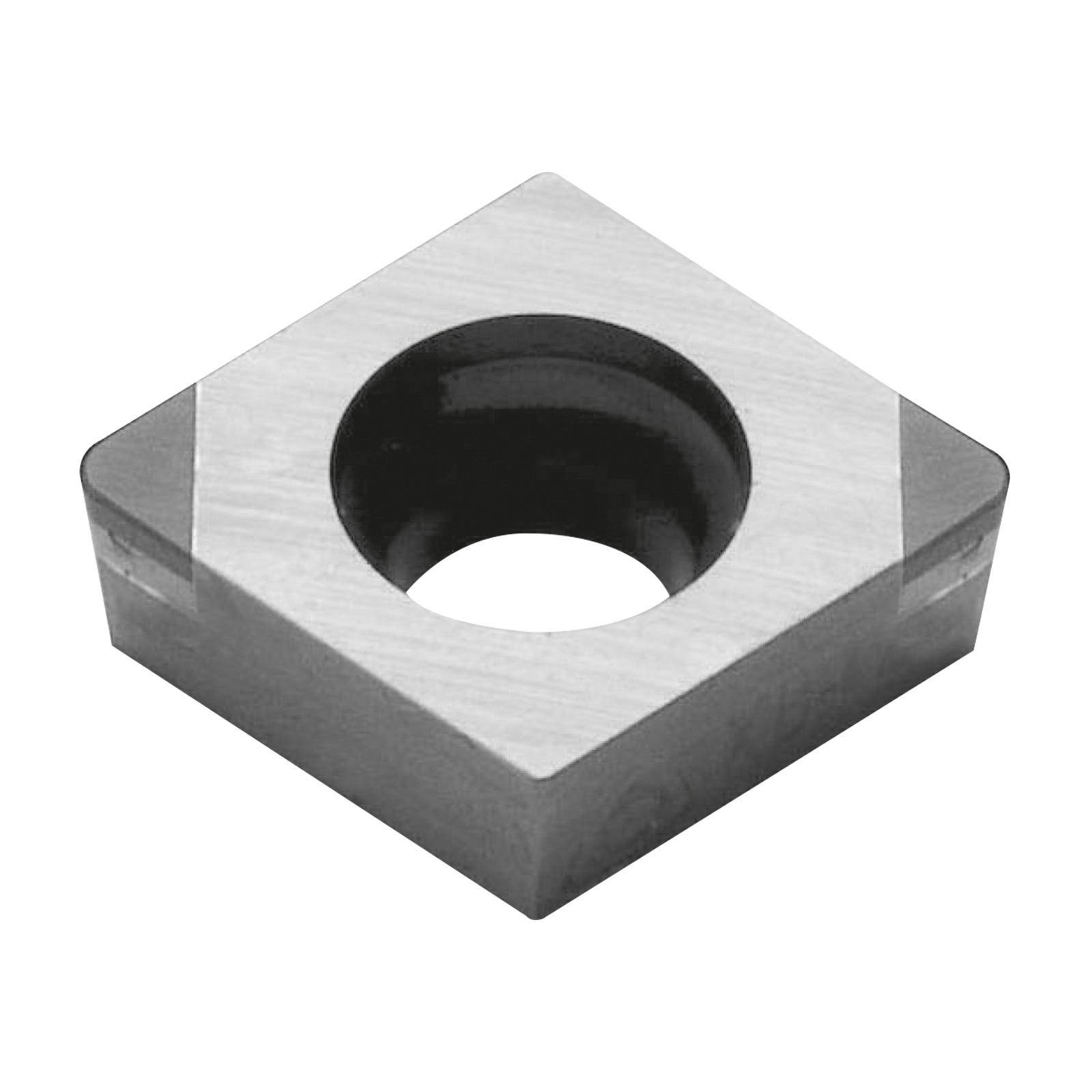

CCGW060208 KB420 CCGW Non-Regrindable (Multi Edge) CBN Turning Inserts for Hardened Steel (Korloy)

(6-01-028067)
£55.52 £46.27
Non-Regrindable (Multi Edge) CCGW turning inserts from Korloy. Designed for machining high hardened steels. CBN inserts can eliminate the need for additional grinding processes. For best results with CBN turning inserts, use double clamp turning tools or boring bars. This should minimise vibration and maximise tool life. For hardened steel it is also recommended to machine dry.
  • H
In Stock
View all variants
Features & Benefits
  • CCGW style.
  • Rhomboid shape.
  • Non-regrindable (multiple cutting edges).
  • Designed for machining high hardened steels.
  • CBN inserts can eliminate the need for additional grinding processes.
  • Uncoated.
  • Excellent wear resistance.
  • For the best results, use together with double clamp turning tool holders / boring bars. This minimises vibration and maximises tool / insert life.
  • Dry machining is also recommended.

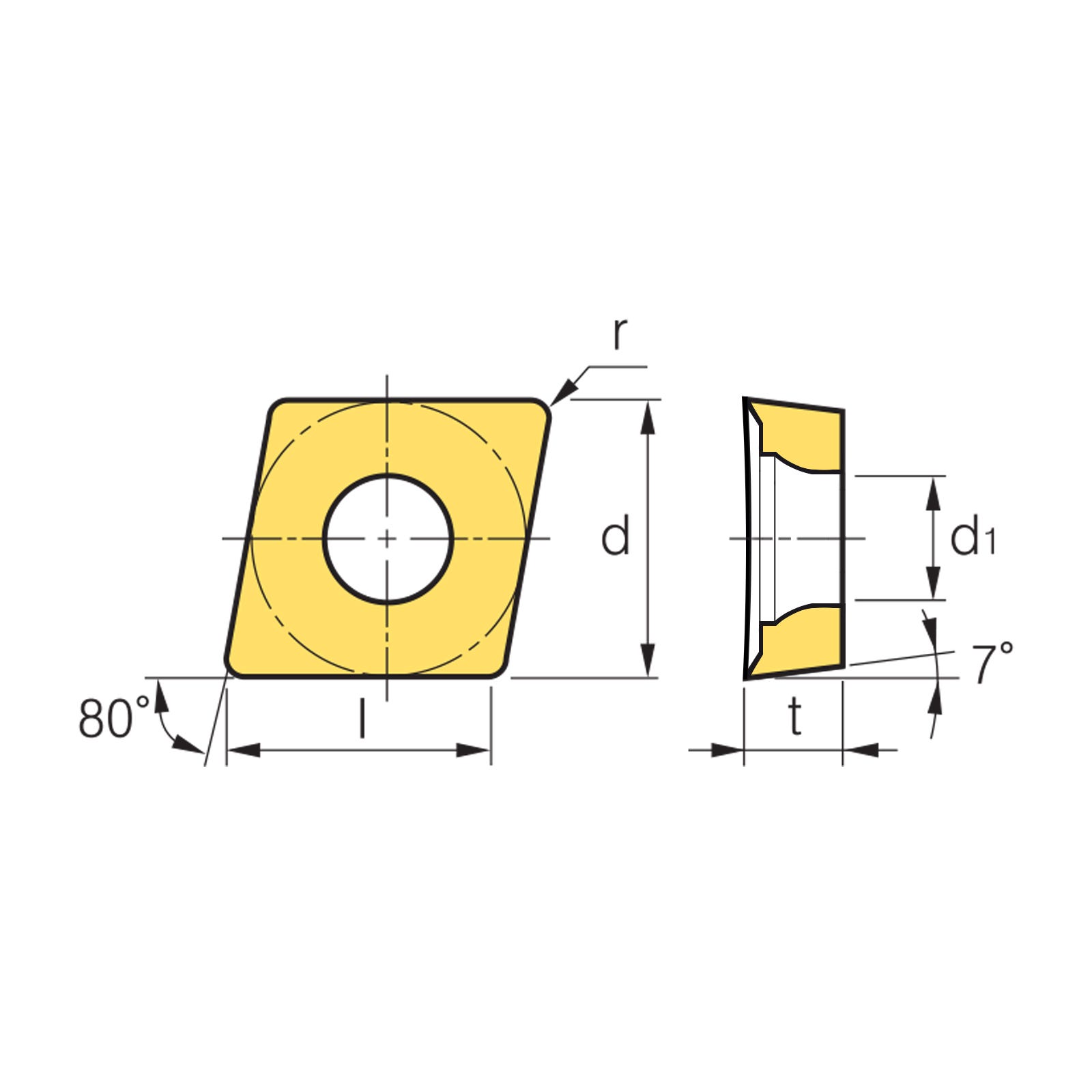

Specification
Specification
l (Length) 6
Grade DBNX20 (Medium/High Speed Continuous)
Brand Korloy
Applicable Materials Hardened Steel
Type Non-Regrindable (Multi Edge)
Style CCGW
Edge Prep Wiper (Fine Finishing)
No. Of Edges 2
d1 2.8
t 2.38
ISO Code CCGW060208
r (Radius) 0.8
Product Range CBN Turning Inserts
Cutwel Sku 6-01-028067
