    main product photo

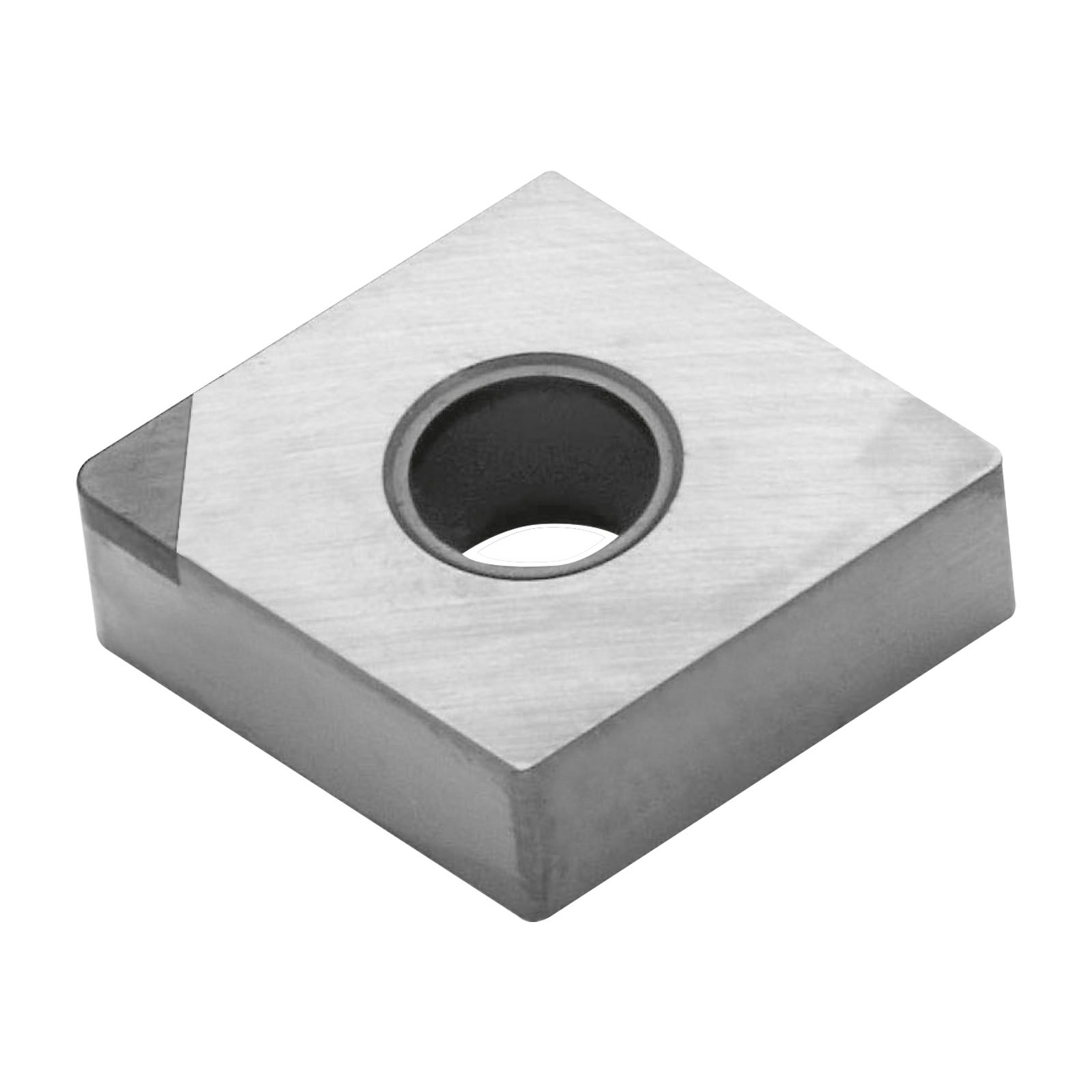

    CNGA120404 KB420 CNGA Regrindable CBN Turning Inserts for Hardened Steel (Korloy)

    (6-01-028427)
    £38.40 £32.00
    Regrindable CNGA turning inserts from Korloy. Designed for machining high hardened steels. CBN inserts can eliminate the need for additional grinding processes. For best results with CBN turning inserts, use double clamp turning tools or boring bars. This should minimise vibration and maximise tool life. For hardened steel it is also recommended to machine dry.
    • H
    Approx. 3 days. Subject to availability
    View all variants
    Features & Benefits
    • CNGA style.
    • Rhomboid shape.
    • Regrindable (single cutting edge).
    • Designed for the machining of high hardened steels.
    • CBN inserts can eliminate the need for additional grinding processes.
    • Uncoated.
    • Excellent wear resistance.
    • For the best results, use together with double clamp turning tool holders / boring bars. This minimises vibration and maximises tool / insert life.
    • Dry machining is also recommended.

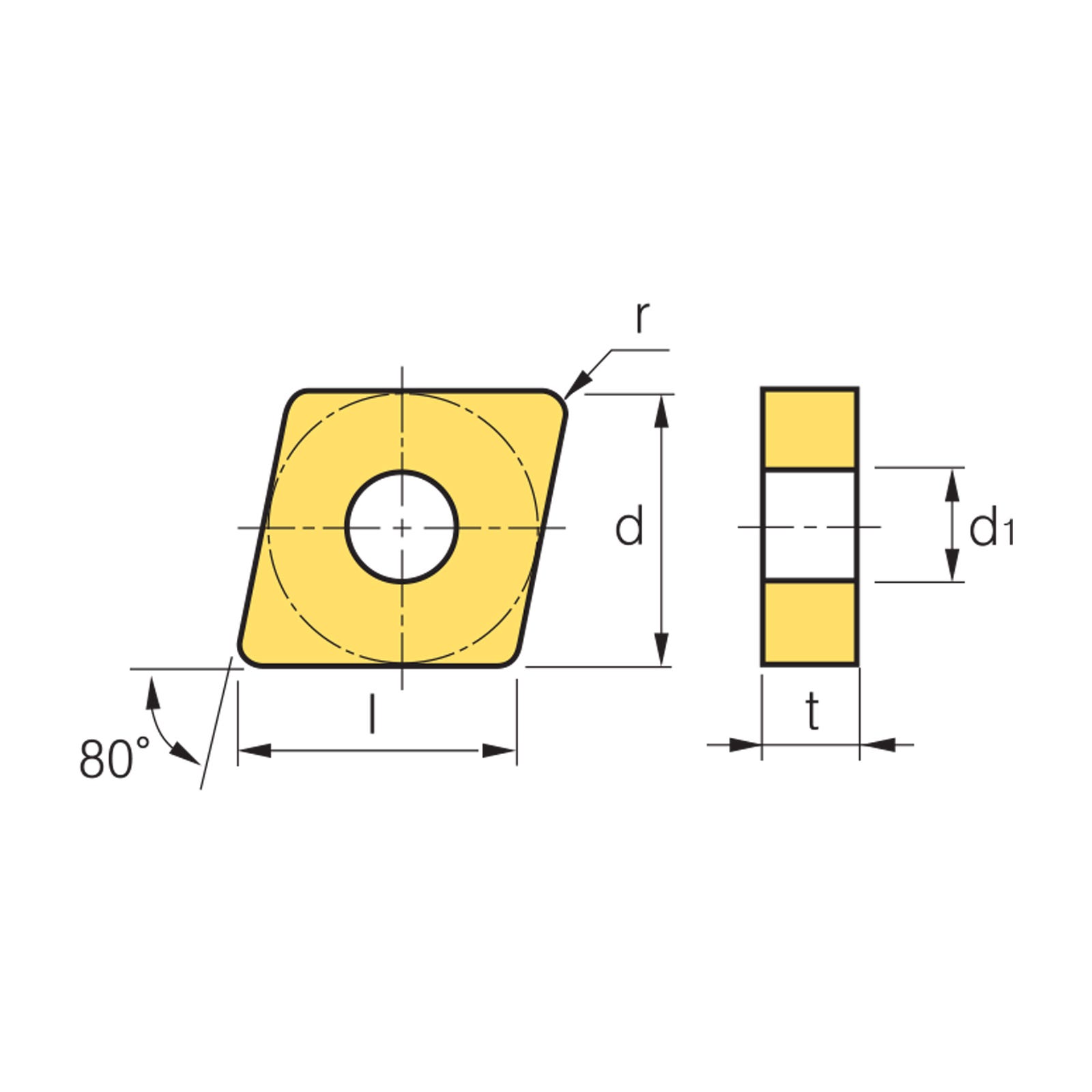

    Specification
    Specification
    l (Length) 12
    Applicable Materials Hardened Steel
    Brand Korloy
    Grade DBNX20 (Medium/High Speed Continuous)
    Type Regrindable
    Style CNGA
    Edge Prep Standard (General)
    No. Of Edges 1
    d1 5.16
    t 4.76
    ISO Code CNGA120404
    r (Radius) 0.4
    Product Range CBN Turning Inserts
    Cutwel Sku 6-01-028427
