      CNGA120408 DNC250 CNGA Coated (Multi-Edge) CBN Turning Inserts for Hardened Steel (Korloy)

      (6-01-015555)
      Now £52.94 £44.12 Was £62.29 £51.91
      Coated (Multi-Edge) CNGA turning inserts from Korloy. Designed for machining high hardened steels. CBN inserts can eliminate the need for additional grinding processes. For best results with CBN turning inserts, use double clamp turning tools or boring bars. This should minimise vibration and maximise tool life. For hardened steel it is also recommended to machine dry.
      • H
      Approx. 5 days. Subject to availability
      View all variants
      Features & Benefits
      • CNGN style.
      • Rhomboid shape.
      • Non-Regrindable (multiple cutting edges).
      • DNC250 Grade - Designed for continuous high speed cutting of high hardened steels & cast iron.
      • CBN inserts can eliminate the need for additional grinding processes.
      • PVD Coated.
      • Excellent wear resistance.
      • For the best results, use together with double clamp turning tool holders / boring bars. This minimises vibration and maximises tool / insert life.
      • Dry machining is also recommended.

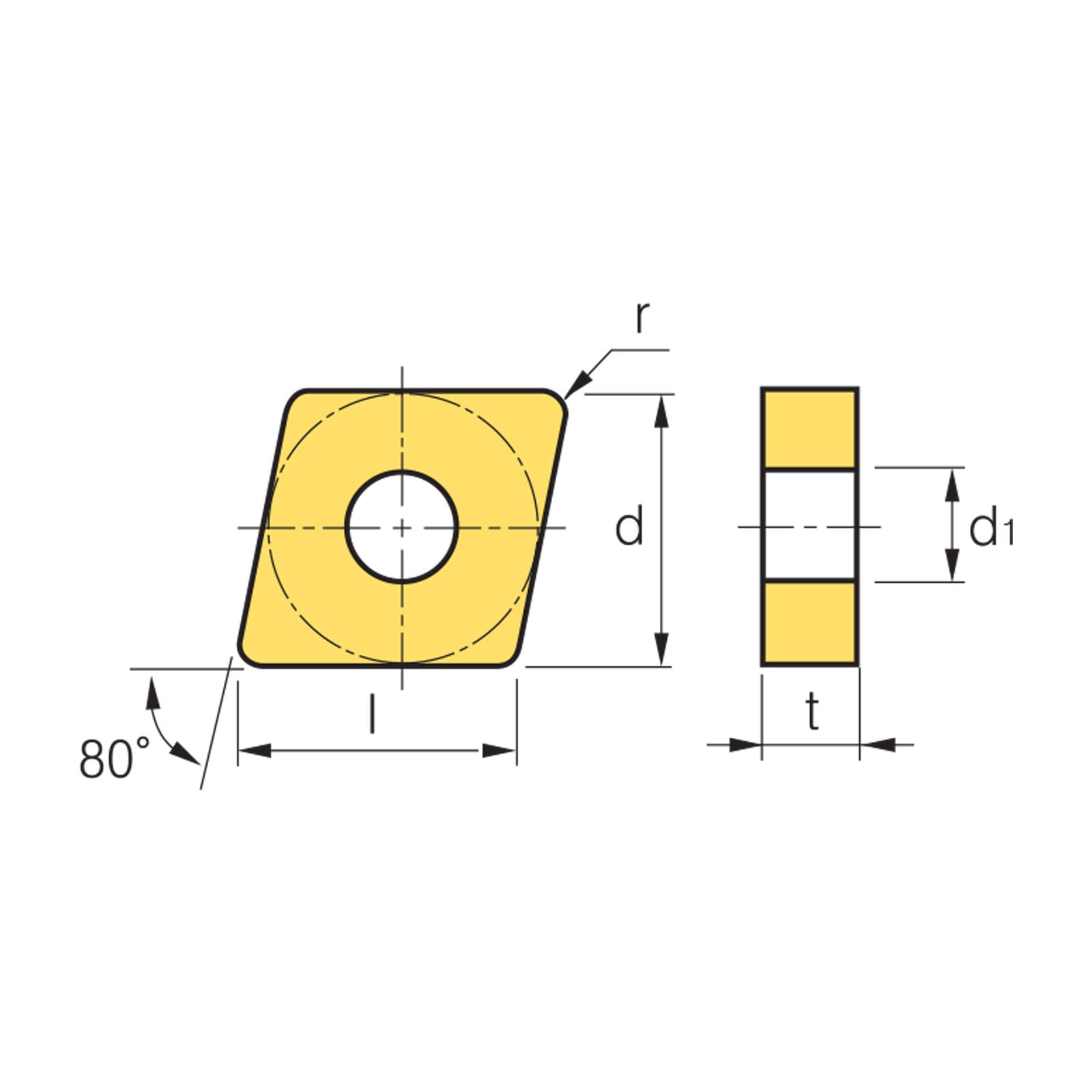

      Specification
      Specification
      l (Length) 12
      Grade DNC250 (High Speed Continuous Cutting)
      Brand Korloy
      Applicable Materials Hardened Steel
      Type Coated (Multi-Edge)
      Style CNGA
      Edge Prep Standard (General)
      No. Of Edges 2
      d1 5.16
      t 4.76
      ISO Code CNGA120408
      r (Radius) 0.8
      Product Range CBN Turning Inserts
      Cutwel Sku 6-01-015555
