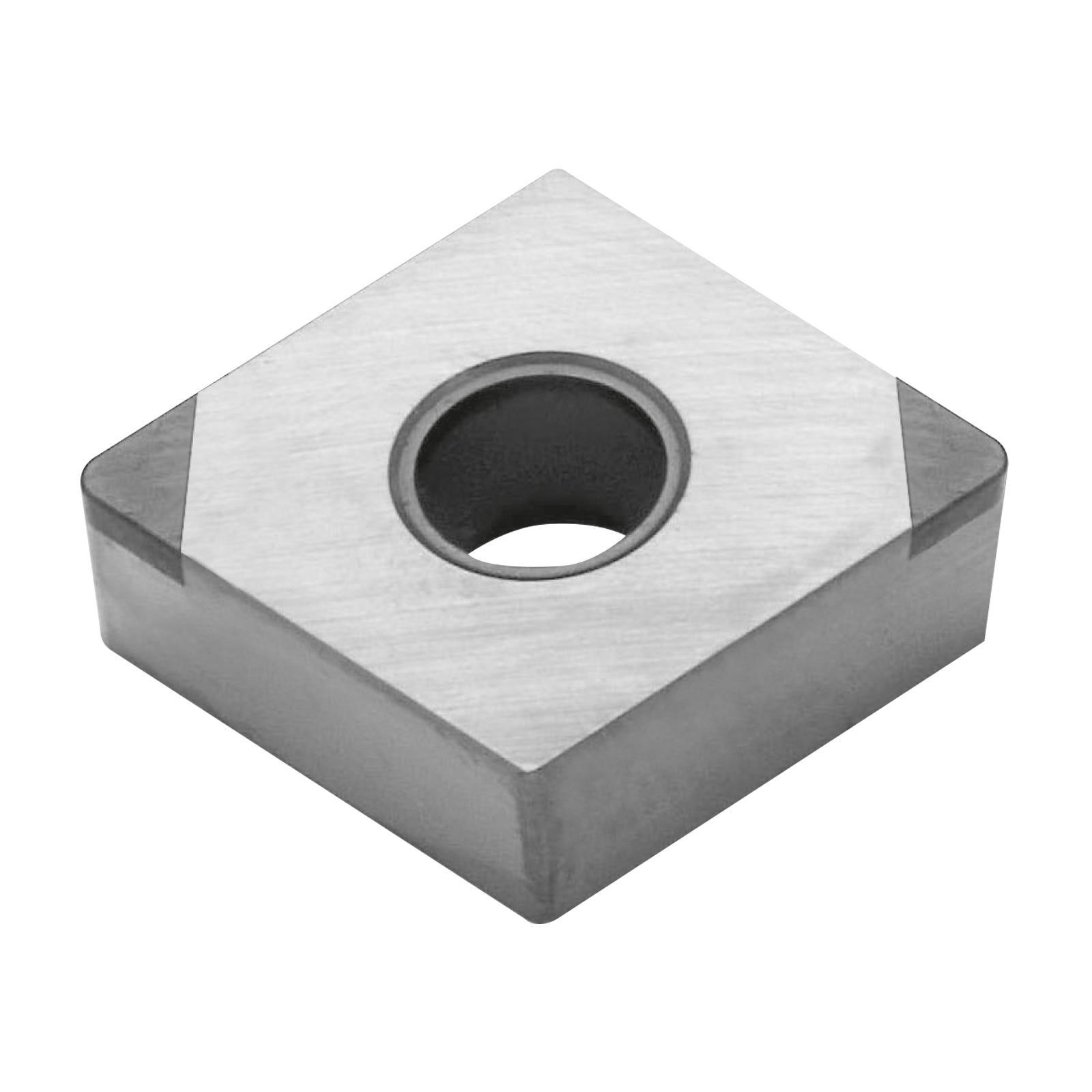

CNGA120408 KB330 CCNGA Non-Regrindable (Multi Edge) CBN Turning Inserts for Hardened Steel (Korloy)

(6-01-021498)
£58.80 £49.00
Non-Regrindable (Multi Edge) CNGA turning inserts from Korloy. Designed for machining high hardened steels. CBN inserts can eliminate the need for additional grinding processes. For best results with CBN turning inserts, use double clamp turning tools or boring bars. This should minimise vibration and maximise tool life. For hardened steel it is also recommended to machine dry.
  • H
In Stock
View all variants
Features & Benefits
  • CNGN style.
  • Rhomboid shape.
  • Non-regrindable (multiple cutting edges).
  • Designed for machining high hardened steels.
  • Uncoated.
  • Excellent wear resistance.
  • For the best results, use together with double clamp turning tool holders / boring bars. This minimises vibration and maximises tool / insert life.
  • Dry machining is also recommended.

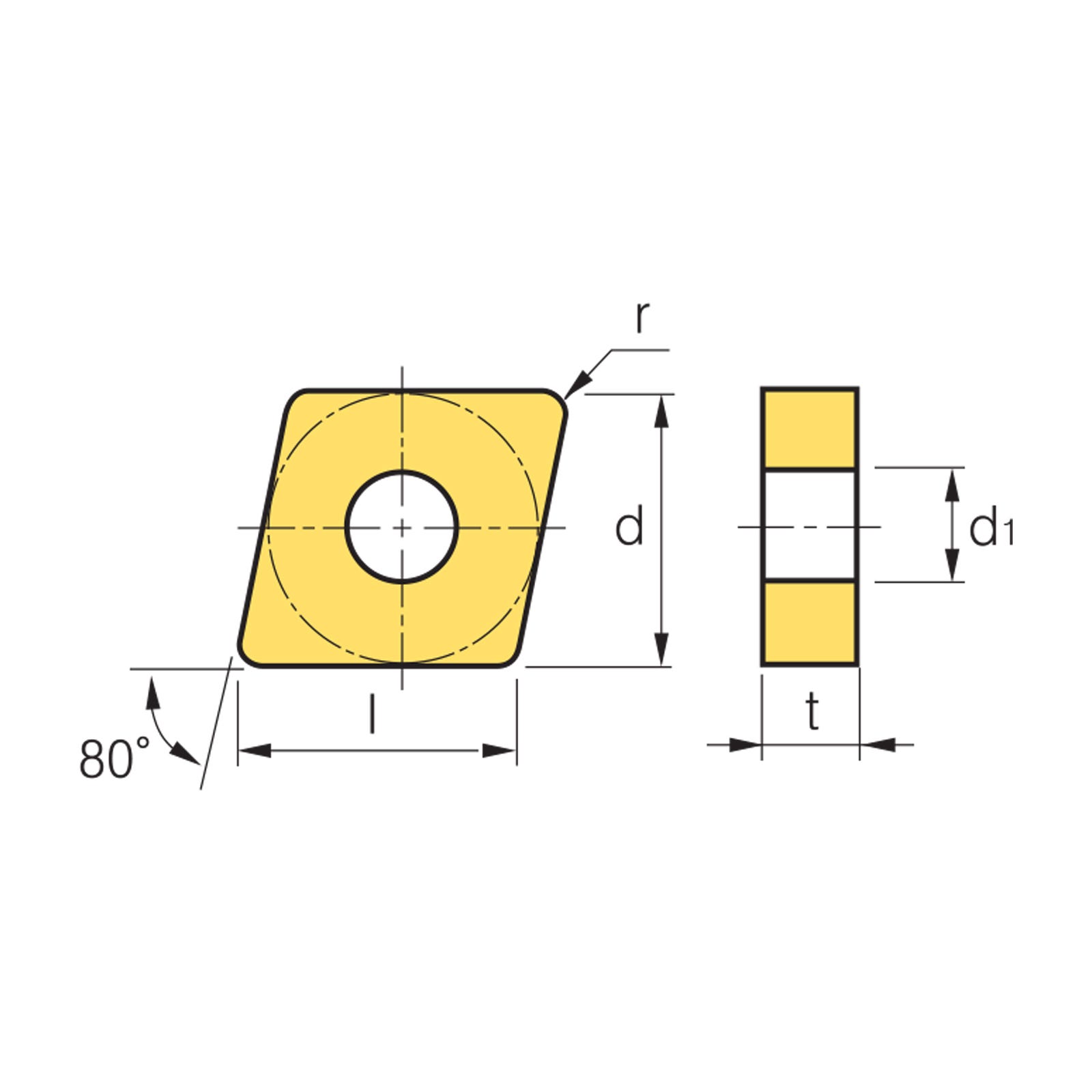

Specification
Specification
l (Length) 12
Applicable Materials Hardened Steel
Brand Korloy
Grade DBN300 (Low Speed Heavy Interrupted)
Type Non-Regrindable (Multi Edge)
Style CNGA
Edge Prep Standard (General)
No. Of Edges 4
d1 5.16
t 4.76
ISO Code CNGA120408
r (Radius) 0.8
Product Range CBN Turning Inserts
Cutwel Sku 6-01-021498
