CNGA120408 KB410 CCNGA Non-Regrindable (Multi Edge) CBN Turning Inserts for Hardened Steel (Korloy)

£52.38 £43.65
Non-Regrindable (Multi Edge) CNGA turning inserts from Korloy. Designed for machining high hardened steels. CBN inserts can eliminate the need for additional grinding processes. For best results with CBN turning inserts, use double clamp turning tools or boring bars. This should minimise vibration and maximise tool life. For hardened steel it is also recommended to machine dry.
  • H
Approx. 3 days. Subject to availability
View all variants
Features & Benefits
  • CNGN style.
  • Rhomboid shape.
  • Non-regrindable (multiple cutting edges).
  • Designed for machining high hardened steels.
  • Uncoated.
  • Excellent wear resistance.
  • For the best results, use together with double clamp turning tool holders / boring bars. This minimises vibration and maximises tool / insert life.
  • Dry machining is also recommended.

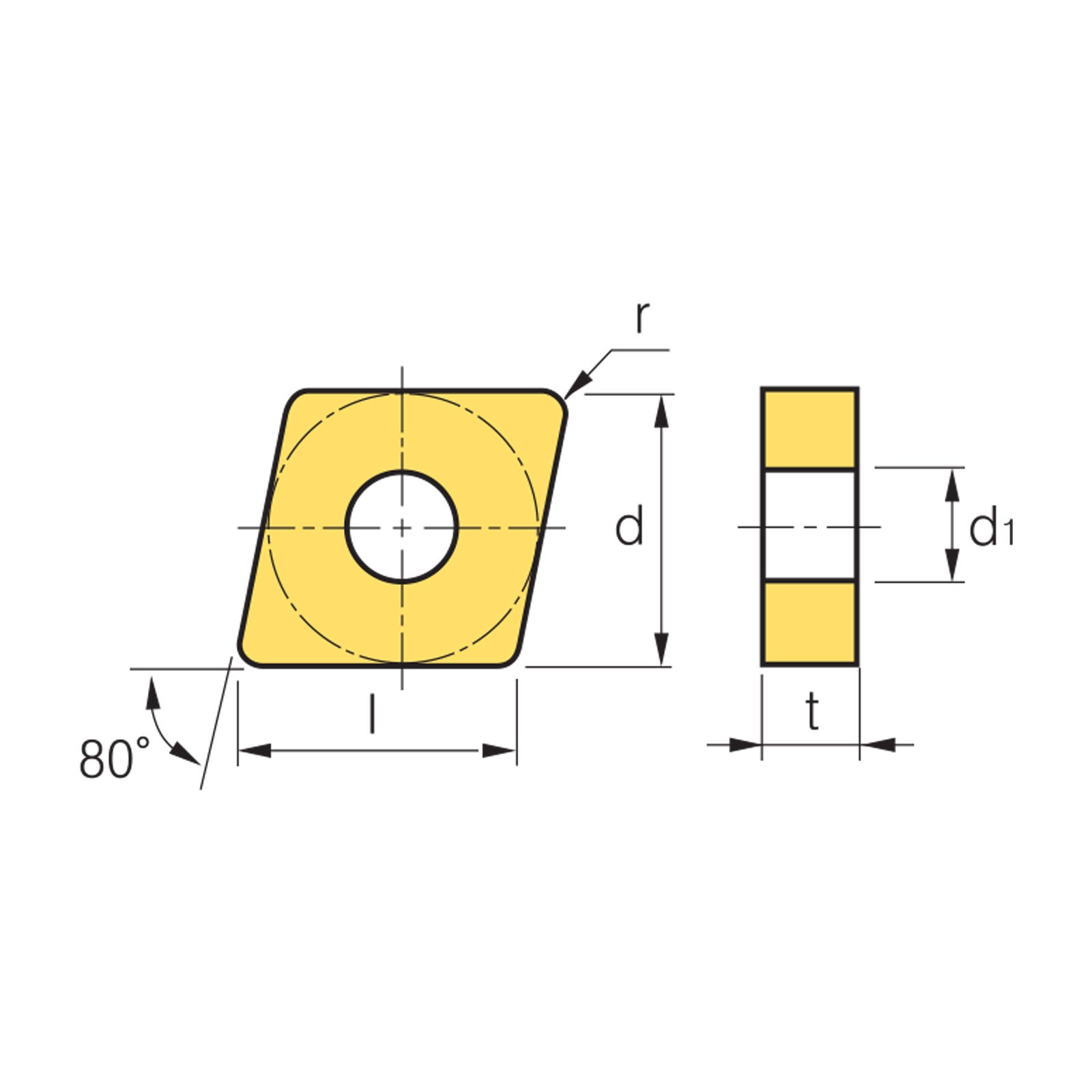

l (Length) 12
Product Range CBN Turning Inserts
Brand Korloy
Type Non-Regrindable (Multi Edge)
Style CNGA
Edge Prep Wiper (Fine Finishing)
No. Of Edges 2
Grade KB410 (High Speed Continuous)
d1 5.16
t 4.76
Applicable Materials Hardened Steel
r (Radius) 0.8
ISO Code CNGA120408
Cutwel Sku 6-01-018981
