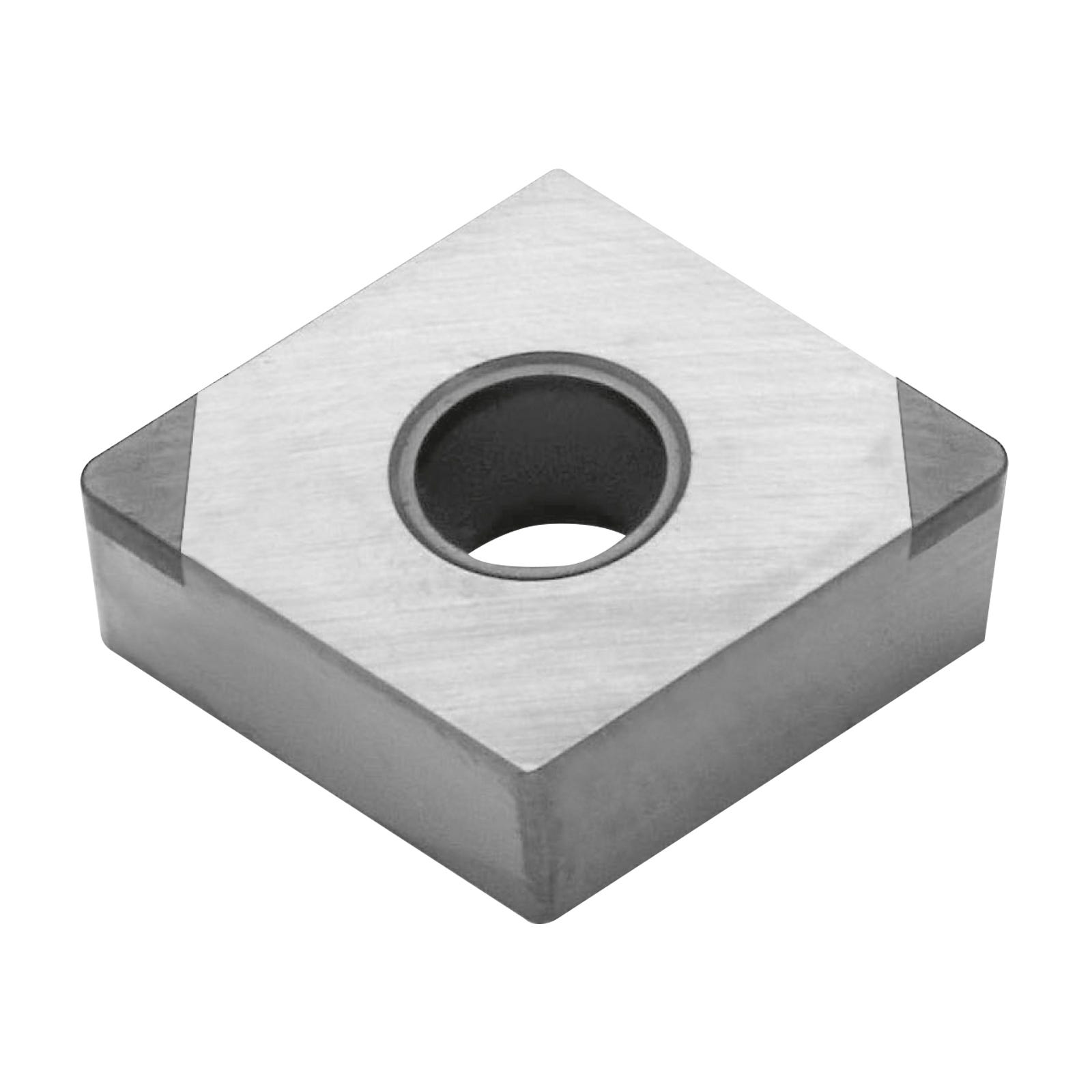

CNGA120412 KB330 CNGA Non-Regrindable (Single Edge) CBN Turning Inserts for Hardened Steel (Korloy)

£31.96 £26.63
Non-Regrindable (Single Edge) CNGA turning inserts from Korloy. Designed for machining high hardened steels. CBN inserts can eliminate the need for additional grinding processes. For best results with CBN turning inserts, use double clamp turning tools or boring bars. This should minimise vibration and maximise tool life. For hardened steel it is also recommended to machine dry.
  • H
In Stock
View all variants
Features & Benefits
  • CNGA style.
  • Rhomboid shape.
  • Non-regrindable (single cutting edge).
  • Designed for the machining of high hardened steels.
  • Uncoated.
  • Excellent wear resistance.
  • For the best results, use together with double clamp turning tool holders / boring bars. This minimises vibration and maximises tool / insert life.
  • Dry machining is also recommended.

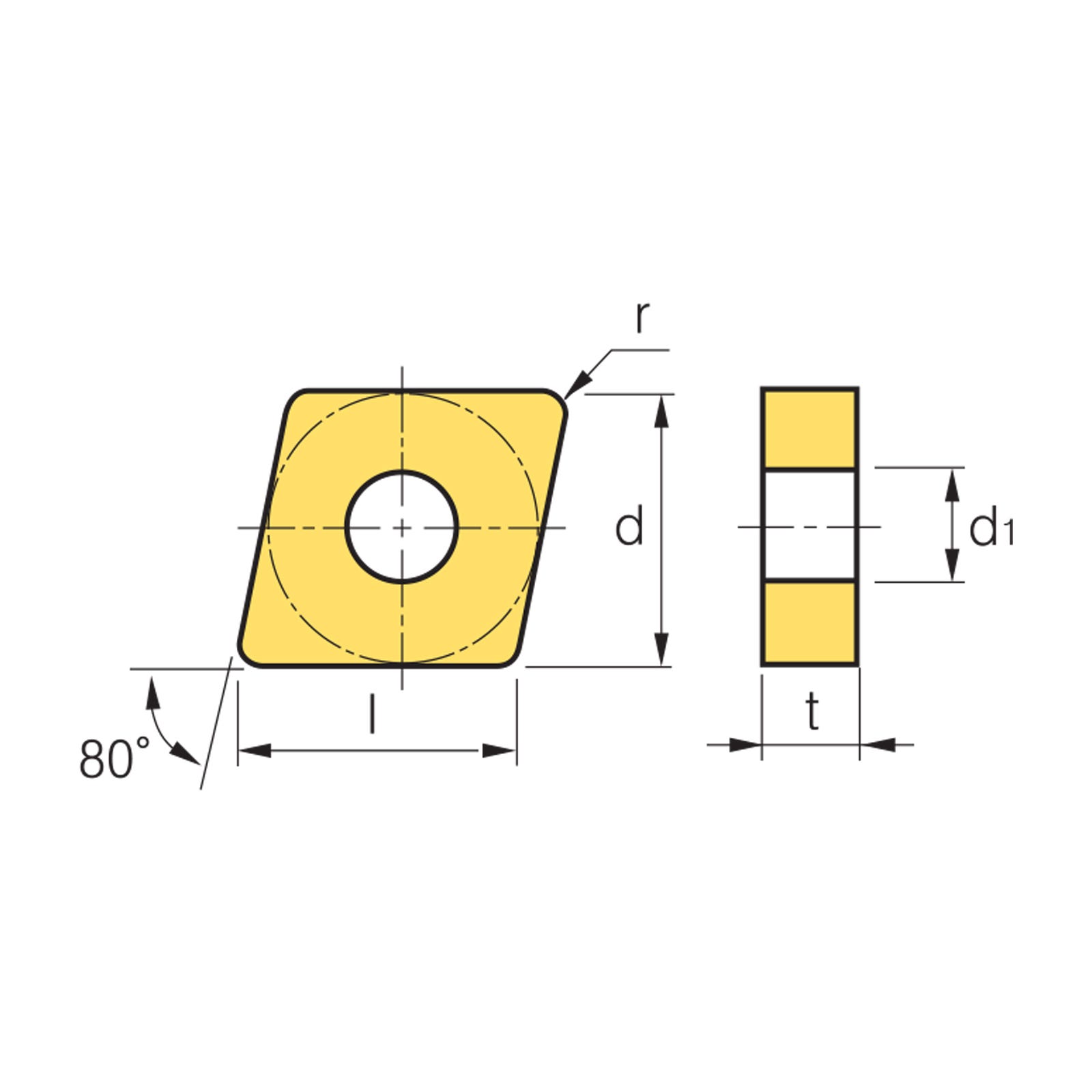

l (Length) 12
Product Range CBN Turning Inserts
Grade DBN300 (Low Speed Heavy Interrupted)
Applicable Materials Hardened Steel
Type Non-Regrindable (Single Edge)
Style CNGA
Edge Prep Standard (General)
No. Of Edges 1
d1 5.16
t 4.76
Brand Korloy
r (Radius) 1.2
ISO Code CNGA120412
Cutwel Sku 6-01-021545
