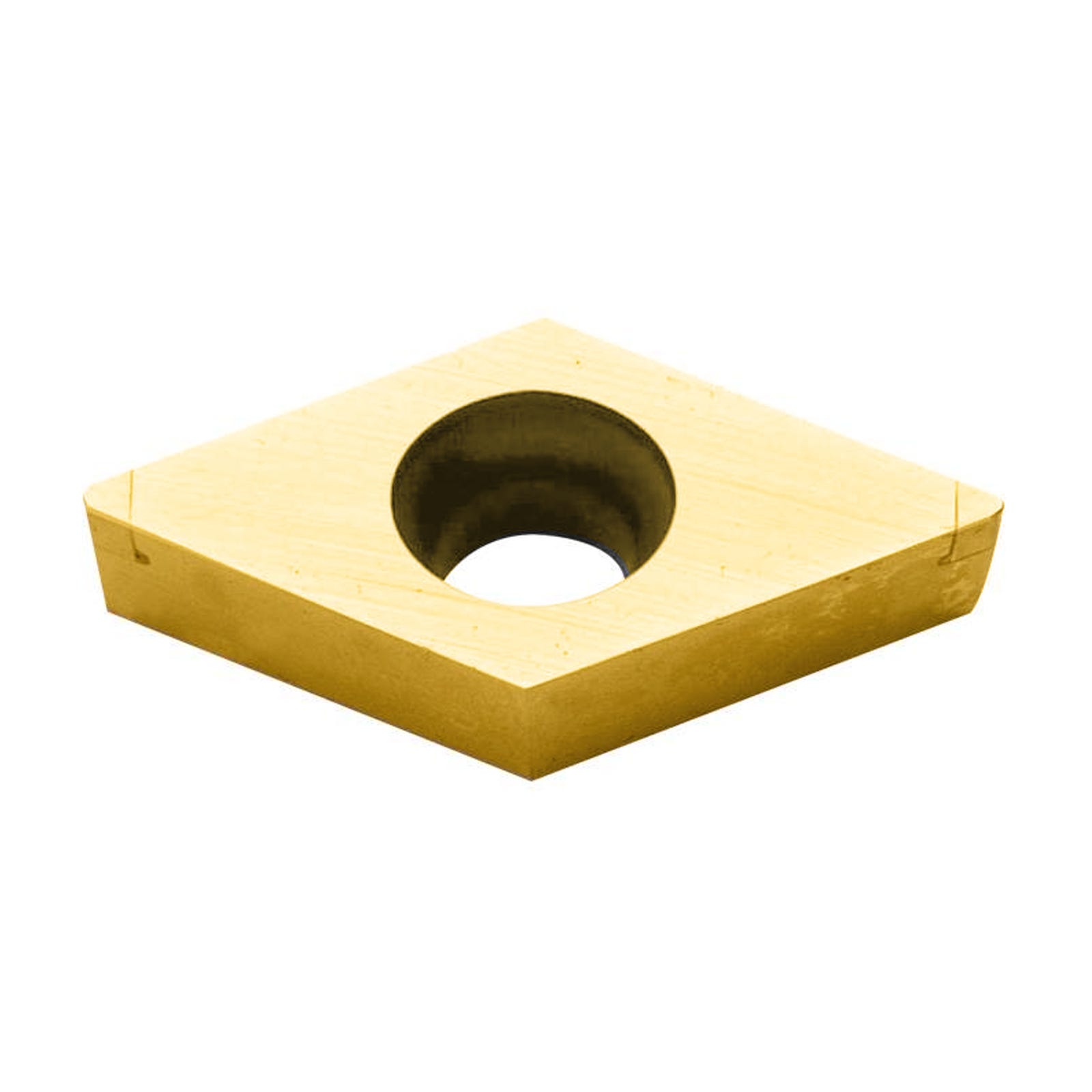

DCGW070204 DNC250 DCGW Coated (Multi-Edge) CBN Turning Inserts for Hardened Steel (Korloy)

(6-01-028123)
Now £52.94 £44.12 Was £62.29 £51.91
Coated (Multi-Edge) DCGW turning inserts from Korloy. Designed for machining high hardened steels. CBN inserts can eliminate the need for additional grinding processes. For best results with CBN turning inserts, use double clamp turning tools or boring bars. This should minimise vibration and maximise tool life. For hardened steel it is also recommended to machine dry.
  • H
In Stock
View all variants
Features & Benefits
  • DCGW style.
  • Diamond shape.
  • Non-Regrindable (multiple cutting edges).
  • DNC250 Grade - Designed for continuous high speed cutting of high hardened steels & cast iron.
  • CBN inserts can eliminate the need for additional grinding processes.
  • PVD Coated.
  • Excellent wear resistance.
  • For the best results, use together with double clamp turning tool holders / boring bars. This minimises vibration and maximises tool / insert life.
  • Dry machining is also recommended.

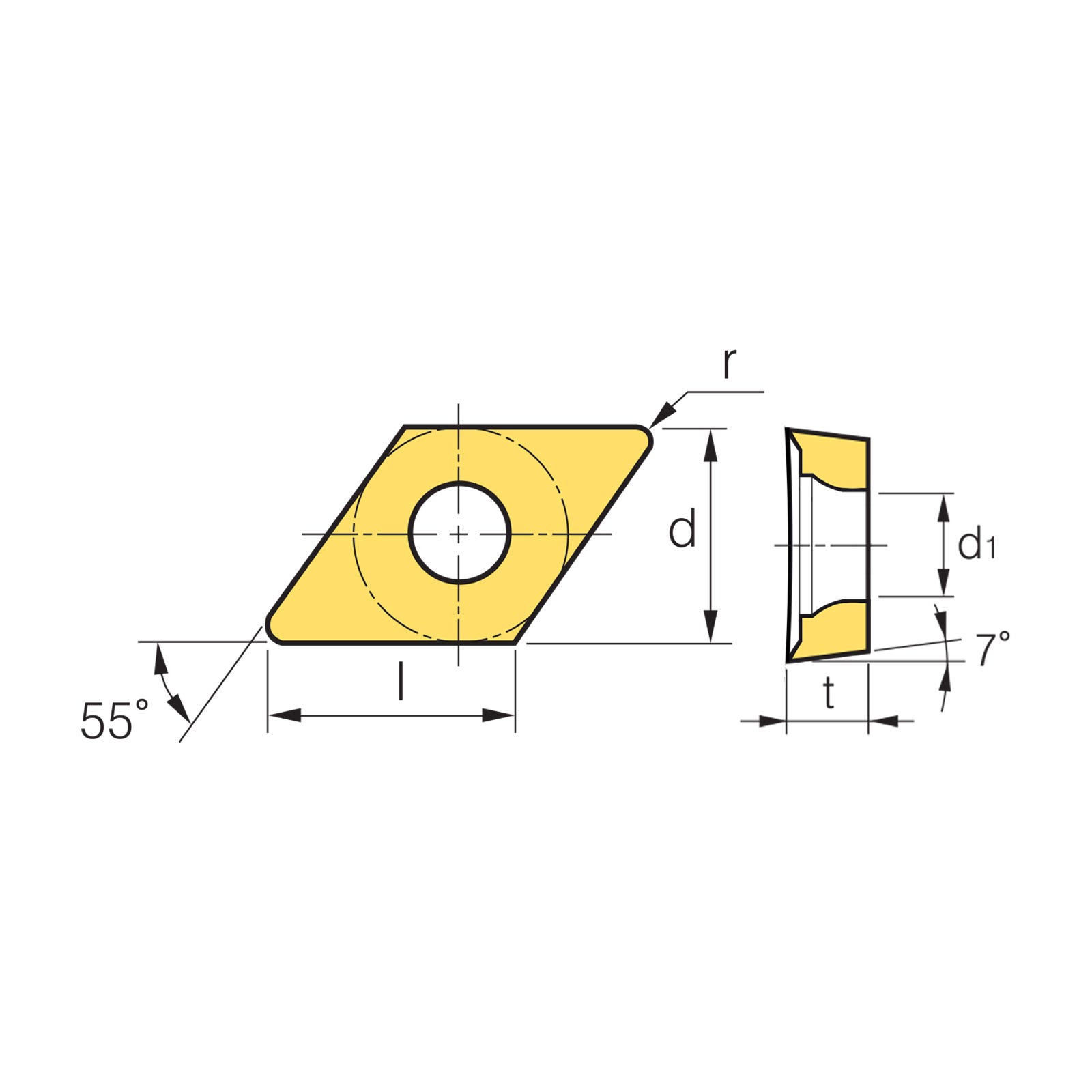

Specification
Specification
l (Length) 7
Product Range CBN Turning Inserts
Grade DNC250 (High Speed Continuous Cutting)
Applicable Materials Hardened Steel
Type Coated (Multi-Edge)
Style DCGW
Edge Prep Standard (General)
No. Of Edges 2
d1 2.8
t 2.38
Brand Korloy
r (Radius) 0.4
ISO Code DCGW070204
Cutwel Sku 6-01-028123
