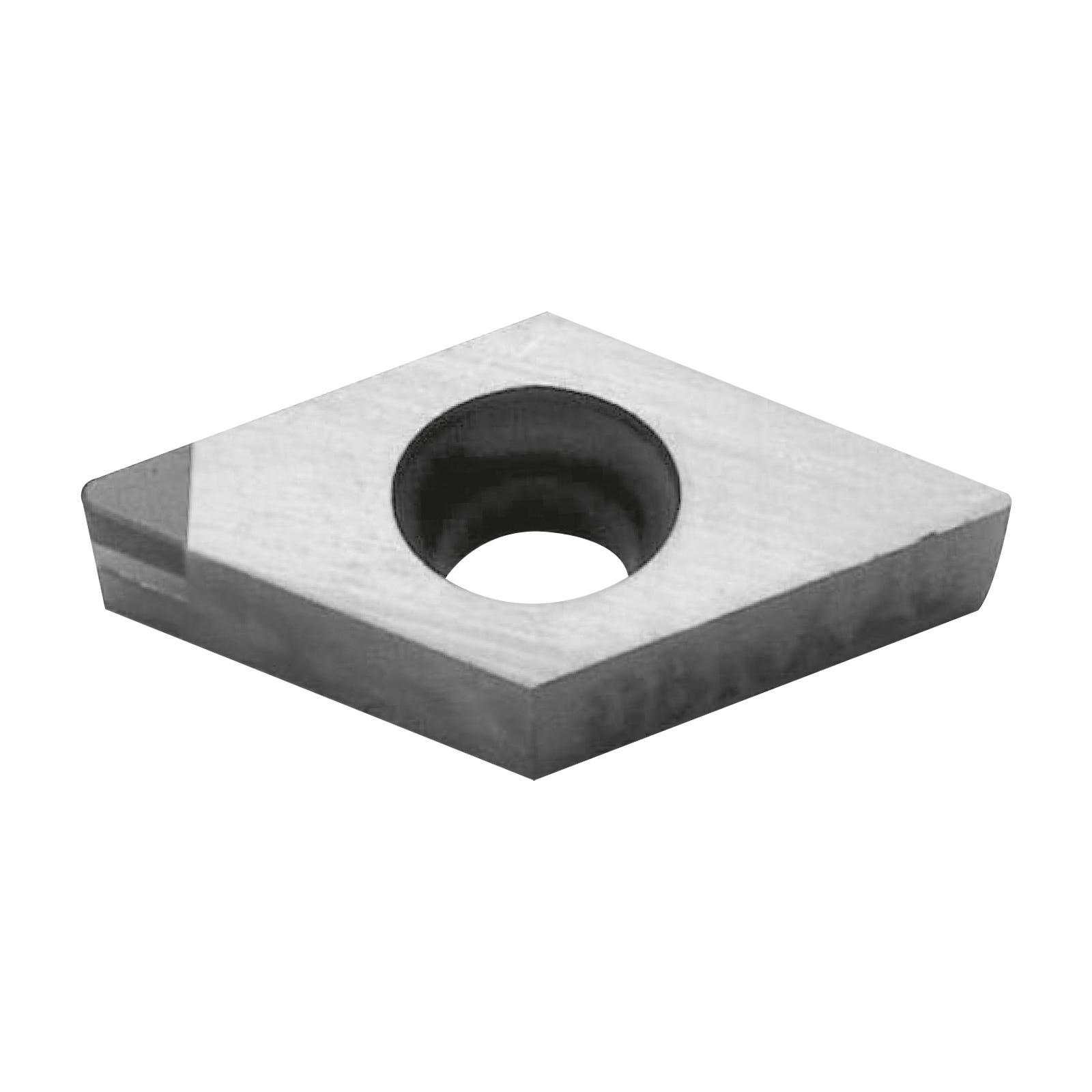

DCGW11T302 KB330 DCGW Non-Regrindable (Single Edge) CBN Turning Inserts for Hardened Steel (Korloy)

(6-01-016240)
£35.50 £29.58
Non-Regrindable (Single Edge) DCGW turning inserts from Korloy. Designed for machining high hardened steels. CBN inserts can eliminate the need for additional grinding processes. For best results with CBN turning inserts, use double clamp turning tools or boring bars. This should minimise vibration and maximise tool life. For hardened steel it is also recommended to machine dry.
  • H
Approx. 4 days. Subject to availability
View all variants
Features & Benefits
  • DCGW style.
  • Diamond shape.
  • Non-regrindable (single cutting edge).
  • Designed for the machining of high hardened steels.
  • Uncoated.
  • Excellent wear resistance.
  • For the best results, use together with double clamp turning tool holders / boring bars. This minimises vibration and maximises tool / insert life.
  • Dry machining is also recommended.

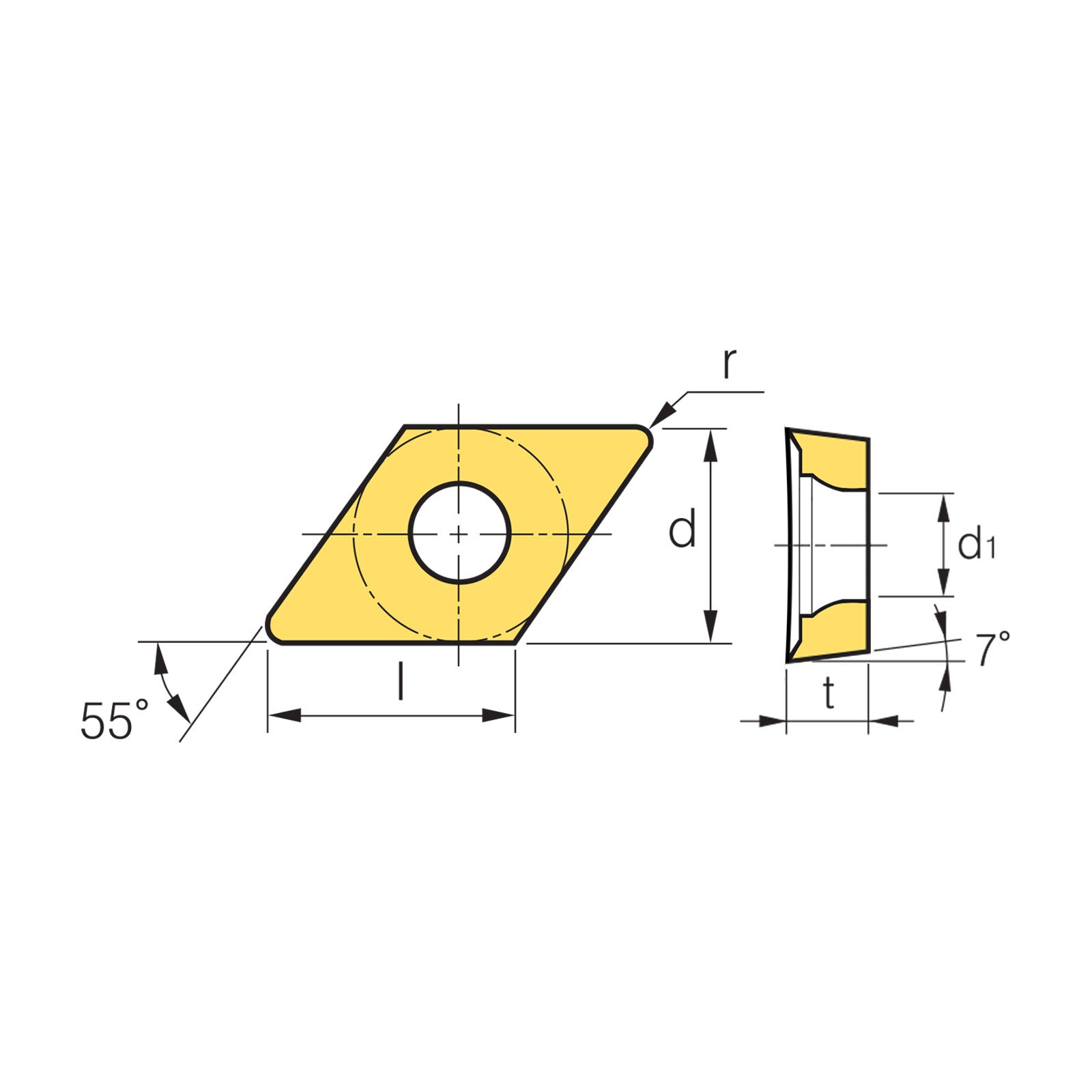

Specification
Specification
l (Length) 11
Product Range CBN Turning Inserts
Grade DBN300 (Low Speed Heavy Interrupted)
Applicable Materials Hardened Steel
Type Non-Regrindable (Single Edge)
Style DCGW
Edge Prep Standard (General)
No. Of Edges 1
d1 4.4
t 3.97
Brand Korloy
r (Radius) 0.2
ISO Code DCGW11T302
Cutwel Sku 6-01-016240
