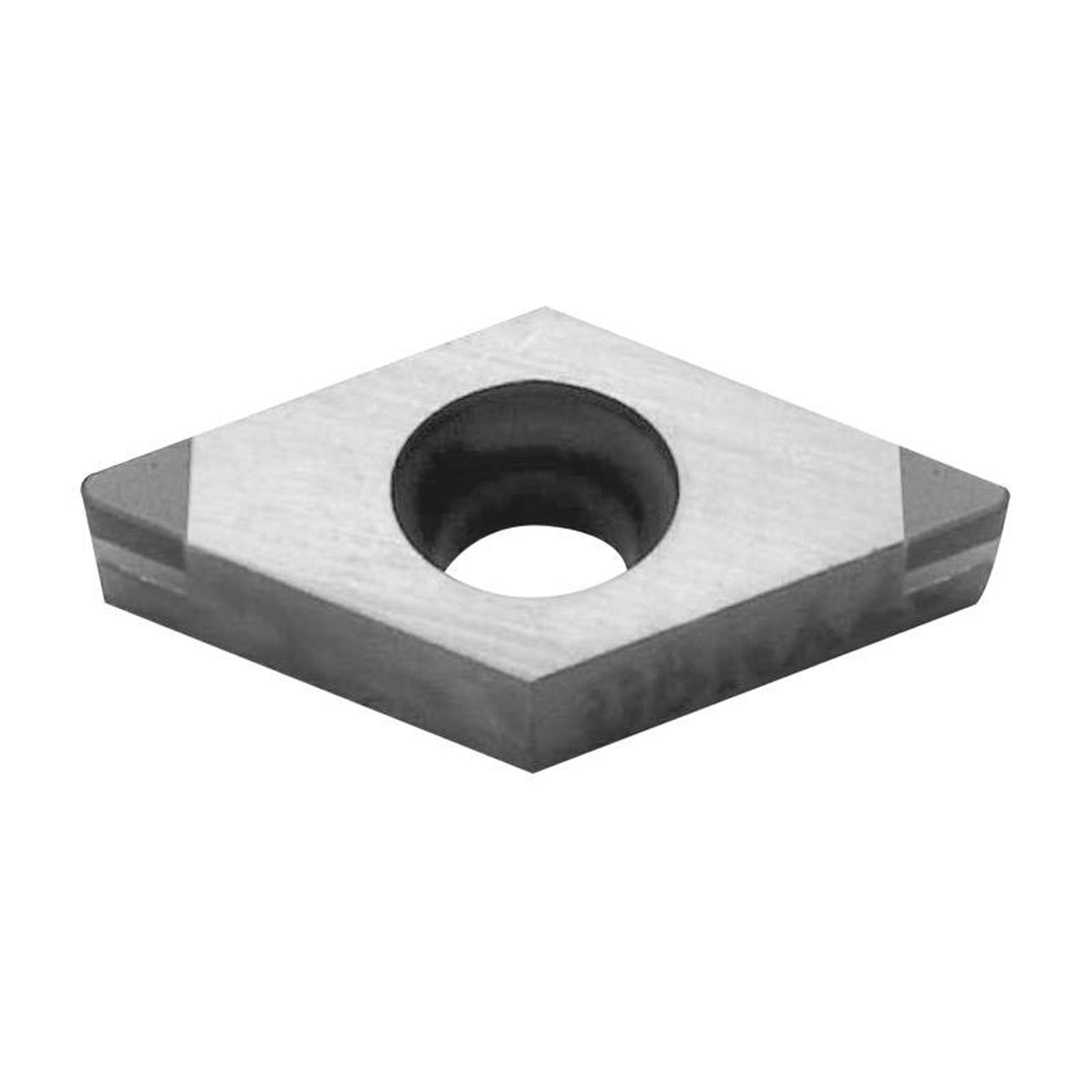

    DCGW11T308 KB410 DCGW Non-Regrindable (Multi Edge) CBN Turning Inserts for Hardened Steel (Korloy)

    (6-01-028144)
    £44.40 £37.00
    Non-Regrindable (Multi Edge) DCGW turning inserts from Korloy. Designed for machining high hardened steels. CBN inserts can eliminate the need for additional grinding processes. For best results with CBN turning inserts, use double clamp turning tools or boring bars. This should minimise vibration and maximise tool life. For hardened steel it is also recommended to machine dry.
    • H
    Approx. 3 days. Subject to availability
    View all variants
    Features & Benefits
    • DCGW style.
    • Diamond shape.
    • Non-regrindable (multiple cutting edges).
    • Designed for machining high hardened steels.
    • Uncoated.
    • Excellent wear resistance.
    • For the best results, use together with double clamp turning tool holders / boring bars. This minimises vibration and maximises tool / insert life.
    • Dry machining is also recommended.
    Specification
    Specification

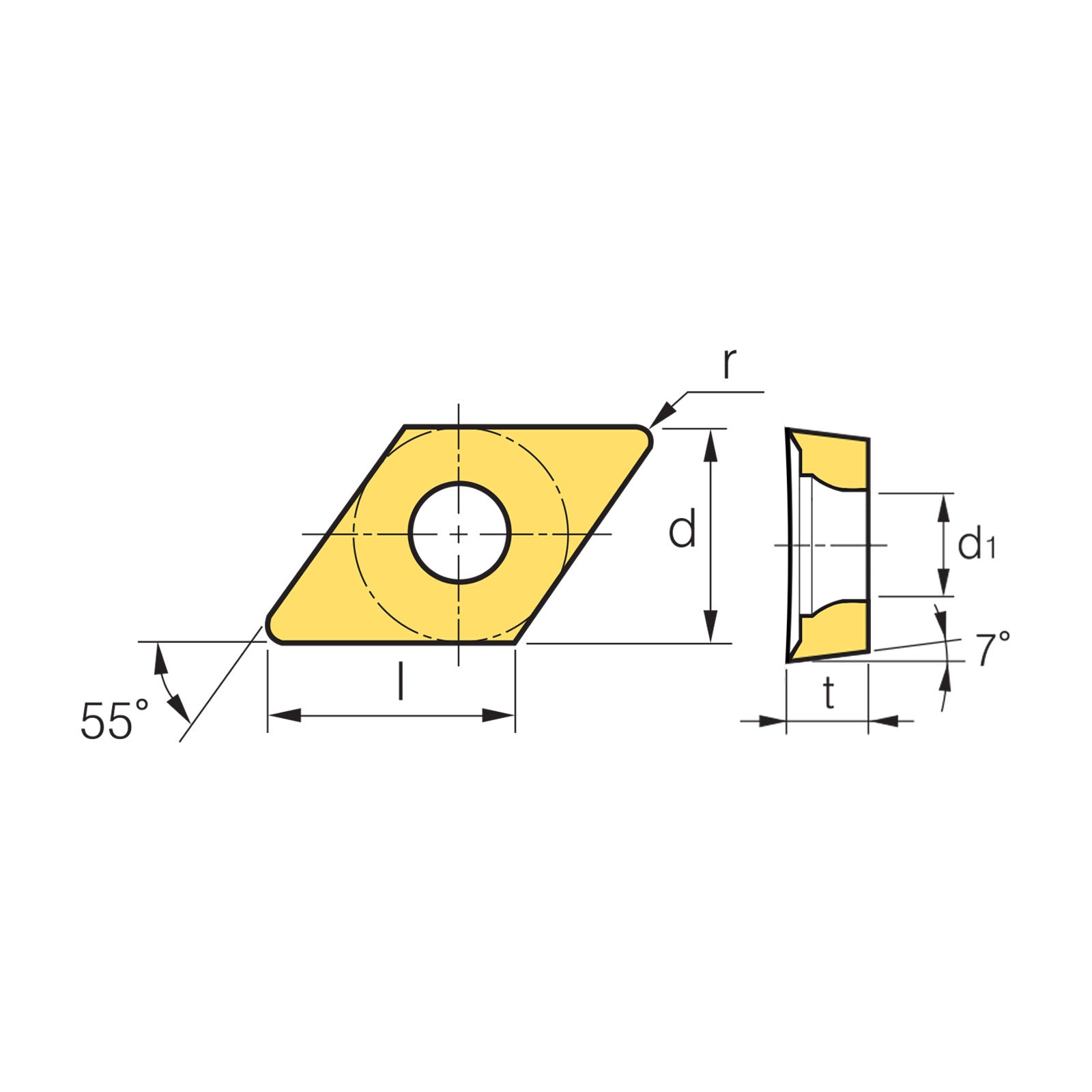

    l (Length) 11
    Applicable Materials Hardened Steel
    Brand Korloy
    Grade DBNX10 (High Speed Continuous)
    Type Non-Regrindable (Multi Edge)
    Style DCGW
    Edge Prep Standard (General)
    No. Of Edges 2
    d1 4.4
    t 3.97
    ISO Code DCGW11T308
    r (Radius) 0.8
    Product Range CBN Turning Inserts
    Cutwel Sku 6-01-028144
