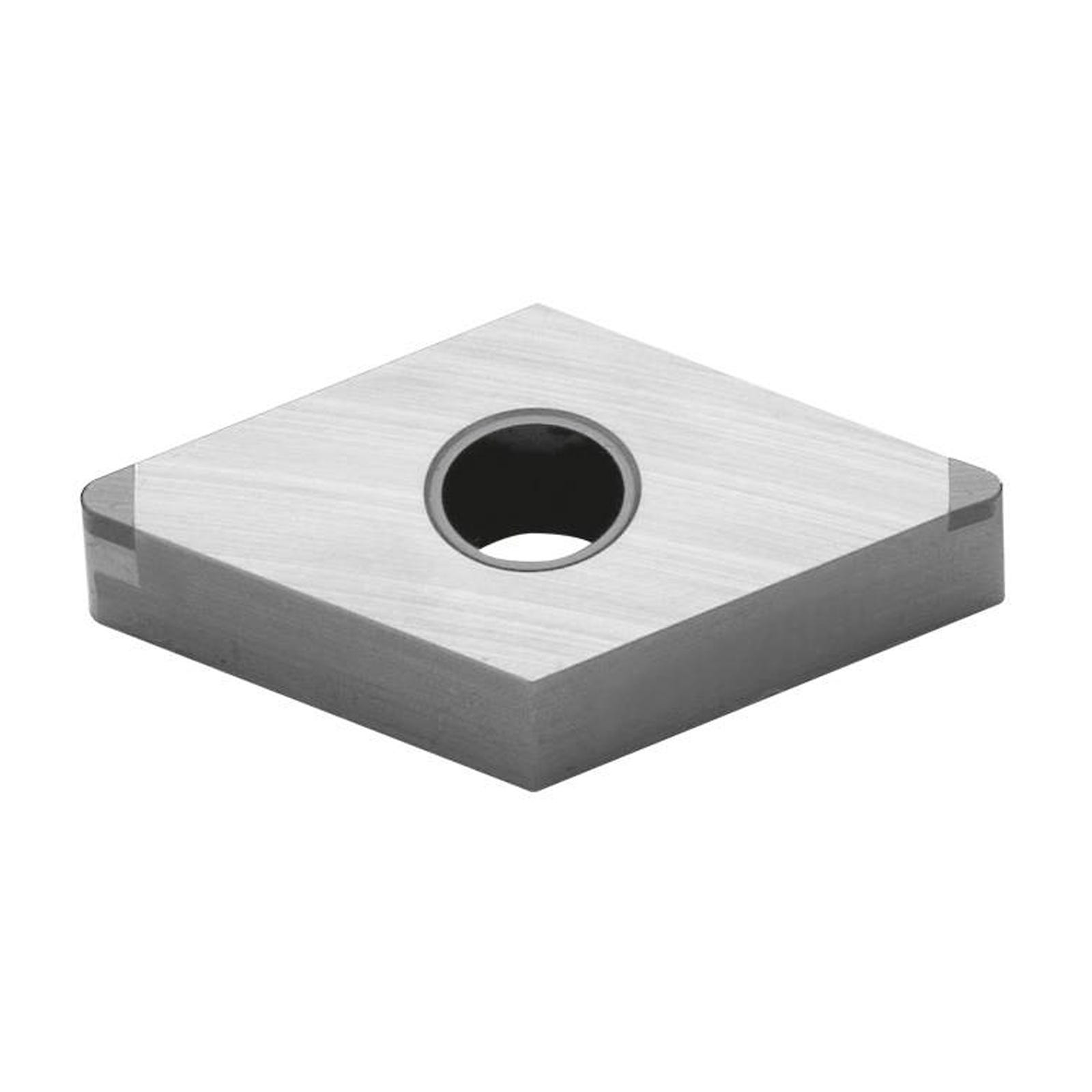

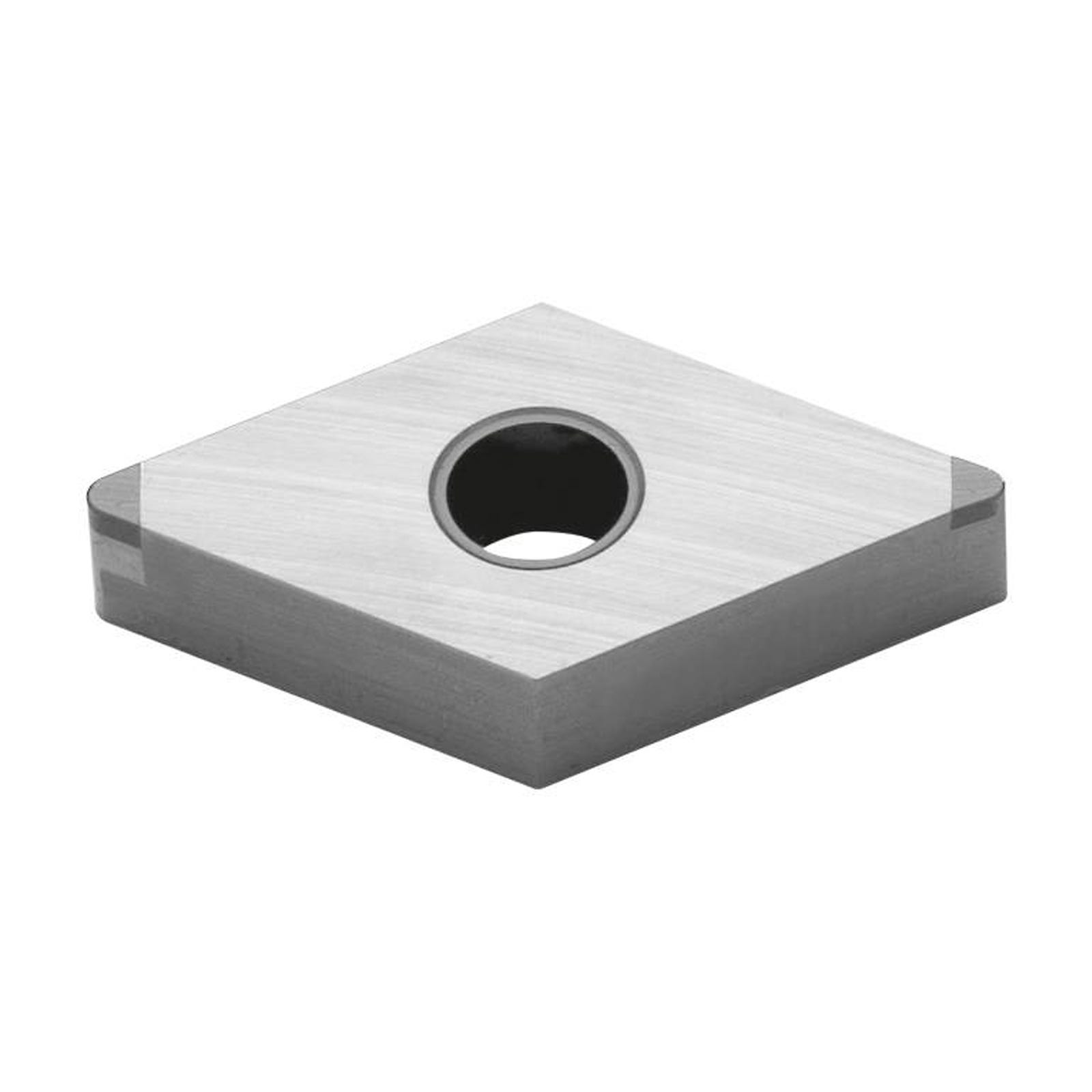

DNGA150604 KB410 DNGA Non-Regrindable (Multi Edge) CBN Turning Inserts for Hardened Steel (Korloy)

(6-01-028156)
£52.38 £43.65
Non-Regrindable (Multi Edge) DNGA turning inserts from Korloy. Designed for machining high hardened steels. CBN inserts can eliminate the need for additional grinding processes. For best results with CBN turning inserts, use double clamp turning tools or boring bars. This should minimise vibration and maximise tool life. For hardened steel it is also recommended to machine dry.
  • H
Approx. 3 days. Subject to availability
View all variants
Features & Benefits
  • DNGA style.
  • Diamond shape.
  • Non-regrindable (multiple cutting edges).
  • Designed for machining high hardened steels.
  • Uncoated.
  • Excellent wear resistance.
  • For the best results, use together with double clamp turning tool holders / boring bars. This minimises vibration and maximises tool / insert life.
  • Dry machining is also recommended.

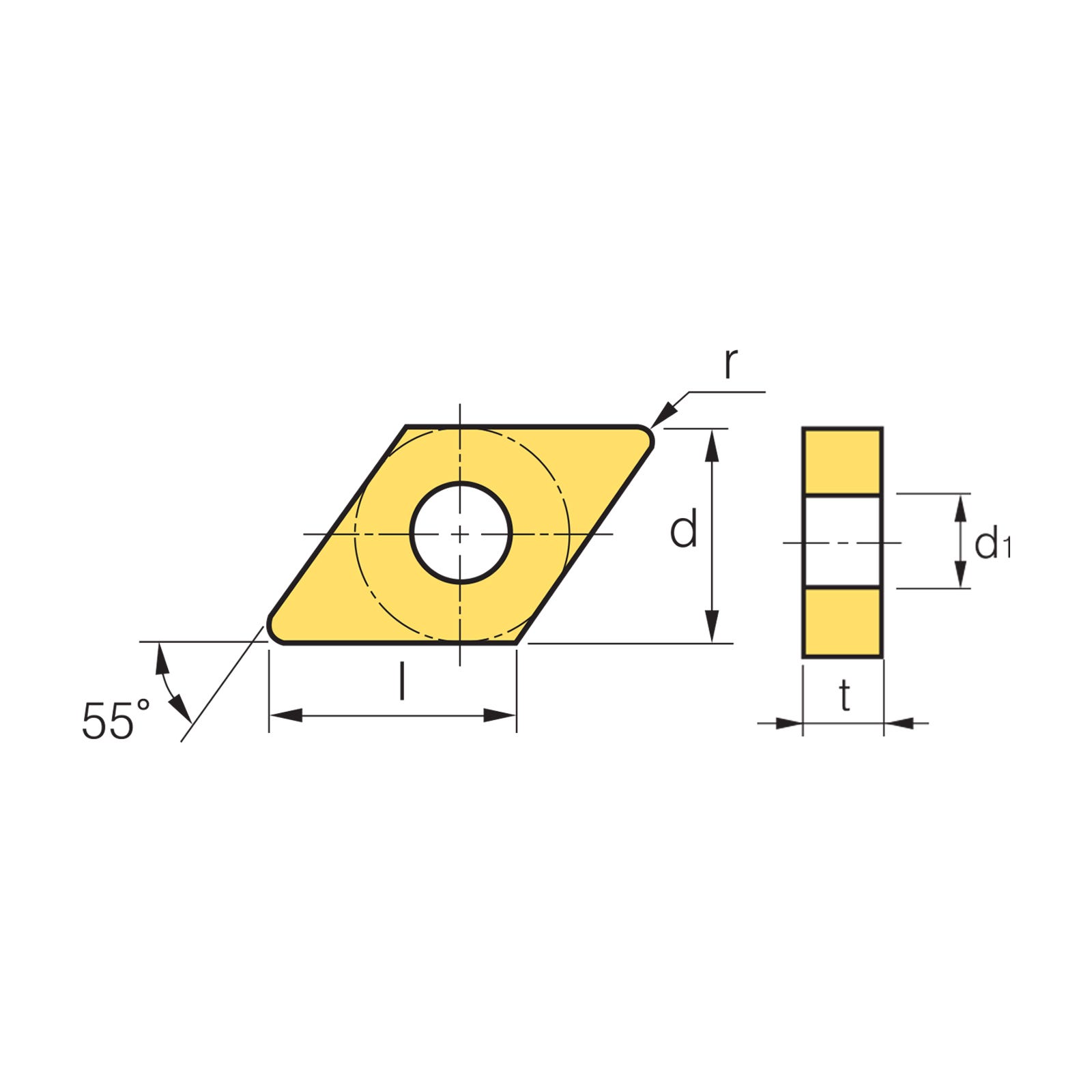

Specification
Specification
l (Length) 15
Product Range CBN Turning Inserts
Brand Korloy
Type Non-Regrindable (Multi Edge)
Style DNGA
Edge Prep Standard (General)
No. Of Edges 2
Grade KB410 (High Speed Continuous)
d1 5.16
t 6.35
Applicable Materials Hardened Steel
r (Radius) 0.4
ISO Code DNGA150604
Cutwel Sku 6-01-028156
