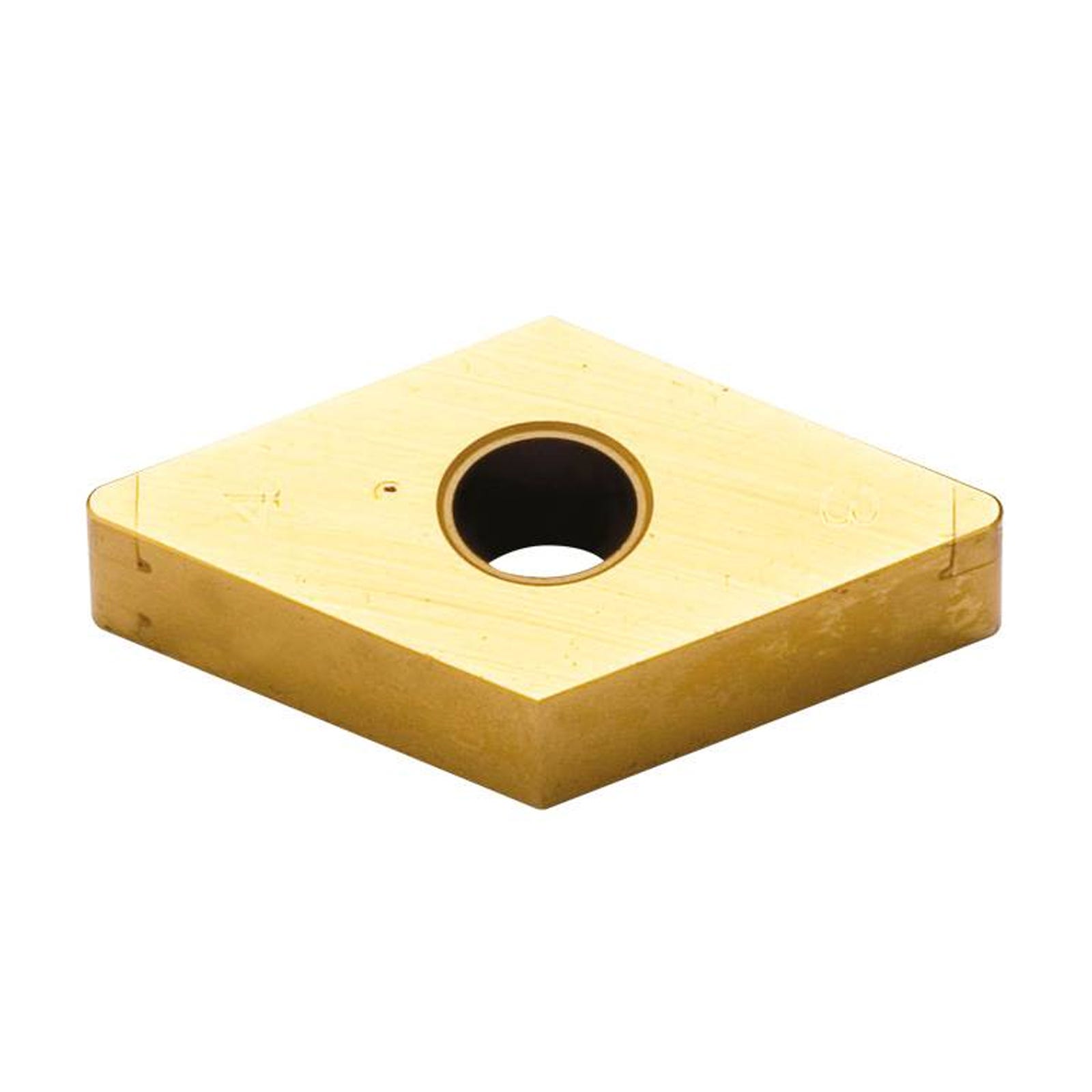

DNGA150608 DNC250 DNGA Coated (Multi-Edge) CBN Turning Inserts for Hardened Steel (Korloy)

(6-01-027739)
£96.79 £80.66
Coated (Multi-Edge) DNGA turning inserts from Korloy. Designed for machining high hardened steels. CBN inserts can eliminate the need for additional grinding processes. For best results with CBN turning inserts, use double clamp turning tools or boring bars. This should minimise vibration and maximise tool life. For hardened steel it is also recommended to machine dry.
  • H
Approx. 4 days. Subject to availability
View all variants
Features & Benefits
  • DNGA style.
  • Diamond shape.
  • Non-Regrindable (multiple cutting edges).
  • DNC250 Grade - Designed for continuous high speed cutting of high hardened steels & cast iron.
  • CBN inserts can eliminate the need for additional grinding processes.
  • PVD Coated.
  • Excellent wear resistance.
  • For the best results, use together with double clamp turning tool holders / boring bars. This minimises vibration and maximises tool / insert life.
  • Dry machining is also recommended.

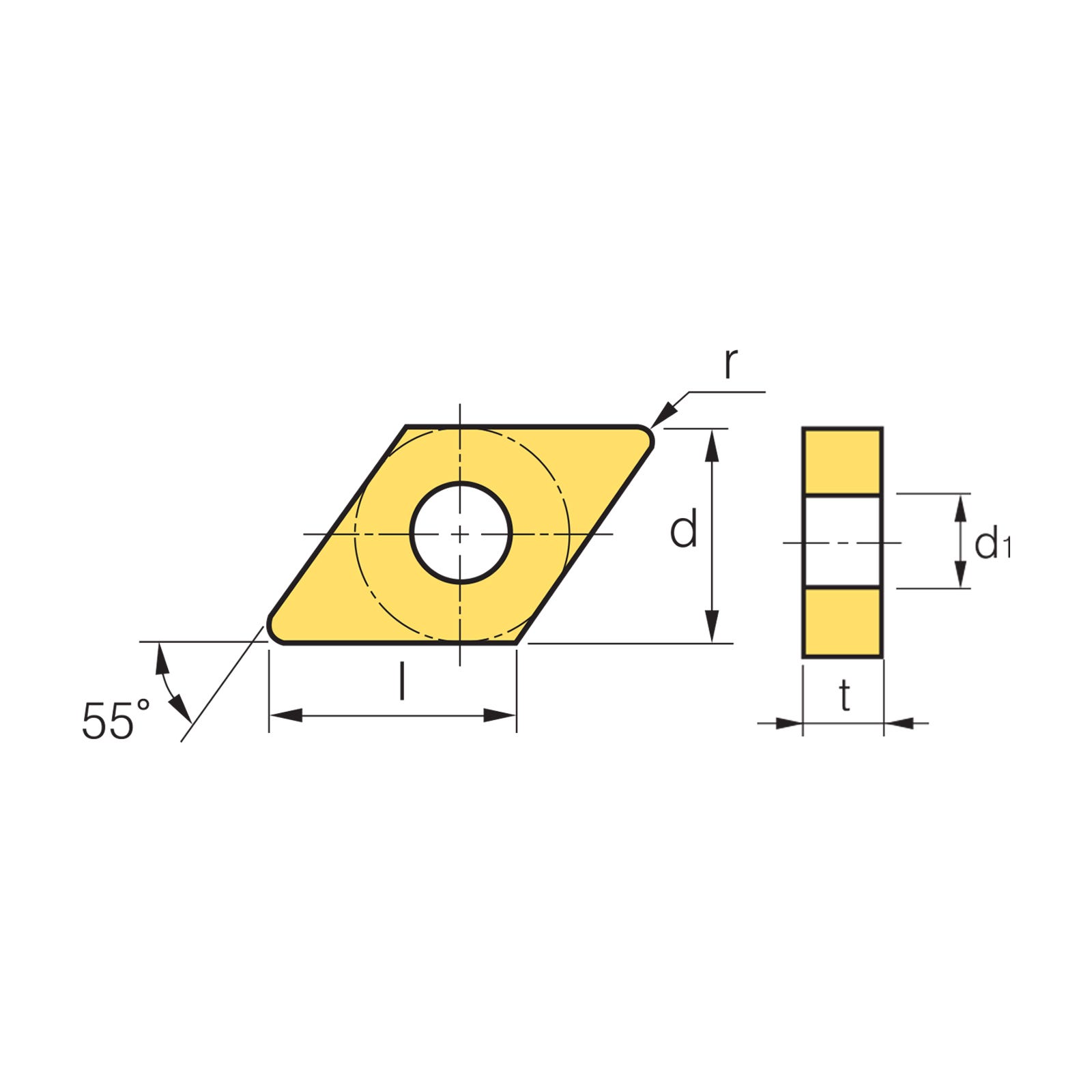

Specification
Specification
l (Length) 15
Product Range CBN Turning Inserts
Brand Korloy
Type Coated (Multi-Edge)
Style DNGA
Edge Prep Strong Edge (Roughing)
No. Of Edges 4
Grade DNC250 (High Speed Continuous Cutting)
d1 5.16
t 6.35
Applicable Materials Hardened Steel
r (Radius) 0.8
ISO Code DNGA150608
Cutwel Sku 6-01-027739
