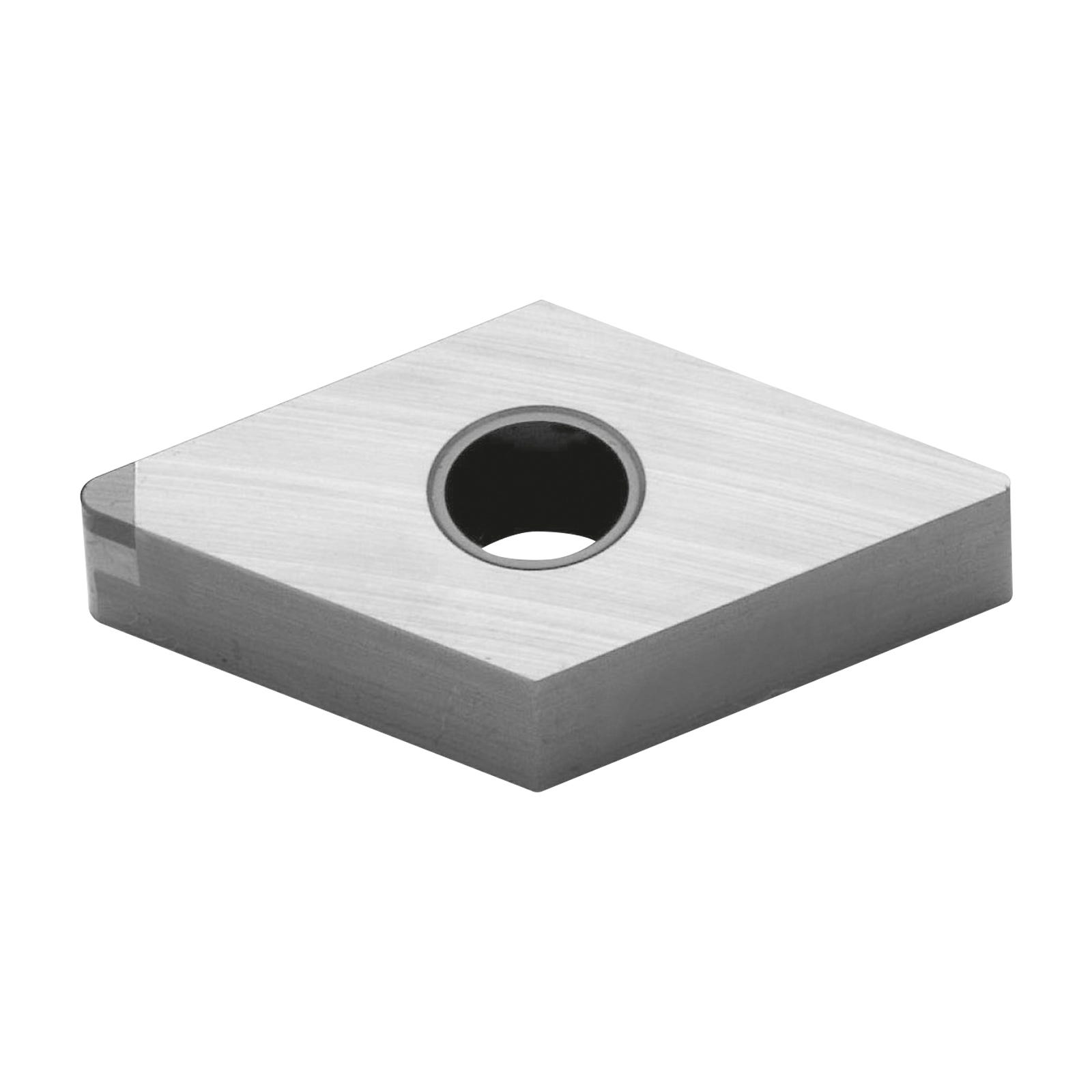

DNGA150608 KB330 DNGA Regrindable CBN Turning Inserts for Hardened Steel (Korloy)

(6-01-021515)
£46.02 £38.35
Regrindable DNGA turning inserts from Korloy. Designed for machining high hardened steels. CBN inserts can eliminate the need for additional grinding processes. For best results with CBN turning inserts, use double clamp turning tools or boring bars. This should minimise vibration and maximise tool life. For hardened steel it is also recommended to machine dry.
  • H
In Stock
View all variants
Features & Benefits
  • DNGA style.
  • Diamond shape.
  • Regrindable (single cutting edge).
  • Designed for the machining of high hardened steels.
  • CBN inserts can eliminate the need for additional grinding processes.
  • Uncoated.
  • Excellent wear resistance.
  • For the best results, use together with double clamp turning tool holders / boring bars. This minimises vibration and maximises tool / insert life.
  • Dry machining is also recommended.
Specification
Specification
l (Length) 15
Product Range CBN Turning Inserts
Brand Korloy
Type Regrindable
Style DNGA
Edge Prep Standard (General)
No. Of Edges 1
Grade KB330 (Low Speed Heavy Interrupted)
d1 5.16
t 6.35
Applicable Materials Hardened Steel
r (Radius) 0.8
ISO Code DNGA150608
Cutwel Sku 6-01-021515
