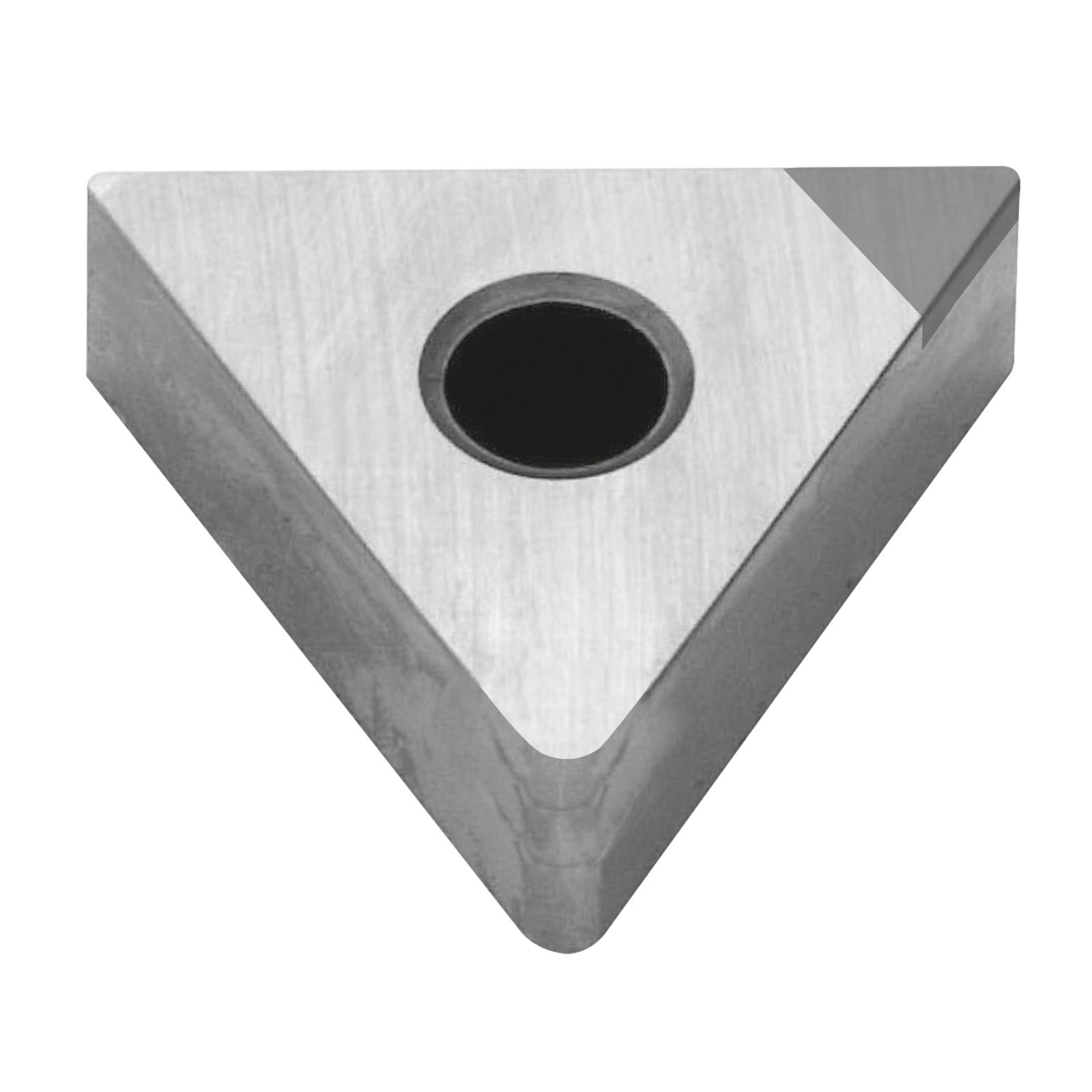

TCGW16T308 KB330 TCGW Non-Regrindable (Single Edge) CBN Turning Inserts for Hardened Steel (Korloy)

£33.32 £27.77
Non-Regrindable (Single Edge) TCGW turning inserts from Korloy. Designed for machining high hardened steels. CBN inserts can eliminate the need for additional grinding processes. For best results with CBN turning inserts, use double clamp turning tools or boring bars. This should minimise vibration and maximise tool life. For hardened steel it is also recommended to machine dry.
  • H
In Stock
View all variants
Features & Benefits
  • TCGW style.
  • Triangular shape.
  • Non-regrindable (single cutting edge).
  • Designed for the machining of high hardened steels.
  • Uncoated.
  • Excellent wear resistance.
  • For the best results, use together with double clamp turning tool holders / boring bars. This minimises vibration and maximises tool / insert life.
  • Dry machining is also recommended.

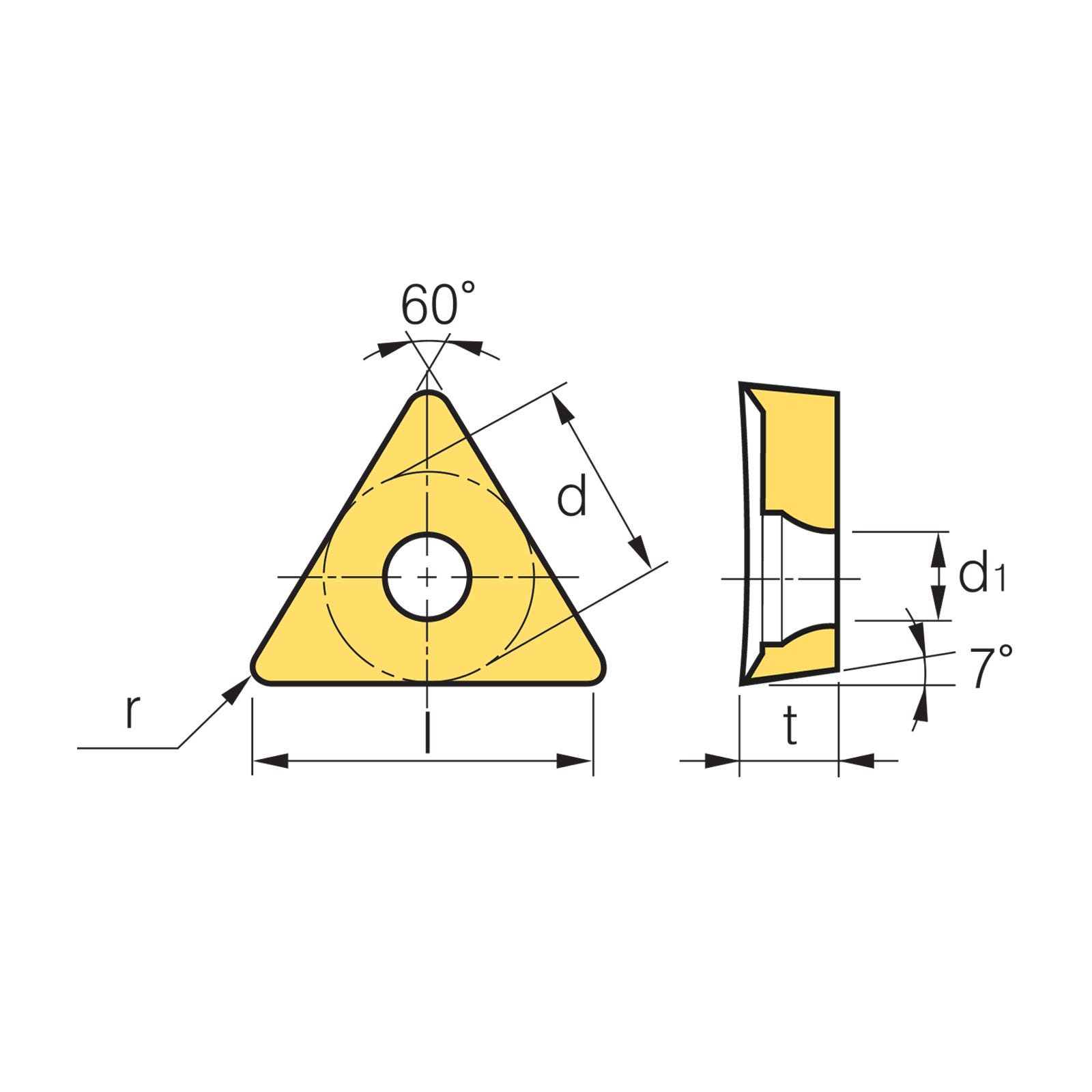

l (Length) 16
Product Range CBN Turning Inserts
Brand Korloy
Type Non-Regrindable (Single Edge)
Style TCGW
Edge Prep Standard (General)
No. Of Edges 1
Grade KB330 (Low Speed Heavy Interrupted)
d1 4.4
t 3.97
Applicable Materials Hardened Steel
r (Radius) 0.8
ISO Code TCGW16T308
Cutwel Sku 6-01-021583
