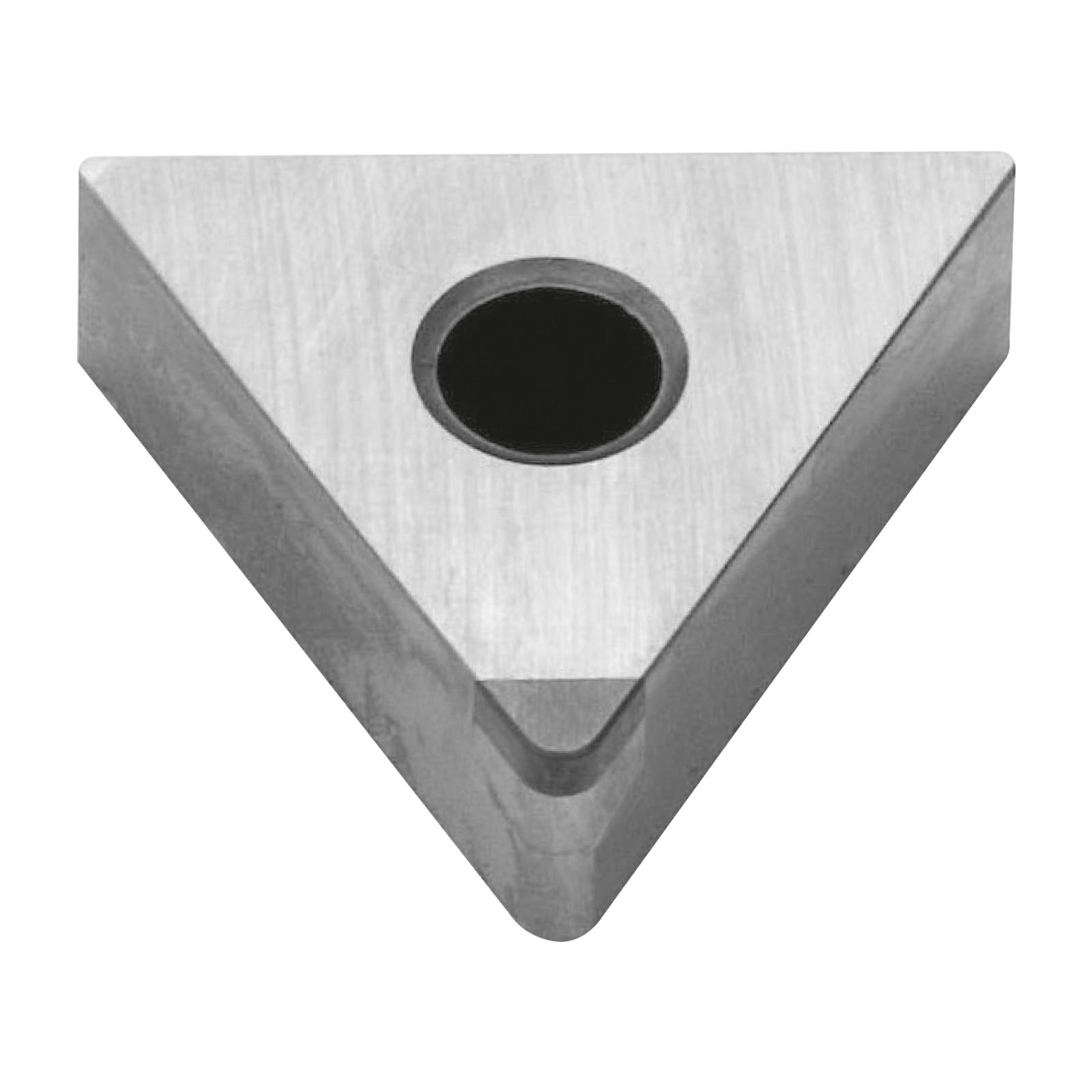

TNGA220408 KB320 TNGA Non-Regrindable (Single Edge) CBN Turning Inserts for Hardened Steel (Korloy)

(6-01-021590)
£33.49 £27.91
Non-Regrindable (Single Edge) TNGA turning inserts from Korloy. Designed for machining high hardened steels. CBN inserts can eliminate the need for additional grinding processes. For best results with CBN turning inserts, use double clamp turning tools or boring bars. This should minimise vibration and maximise tool life. For hardened steel it is also recommended to machine dry.
  • H
Approx. 4 days. Subject to availability
View all variants
Features & Benefits
  • TNGA style.
  • Triangular shape.
  • Non-regrindable (single cutting edge).
  • High percentage of CBN.
  • High solidity and heat conductivity by optimizing small connective tissue.
  • CBN inserts can eliminate the need for additional grinding processes.
  • Uncoated.
  • Excellent wear resistance.
  • For the best results, use together with double clamp turning tool holders / boring bars. This minimises vibration and maximises tool / insert life.
  • Dry machining is also recommended.

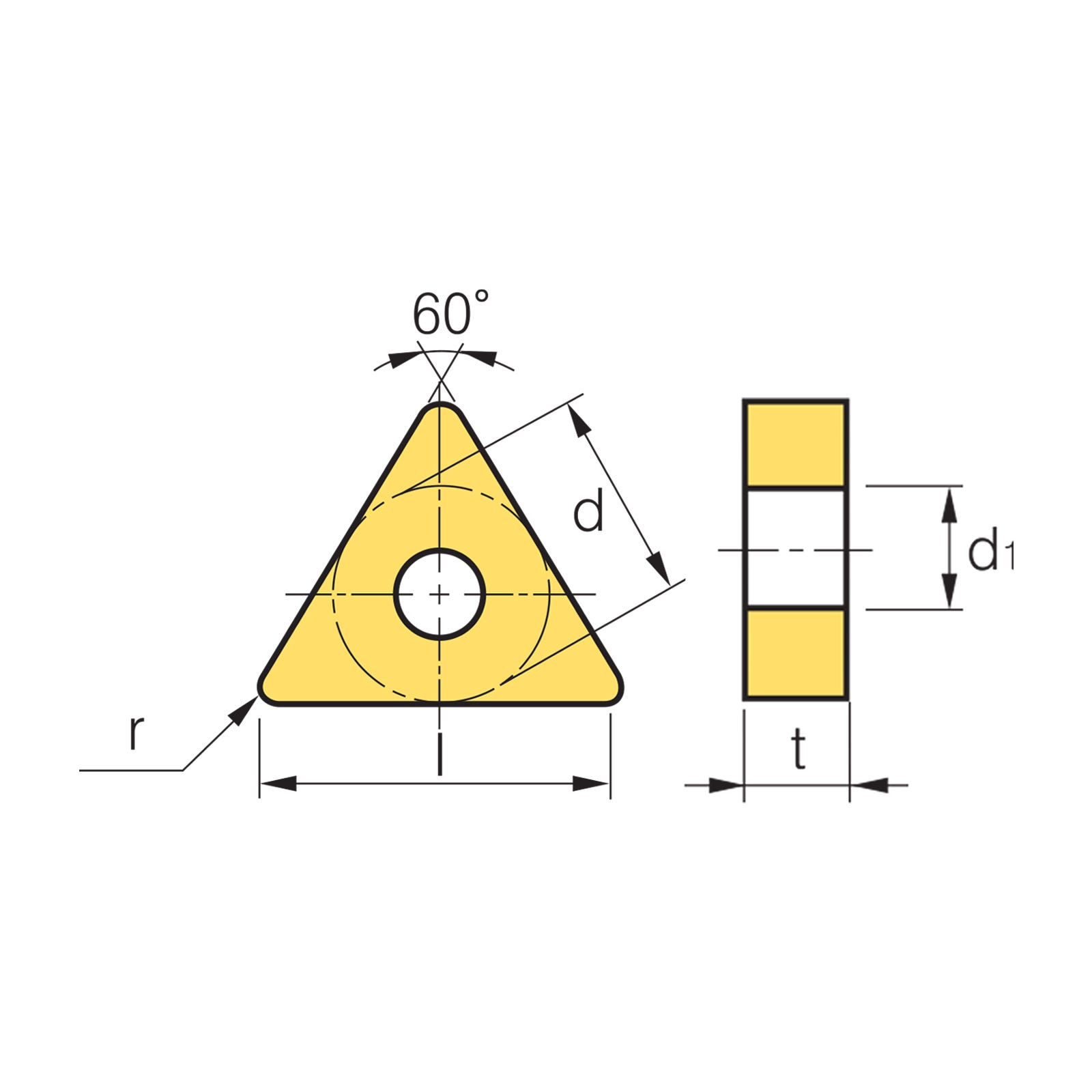

Specification
Specification
l (Length) 22
Product Range CBN Turning Inserts
Brand Korloy
Type Non-Regrindable (Single Edge)
Style TNGA
Edge Prep Standard (General)
No. Of Edges 1
Grade KB320 (Medium/Low Speed Interrupted)
d1 5.16
t 4.76
Applicable Materials Hardened Steel
r (Radius) 0.8
ISO Code TNGA220408
Cutwel Sku 6-01-021590
