VBGW110304 KB420 VBGW Non-Regrindable (Multi Edge) CBN Turning Inserts for Hardened Steel (Korloy)

£63.49 £52.91
Non-Regrindable (Multi Edge) VBGW turning inserts from Korloy. Designed for machining high hardened steels. CBN inserts can eliminate the need for additional grinding processes. For best results with CBN turning inserts, use double clamp turning tools or boring bars. This should minimise vibration and maximise tool life. For hardened steel it is also recommended to machine dry.
  • H
Approx. 4 days. Subject to availability
View all variants
Features & Benefits
  • VBGW style.
  • Rhomboid 35 Degree shape.
  • Non-regrindable (multiple cutting edges).
  • High percentage of CBN.
  • High solidity and heat conductivity by optimizing small connective tissue.
  • CBN inserts can eliminate the need for additional grinding processes.
  • Uncoated.
  • Excellent wear resistance.
  • For the best results, use together with double clamp turning tool holders / boring bars. This minimises vibration and maximises tool / insert life.
  • Dry machining is also recommended.

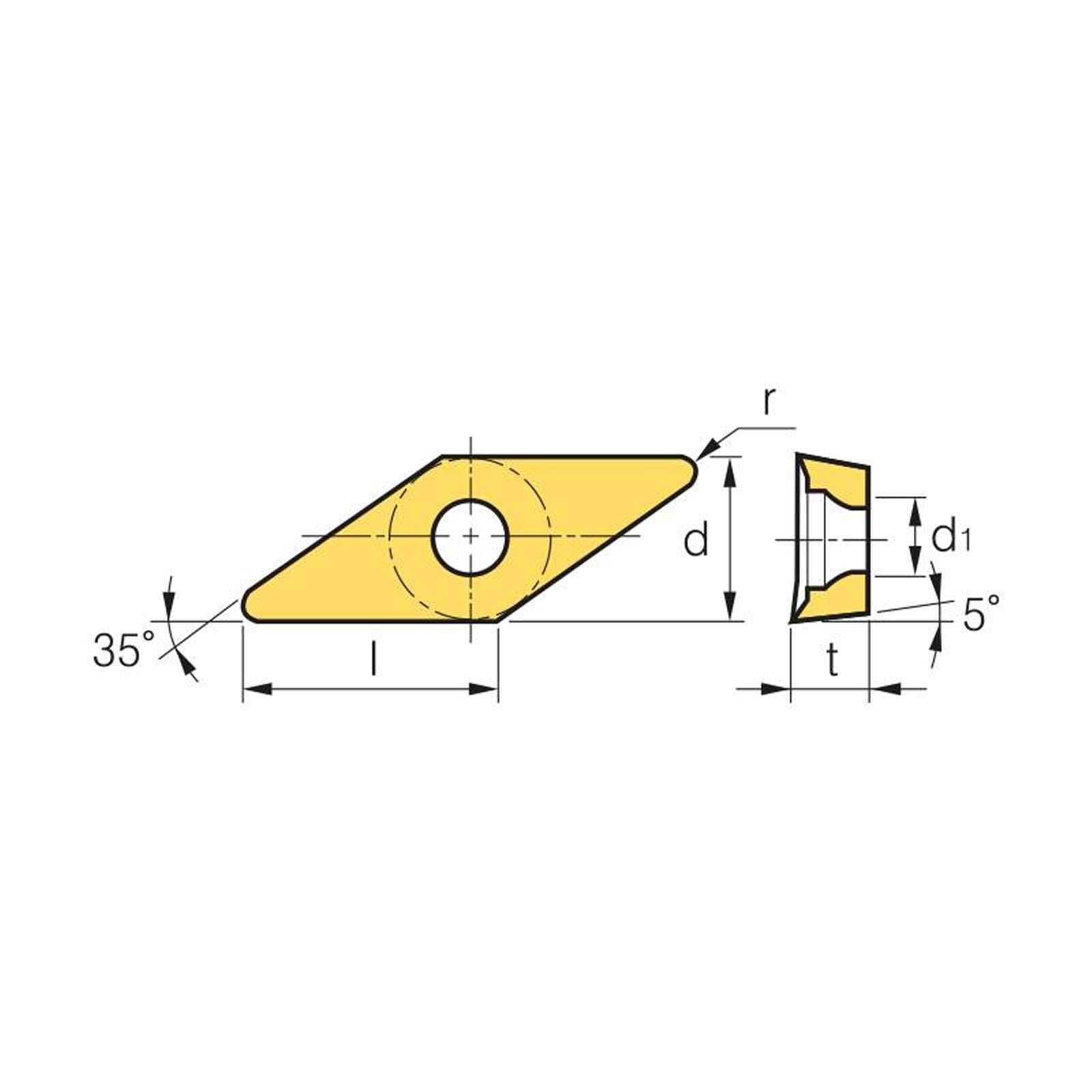

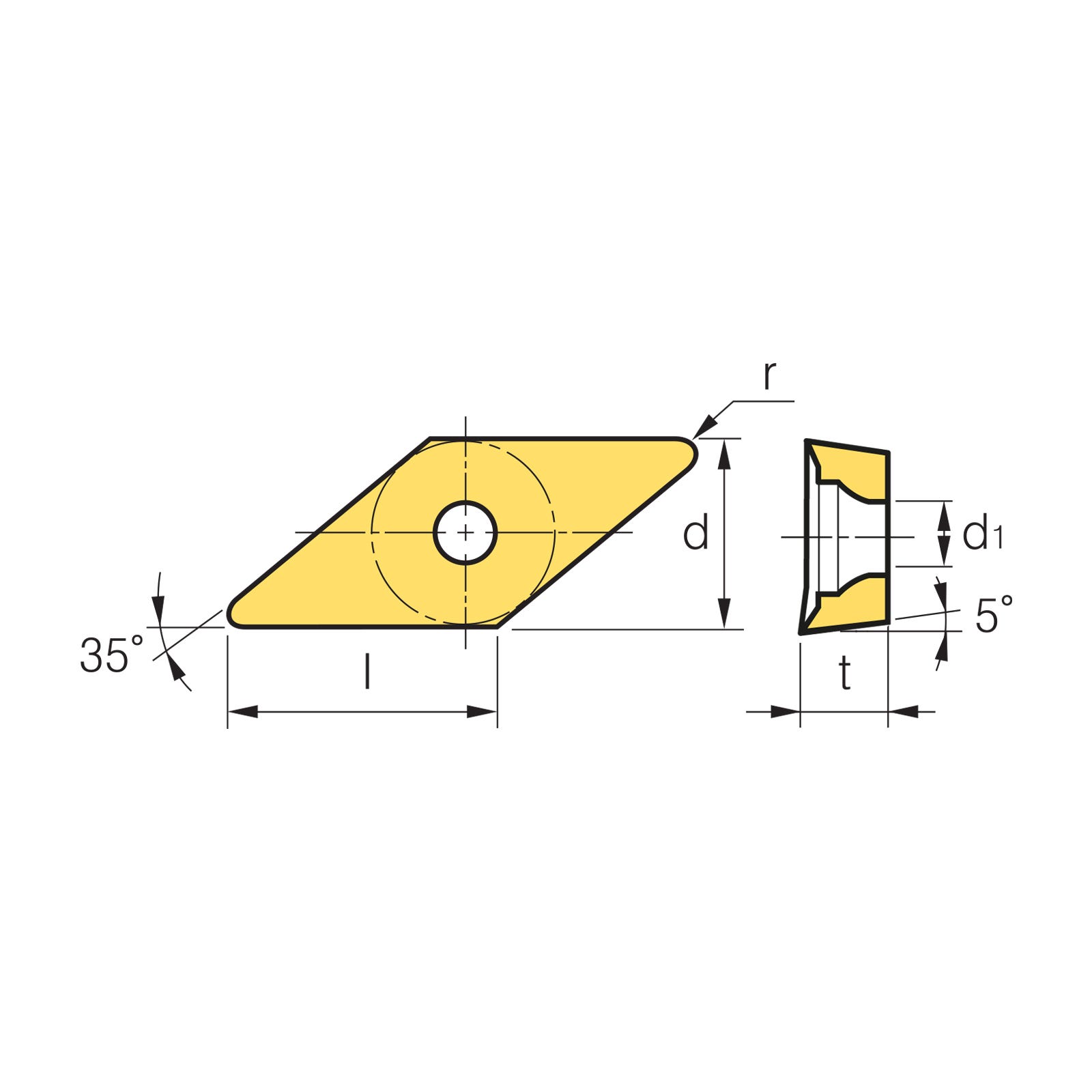

l (Length) 11
Product Range CBN Turning Inserts
Brand Korloy
Type Non-Regrindable (Multi Edge)
Style VBGW
Edge Prep Standard (General)
No. Of Edges 2
Grade KB420 (Medium/High Speed Continuous)
d1 3.4
t 3.18
Applicable Materials Hardened Steel
r (Radius) 0.4
ISO Code VBGW110304
Cutwel Sku 6-01-021495
