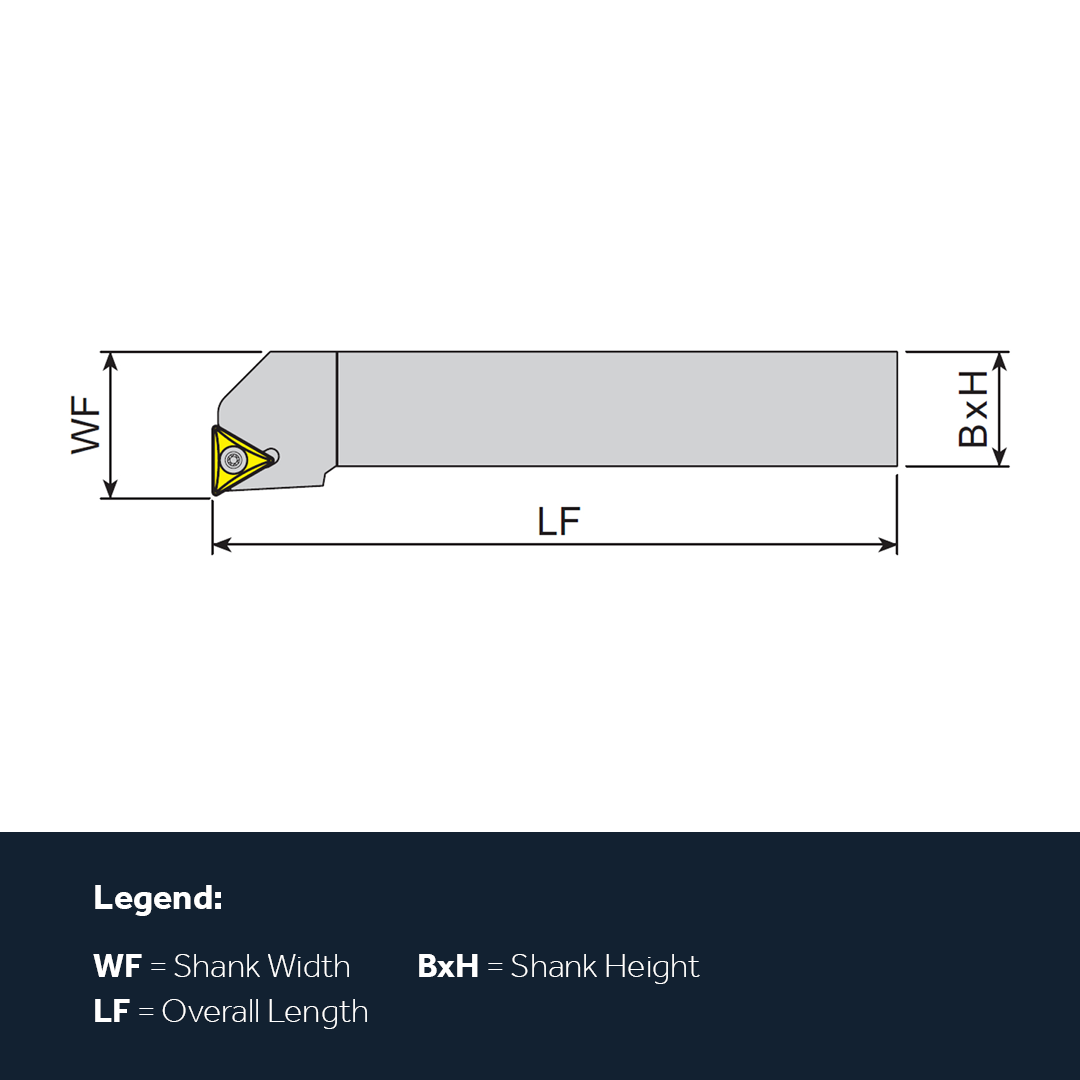

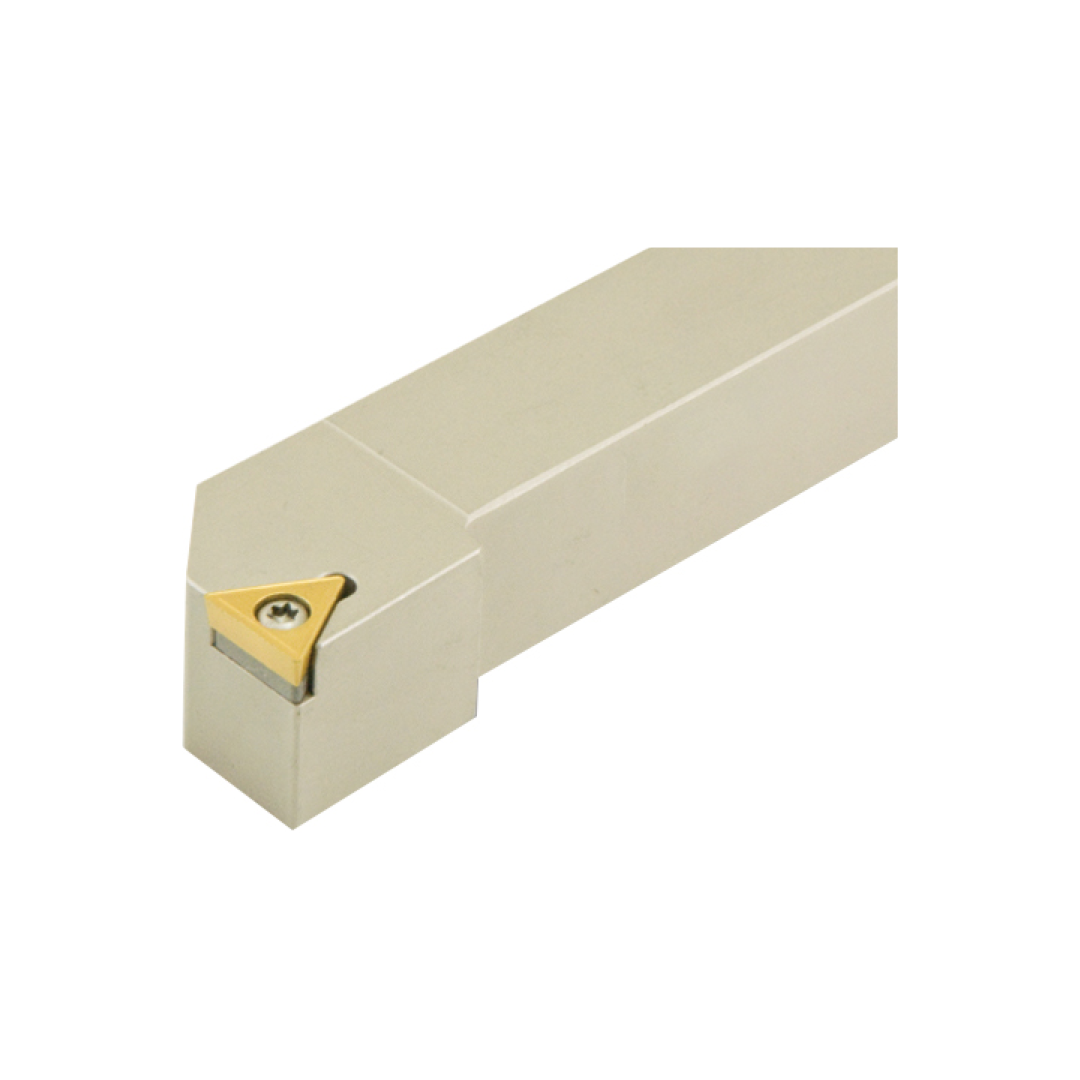

STGCR3232-P16 Standard Turning Tool Holder, 32 x 32mm Shank, 170mm Long, Right Hand, 90 Degree Approach, Screw Clamp, for TCMT16 inserts - STGCR/L Series (YG-1)
Don't have an account?
Creating an account has many benefits: check out faster, keep more than one address, track orders and more.
STGCR3232-P16 Standard Turning Tool Holder, 32 x 32mm Shank, 170mm Long, Right Hand, 90 Degree Approach, Screw Clamp, for TCMT16 inserts - STGCR/L Series (YG-1)
Cutwel Sku
YG-27000794
Scroll back
Scroll back
STGCR3232-P16 Standard Turning Tool Holder, 32 x 32mm Shank, 170mm Long, Right Hand, 90 Degree Approach, Screw Clamp, for TCMT16 inserts - STGCR/L Series (YG-1)
Cutwel Sku
YG-27000794
High quality solid steel shank turning tool holder suitable for use with TCMT style turning inserts (also suitable...
High quality solid steel shank turning tool holder suitable for use with TCMT style turning inserts (also suitable for TCGT, TCGW, TCET, TCHT etc). The STGCR/L series have a Screw on clamping system for simple changeover with wrench and screw with a 90° degree approach angle. Available in Right hand, these turning tool holders are made from YG-1 from a high grade tool steel for the highest accuracy, rigidity and best performance turning. For the best performance its recommended to clamp on a 1/3 of the bar's length, as a minimum. Made by YG-1, a global market leading manufacturer of cutting tools. For the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.

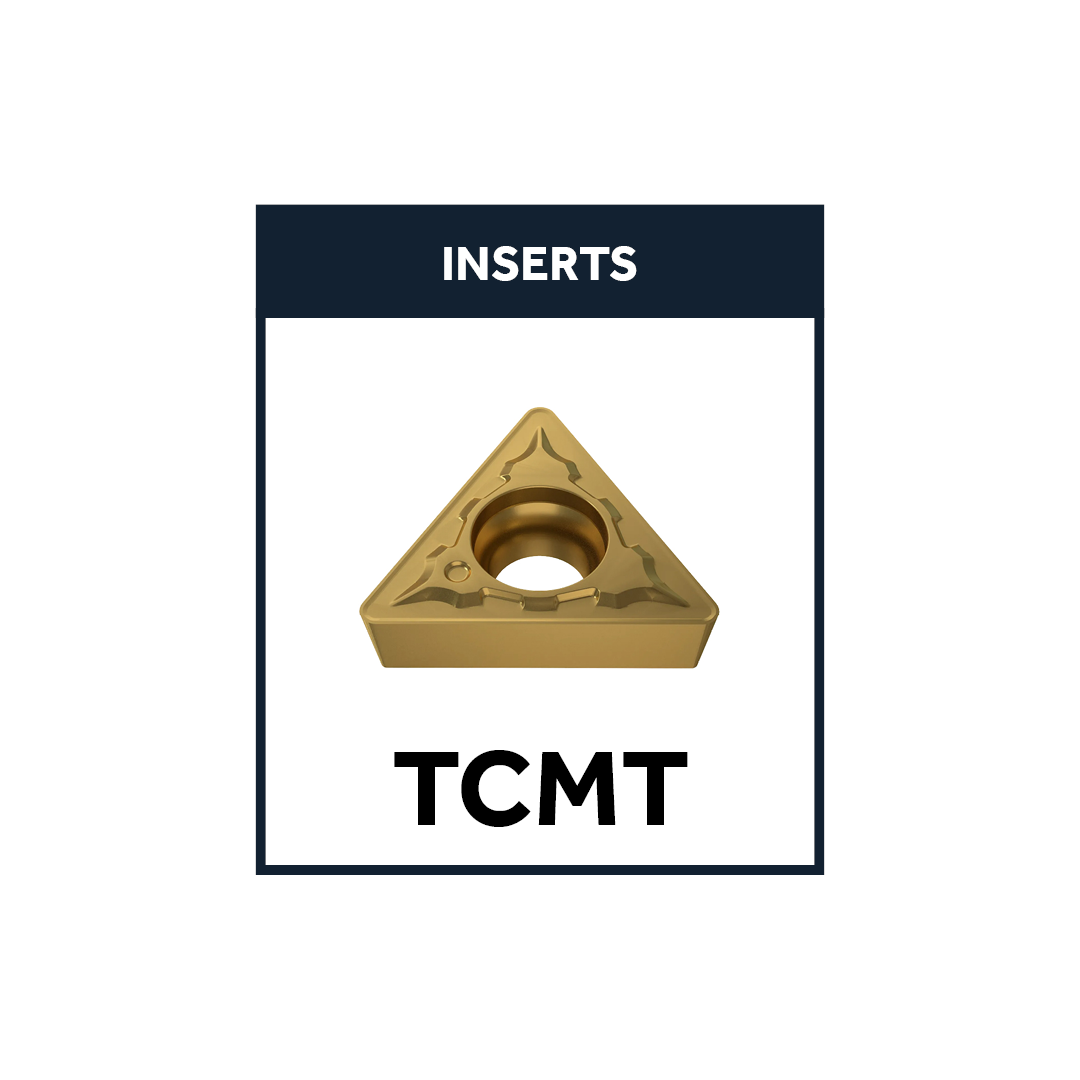

Suitable for use with TCMT style turning inserts (also suitable for TCGT, TCGW, TCET, TCHT etc)

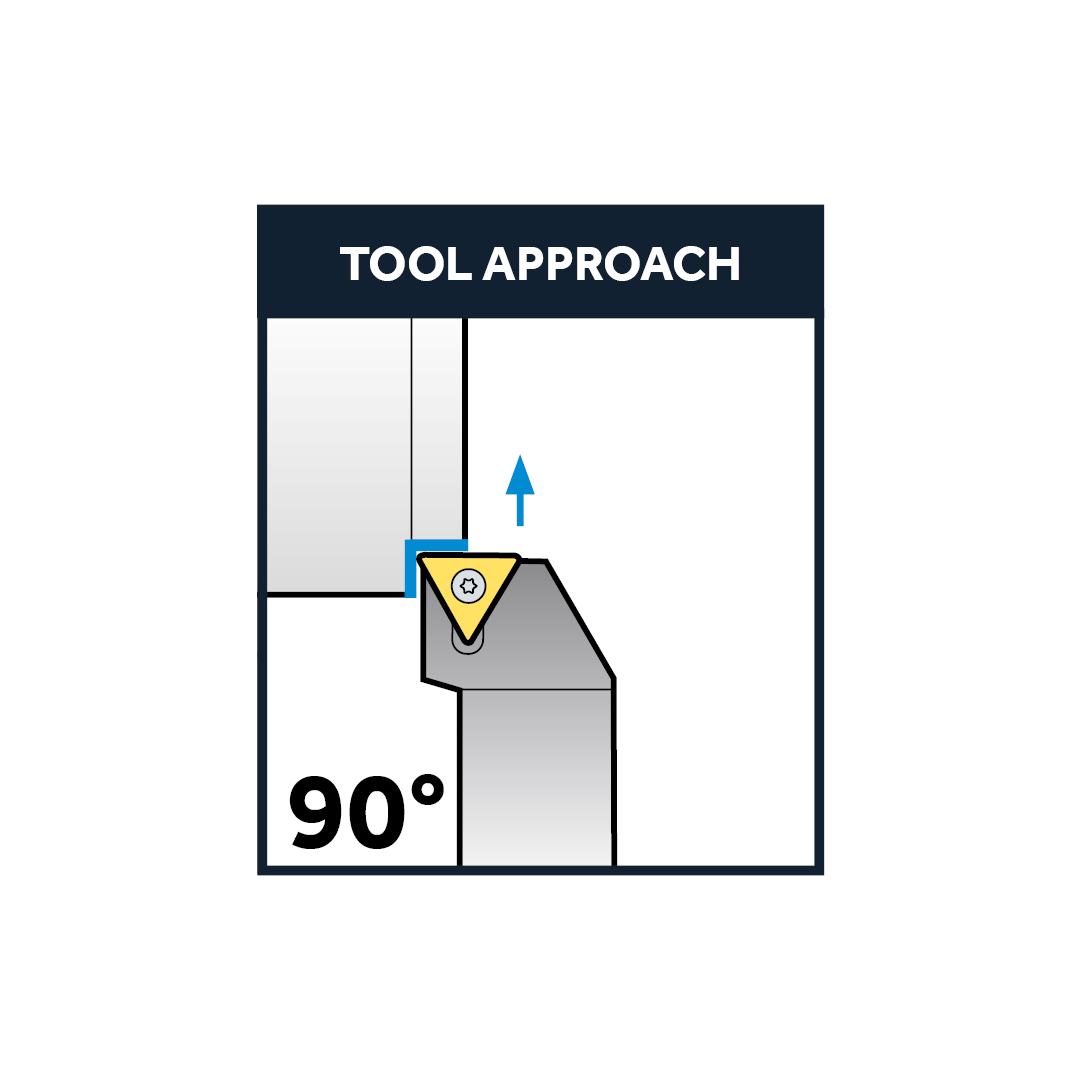

High quality solid steel shank turning tool holder with 90° degree approach angle
Screw on clamping system for simple changeover with wrench and screw
Made by YG-1, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum
