SVJBR2020-K16-IK Through Coolant Turning Tool Holders, 20 x 20mm Shank, 125mm Long, Right Hand, 93 Degree Approach, Screw Clamp, for VBMT16 inserts - SVJBR-IC Series (Teknik)

Cutwel Sku
AP545

SVJBR2020-K16-IK Through Coolant Turning Tool Holders, 20 x 20mm Shank, 125mm Long, Right Hand, 93 Degree Approach, Screw Clamp, for VBMT16 inserts - SVJBR-IC Series (Teknik)

Cutwel Sku
AP545
High quality through coolant steel shank turning tool holder suitable for use with VBMT and VBGT style turning...
Read more
Overall Length (mm)125
Shank (mm)20
minus plus
View Full Range
available In stock

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

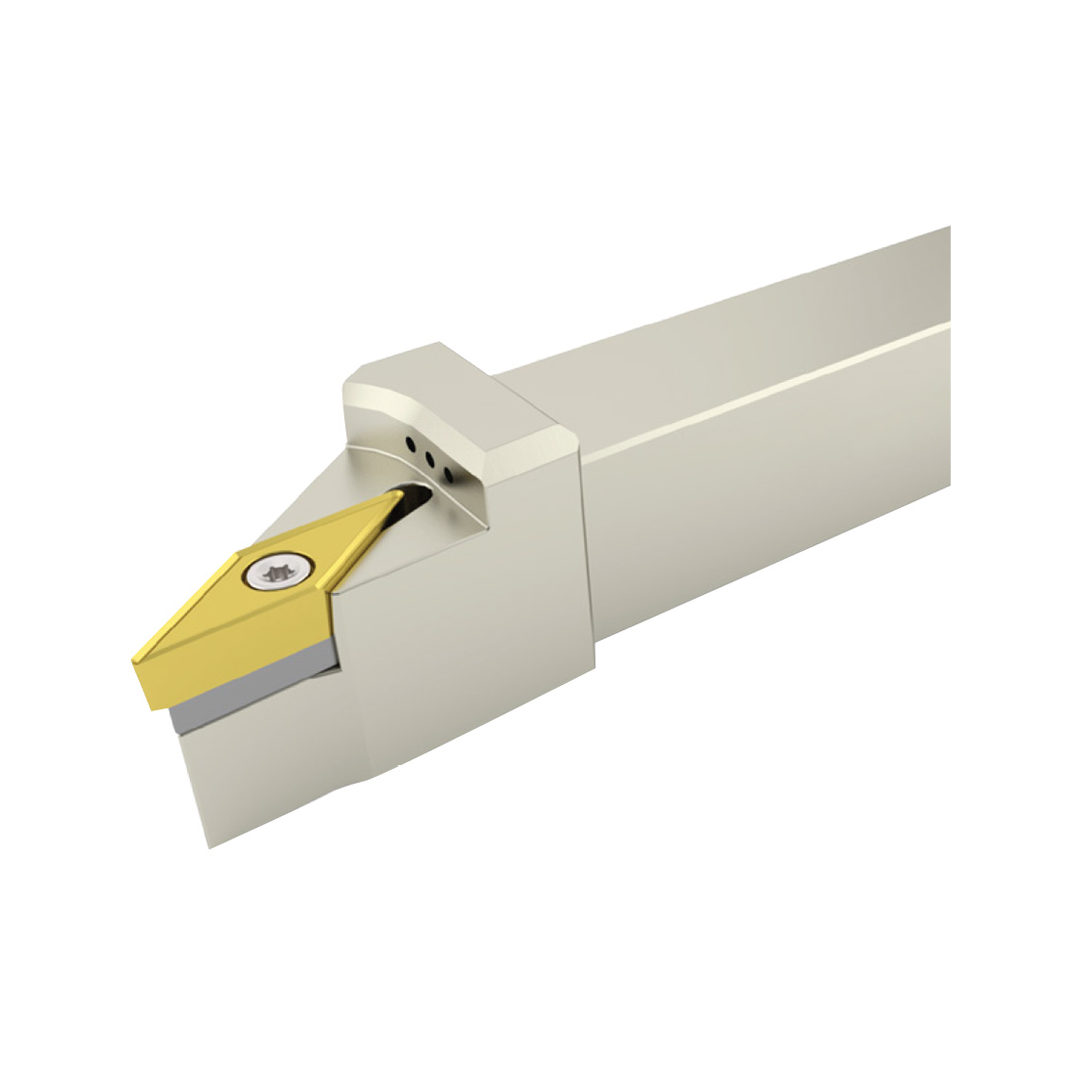

High quality through coolant steel shank turning tool holder suitable for use with VBMT and VBGT style turning inserts. The through coolant capabilities ensure coolant is directed to the cutting edge for longer tool life whilst assisting with swarf evacuation. The SVJBR-IC series have a Screw on clamping system for simple changeover with wrench and screw with a 93° degree approach angle. Available in Right hand, these turning tool holders are made from Teknik from a high grade tool steel for the highest accuracy, rigidity and best performance turning. For the best performance its recommended to clamp on a 1/3 of the bar's length, as a minimum. Made by Teknik, offering excellent value and cost efficiency. For the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum.
  • Through coolant turning tool holder prolongs tool life by directing coolant right to the cutting edge whilst also assisting with swarf evacuation.

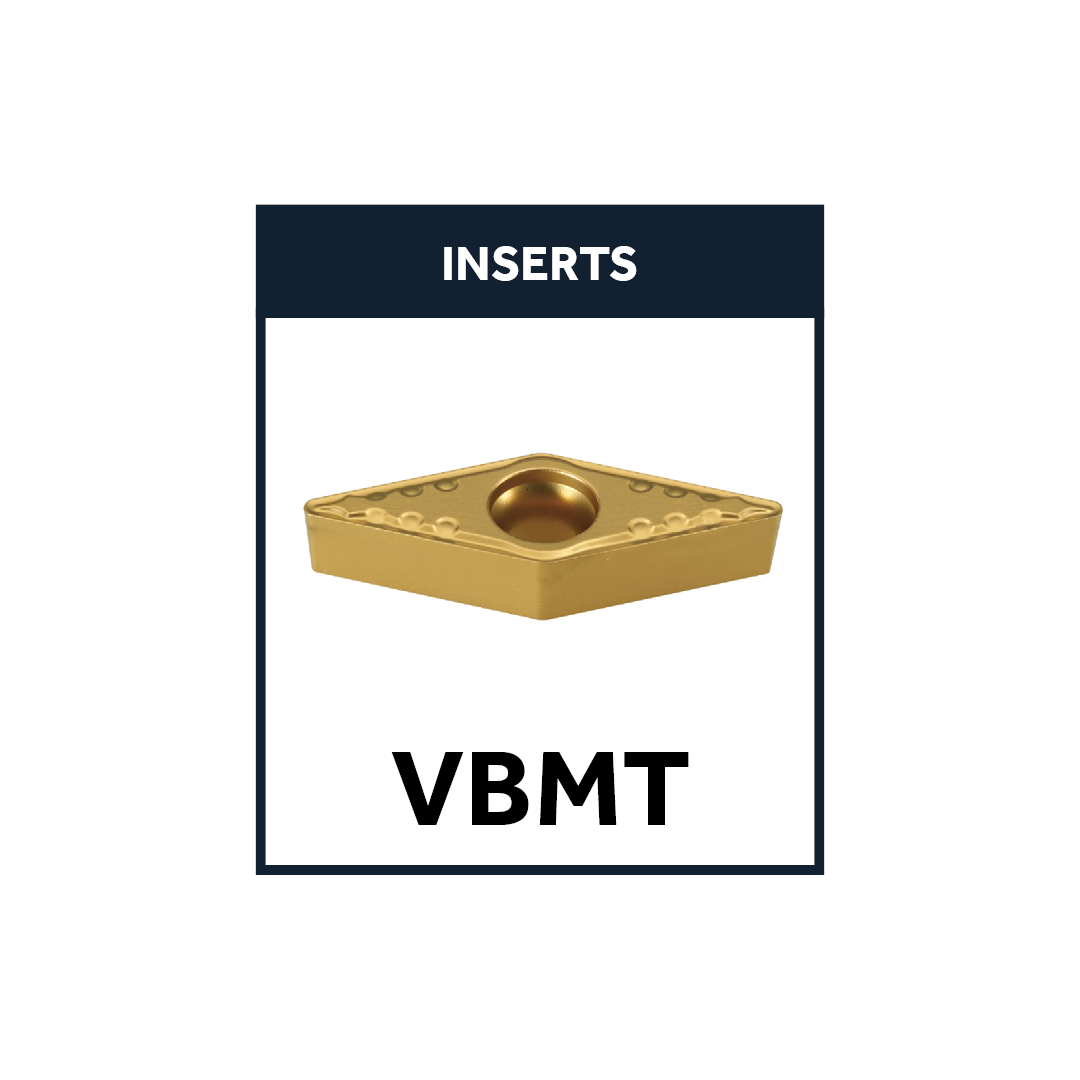

  • Suitable for use with VBMT and VBGT style turning inserts

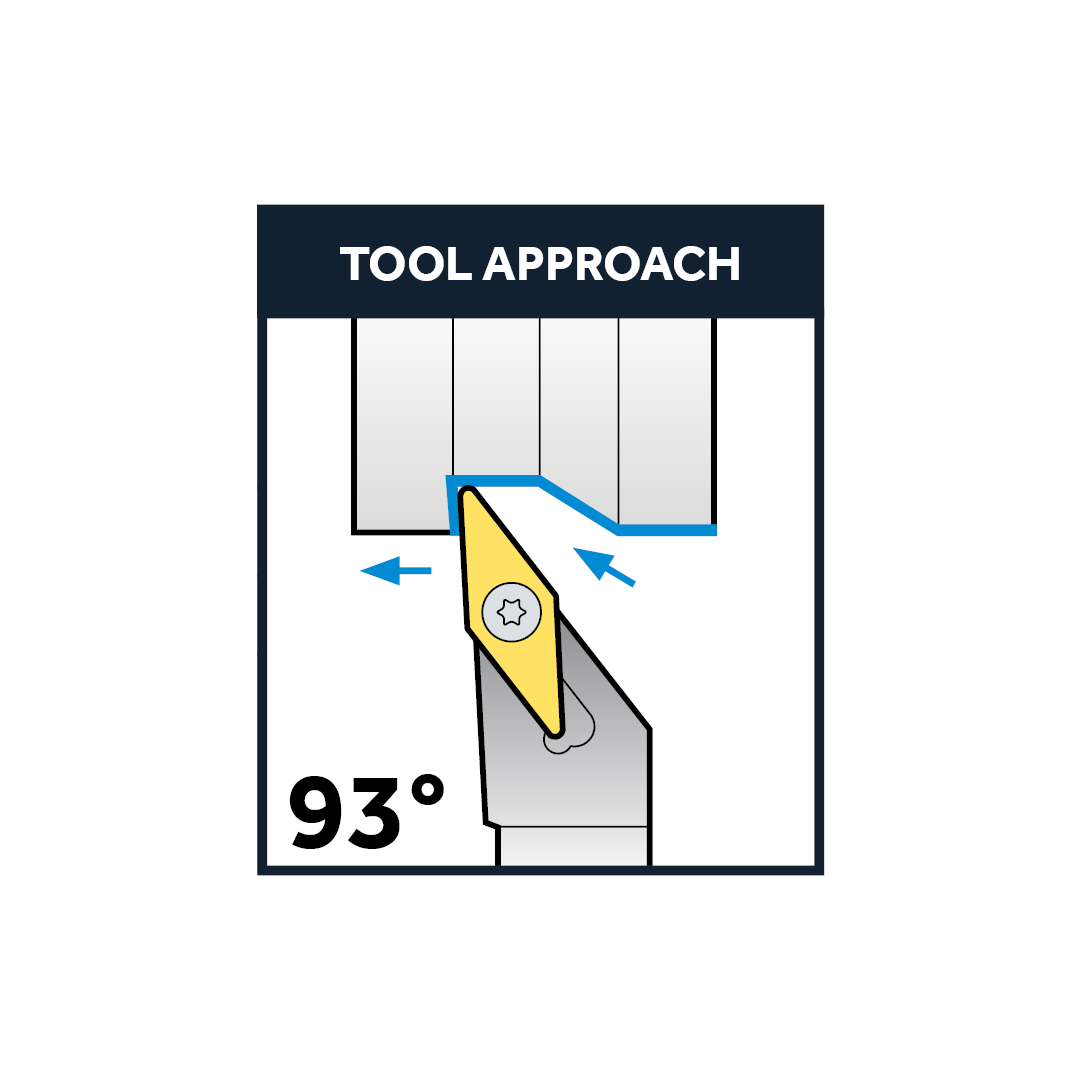

  • High quality solid steel shank turning tool holder with 93° degree approach angle
  • Screw on clamping system for simple changeover with wrench and screw
  • Made by Teknik, for the best performance its recommended to clamp on 1/3 of the bar's length, as a minimum

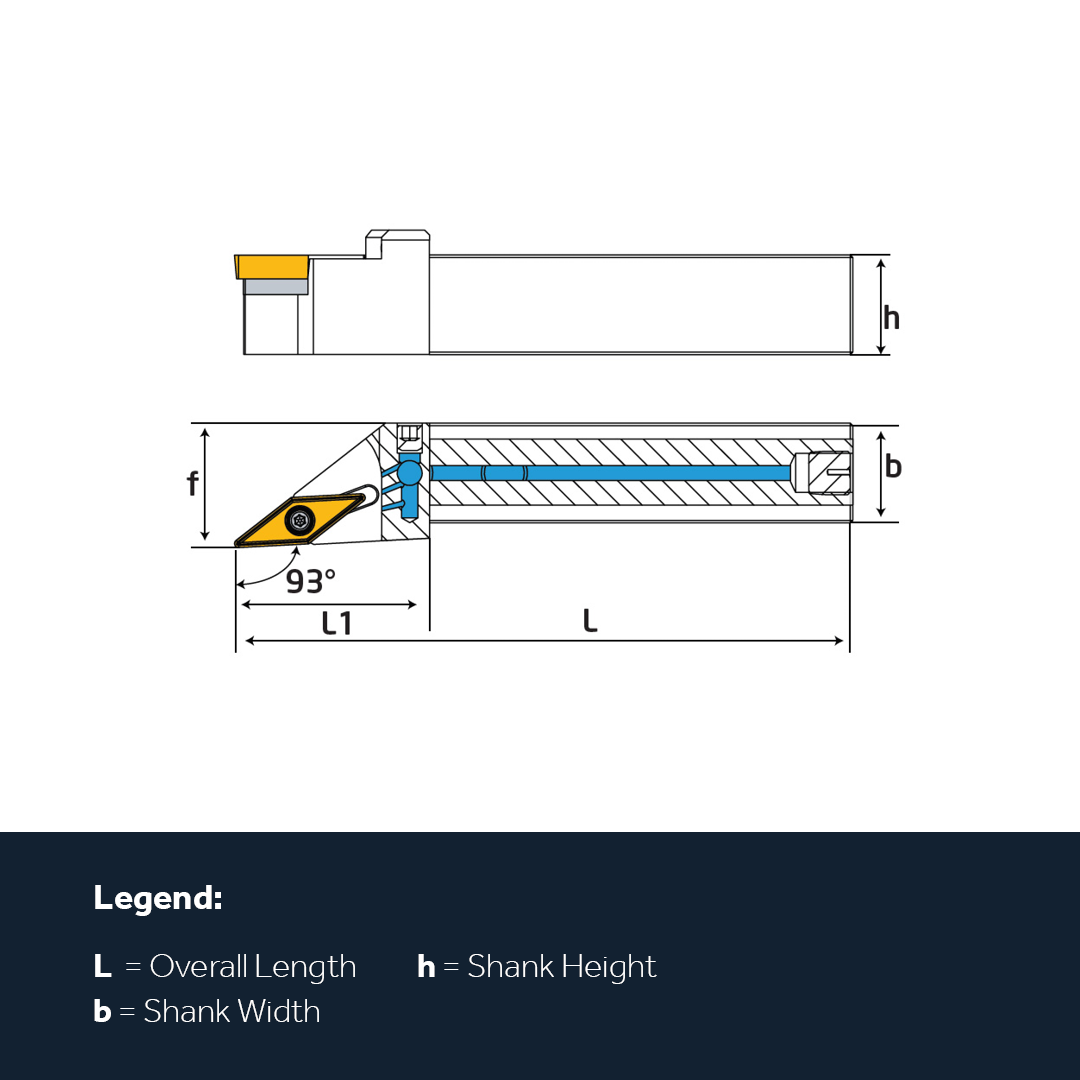

Specification

Category Lathe Tools
Sub Category Turning Tools
Sub Category 2 Through Coolant Turning Tools
Shank (mm) 20
Overall Length (mm) 125
ISO Code SVJBR2020-K16-IK
Shank 20mm x 20mm
Hand Right
Insert Size VB**1604
Alternative Part Number SVJBR2020-K16-IK
Screw FTGA03512
Shim TA034
Shim Screw TC048
Torx Key T15
Clamp Screw TC068
Insert Series VBMT
Through Coolant Yes
Angle 93°
Holder Style SVJBR/L
Clamp Type Screw Clamp
Brand Teknik
