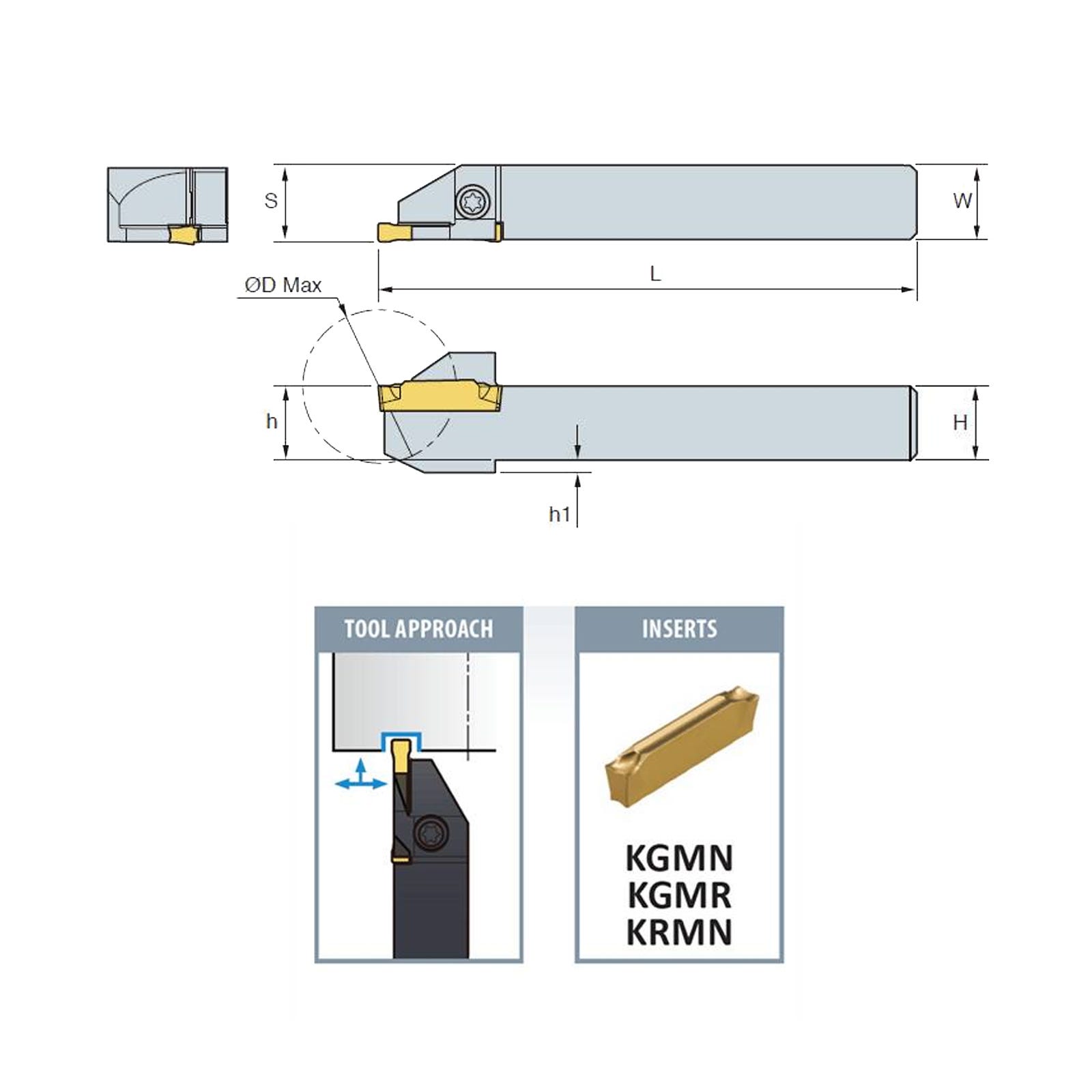

20mm Shank Right Hand KGT External Grooving Tool for 4mm Inserts - KGEHR/L-T00 Series (Korloy)
20mm Shank Right Hand KGT External Grooving Tool for 4mm Inserts - KGEHR/L-T00 Series (Korloy)
| Overall Length (mm) | 125 |
|---|---|
| Shank (mm) | 20 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Strong clamping minimises vibration and reduces risk of tool failure.
- Wide selection of chip breakers ensures best performance in different applications
- Insert widths from 3-6mm
- Suitable for grooving, side-turning, profiling and parting off with just 1 tool.
- Features an exceptionally strong ‘V’ type clamping system to prevent insert movement and minimises vibration.
- Inserts are available in a wide range of geometries for different applications, including square end (grooving and turning), full radius (profiling) and right/left hand (parting).
- Double sided inserts.
- The T100 type has an ultra-short T-Max to increase rigidity in demanding operations.
Specification
| Category | Lathe Tools |
|---|---|
| Sub Category | Multifunctional Lathe Tools |
| Sub Category 2 | KGT Grooving System |
| Shank (mm) | 20 |
| Overall Length (mm) | 125 |
| Inserts | KGMN400, KGMR/L400, KRMN400-C, KGGN400, KRGN400 |
| Width | 4 |
| tmax | 4.8 |
| Hand | Right |
| Screw | BHA0616 |
| Wrench | HW50L |
| S | 20.4 |
| Application | Grooving |
| Brand | Korloy |
