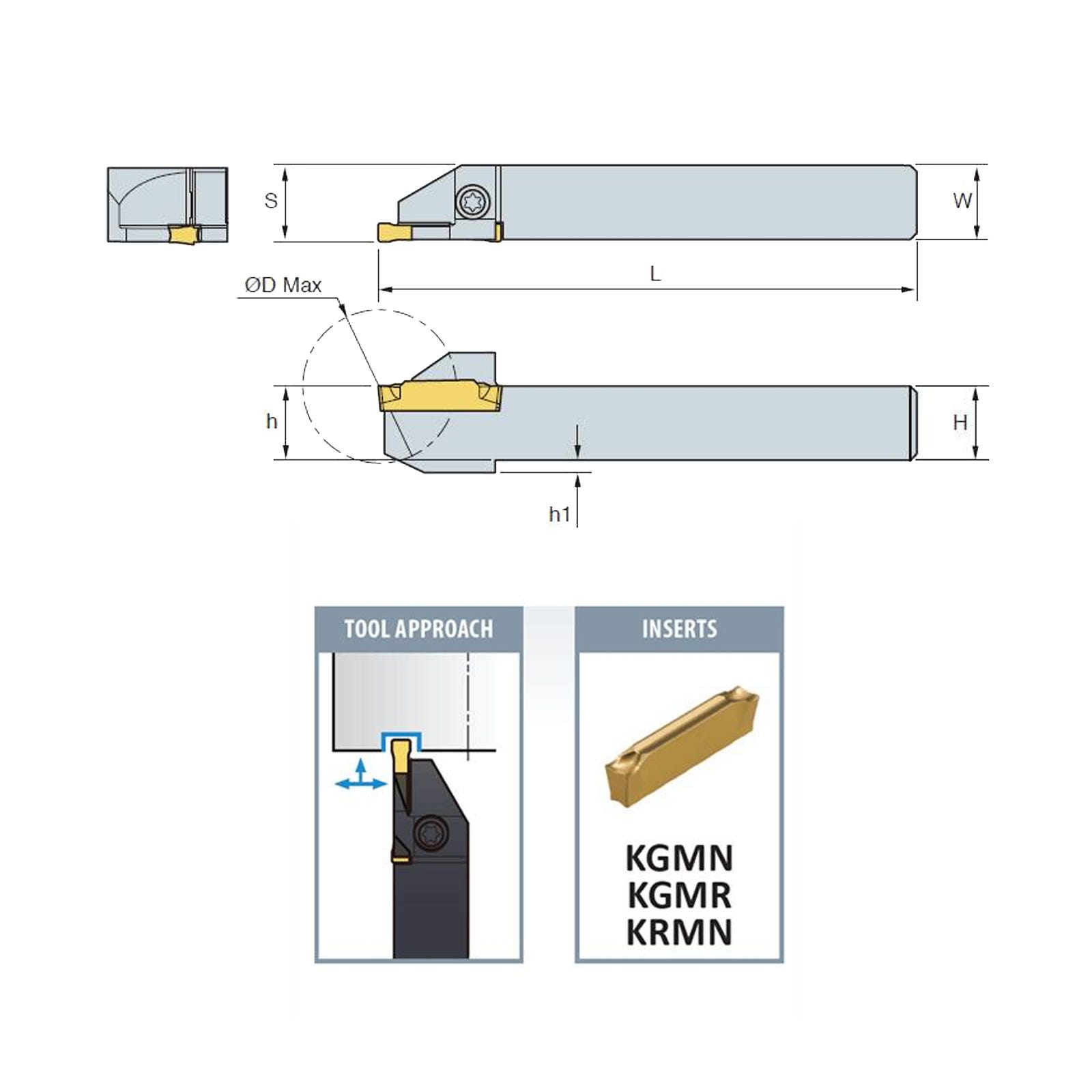

25mm Shank Right Hand KGT External Grooving Tool for 6mm Inserts - KGEHR/L Series (Korloy)

Cutwel Sku
KGEHR2525-6-T20

25mm Shank Right Hand KGT External Grooving Tool for 6mm Inserts - KGEHR/L Series (Korloy)

Cutwel Sku
KGEHR2525-6-T20
The KGT KGEHR/L series holders are suitable for grooving, side-turning, profiling and parting off with just 1...
Read more
Overall Length (mm)150
minus plus

*Estimated lead time, subject to availability

View Full Range
unavailable 10 days*

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

The KGT KGEHR/L series holders are suitable for grooving, side-turning, profiling and parting off with just 1 tool. These holders are for insert widths from 2-8mm with T-Max from 8-36mm. KGT holders and inserts feature an extremely strong clamping system with 2 clamping positions on the top and bottom of the insert to equally disperse clamping force, increasing rigidity, accuracy and tool life.
  • Strong clamping minimises vibration and reduces risk of tool failure.
  • Wide selection of chip breakers ensures best performance in different applications
  • Insert widths from 2-8mm
  • Suitable for grooving, side-turning, profiling and parting off with just 1 tool.
  • Features an exceptionally strong ‘V’ type clamping system to prevent insert movement and minimises vibration.
  • Inserts are available in a wide range of geometries for different applications, including square end (grooving and turning), full radius (profiling) and right/left hand (parting).
  • Double sided inserts.

Specification

Brand Cutwel
Category Lathe Tools
Sub Category Multifunctional Grooving Tools
Overall Length (mm) 150
Brand Korloy
Inserts KGMN600, KRMN600-C, KGGN600, KRGN600
Screw BHA0616
Wrench HW50L
Application Grooving
tmax 20
Hand Right
S 25.5
