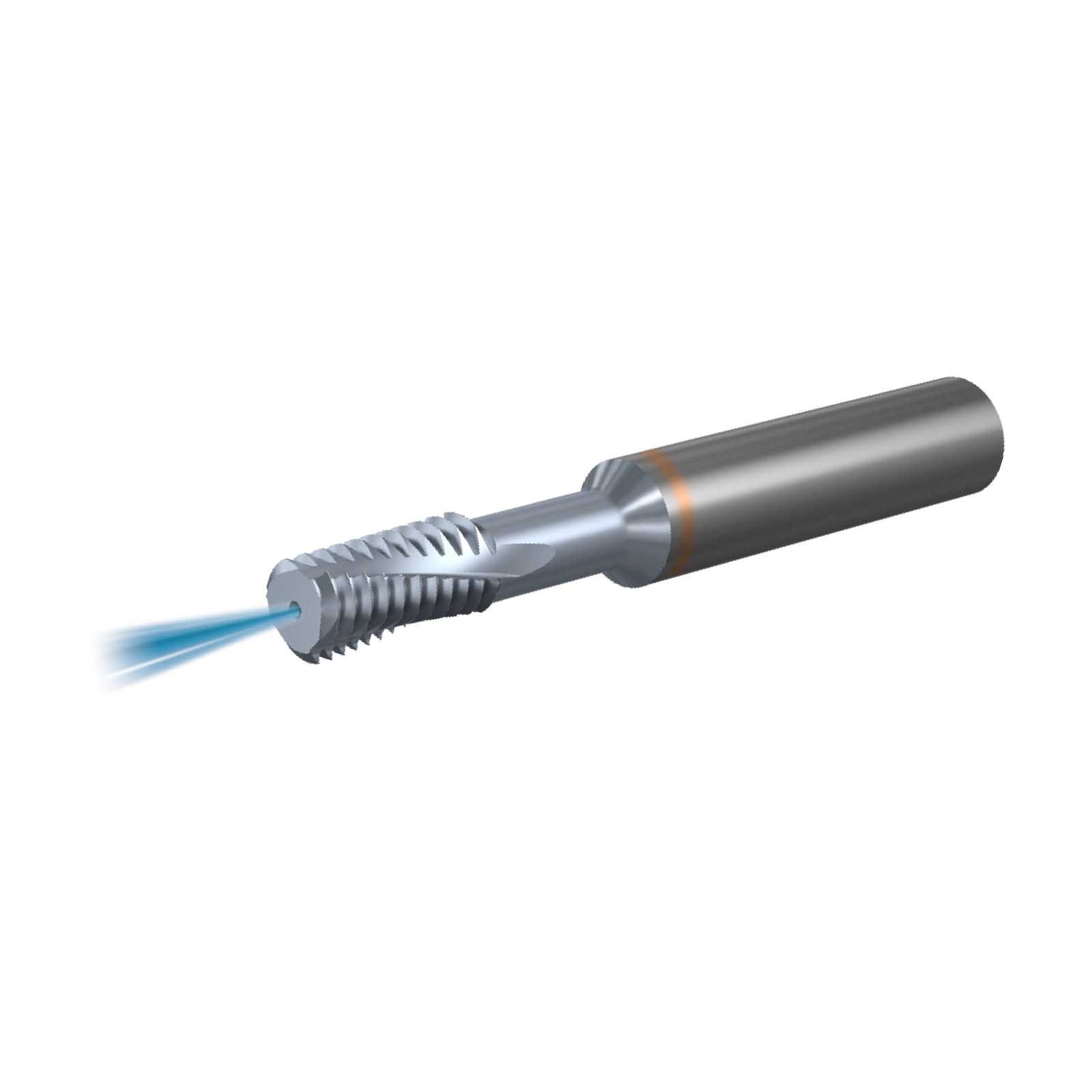

M10-M40x1 Metric Long Reach/Deep Thread Internal Carbide Thread Mill with Axial Coolant - HCN Series (Vardex) - HCN10087L30-I1.00ISOTMVTH

Cutwel Sku
110-00006

M10-M40x1 Metric Long Reach/Deep Thread Internal Carbide Thread Mill with Axial Coolant - HCN Series (Vardex) - HCN10087L30-I1.00ISOTMVTH

Cutwel Sku
110-00006

Key Features

available For Internal Machining
available For Metric threads
available Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
Read More
P
Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous
S
Exotics
Diameter (mm)8.7
Overall Length (mm)75
Flute Length (mm)17
Shank (mm)10
green Available for Delivery within 2-3 Days *
minus plus
View Other Variants
*Estimated lead time, subject to availability. Based on number of working days.

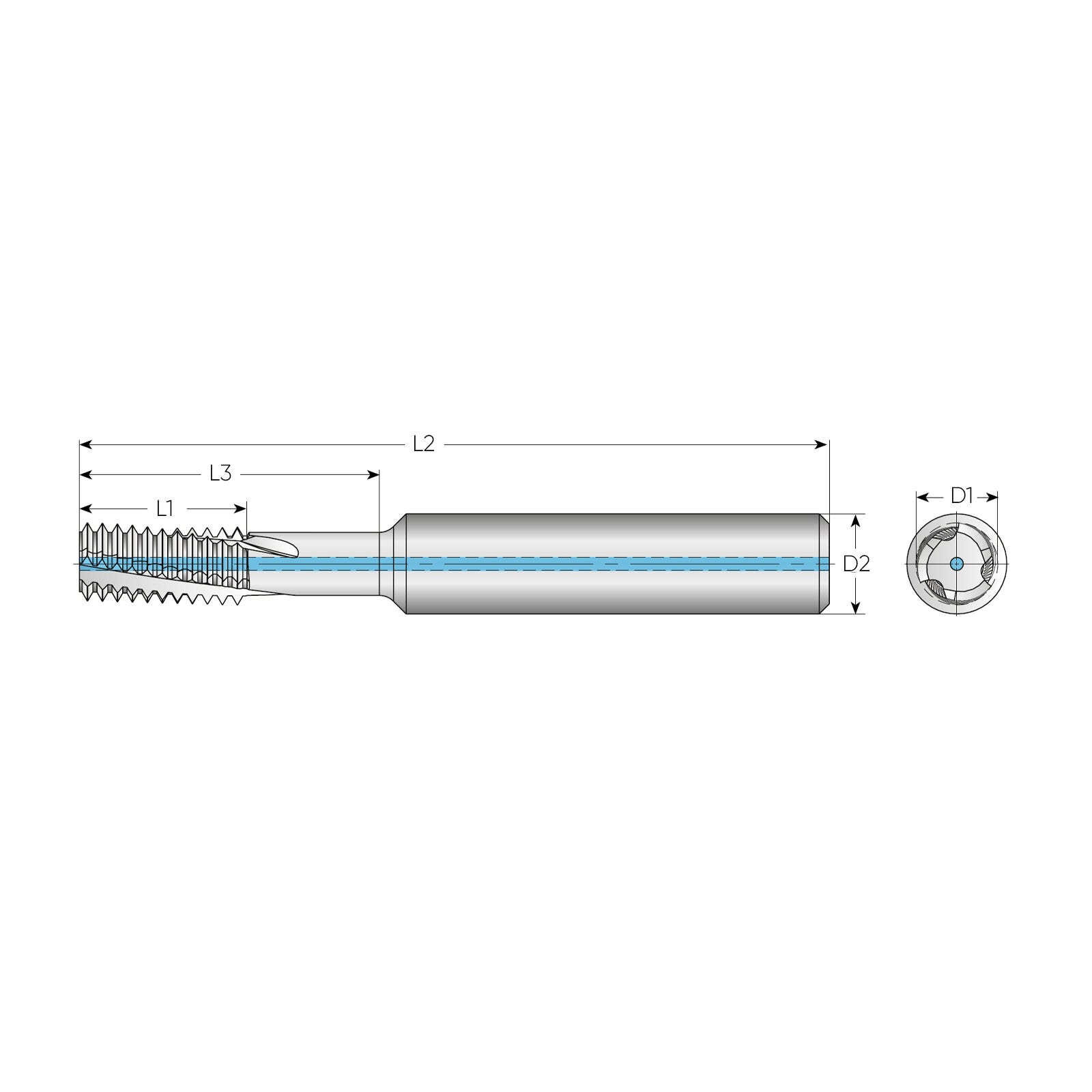

Specification

Category Threading
Sub Category Thread Mills
Sub Category 2 Solid Carbide Thread Mills
Shank (mm) 10
Diameter (mm) 8.7
Pitch 1
Flute Length (mm) 17
Overall Length (mm) 75
Reach (mm) 30
Flutes 4
Teeth 17
Standard B.S.84:1956, DIN 259, ISO228/1:1982
Thread Angle 55°
Bore Diameter (mm) 9
Substrate Carbide
Surface Treatment Coated (PVD/CVD)
Depth 3xD
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotics
Coating Description TiAlN Coated
Type Straight Flute

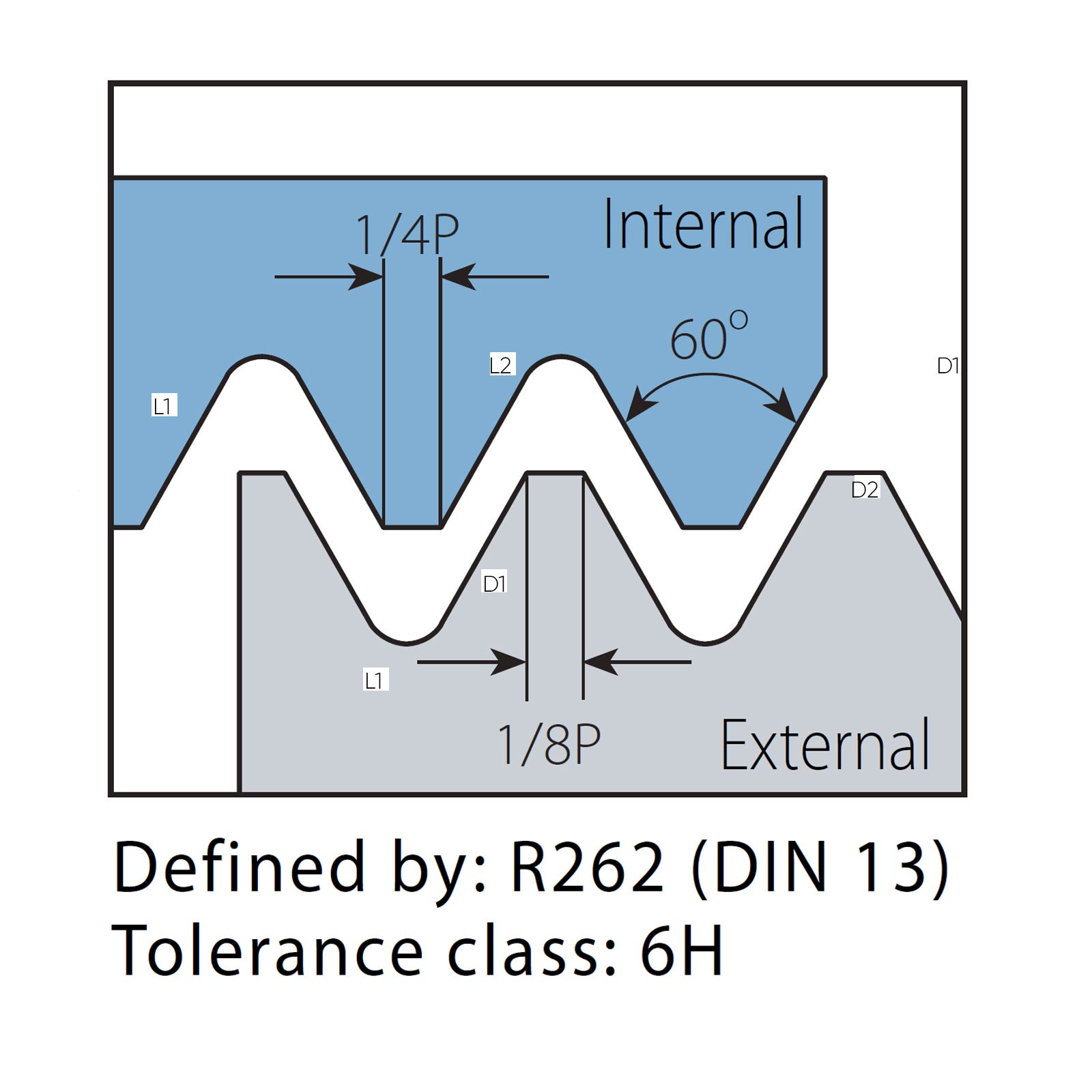

Thread Form Metric ISO
Brand Vargus
Part Numbers
  • Cutwel Part Number 110-00006

Description

Vardex metric coarse & metric fine carbide thread mills suitable for machining Internal threads with Axial coolant. They are ideal for use on Steel, Stainless Steel, HRSA's, Cast Iron and Non-Ferrous materials. The HCN series are ideal for long reach or deep hole threading. For urgent delivery please contact us (next day dropship delivery available).

Features & Benefits

  • For Internal Machining
  • For Metric threads
  • Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
  • Made from Micrograin Solid Carbide
  • TiCN coating for longer tool life
  • Axial coolant for blind holes
  • Relief neck design for longer reach and deep hole threading

What time are we open?

We are open Monday to Friday and able to dispatch orders between 8am and 5:30pm Monday to Thursday, and up to 5pm on Friday.

What delivery services do we offer?

To mainland UK we offer FREE UK next day delivery on all standard orders above £69 (ex vat), and £125 (ex vat) on all orders including any liquids.*

Alternatively, we offer a FREE Click and Collect service from our distribution centre in Cleckheaton, West Yorkshire. Click here for the full address.

For standard orders under £69 (ex vat), we offer the following:

  • 1st class post - £2.75
  • DPD Standard Next Day Delivery - £7.00
  • DPD Next Day Pre-12pm - £10.00 or (£5.25 on orders over £69 (ex VAT)
  • DPD Next Day Pre-10.30am - £18.00

For orders containing liquids under £125 (ex vat), standard UK Mail Next Day Delivery is £8.50 and UK Mail Next Day Pre-12pm Delivery is £13.75.

We also offer Saturday delivery for those that require it. If you order before 5pm on a Friday we offer a range of options which can be viewed here.

For a full breakdown of costs for all types of item and geographical locations including Scottish Highlands, Northern Ireland, Channel Islands & Republic of Ireland, click here.

How do I return an order/item?

Our returns policy is easier than ever. We understand that if an item isn’t correct, then it needs to be returned. If you are wanting to return anything supplied by Cutwel please see our returns page for full instructions.

*T’s & C’s and exclusions apply. Please see our delivery page for more information on all our services including those outside of mainland UK (Republic of Ireland, Northern Ireland, Scottish Highlands, Channel Islands etc).

Videos

Filter Items arrow
Code Thread Diameter (mm) Shank (mm) Pitch Flute Length (mm) Overall Length (mm) Reach (mm) Flutes Teeth Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Thread
carrat-down
Diameter (mm)
carrat-down
Shank (mm)
carrat-down
Pitch
carrat-down
Flute Length (mm)
carrat-down
Overall Length (mm)
carrat-down
Reach (mm)
carrat-down
Flutes
carrat-down
Teeth
carrat-down
Thread: Diameter (mm): 2.4 Shank (mm): 4 Pitch: 0.5 Flute Length (mm): 5 Overall Length (mm): 45 Reach (mm): 9 Flutes: 3 Teeth: 10
green Available for Delivery within 2-3 Days *
£205.19 £170.99
minus plus
Thread: Diameter (mm): 3.15 Shank (mm): 4 Pitch: 0.7 Flute Length (mm): 7 Overall Length (mm): 47 Reach (mm): 12 Flutes: 3 Teeth: 10
green Available for Delivery within 2-3 Days *
£205.19 £170.99
minus plus
Thread: M5 x 0.8 Diameter (mm): 3.9 Shank (mm): 4 Pitch: 0.8 Flute Length (mm): 8.8 Overall Length (mm): 50 Reach (mm): 15 Flutes: 3 Teeth: 11
green Available for Delivery within 2-3 Days *
£205.19 £170.99
minus plus
Thread: Diameter (mm): 4.8 Shank (mm): 6 Pitch: 1 Flute Length (mm): 10 Overall Length (mm): 60 Reach (mm): 18 Flutes: 3 Teeth: 10
green Available for Delivery within 2-3 Days *
£244.64 £203.87
minus plus
Thread: Diameter (mm): 6.7 Shank (mm): 8 Pitch: 1 Flute Length (mm): 13 Overall Length (mm): 66 Reach (mm): 24 Flutes: 4 Teeth: 13
green Available for Delivery within 2-3 Days *
£284.94 £237.45
minus plus
Thread: Diameter (mm): 8.7 Shank (mm): 10 Pitch: 1 Flute Length (mm): 17 Overall Length (mm): 75 Reach (mm): 30 Flutes: 4 Teeth: 17
green Available for Delivery within 2-3 Days *
£299.53 £249.61
minus plus
Thread: M8 x 1.25 Diameter (mm): 6.5 Shank (mm): 8 Pitch: 1.25 Flute Length (mm): 13.75 Overall Length (mm): 66 Reach (mm): 24 Flutes: 3 Teeth: 11
green In Stock for Next Day Delivery *
£284.94 £237.45
minus plus
Thread: Diameter (mm): 8.2 Shank (mm): 10 Pitch: 1.5 Flute Length (mm): 16.5 Overall Length (mm): 75 Reach (mm): 30 Flutes: 3 Teeth: 11
green Available for Delivery within 2-3 Days *
£299.53 £249.61
minus plus
Thread: Diameter (mm): 9.9 Shank (mm): 10 Pitch: 1.5 Flute Length (mm): 19.5 Overall Length (mm): 86 Reach (mm): 36 Flutes: 4 Teeth: 13
green Available for Delivery within 2-3 Days *
£299.53 £249.61
minus plus
Thread: Diameter (mm): 11.9 Shank (mm): 12 Pitch: 1.5 Flute Length (mm): 22.5 Overall Length (mm): 92 Reach (mm): 42 Flutes: 4 Teeth: 15
green Available for Delivery within 2-3 Days *
£407.34 £339.45
minus plus
Thread: Diameter (mm): 13.9 Shank (mm): 14 Pitch: 1.5 Flute Length (mm): 25.5 Overall Length (mm): 102 Reach (mm): 48 Flutes: 5 Teeth: 17
green Available for Delivery within 2-3 Days *
£465.06 £387.55
minus plus
Thread: M12 x 1.75 Diameter (mm): 9.9 Shank (mm): 10 Pitch: 1.75 Flute Length (mm): 19.25 Overall Length (mm): 86 Reach (mm): 36 Flutes: 4 Teeth: 11
green In Stock for Next Day Delivery *
£299.53 £249.61
minus plus
Thread: Diameter (mm): 11.6 Shank (mm): 12 Pitch: 2 Flute Length (mm): 24 Overall Length (mm): 92 Reach (mm): 42 Flutes: 4 Teeth: 12
green Available for Delivery within 2-3 Days *
£407.34 £339.45
minus plus
Thread: Diameter (mm): 13.6 Shank (mm): 14 Pitch: 2 Flute Length (mm): 26 Overall Length (mm): 102 Reach (mm): 48 Flutes: 4 Teeth: 13
green Available for Delivery within 2-3 Days *
£465.06 £387.55
minus plus

*In stock items only. Geographical & product exclusions apply for next day delivery (calculated on checkout). Any other lead times shown are estimated and subject to availability.
