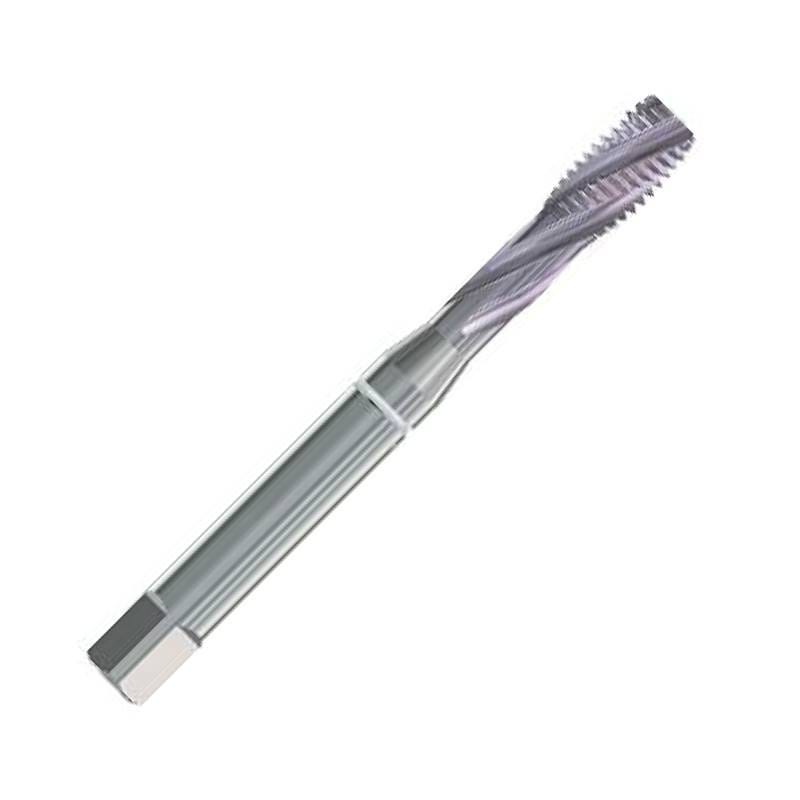

M10 x 1.5mm Metric Coarse Powder Metal Spiral Flute TiCN Coated Machine Tap (6HX Tolerance) for Cast Iron - K28/K29-CT Series (UFS)

Cutwel Sku
K28M10CT

M10 x 1.5mm Metric Coarse Powder Metal Spiral Flute TiCN Coated Machine Tap (6HX Tolerance) for Cast Iron - K28/K29-CT Series (UFS)

Cutwel Sku
K28M10CT
The UFS K28/K29M-CT series Metric Coarse Cast Iron Machine Taps are designed for tapping nodular and malleable...
Read more

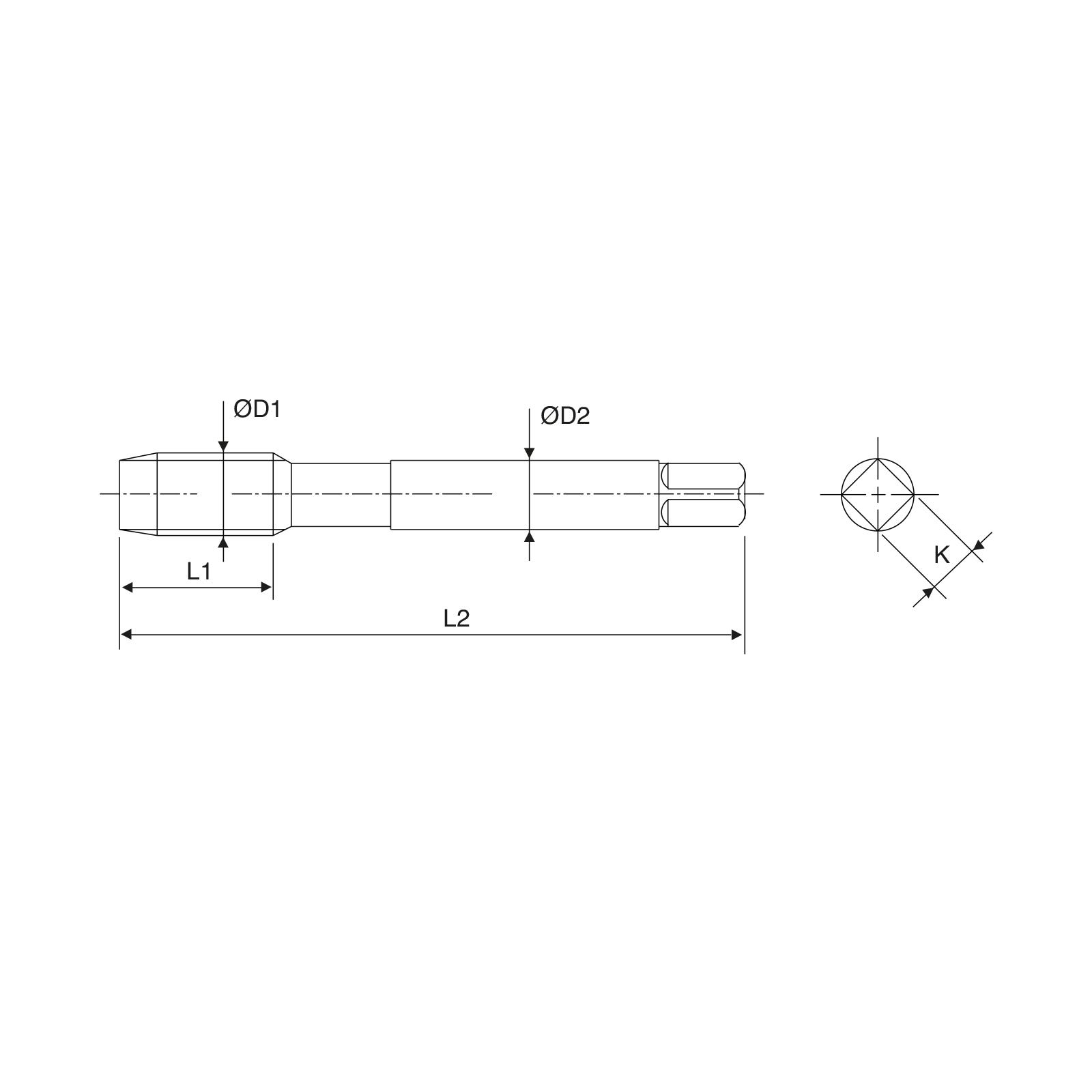

Overall Length (mm)100
Flute Length (mm)20
Shank (mm)10
minus plus
View Full Range
available In stock

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

The UFS K28/K29M-CT series Metric Coarse Cast Iron Machine Taps are designed for tapping nodular and malleable cast iron and high strength alloy steeels. They come with a TiCN coating, high performance powder metal substrate and a spiral flute geometry for blind holes.
  • Metric Coarse Machine Tap for Cast Iron
  • High Performance Powder Metal Substrate
  • Spiral Flute for Blind Holes
  • TiCN Coated
  • Suitable for Nodular and Malleable Cast Iron and High Strength Alloy Steel

Specification

Category Threading
Sub Category Machine Taps
Thread M10
Sub Category 2 Cast Iron & Abrasive Machine Taps
Shank (mm) 10
Pitch 1.5
Flute Length (mm) 20
Overall Length (mm) 100
Flutes 3
Drill Diameter 8.5
Square 8
Substrate HSS-PM
Oil Grooves No
Surface Treatment Coated (PVD/CVD)
Depth 2.5xD
Applicable Materials Cast Iron, Exotics
Flute Geometry Spiral Flute
Performance 5
Coating Description TiCN Coated
Substrate Description Powder Metal
Helix Angle 60°
Brand Range Top-line
Thread Form Metric ISO
Brand UFS
