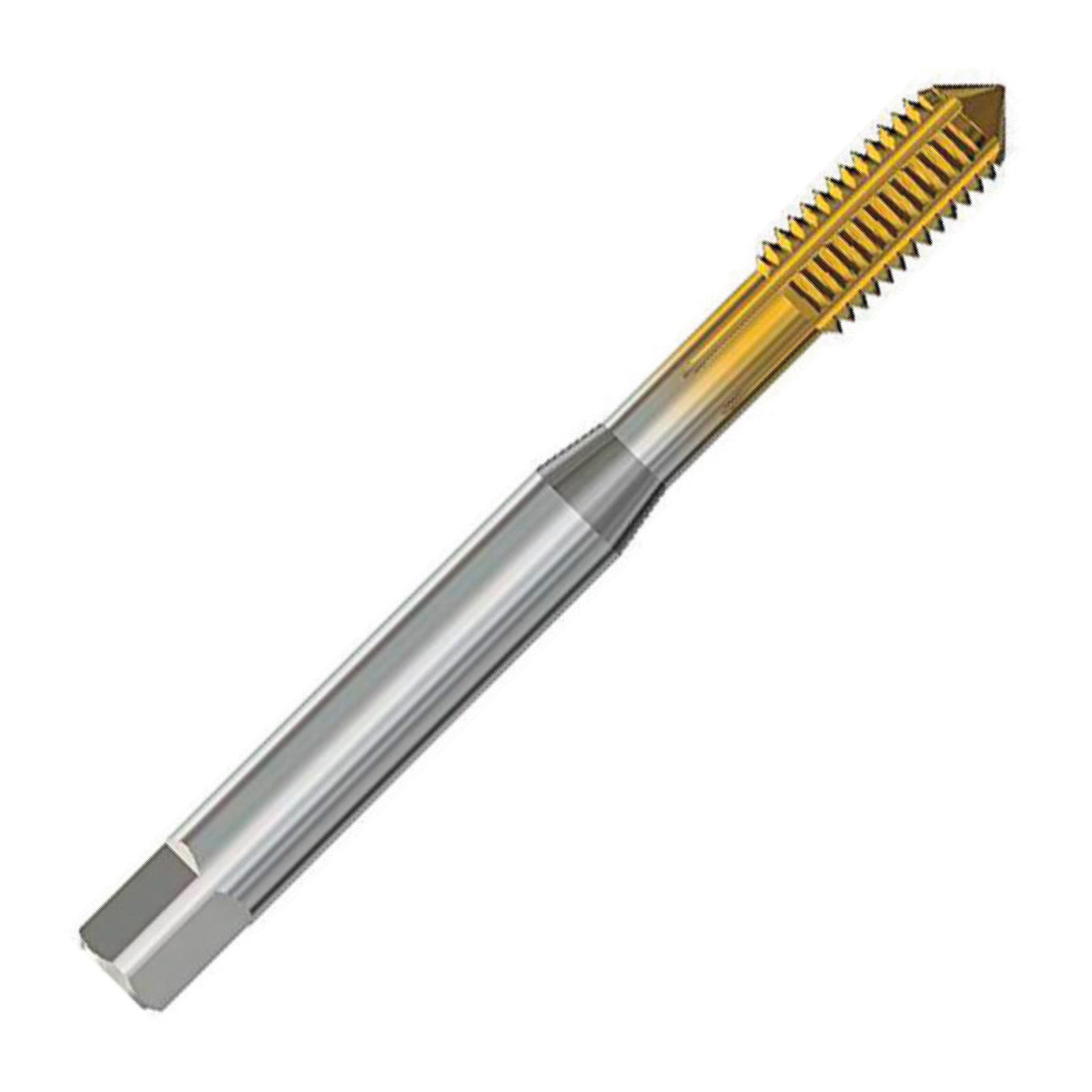

M12 x 1.5mm Metric Fine Powder Metal TiN Coated Roll Taps With Oil Grooves - K2CCMF-TG Series (UFS)

Cutwel Sku
K2CCMF12X1.5TG

M12 x 1.5mm Metric Fine Powder Metal TiN Coated Roll Taps With Oil Grooves - K2CCMF-TG Series (UFS)

Cutwel Sku
K2CCMF12X1.5TG

Key Features

available Metric Fine Roll Taps
available Powder Metal Substrate for Maximum Tool Life
available TiN Coating Provides Improved Tool Life
Read More
P
Steel
M
Stainless Steel
N
Non-Ferrous
Overall Length (mm)100
Flute Length (mm)22
Shank (mm)9
green Available for Delivery within 7-10 Days *
minus plus
View Full Range
*Estimated lead time, subject to availability. Based on number of working days.

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Specification

Category Threading
Sub Category Machine Taps
Thread M12
Sub Category 2 Cold Forming Roll Taps
Shank (mm) 9
Pitch 1.5
Flute Length (mm) 22
Overall Length (mm) 100
Drill Diameter 11.3
Square 7
Substrate HSS-PM
Oil Grooves Yes
Surface Treatment Coated (PVD/CVD)
Depth 3xD
Applicable Materials Steel, Stainless Steel, Non-Ferrous
Flute Geometry Straight Flute
Performance 5
Coating Description TiN-G Coated
Substrate Description Powder Metal 3
Helix Angle 60°
Thread Form Metric ISO
Brand UFS
Part Numbers
  • Cutwel Part Number K2CCMF12X1.5TG

Description

The UFS K2CCMF-TG series Metric Fine Roll Taps are made from powder metal for maximum tool life. The TiN coating provides improved tool life. These are suitable for tapping Steel, Stainless Steel, Nickel, Copper, Aluminium & Aluminium Alloys. The oil grooves aid lubrication when tapping deeper threads.

Features & Benefits

  • Metric Fine Roll Taps
  • Powder Metal Substrate for Maximum Tool Life
  • TiN Coating Provides Improved Tool Life
  • With Oil Grooves for Lubrication in Deeper Threads
  • Suitable for Steel, Stainless Steel, Nickel, Copper, Aluminium & Aluminium Alloys

What time are we open?

We are open Monday to Friday and able to dispatch orders between 8am and 5:45pm Monday to Thursday, and up to 5pm on Friday.

What delivery services do we offer?

To mainland UK we offer FREE UK next day delivery on all standard orders above £59 (ex vat), and £79 (ex vat) on all orders including any liquids.*

Alternatively, we offer a FREE Click and Collect service from our distribution centre in Cleckheaton, West Yorkshire. Click here for the full address.

For standard orders under £59 (ex vat), we offer the following:

  • 1st class post - £2.49
  • DPD Standard Next Day Delivery - £6.50
  • DPD Next Day Pre-12pm - £9.50 or (£5.00 on orders over £59 (ex VAT))
  • DPD Next Day Pre-10.30am - £17.00

For orders containing liquids under £79 (ex vat),  standard UK Mail Next Day Delivery is £8.00 and UK Mail Next Day Pre-12pm Delivery is £13.00.

We also offer Saturday delivery for those that require it. If you order before 5pm on a Friday we offer a range of options which can be viewed here.

For a full breakdown of costs for all types of item and geographical locations including Scottish Highlands, Northern Ireland, Channel Islands & Republic of Ireland, click here.

How do I return an order/item?

Our returns policy is easier than ever. We understand that if an item isn’t correct, then it needs to be returned. If you are wanting to return anything supplied by Cutwel please see our returns page for full instructions.

*T’s & C’s and exclusions apply. Please see our delivery page for more information on all our services including those outside of mainland UK (Republic of Ireland, Northern Ireland, Scottish Highlands, Channel Islands etc).

Filter Items arrow
Code Thread Shank (mm) Pitch Flute Length (mm) Overall Length (mm) Drill Diameter Square Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Thread
carrat-down
Shank (mm)
carrat-down
Pitch
carrat-down
Flute Length (mm)
carrat-down
Overall Length (mm)
carrat-down
Drill Diameter
carrat-down
Square
carrat-down
Thread: M4 Shank (mm): 4.5 Pitch: 0.5 Flute Length (mm): 13 Overall Length (mm): 63 Drill Diameter: 3.75 Square: 3.4
green In Stock for Next Day Delivery *
£50.59 £42.16
minus plus
Thread: M5 Shank (mm): 6 Pitch: 0.5 Flute Length (mm): 13 Overall Length (mm): 70 Drill Diameter: 4.75 Square: 4.9
green In Stock for Next Day Delivery *
£50.59 £42.16
minus plus
Thread: M6 Shank (mm): 6 Pitch: 0.75 Flute Length (mm): 16 Overall Length (mm): 80 Drill Diameter: 5.65 Square: 4.9
green Available for Delivery within 7-10 Days *
£50.59 £42.16
minus plus
Thread: M8 Shank (mm): 8 Pitch: 1 Flute Length (mm): 18 Overall Length (mm): 90 Drill Diameter: 7.55 Square: 6.2
green In Stock for Next Day Delivery *
£55.36 £46.13
minus plus
Thread: M10 Shank (mm): 10 Pitch: 1 Flute Length (mm): 15 Overall Length (mm): 90 Drill Diameter: 9.55 Square: 8
green In Stock for Next Day Delivery *
£63.07 £52.56
minus plus
Thread: M10 Shank (mm): 10 Pitch: 1.25 Flute Length (mm): 20 Overall Length (mm): 100 Drill Diameter: 9.45 Square: 8
green In Stock for Next Day Delivery *
£60.13 £50.11
minus plus
Thread: M12 Shank (mm): 9 Pitch: 1 Flute Length (mm): 22 Overall Length (mm): 100 Drill Diameter: 11.55 Square: 7
green Available for Delivery within 7-10 Days *
£79.10 £65.92
minus plus
Thread: M12 Shank (mm): 9 Pitch: 1.25 Flute Length (mm): 22 Overall Length (mm): 100 Drill Diameter: 11.45 Square: 7
green Available for Delivery within 7-10 Days *
£74.84 £62.37
minus plus
Thread: M12 Shank (mm): 9 Pitch: 1.5 Flute Length (mm): 22 Overall Length (mm): 100 Drill Diameter: 11.3 Square: 7
green Available for Delivery within 7-10 Days *
£74.84 £62.37
minus plus
Thread: M14 Shank (mm): 11 Pitch: 1.25 Flute Length (mm): 22 Overall Length (mm): 100 Drill Diameter: 13.45 Square: 9
green Available for Delivery within 7-10 Days *
£98.36 £81.97
minus plus
Thread: M14 Shank (mm): 11 Pitch: 1.5 Flute Length (mm): 22 Overall Length (mm): 100 Drill Diameter: 13.3 Square: 9
green Available for Delivery within 7-10 Days *
£94.92 £79.10
minus plus
Thread: M16 Shank (mm): 12 Pitch: 1.5 Flute Length (mm): 22 Overall Length (mm): 100 Drill Diameter: 15.3 Square: 9
green Available for Delivery within 7-10 Days *
£127.57 £106.31
minus plus
