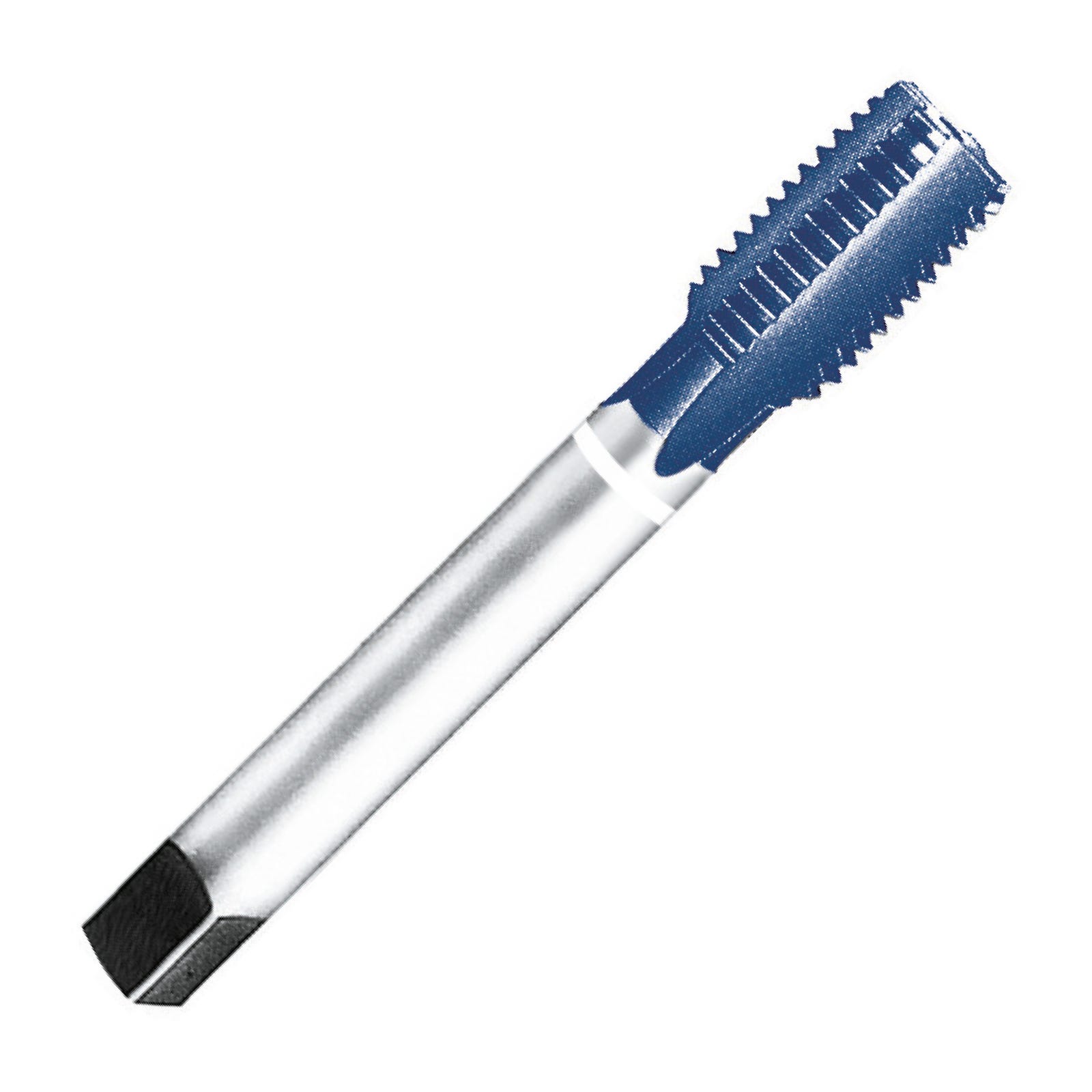

M24 x 3mm Metric Coarse HSS 5% Cobalt Straight Flute TiAlN Coated Machine Tap (6HX Tolerance) for Cast Iron -TY821 Series (YG-1)

Cutwel Sku
TY821786

M24 x 3mm Metric Coarse HSS 5% Cobalt Straight Flute TiAlN Coated Machine Tap (6HX Tolerance) for Cast Iron -TY821 Series (YG-1)

Cutwel Sku
TY821786

Key Features

available Metric Coarse Machine Tap for Cast Iron
available HSS 5% Cobalt Substrate
available Straight Flute for Through & Blind Holes
Read More
K
Cast Iron
S
Exotics
Overall Length (mm)160
Flute Length (mm)34
Shank (mm)18
green In Stock for Next Day Delivery *
minus plus
View Full Range
*Geographical & product exclusions apply. Delivery calculated on checkout.

Need Help?

Contact Sales

01924 869660 Call us 8am - 5:30pm Call us 8am - 5pm Call us from 8am on Monday

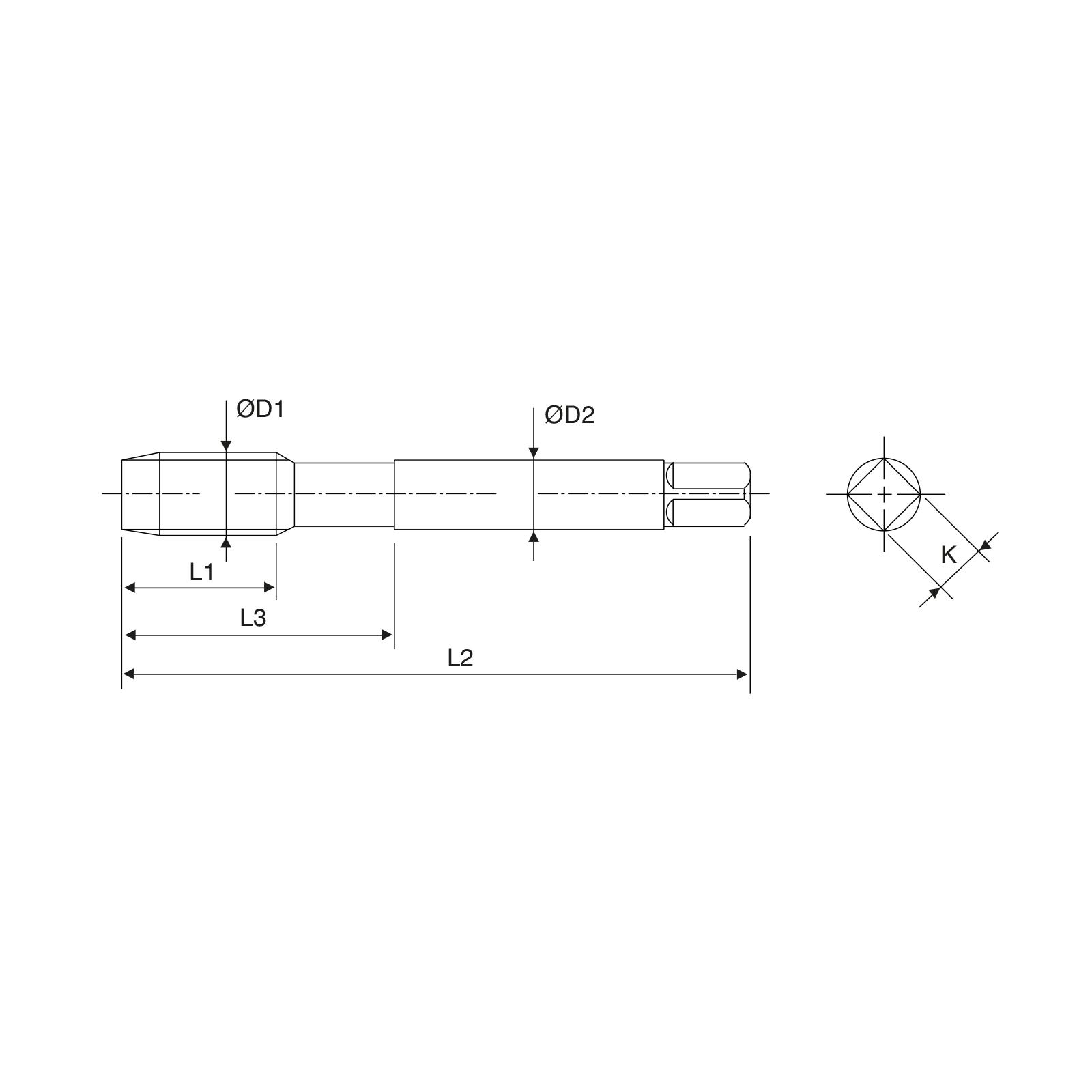

Specification

Category Threading
Sub Category Machine Taps
Thread M24
Sub Category 2 Cast Iron & Abrasive Machine Taps
Shank (mm) 18
Pitch 3
Flute Length (mm) 34
Overall Length (mm) 160
Flutes 3
L3 60
Drill Diameter 21
Square 14.5
Substrate HSS
Oil Grooves No
Surface Treatment Coated (PVD/CVD)
Depth 2xD
Applicable Materials Cast Iron, Exotics
Flute Geometry Straight Flute
Performance 3
Coating Description TiAIN 900 Coated
Substrate Description HSS 5% Cobalt
Helix Angle 60°
Thread Form Metric ISO
Brand YG-1
Part Numbers
  • Cutwel Part Number TY821786

Description

The YG-1 TY821 series Metric Coarse Cast Iron Machine Taps are suitable for tapping grey cast iron, short chipping brass/bronze and GFRP/CFRP. They come with a TiAlN coating, HSS 5% cobalt substrate and a straight flute geometry for through and blind holes.

Features & Benefits

  • Metric Coarse Machine Tap for Cast Iron
  • HSS 5% Cobalt Substrate
  • Straight Flute for Through & Blind Holes
  • TiAlN Coated
  • Suitable for Grey Cast Iron, Short Chipping Bras/Bronze and GFRP/CFRP

What time are we open?

We are open Monday to Friday and able to dispatch orders between 8am and 5:30pm Monday to Thursday, and up to 5pm on Friday.

What delivery services do we offer?

To mainland UK we offer FREE UK next day delivery on all standard orders above £69 (ex vat), and £125 (ex vat) on all orders including any liquids.*

Alternatively, we offer a FREE Click and Collect service from our distribution centre in Cleckheaton, West Yorkshire. Click here for the full address.

For standard orders under £69 (ex vat), we offer the following:

  • 1st class post - £2.75
  • DPD Standard Next Day Delivery - £7.00
  • DPD Next Day Pre-12pm - £10.00 or (£5.25 on orders over £69 (ex VAT)
  • DPD Next Day Pre-10.30am - £18.00

For orders containing liquids under £125 (ex vat), standard UK Mail Next Day Delivery is £8.50 and UK Mail Next Day Pre-12pm Delivery is £13.75.

We also offer Saturday delivery for those that require it. If you order before 5pm on a Friday we offer a range of options which can be viewed here.

For a full breakdown of costs for all types of item and geographical locations including Scottish Highlands, Northern Ireland, Channel Islands & Republic of Ireland, click here.

How do I return an order/item?

Our returns policy is easier than ever. We understand that if an item isn’t correct, then it needs to be returned. If you are wanting to return anything supplied by Cutwel please see our returns page for full instructions.

*T’s & C’s and exclusions apply. Please see our delivery page for more information on all our services including those outside of mainland UK (Republic of Ireland, Northern Ireland, Scottish Highlands, Channel Islands etc).

Filter Items arrow
Code Thread Shank (mm) Pitch Flute Length (mm) Overall Length (mm) Flutes L3 Drill Diameter Square Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Thread
carrat-down
Shank (mm)
carrat-down
Pitch
carrat-down
Flute Length (mm)
carrat-down
Overall Length (mm)
carrat-down
Flutes
carrat-down
L3
carrat-down
Drill Diameter
carrat-down
Square
carrat-down
Thread: M2 Shank (mm): 2.8 Pitch: 0.4 Flute Length (mm): 8 Overall Length (mm): 45 Flutes: 3 L3: 13 Drill Diameter: 1.6 Square: 2.1
green In Stock for Next Day Delivery *
£24.23 £20.19
minus plus
Thread: M2.5 Shank (mm): 2.8 Pitch: 0.45 Flute Length (mm): 9 Overall Length (mm): 50 Flutes: 3 L3: 15 Drill Diameter: 2.05 Square: 2.1
green In Stock for Next Day Delivery *
£20.23 £16.86
minus plus
Thread: M3 Shank (mm): 3.5 Pitch: 0.5 Flute Length (mm): 11 Overall Length (mm): 56 Flutes: 3 L3: 18 Drill Diameter: 2.5 Square: 2.7
green In Stock for Next Day Delivery *
£15.83 £13.19
minus plus
Thread: M4 Shank (mm): 4.5 Pitch: 0.7 Flute Length (mm): 13 Overall Length (mm): 63 Flutes: 3 L3: 21 Drill Diameter: 3.3 Square: 3.4
green Available for Delivery within 4-5 Days *
£15.98 £13.32
minus plus
Thread: M5 Shank (mm): 6 Pitch: 0.8 Flute Length (mm): 15 Overall Length (mm): 70 Flutes: 3 L3: 25 Drill Diameter: 4.2 Square: 4.9
green Available for Delivery within 4-5 Days *
£16.55 £13.79
minus plus
Thread: M6 Shank (mm): 6 Pitch: 1 Flute Length (mm): 17 Overall Length (mm): 80 Flutes: 3 L3: 30 Drill Diameter: 5 Square: 4.9
green Available for Delivery within 4-5 Days *
£16.55 £13.79
minus plus
Thread: M8 Shank (mm): 8 Pitch: 1.25 Flute Length (mm): 20 Overall Length (mm): 90 Flutes: 3 L3: 35 Drill Diameter: 6.8 Square: 6.2
green Available for Delivery within 4-5 Days *
£21.37 £17.81
minus plus
Thread: M10 Shank (mm): 10 Pitch: 1.5 Flute Length (mm): 22 Overall Length (mm): 100 Flutes: 3 L3: 39 Drill Diameter: 8.5 Square: 8
green In Stock for Next Day Delivery *
£25.86 £21.55
minus plus
Thread: M12 Shank (mm): 9 Pitch: 1.75 Flute Length (mm): 24 Overall Length (mm): 110 Flutes: 3 L3: 44 Drill Diameter: 10.2 Square: 7
green Available for Delivery within 4-5 Days *
£34.32 £28.60
minus plus
Thread: M14 Shank (mm): 11 Pitch: 2 Flute Length (mm): 26 Overall Length (mm): 110 Flutes: 3 L3: 44 Drill Diameter: 12 Square: 9
green Available for Delivery within 4-5 Days *
£41.74 £34.78
minus plus
Thread: M16 Shank (mm): 12 Pitch: 2 Flute Length (mm): 27 Overall Length (mm): 110 Flutes: 3 L3: 44 Drill Diameter: 14 Square: 9
green Available for Delivery within 4-5 Days *
£52.98 £44.15
minus plus
Thread: M18 Shank (mm): 14 Pitch: 2.5 Flute Length (mm): 30 Overall Length (mm): 125 Flutes: 3 L3: 50 Drill Diameter: 15.5 Square: 11
green Available for Delivery within 4-5 Days *
£68.90 £57.42
minus plus
Thread: M20 Shank (mm): 16 Pitch: 2.5 Flute Length (mm): 32 Overall Length (mm): 140 Flutes: 3 L3: 54 Drill Diameter: 17.5 Square: 12
green Available for Delivery within 4-5 Days *
£82.01 £68.34
minus plus
Thread: M22 Shank (mm): 18 Pitch: 2.5 Flute Length (mm): 32 Overall Length (mm): 140 Flutes: 3 L3: 54 Drill Diameter: 19.5 Square: 14.5
green Available for Delivery within 4-5 Days *
£111.37 £92.81
minus plus
Thread: M24 Shank (mm): 18 Pitch: 3 Flute Length (mm): 34 Overall Length (mm): 160 Flutes: 3 L3: 60 Drill Diameter: 21 Square: 14.5
green Available for Delivery within 4-5 Days *
£126.80 £105.67
minus plus
Thread: M2 Shank (mm): 2.8 Pitch: 0.4 Flute Length (mm): 8 Overall Length (mm): 45 Flutes: 3 L3: 13 Drill Diameter: 1.6 Square: 2.1
green Available for Delivery within 4-5 Days *
£23.76 £19.80
minus plus
Thread: M2.5 Shank (mm): 2.8 Pitch: 0.45 Flute Length (mm): 9 Overall Length (mm): 50 Flutes: 3 L3: 15 Drill Diameter: 2.05 Square: 2.1
green Available for Delivery within 4-5 Days *
£21.19 £17.66
minus plus
Thread: M3 Shank (mm): 3.5 Pitch: 0.5 Flute Length (mm): 11 Overall Length (mm): 56 Flutes: 3 L3: 18 Drill Diameter: 2.5 Square: 2.7
green Available for Delivery within 4-5 Days *
£18.40 £15.33
minus plus
Thread: M4 Shank (mm): 4.5 Pitch: 0.7 Flute Length (mm): 13 Overall Length (mm): 63 Flutes: 3 L3: 21 Drill Diameter: 3.3 Square: 3.4
green Available for Delivery within 4-5 Days *
£18.56 £15.47
minus plus
Thread: M5 Shank (mm): 6 Pitch: 0.8 Flute Length (mm): 15 Overall Length (mm): 70 Flutes: 3 L3: 25 Drill Diameter: 4.2 Square: 4.9
green Available for Delivery within 4-5 Days *
£18.86 £15.72
minus plus
Thread: M6 Shank (mm): 6 Pitch: 1 Flute Length (mm): 17 Overall Length (mm): 80 Flutes: 3 L3: 30 Drill Diameter: 5 Square: 4.9
green Available for Delivery within 4-5 Days *
£20.02 £16.68
minus plus
Thread: M8 Shank (mm): 8 Pitch: 1.25 Flute Length (mm): 20 Overall Length (mm): 90 Flutes: 3 L3: 35 Drill Diameter: 6.8 Square: 6.2
green Available for Delivery within 4-5 Days *
£28.98 £24.15
minus plus
Thread: M10 Shank (mm): 10 Pitch: 1.5 Flute Length (mm): 22 Overall Length (mm): 100 Flutes: 3 L3: 39 Drill Diameter: 8.5 Square: 8
green Available for Delivery within 4-5 Days *
£33.74 £28.12
minus plus
Thread: M12 Shank (mm): 9 Pitch: 1.75 Flute Length (mm): 24 Overall Length (mm): 110 Flutes: 3 L3: 44 Drill Diameter: 10.2 Square: 7
green Available for Delivery within 4-5 Days *
£41.06 £34.22
minus plus
Thread: M14 Shank (mm): 11 Pitch: 2 Flute Length (mm): 26 Overall Length (mm): 110 Flutes: 3 L3: 44 Drill Diameter: 12 Square: 9
green Available for Delivery within 4-5 Days *
£46.93 £39.11
minus plus
Thread: M16 Shank (mm): 12 Pitch: 2 Flute Length (mm): 27 Overall Length (mm): 110 Flutes: 3 L3: 44 Drill Diameter: 14 Square: 9
green Available for Delivery within 4-5 Days *
£54.98 £45.82
minus plus
Thread: M18 Shank (mm): 14 Pitch: 2.5 Flute Length (mm): 30 Overall Length (mm): 125 Flutes: 3 L3: 50 Drill Diameter: 15.5 Square: 11
green Available for Delivery within 4-5 Days *
£73.88 £61.57
minus plus
Thread: M22 Shank (mm): 18 Pitch: 2.5 Flute Length (mm): 32 Overall Length (mm): 140 Flutes: 3 L3: 54 Drill Diameter: 19.5 Square: 14.5
green Available for Delivery within 4-5 Days *
£119.11 £99.26
minus plus
Thread: M24 Shank (mm): 18 Pitch: 3 Flute Length (mm): 34 Overall Length (mm): 160 Flutes: 3 L3: 60 Drill Diameter: 21 Square: 14.5
green In Stock for Next Day Delivery *
£148.26 £123.55
minus plus
