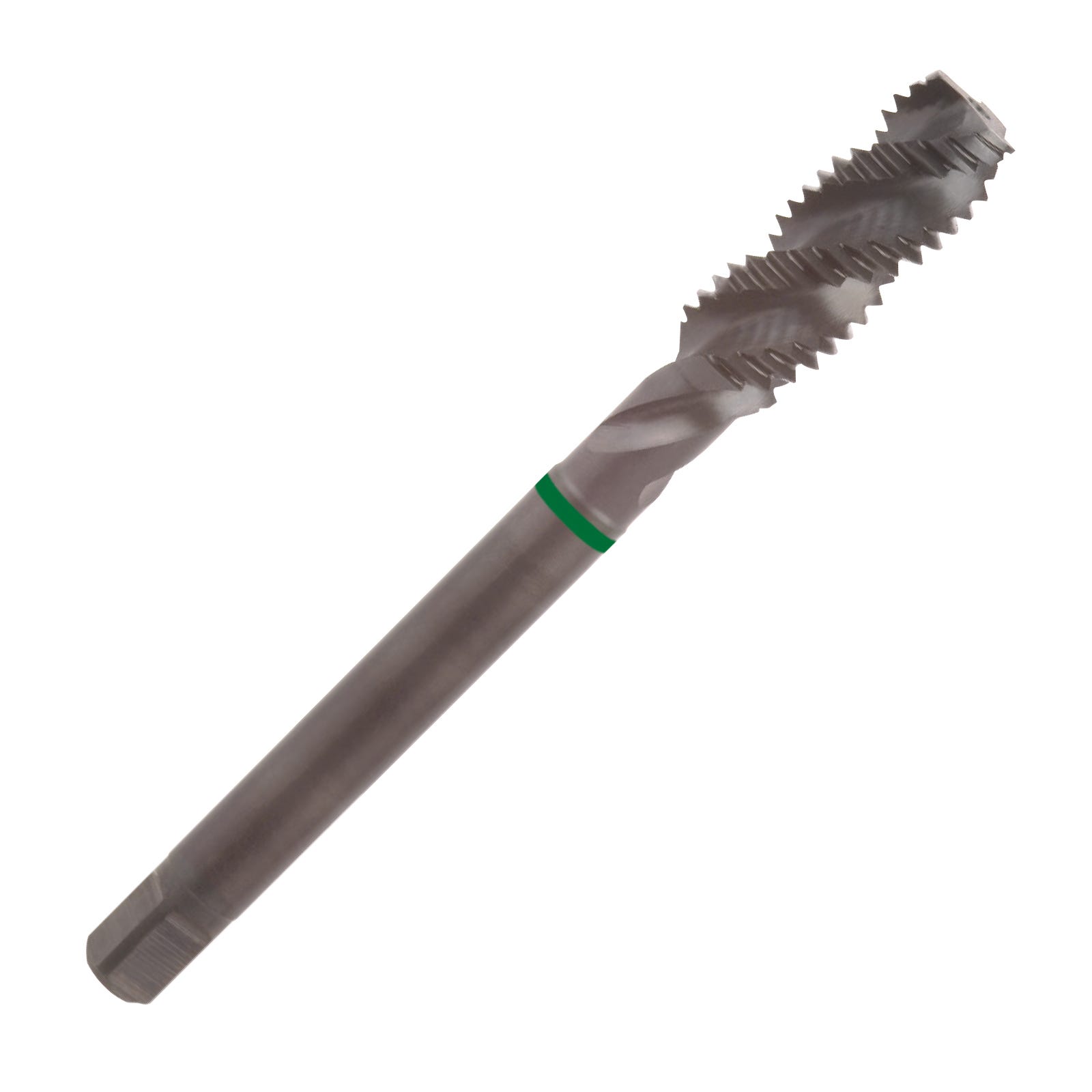

M3 x 0.5mm Metric Coarse Powder Metal Spiral Flute INOX Machine Tap (6H Tolerance) for Stainless Steel - TQ744 Series (YG-1)
M3 x 0.5mm Metric Coarse Powder Metal Spiral Flute INOX Machine Tap (6H Tolerance) for Stainless Steel - TQ744 Series (YG-1)

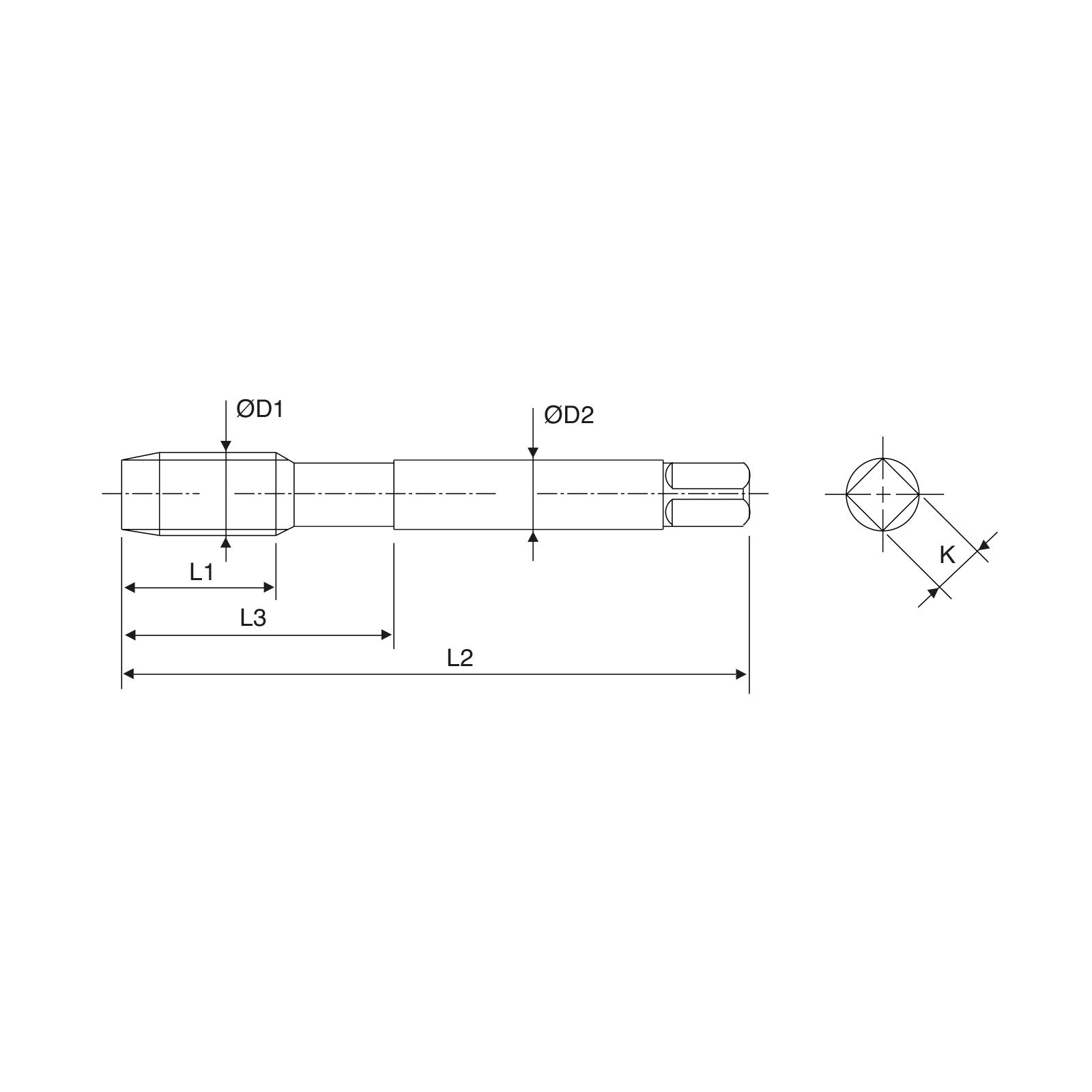

| Overall Length (mm) | 56 |
|---|---|
| Flute Length (mm) | 6 |
| Shank (mm) | 3.5 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Metric Coarse Machine Tap for Stainless Steel
- Powder Metal Substrate
- Spiral Flute for Blind Holes
- VAP surface treatment reduces friction
- For High Performance Tapping of Stainless Steel (also suitable for Soft Steel, Structural Steel & Copper)
- Excellent for stickier materials such as 316 stainless or soft steels
Specification
| Category | Threading |
|---|---|
| Sub Category | Machine Taps |
| Thread | M3 |
| Sub Category 2 | Stainless Steel (INOX) Machine Taps |
| Shank (mm) | 3.5 |
| Pitch | 0.5 |
| Flute Length (mm) | 6 |
| Overall Length (mm) | 56 |
| Flutes | 3 |
| L3 | 18 |
| Drill Diameter | 2.5 |
| Square | 2.7 |
| Substrate | HSS-PM |
| Oil Grooves | No |
| Surface Treatment | Uncoated |
| Depth | 2.5xD |
| Applicable Materials | Steel, Stainless Steel, Non-Ferrous |
| Flute Geometry | Spiral Flute |
| Performance | 5 |
| Coating Description | VAP finish |
| Substrate Description | Powder Metal |
| Helix Angle | 60° |
| Thread Form | Metric ISO |
| Brand | YG-1 |
