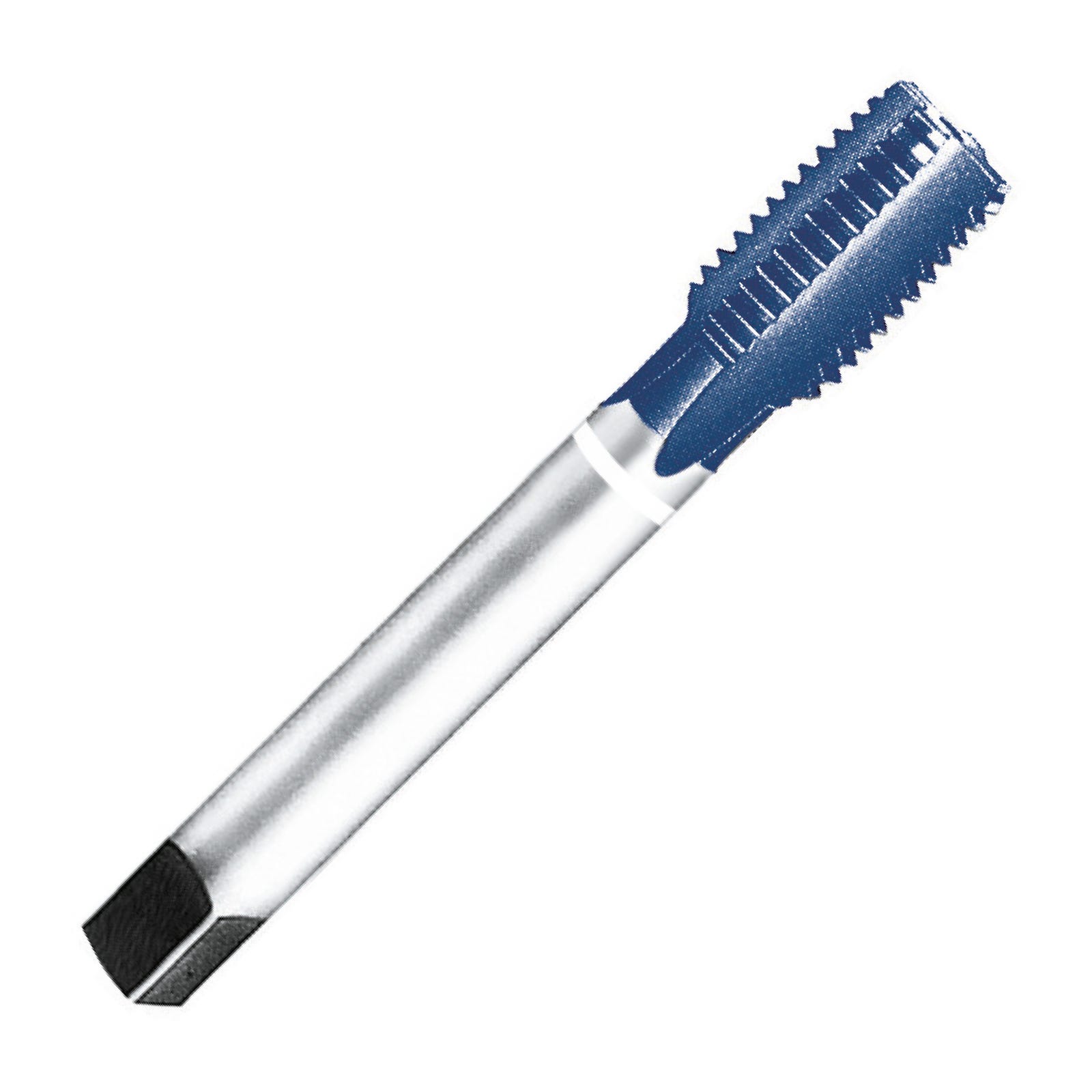

M5 x 0.8mm Metric Coarse HSS 5% Cobalt Straight Flute TiAlN Coated Machine Tap (6HX Tolerance) for Cast Iron -TY821 Series (YG-1)
M5 x 0.8mm Metric Coarse HSS 5% Cobalt Straight Flute TiAlN Coated Machine Tap (6HX Tolerance) for Cast Iron -TY821 Series (YG-1)

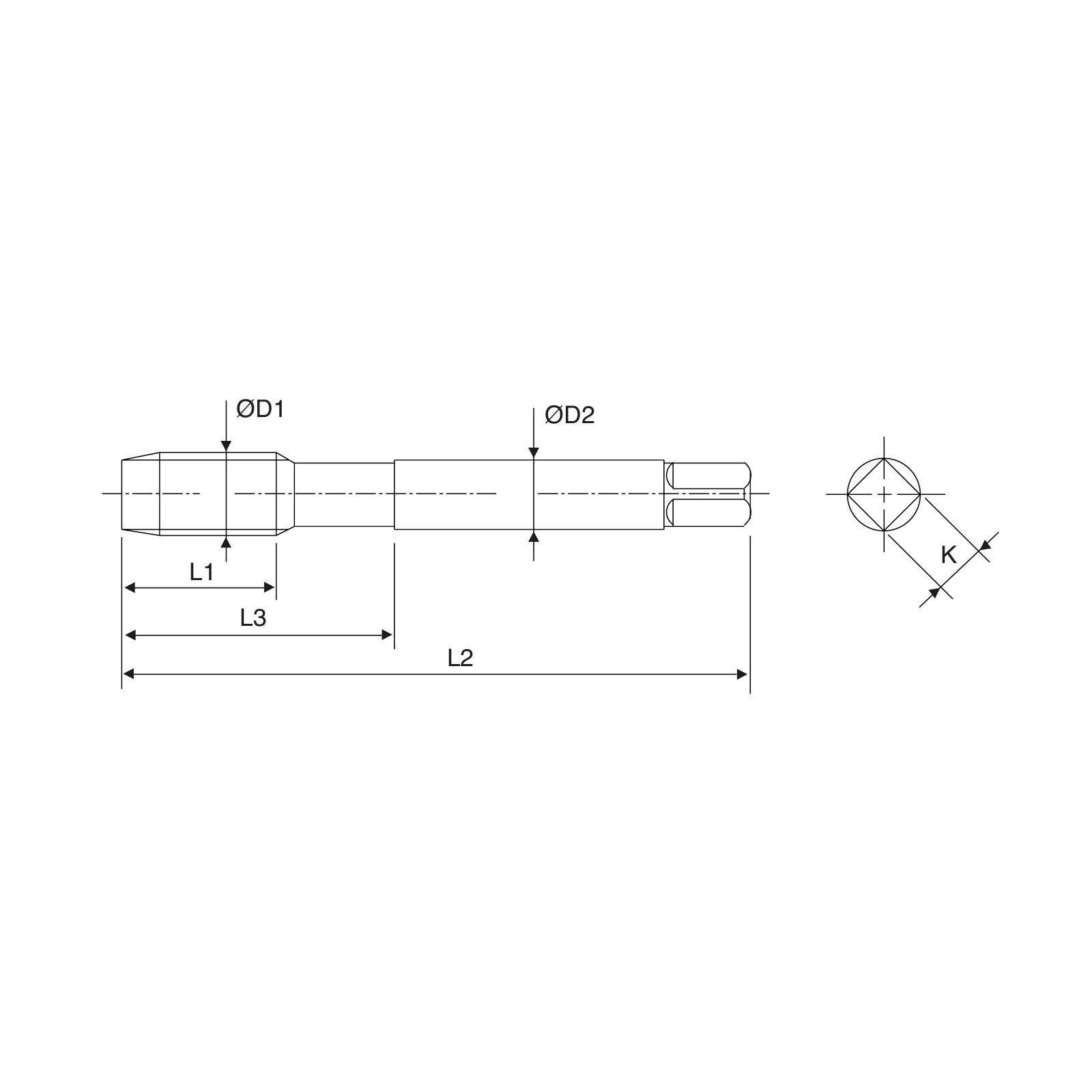

| Overall Length (mm) | 70 |
|---|---|
| Flute Length (mm) | 15 |
| Shank (mm) | 6 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Metric Coarse Machine Tap for Cast Iron
- HSS 5% Cobalt Substrate
- Straight Flute for Through & Blind Holes
- TiAlN Coated
- Suitable for Grey Cast Iron, Short Chipping Bras/Bronze and GFRP/CFRP
Specification
| Category | Threading |
|---|---|
| Sub Category | Machine Taps |
| Thread | M5 |
| Sub Category 2 | Cast Iron & Abrasive Machine Taps |
| Shank (mm) | 6 |
| Pitch | 0.8 |
| Flute Length (mm) | 15 |
| Overall Length (mm) | 70 |
| Flutes | 3 |
| L3 | 25 |
| Drill Diameter | 4.2 |
| Square | 4.9 |
| Substrate | HSS |
| Oil Grooves | No |
| Surface Treatment | Coated (PVD/CVD) |
| Depth | 2xD |
| Applicable Materials | Cast Iron, Exotics |
| Flute Geometry | Straight Flute |
| Performance | 3 |
| Coating Description | TiAIN 900 Coated |
| Substrate Description | HSS 5% Cobalt |
| Helix Angle | 60° |
| Thread Form | Metric ISO |
| Brand | YG-1 |
