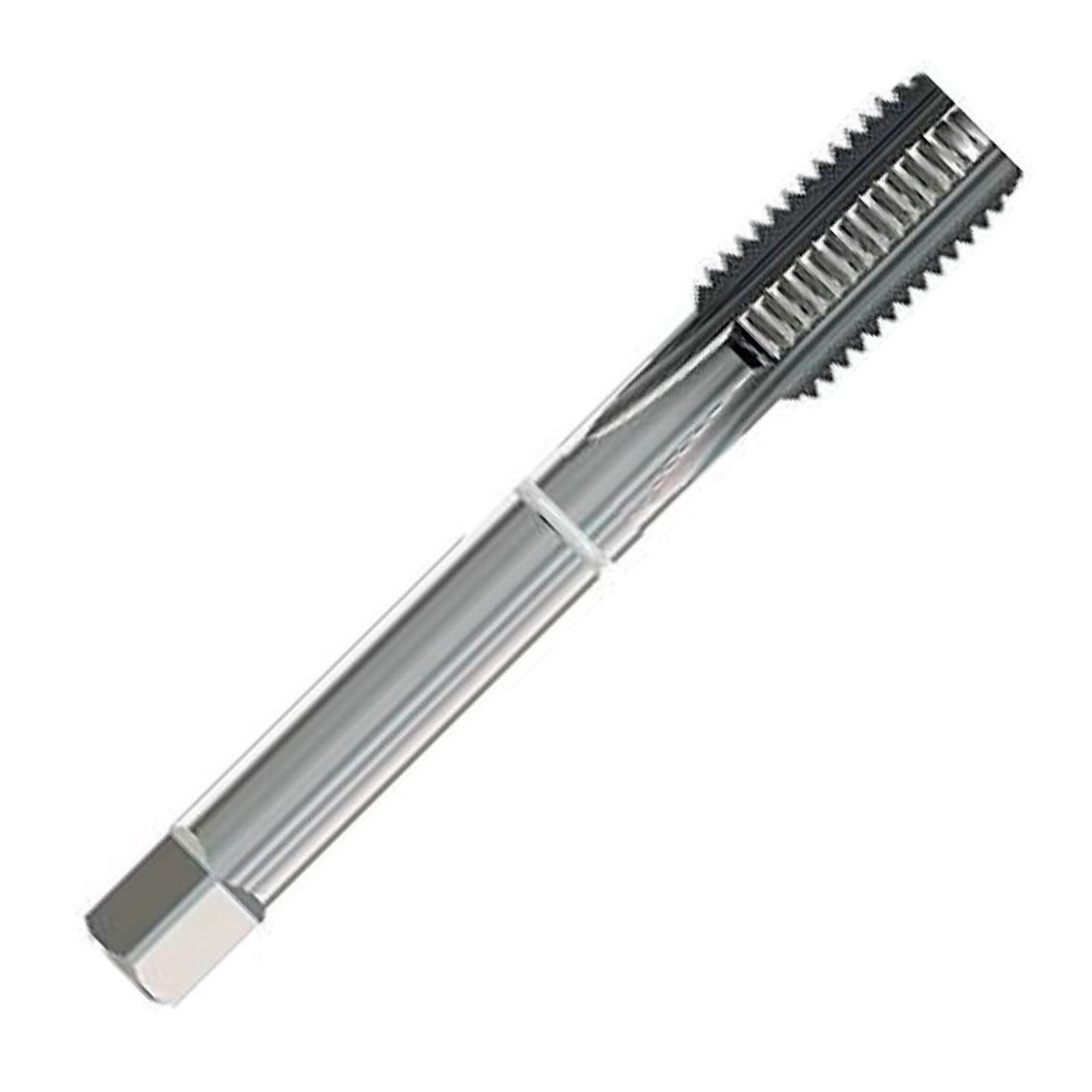

M8 x 1mm Metric Fine Powder Metal Straight Flute TiAlN Coated Machine Tap (6HX Tolerance) for Cast Iron - K27MF-TX Series (UFS)
M8 x 1mm Metric Fine Powder Metal Straight Flute TiAlN Coated Machine Tap (6HX Tolerance) for Cast Iron - K27MF-TX Series (UFS)

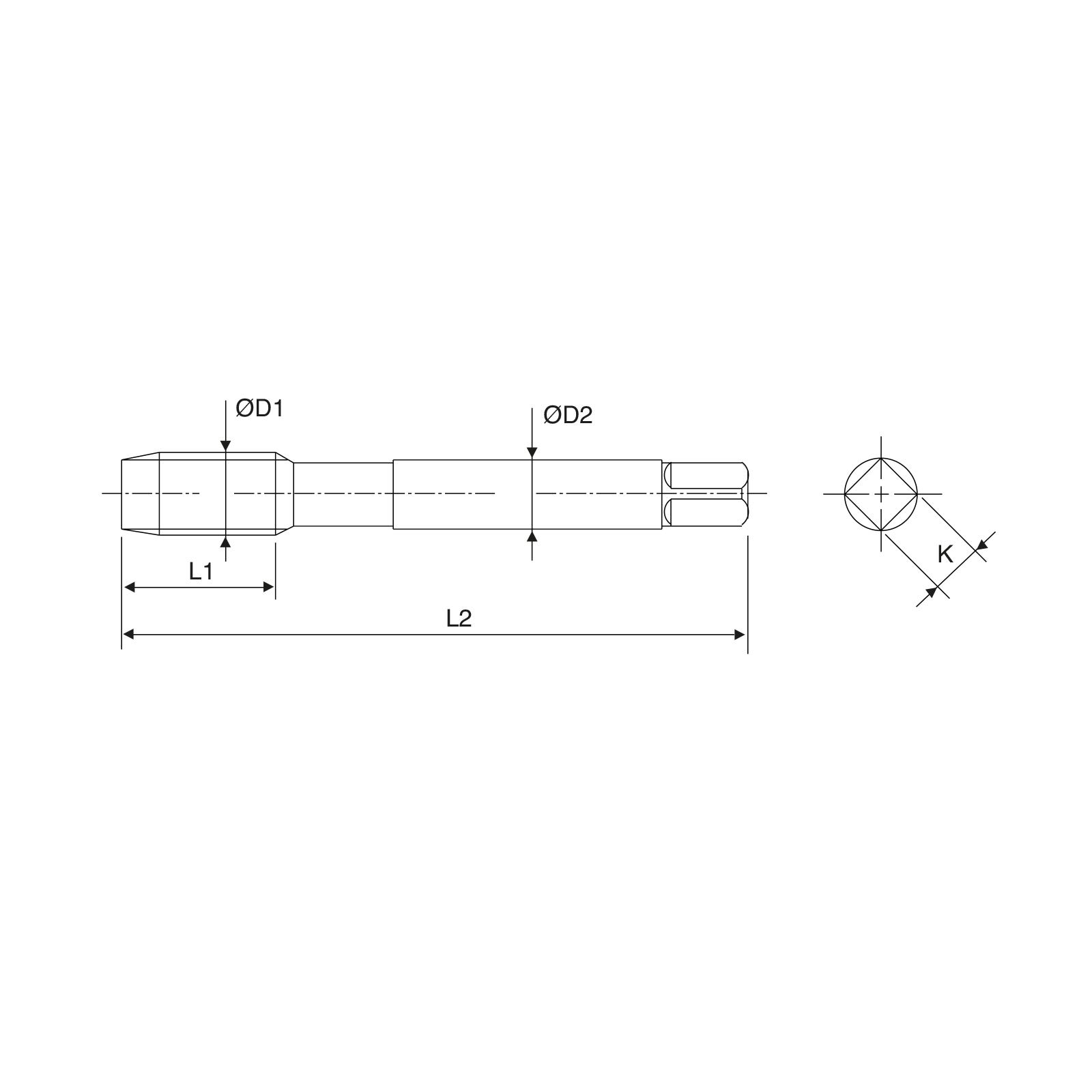

| Overall Length (mm) | 90 |
|---|---|
| Flute Length (mm) | 18 |
| Shank (mm) | 6 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Metric Fine Machine Tap for Cast Iron
- High Performance Powder Metal Substrate
- Straight Flute for Blind & Through Holes
- TiAlN Coating
- Suitable for Grey, Nodular and Malleable Cast Iron, Short Chipping Copper Alloys, Graphite, Highly Abrasive Aluminium and Magnesium Alloys
Specification
| Category | Threading |
|---|---|
| Sub Category | Machine Taps |
| Thread | M8 |
| Sub Category 2 | Cast Iron & Abrasive Machine Taps |
| Shank (mm) | 6 |
| Pitch | 1 |
| Flute Length (mm) | 18 |
| Overall Length (mm) | 90 |
| Flutes | 3 |
| Drill Diameter | 7 |
| Square | 4.9 |
| Substrate | HSS-PM |
| Oil Grooves | No |
| Surface Treatment | Coated (PVD/CVD) |
| Depth | 3xD |
| Applicable Materials | Cast Iron, Exotics |
| Flute Geometry | Straight Flute |
| Performance | 5 |
| Coating Description | TiAIN 900 Coated |
| Through Coolant | No |
| Substrate Description | Powder Metal |
| Helix Angle | 60° |
| Brand Range | Top-line |
| Thread Form | Metric ISO |
| Brand | UFS |
