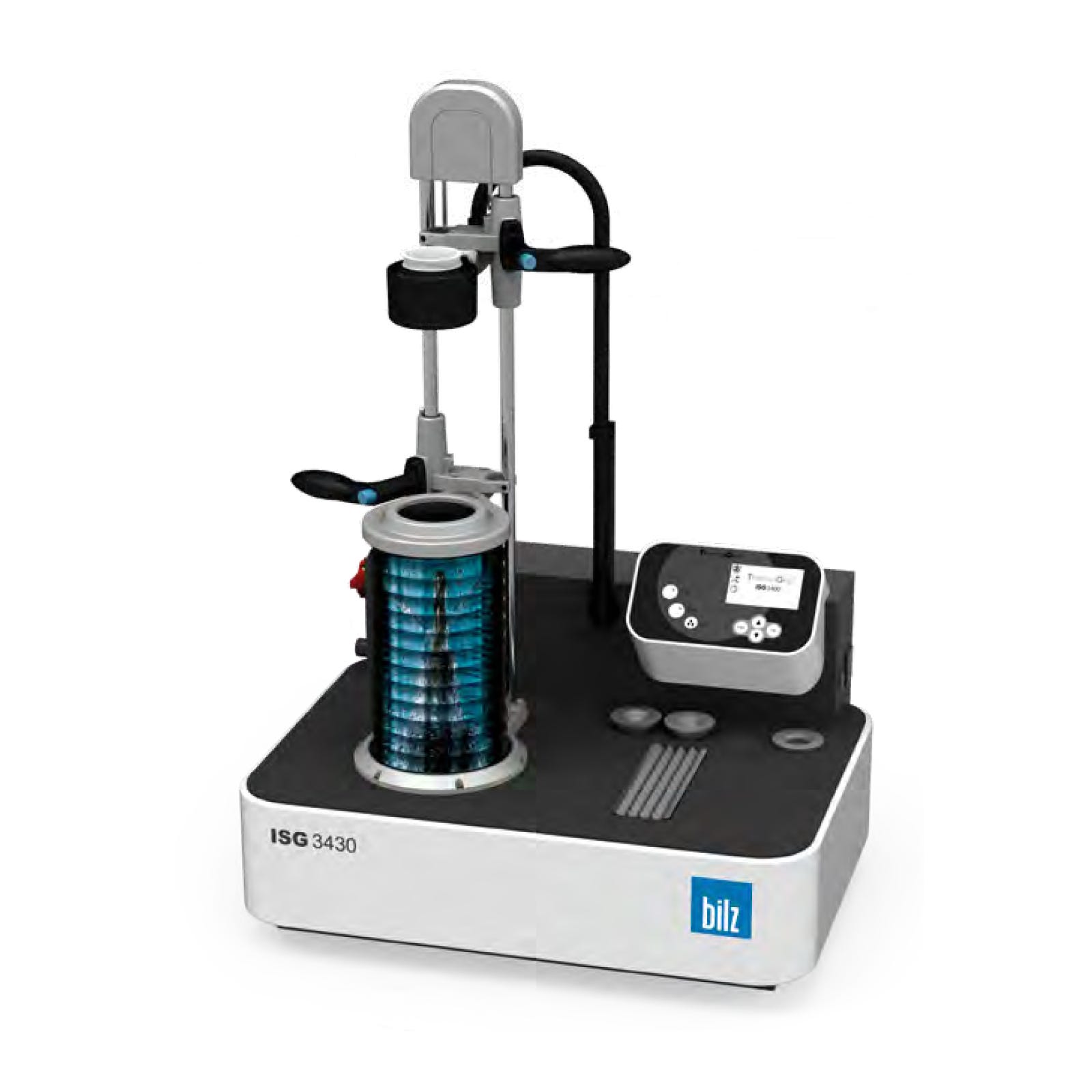

Manual Shrink Fit Machine with Liquid Cooling (Bilz)
Manual Shrink Fit Machine with Liquid Cooling (Bilz)
Please use the quote request feature to enquire about price and availability.
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Clamping Range
|
Voltage
|
Coil
|
Max Tool Length
|
Control Panel
|
Max Cooling Length
|
Power
|
Cooling Type
|
Dimensions
|
Cooling Time
|
Liquid Tank
|
Max Machine Interface
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Clamping Range: 3-20 (Carbide) / 6-20 (HSS) | Voltage: 400V, 16A, 50Hz | Coil: fixed, 3 pole discs | Max Tool Length: 500mm at HSK63-A | Control Panel: graphical | Max Cooling Length: 160mm at HSK63-A | Power: 8kW | Cooling Type: Liquid cooling, geometry independent | Dimensions: 800x560x1130mm | Cooling Time: 30s | Liquid Tank: 28L | Max Machine Interface: HSK100-A, SK50 | POA |
|
||
| Clamping Range: 3-32 (Carbide) / 6-32 (HSS) | Voltage: 400V, 16A, 50Hz | Coil: 4 pole discs | Max Tool Length: 500mm at HSK63-A | Control Panel: graphical | Max Cooling Length: 160mm at HSK63-A | Power: 11kW | Cooling Type: Liquid cooling, geometry independent | Dimensions: 800x560x1130mm | Cooling Time: 30s | Liquid Tank: 28L | Max Machine Interface: HSK100-A, SK50 | POA |
|
||
| Clamping Range: 3-32 (Carbide) / 6-32 (HSS) | Voltage: 400V, 16A, 50Hz | Coil: quick change 4 pole discs | Max Tool Length: 500mm at HSK63-A | Control Panel: graphical | Max Cooling Length: 160mm at HSK63-A | Power: 11kW | Cooling Type: Liquid cooling, geometry independent | Dimensions: 800x560x1130mm | Cooling Time: 30s | Liquid Tank: 28L | Max Machine Interface: HSK100-A, SK50 | POA |
|
Product Information
Features & Benefits
- Allrounder model with heat shrink and cool down technology
- Clamping range: 3mm-32mm diameter (ISG2430 TWK-8-FS only up to 20mm)
- Cooling time: 30 seconds
- Cool down technology with zero contact required of high temperatures
- Included in box: Coil 1 from 3-32mm, 4 pole discs, 1000ml cooling and corrosion protection, protective gloves and operation manual, without tool holder/cooling adaptors
Specification
| Category | Toolholding |
|---|---|
| Sub Category | Shrink Fit Machines |
| Brand | Bilz |
