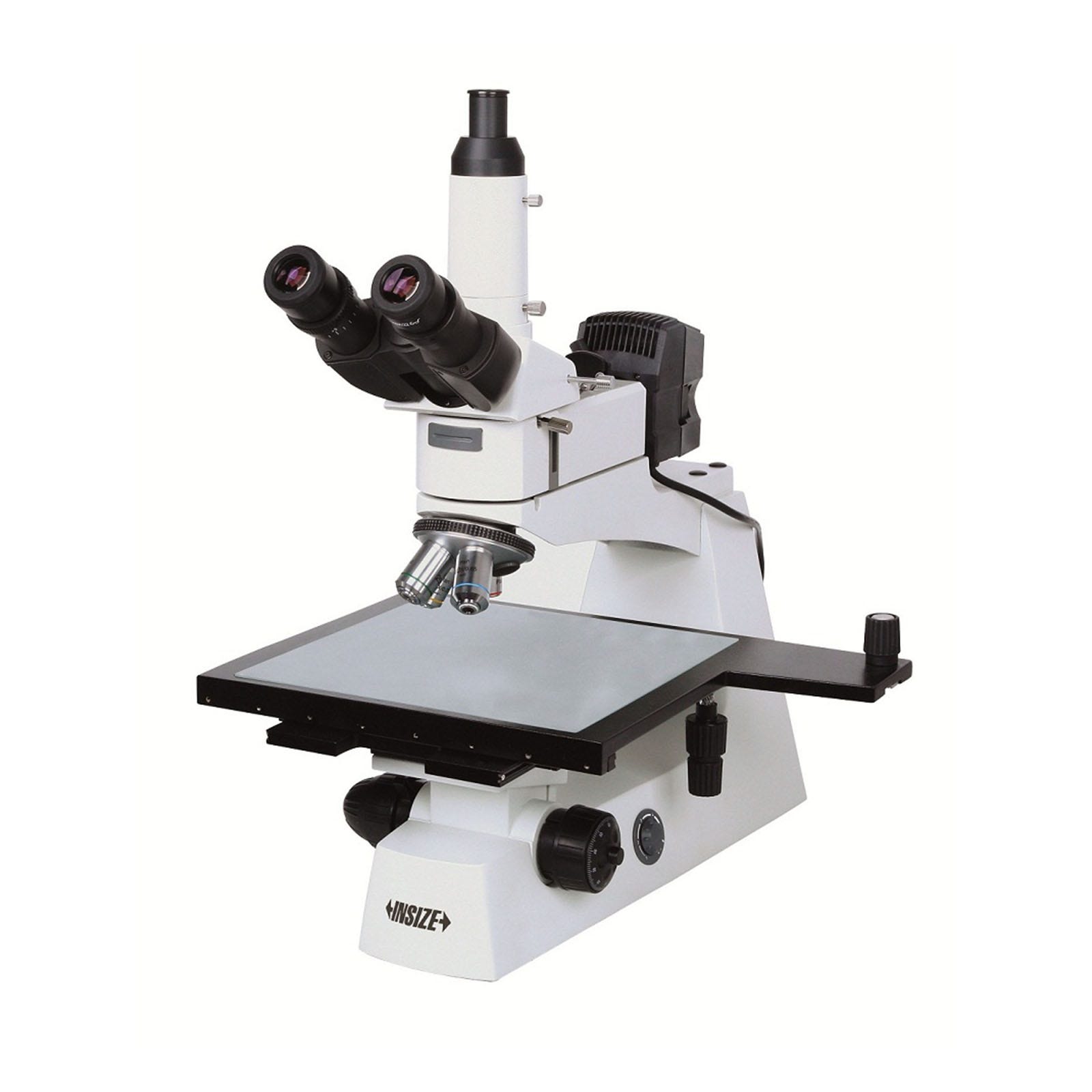

40x-400x Industrual Inspection Microscope (Large Stage) - 5104 Series (Insize)
40x-400x Industrual Inspection Microscope (Large Stage) - 5104 Series (Insize)
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- For observation and inspection of large IC and chips in the IT industry.
- Magnification: 40x-400x.
- Wide field eyepiece: 10x.
- Kohler illumination: 6V/20W halogen lamp, brightness is adjustable built-in green, blue, yellow and frosted glasses.
- Included: 1x main unit, 1x camera connector, 1x anti-dust cover.
- Camera connector allows for digital camera to be used to output magnified image.
Specification
| Category | Measuring |
|---|---|
| Sub Category | Optical Inspection |
| Sub Category 2 | Measuring Microscopes |
| Table Size | 300x268mm |
| Distance | 4x = 17.8, 10x = 10mm, 20x = 5.8, 40x = 2.9 |
| Power supply | 220V, 50/60Hz |
| Objective | 4X-40X |
| Magnification | 40X-400X |
| Weight | 12kg |
| Illumination | 6V/20W Halogen Lamp |
| Dimensions | 647x268x376mm |
| Read Out | Analogue |
| Brand | Insize |
