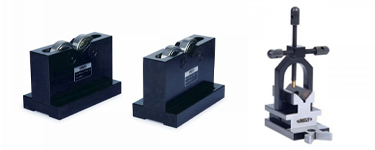

Inspection V-Blocks

Inspection V-Blocks

Our range of inspection v-blocks from Insize are designed to clamp cylindrical workpieces for precision inspection and machining. All working surfaces are hardened and ground to 60HRC for longer tool life and durability.

Filter By arrow
carrat-down

5 Items

Sort By
carrat-down
sort-descending

Traditional Vee Blocks are supplied in matched and numbered pairs only, manufactured from close grained cast iron....

  • Supplied in matched and numbered pairs only
  • Manufactured from close grained cast iron
  • Ground faces

From £205.92 £171.60

The Insize 6896 V-Block Set can clamp cylindrical workpieces for precision inspection and machining. All working surfaces are hardened and ground to 60HRC for longer tool life and durability from mach...

  • Made of alloy steel.
  • Hardened to HRc60 +/-2.
  • V groove on the top for large shafts.
  • V groove on the bottom for small shafts (except 6896-10).
  • Two V-blocks per set.

From £152.57 £127.14

Traditional Vee Blocks and Clamps, manufactured from close grained cast iron. One steel clamp and screw supplied per pair....

  • Supplied in matched and numbered pairs
  • Manufactured from close grained cast iron
  • One steel clamp and screw supplied per pair
  • 230 General Workshop grade

From £209.22 £174.35

The Insize 6804 V-Block can clamp cylindrical workpieces for high precision inspection and machining. All working surfaces are hardened and ground to 60HRC for longer tool life and durability from mac...

  • Parallelism of upper V-groove to bottom, left and right sides 0.005mm.
  • Squareness of upper V-groove to back side 0.005mm.
  • Parallelism of side groove to back side 0.005mm.
  • Supplied in singles.
  • All working surfaces hardened to 60hrc +/-2.
  • Adjustment screw to support block and prevent tilting.
  • Side grooves for shouldered studs and pins .
  • Not suitable for cast iron surface plates.

From £459.84 £383.20

The Insize 6888 Roller Bearing V-Block set for precise measurments of cylindrical workpieces. The heavy duty casings make for longer tool life and durability from machine stop ware. With various bear...

  • Two V-blocks per set.
  • Parallelism of bearings to bottom 0.012mm.
  • Workpieces don't get damaged due to bearings.
  • Suitable for heavy workpieces (up to 1000 KG).

From £612.78 £510.65
