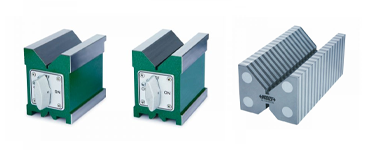

Magnetic Individual V-Block (Advanced Type) - 6889-I Series (Insize)

The Insize 6889 Magnetic V-Block Set can clamp cylindrical workpieces for high precision inspection and machining, can be mounted vertical or horizontal. All working surfaces are hardened and ground t...

Parallelism of V-groove to top, bottom, left and right sides 0.005mm.
Squareness of V-groove to back side 0.005mm.
Height difference of a matched pair 0.005mm.
V groove on the top for large shafts.
V groove on the bottom for small shafts.
Supplied in singles and pairs.
All working surfaces hardened to 60hrc +/-2.
Magnetic force upto 125kgf.
Not suitable for cast iron surface plates.

From £265.51 £221.26

View Products

Magnetic V-Block Set (Advanced Type) - 6889-S Series (Insize)

The Insize 6889 Magnetic V-Block Set can clamp cylindrical workpieces for high precision inspection and machining, can be mounted vertical or horizontal. All working surfaces are hardened and ground t...

Parallelism of V-groove to top, bottom, left and right sides 0.005mm.
Squareness of V-groove to back side 0.005mm.
Height difference of a matched pair 0.005mm.
V groove on the top for large shafts.
V groove on the bottom for small shafts.
Supplied in singles and pairs.
All working surfaces hardened to 60hrc +/-2.
Magnetic force upto 125kgf.
Not suitable for cast iron surface plates.

From £343.69 £286.41

View Products

Magnetic Individual V-Block - 6890 Series (Insize)

The Insize 6890 Magnetic V-Block can clamp cylindrical workpieces for precision inspection and machining, can be mounted vertical or horizontal. With a singular V-groove you have a clamping range upto...

Parallelism of V-groove to top, bottom, left and right sides 0.01mm.
Squareness of V-groove to back side 0.01mm.
Supplied in single pieces.
Not hardened.
Magnetic force 56kgf.
Not suitable for cast iron surface plates.

From £81.96 £68.30

View Products

Magnetic Individual V-Block - 6801 Series (Insize)

The Insize 6801 Magnetic V-Block can clamp cylindrical workpieces for precision inspection and machining, can be mounted vertical or horizontal. With V-grooves on both sides you have a clamping range ...

Parallelism of V-groove to top, bottom, left and right sides 0.01mm.
Squareness of V-groove to back side 0.01mm.
V groove on the top for large shafts.
V groove on the bottom for small shafts.
Supplied in single pieces.
Not hardened.
Magnetic force upto 96kgf.
Not suitable for cast iron surface plates.

From £188.39 £156.99

View Products

Magnetic V-Block Set - 6891 Series (Insize)

The Insize 6891 Magnetic V-Block Set can clamp larger cylindrical workpieces for high precision inspection and machining, can be mounted vertical or horizontal. With larger V-grooves you have a clamp...

Parallelism of V-groove to top, bottom, left and right sides 0.01mm.
Squareness of V-groove to back side 0.01mm.
Height difference of a matched pair 0.01mm.
Two V-blockes per set.

From £199.21 £166.01

View Products

Magnetic Induction V-Block (Individual) - 6892 Series (Insize)

The Insize 6892 Magnetic Induction V-Block can clamp cylindrical workpieces for high precision inspection and machining on magnetic bases . With V-grooves on both sides you have a clamping range from ...

Parallelism of both V-groove to top, bottom, left and right sides 0.01mm.
Supplied in singles.
V-groove on top for large diameters.
V-groove on bottom for small diameters.
To be used on magnetic bases.

From £83.46 £69.55
