Holtest Bore Micrometer (Metric) - 628 Series (Mitutoyo)
Scroll back
Scroll back

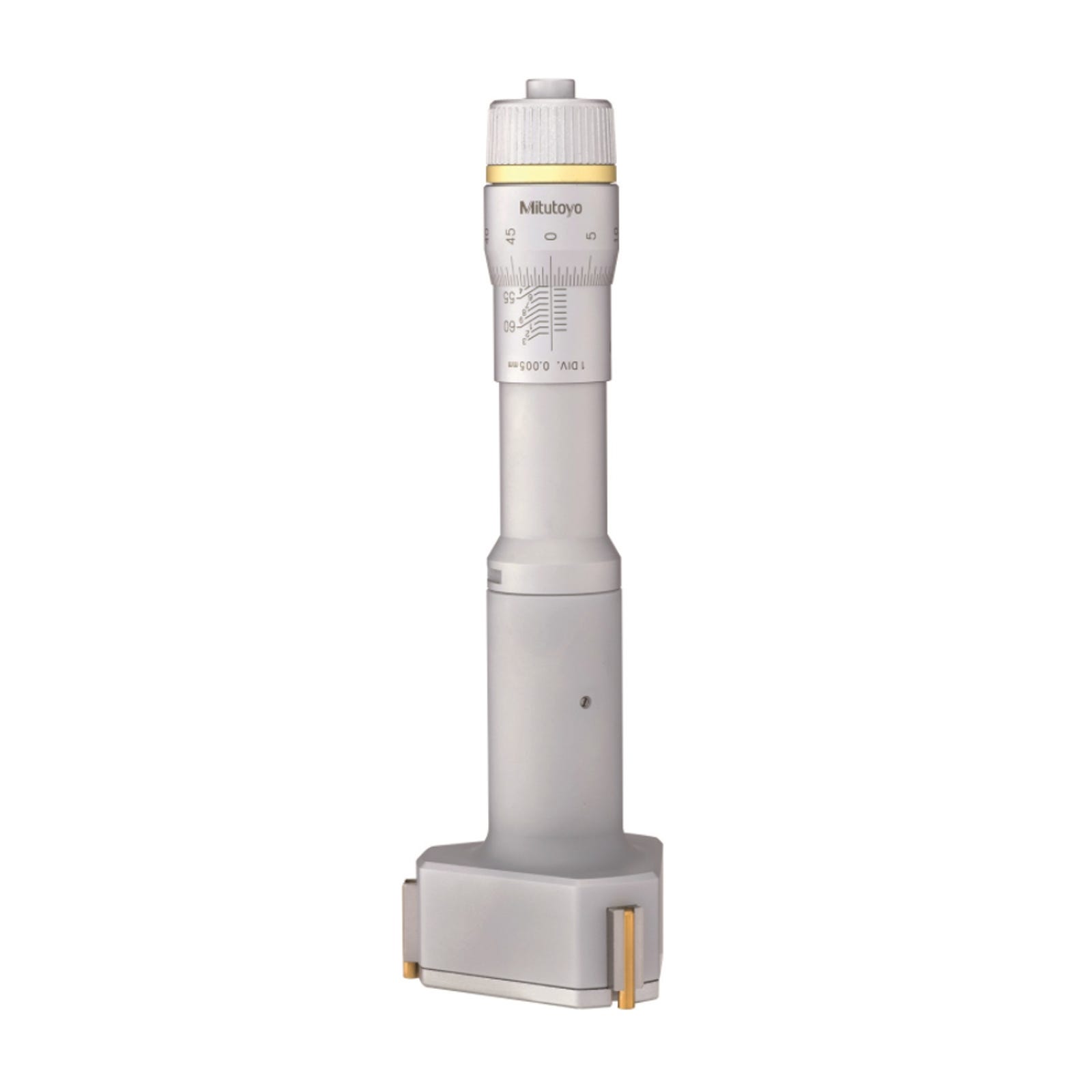

Holtest Bore Micrometer (Metric) - 628 Series (Mitutoyo)
The Mitutoyo 368 Series Holtest Three-Point and Two-Point Bore Micrometers are available in a wide range of sizes....
Read more
View Products
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Range (mm)
|
L2
|
L1
|
Number of Measuring Heads
|

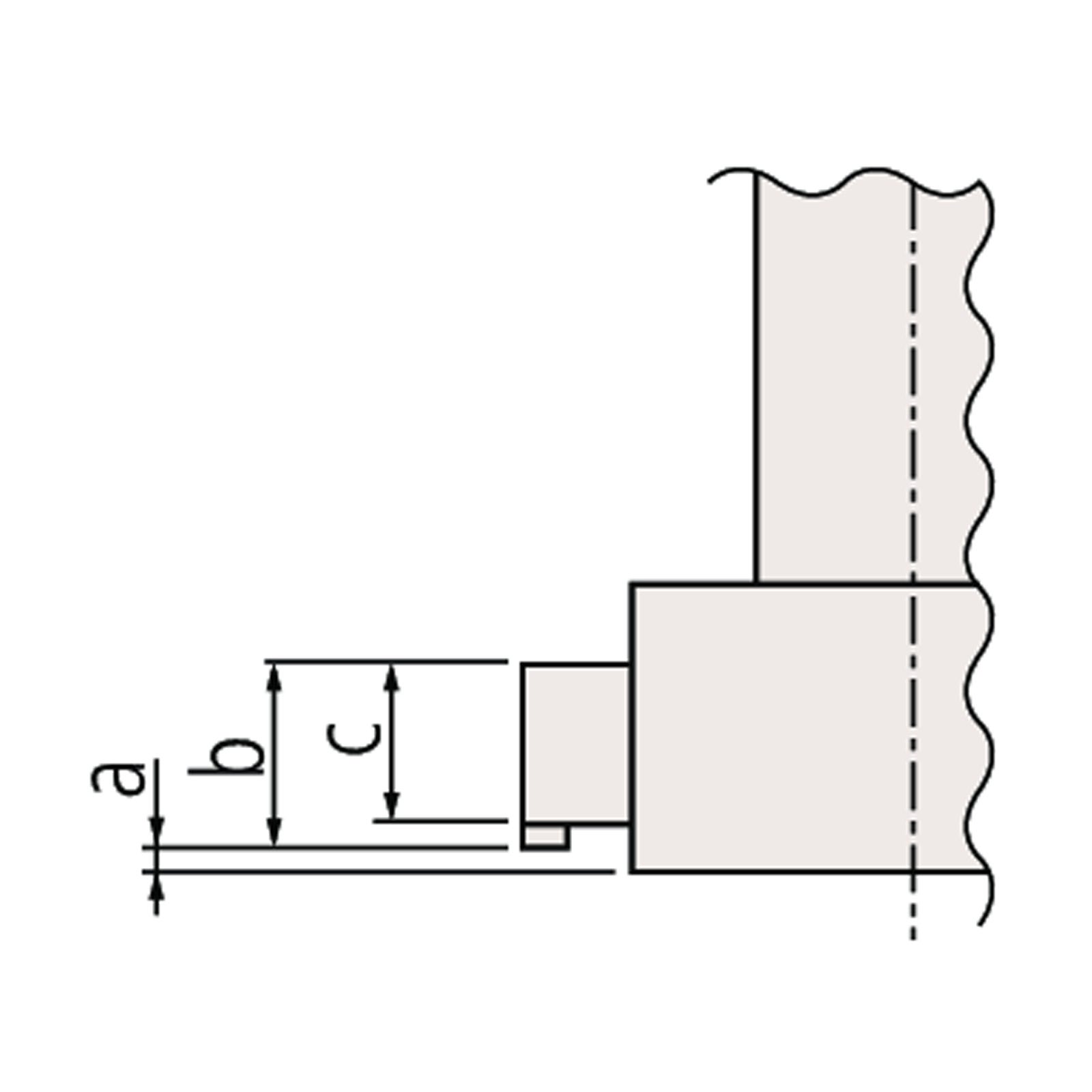

b
|
c
|
Accuracy
|
Graduation
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Range (mm): 2-2.5 | L2: 103.5-104mm | L1: 12mm | Number of Measuring Heads: 4 | b: | c: 2mm | Accuracy: ±2µm (range 2µm) | Graduation: 0.001mm |
4 days*
|
Special Price
£986.05
£821.71
Was
£1,232.57
£1,027.14
|
|
|
| Range (mm): 2.5-3 | L2: 103.5-104mm | L1: 12mm | Number of Measuring Heads: 4 | b: | c: 2mm | Accuracy: ±2µm (range 2µm) | Graduation: 0.001mm |
4 days*
|
Special Price
£986.05
£821.71
Was
£1,232.57
£1,027.14
|
|
|
| Range (mm): 3-4 | L2: 113-114mm | L1: 22mm | Number of Measuring Heads: 4 | b: | c: 2mm | Accuracy: ±2µm (range 2µm) | Graduation: 0.001mm |
4 days*
|
Special Price
£822.22
£685.18
Was
£1,027.78
£856.48
|
|
|
| Range (mm): 4-5 | L2: 113-114mm | L1: 22mm | Number of Measuring Heads: 4 | b: | c: 2mm | Accuracy: ±2µm (range 2µm) | Graduation: 0.001mm |
4 days*
|
Special Price
£822.22
£685.18
Was
£1,027.78
£856.48
|
|
|
| Range (mm): 5-6 | L2: 113-114mm | L1: 22mm | Number of Measuring Heads: 4 | b: | c: 2mm | Accuracy: ±2µm (range 2µm) | Graduation: 0.001mm |
4 days*
|
Special Price
£822.22
£685.18
Was
£1,027.78
£856.48
|
|
|
| Range (mm): 6-8 | L2: 102-104mm | L1: 59mm | Number of Measuring Heads: 4 | b: | c: 2.5mm | Accuracy: ±2µm (range 2µm) | Graduation: 0.001mm |
4 days*
|
Special Price
£322.58
£268.82
Was
£403.22
£336.02
|
|
|
| Range (mm): 8-10 | L2: 102-104mm | L1: 59mm | Number of Measuring Heads: 4 | b: | c: 2.5mm | Accuracy: ±2µm (range 2µm) | Graduation: 0.001mm |
4 days*
|
Special Price
£322.58
£268.82
Was
£403.22
£336.02
|
|
|
| Range (mm): 10-12 | L2: 102-104mm | L1: 59mm | Number of Measuring Heads: 4 | b: | c: 2.5mm | Accuracy: ±2µm (range 2µm) | Graduation: 0.001mm |
4 days*
|
Special Price
£322.58
£268.82
Was
£403.22
£336.02
|
|
|
| Range (mm): 12-16 | L2: 126-130mm | L1: 82mm | Number of Measuring Heads: 4 | b: 5.6mm | c: 3.5mm | Accuracy: ±2µm (range 2µm) | Graduation: 0.005mm |
4 days*
|
Special Price
£392.80
£327.33
Was
£490.99
£409.16
|
|
|
| Range (mm): 16-20 | L2: 126-130mm | L1: 82mm | Number of Measuring Heads: 4 | b: 5.6mm | c: 3.5mm | Accuracy: ±2µm (range 2µm) | Graduation: 0.005mm |
4 days*
|
Special Price
£413.15
£344.29
Was
£516.43
£430.36
|
|
|
| Range (mm): 20-25 | L2: 137-142mm | L1: 94mm | Number of Measuring Heads: 4 | b: 8.3mm | c: 5.2mm | Accuracy: ±3µm (range 3µm) | Graduation: 0.005mm |
4 days*
|
Special Price
£413.15
£344.29
Was
£516.43
£430.36
|
|
|
| Range (mm): 25-30 | L2: 137-142mm | L1: 94mm | Number of Measuring Heads: 4 | b: 8.3mm | c: 5.2mm | Accuracy: ±3µm (range 3µm) | Graduation: 0.005mm |
4 days*
|
Special Price
£413.15
£344.29
Was
£516.43
£430.36
|
|
|
| Range (mm): 30-40 | L2: 145-155mm | L1: 102mm | Number of Measuring Heads: 4 | b: 13mm | c: 10mm | Accuracy: ±3µm (range 3µm) | Graduation: 0.005mm |
4 days*
|
Special Price
£513.89
£428.24
Was
£642.36
£535.30
|
|
|
| Range (mm): 40-50 | L2: 145-155mm | L1: 102mm | Number of Measuring Heads: 4 | b: 13mm | c: 10mm | Accuracy: ±3µm (range 3µm) | Graduation: 0.005mm |
4 days*
|
Special Price
£526.10
£438.42
Was
£657.62
£548.02
|
|
|
| Range (mm): 50-63 | L2: 150-163mm | L1: 105mm | Number of Measuring Heads: 4 | b: 17mm | c: 14mm | Accuracy: ±3µm (range 3µm) | Graduation: 0.005mm |
4 days*
|
Special Price
£529.15
£440.96
Was
£661.44
£551.20
|
|
|
| Range (mm): 62-75 | L2: 150-163mm | L1: 105mm | Number of Measuring Heads: 4 | b: 17mm | c: 14mm | Accuracy: ±3µm (range 3µm) | Graduation: 0.005mm |
4 days*
|
Special Price
£568.84
£474.03
Was
£711.05
£592.54
|
|
|
| Range (mm): 75-88 | L2: 150-163mm | L1: 105mm | Number of Measuring Heads: 4 | b: 17mm | c: 14mm | Accuracy: ±3µm (range 3µm) | Graduation: 0.005mm |
4 days*
|
Special Price
£586.14
£488.45
Was
£732.67
£610.56
|
|
|
| Range (mm): 87-100 | L2: 150-163mm | L1: 105mm | Number of Measuring Heads: 4 | b: 17mm | c: 14mm | Accuracy: ±3µm (range 3µm) | Graduation: 0.005mm |
4 days*
|
Special Price
£598.34
£498.62
Was
£747.94
£623.28
|
|
|
| Range (mm): 100-125 | L2: 227-252mm | L1: 161mm | Number of Measuring Heads: 4 | b: 21mm | c: 13.8mm | Accuracy: ±5µm (range 5µm) | Graduation: 0.005mm |
4 days*
|
Special Price
£861.91
£718.26
Was
£1,077.38
£897.82
|
|
|
| Range (mm): 125-150 | L2: 227-252mm | L1: 161mm | Number of Measuring Heads: 4 | b: 21mm | c: 13.8mm | Accuracy: ±5µm (range 5µm) | Graduation: 0.005mm |
4 days*
|
Special Price
£916.86
£764.05
Was
£1,146.07
£955.06
|
|
|
| Range (mm): 150-175 | L2: 227-252mm | L1: 161mm | Number of Measuring Heads: 4 | b: 21mm | c: 13.8mm | Accuracy: ±5µm (range 5µm) | Graduation: 0.005mm |
4 days*
|
Special Price
£1,048.13
£873.44
Was
£1,310.16
£1,091.80
|
|
|
| Range (mm): 175-200 | L2: 227-252mm | L1: 161mm | Number of Measuring Heads: 4 | b: 21mm | c: 13.8mm | Accuracy: ±5µm (range 5µm) | Graduation: 0.005mm |
4 days*
|
Special Price
£1,078.66
£898.88
Was
£1,348.32
£1,123.60
|
|
|
| Range (mm): 200-225 | L2: 227-252mm | L1: 161mm | Number of Measuring Heads: 4 | b: 21mm | c: 13.8mm | Accuracy: ±5µm (range 5µm) | Graduation: 0.005mm |
4 days*
|
Special Price
£1,078.66
£898.88
Was
£1,348.32
£1,123.60
|
|
|
| Range (mm): 225-250 | L2: 227-252mm | L1: 161mm | Number of Measuring Heads: 4 | b: 21mm | c: 13.8mm | Accuracy: ±5µm (range 5µm) | Graduation: 0.005mm |
4 days*
|
Special Price
£1,078.66
£898.88
Was
£1,348.32
£1,123.60
|
|
|
| Range (mm): 250-275 | L2: 227-252mm | L1: 161mm | Number of Measuring Heads: 4 | b: 21mm | c: 13.8mm | Accuracy: ±5µm (range 5µm) | Graduation: 0.005mm |
4 days*
|
Special Price
£1,149.89
£958.24
Was
£1,437.36
£1,197.80
|
|
|
| Range (mm): 275-300 | L2: 227-252mm | L1: 161mm | Number of Measuring Heads: 4 | b: 21mm | c: 13.8mm | Accuracy: ±5µm (range 5µm) | Graduation: 0.005mm |
4 days*
|
Special Price
£1,343.23
£1,119.36
Was
£1,679.04
£1,399.20
|
|
Product Information
Features & Benefits
The Mitutoyo 368 Series Holtest Three-Point and Two-Point Bore Micrometers are available in a wide range of sizes. Three Point Bore Micrometers have titanium-coated measuring pins that provide excellent durability and impact resistance that allows the instrument to measure right to the bottom of a blind hole. Ratchet stop ensures constant-force and repeatable measurment.
- Titanium-coated measuring pins on the three-point micrometers provides excellent durability and impact resistance.
- Three-Point Bore Micrometer with measuring range from 2-300mm allows stable measurement through automatic centering.
- Ratchet stop ensures constant-force, repeatable measurement.
Specification
| Category | Measuring & Inspection |
|---|---|
| Sub Category | Bore Gauges & Inside Micrometers |
| mm or inch | mm |
| Individual Or Set | Individual |
