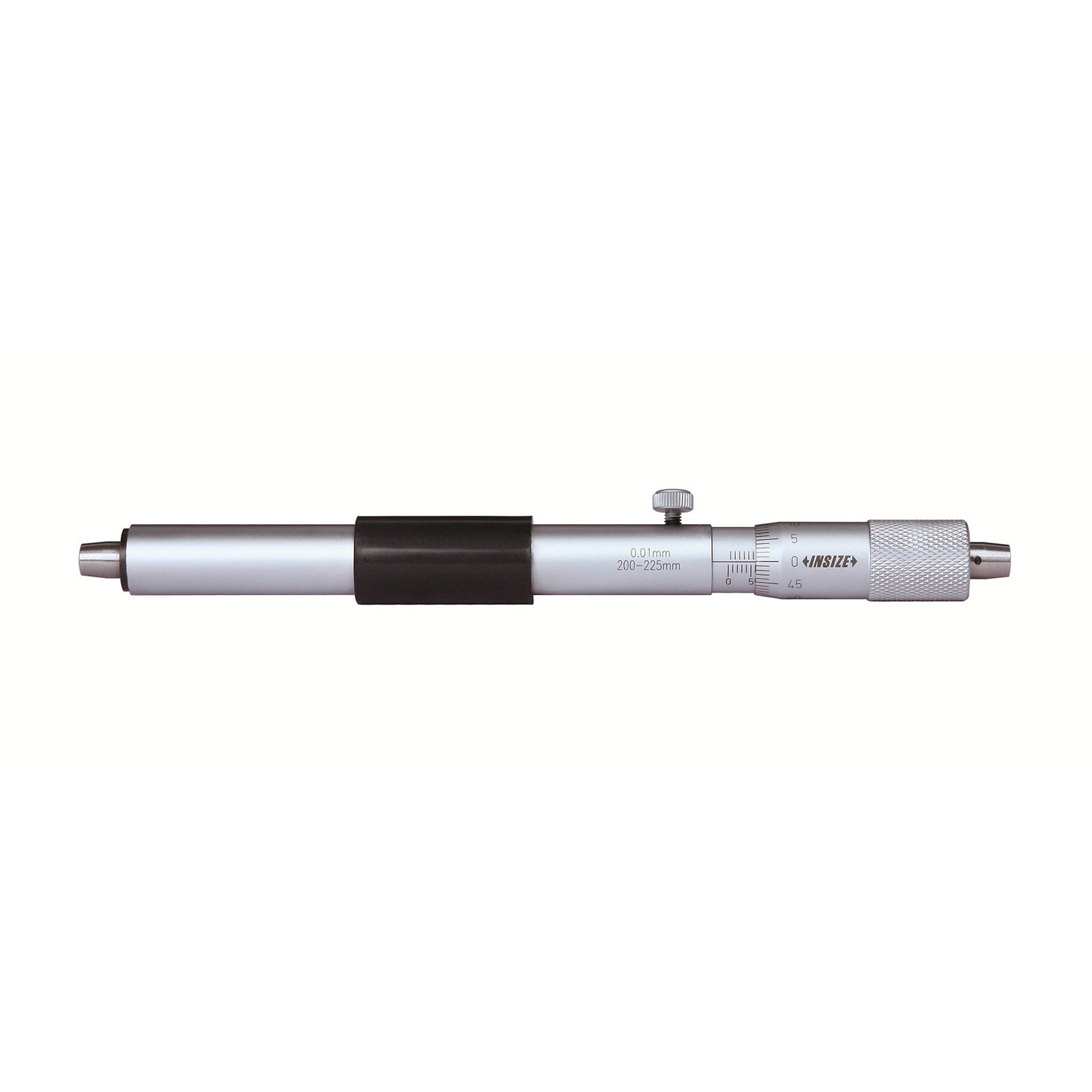

Tubular Inside Micrometer - 3229 Series (Insize)
Scroll back
Scroll back
Tubular Inside Micrometer - 3229 Series (Insize)
The Insize 3229 Series Tubular Inside Micrometer has a graduation of 0.01mm and has Carbide measuring faces. It...
Read more
View Products
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Range (mm)
|
Flutes
|
Range (inch)
|
Setting Ring
|
Extension Rod
|
l
|
Pcs
|
Includes
|
Tip Angle
|
Travel Heads
|
Number of Measuring Heads
|
Number of Setting Rings
|
Type
|
Suitable For
|
b
|
c
|
Accuracy
|
Graduation
|
Resolution
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Range (mm): 50-75 | Flutes: 3 | Range (inch): 3-4" | Setting Ring: 75mm (included) | Extension Rod: 150mm | l: 107 | Pcs: 6 | Includes: 3203-175A, 3203-200A | Tip Angle: 30° | Travel Heads: 13mm | Number of Measuring Heads: 4 | Number of Setting Rings: 2 | Type: A | Suitable For: stem length L = 13.5cm | b: 15.5 | c: 107 | Accuracy: 5µm | Graduation: 0.01mm/0.001" | Resolution: 0.001mm/0.00005” |
5 days*
|
£76.45
£63.71
|
|
|
| Range (mm): 75-100 | Flutes: 3 | Range (inch): 3-4" | Setting Ring: 75mm (included) | Extension Rod: 150mm | l: 107 | Pcs: 6 | Includes: 3203-175A, 3203-200A | Tip Angle: 30° | Travel Heads: 13mm | Number of Measuring Heads: 4 | Number of Setting Rings: 2 | Type: B | Suitable For: stem length L = 13.5cm | b: 15.5 | c: 107 | Accuracy: 5µm | Graduation: 0.01mm/0.001" | Resolution: 0.001mm/0.00005” |
5 days*
|
£87.78
£73.15
|
|
|
| Range (mm): 100-125 | Flutes: 3 | Range (inch): 3-4" | Setting Ring: 75mm (included) | Extension Rod: 150mm | l: 107 | Pcs: 6 | Includes: 3203-175A, 3203-200A | Tip Angle: 30° | Travel Heads: 13mm | Number of Measuring Heads: 4 | Number of Setting Rings: 2 | Type: C | Suitable For: stem length L = 13.5cm | b: 15.5 | c: 107 | Accuracy: 6µm | Graduation: 0.01mm/0.001" | Resolution: 0.001mm/0.00005” |
5 days*
|
£92.81
£77.34
|
|
|
| Range (mm): 125-150 | Flutes: 3 | Range (inch): 3-4" | Setting Ring: 75mm (included) | Extension Rod: 150mm | l: 107 | Pcs: 6 | Includes: 3203-175A, 3203-200A | Tip Angle: 30° | Travel Heads: 13mm | Number of Measuring Heads: 4 | Number of Setting Rings: 2 | Type: C | Suitable For: stem length L = 13.5cm | b: 15.5 | c: 107 | Accuracy: 6µm | Graduation: 0.01mm/0.001" | Resolution: 0.001mm/0.00005” |
5 days*
|
£102.70
£85.58
|
|
|
| Range (mm): 150-175 | Flutes: 3 | Range (inch): 3-4" | Setting Ring: 75mm (included) | Extension Rod: 150mm | l: 107 | Pcs: 6 | Includes: 3203-175A, 3203-200A | Tip Angle: 30° | Travel Heads: 13mm | Number of Measuring Heads: 4 | Number of Setting Rings: 2 | Type: C | Suitable For: stem length L = 13.5cm | b: 15.5 | c: 107 | Accuracy: 7µm | Graduation: 0.01mm/0.001" | Resolution: 0.001mm/0.00005” |
5 days*
|
£110.33
£91.94
|
|
|
| Range (mm): 175-200 | Flutes: 3 | Range (inch): 3-4" | Setting Ring: 75mm (included) | Extension Rod: 150mm | l: 107 | Pcs: 6 | Includes: 3203-175A, 3203-200A | Tip Angle: 30° | Travel Heads: 13mm | Number of Measuring Heads: 4 | Number of Setting Rings: 2 | Type: C | Suitable For: stem length L = 13.5cm | b: 15.5 | c: 107 | Accuracy: 7µm | Graduation: 0.01mm/0.001" | Resolution: 0.001mm/0.00005” |
5 days*
|
£118.10
£98.42
|
|
|
| Range (mm): 200-225 | Flutes: 3 | Range (inch): 3-4" | Setting Ring: 75mm (included) | Extension Rod: 150mm | l: 107 | Pcs: 6 | Includes: 3203-175A, 3203-200A | Tip Angle: 30° | Travel Heads: 13mm | Number of Measuring Heads: 4 | Number of Setting Rings: 2 | Type: C | Suitable For: stem length L = 13.5cm | b: 15.5 | c: 107 | Accuracy: 8µm | Graduation: 0.01mm/0.001" | Resolution: 0.001mm/0.00005” |
5 days*
|
£130.55
£108.79
|
|
|
| Range (mm): 225-250 | Flutes: 3 | Range (inch): 3-4" | Setting Ring: 75mm (included) | Extension Rod: 150mm | l: 107 | Pcs: 6 | Includes: 3203-175A, 3203-200A | Tip Angle: 30° | Travel Heads: 13mm | Number of Measuring Heads: 4 | Number of Setting Rings: 2 | Type: C | Suitable For: stem length L = 13.5cm | b: 15.5 | c: 107 | Accuracy: 8µm | Graduation: 0.01mm/0.001" | Resolution: 0.001mm/0.00005” |
5 days*
|
£138.52
£115.43
|
|
|
| Range (mm): 250-275 | Flutes: 3 | Range (inch): 3-4" | Setting Ring: 75mm (included) | Extension Rod: 150mm | l: 107 | Pcs: 6 | Includes: 3203-175A, 3203-200A | Tip Angle: 30° | Travel Heads: 13mm | Number of Measuring Heads: 4 | Number of Setting Rings: 2 | Type: C | Suitable For: stem length L = 13.5cm | b: 15.5 | c: 107 | Accuracy: 9µm | Graduation: 0.01mm/0.001" | Resolution: 0.001mm/0.00005” |
5 days*
|
£150.47
£125.39
|
|
|
| Range (mm): 275-300 | Flutes: 3 | Range (inch): 3-4" | Setting Ring: 75mm (included) | Extension Rod: 150mm | l: 107 | Pcs: 6 | Includes: 3203-175A, 3203-200A | Tip Angle: 30° | Travel Heads: 13mm | Number of Measuring Heads: 4 | Number of Setting Rings: 2 | Type: C | Suitable For: stem length L = 13.5cm | b: 15.5 | c: 107 | Accuracy: 9µm | Graduation: 0.01mm/0.001" | Resolution: 0.001mm/0.00005” |
5 days*
|
£159.71
£133.09
|
|
|
| Range (mm): 300-325 | Flutes: 3 | Range (inch): 3-4" | Setting Ring: 75mm (included) | Extension Rod: 150mm | l: 107 | Pcs: 6 | Includes: 3203-175A, 3203-200A | Tip Angle: 30° | Travel Heads: 13mm | Number of Measuring Heads: 4 | Number of Setting Rings: 2 | Type: C | Suitable For: stem length L = 13.5cm | b: 15.5 | c: 107 | Accuracy: 9µm | Graduation: 0.01mm/0.001" | Resolution: 0.001mm/0.00005” |
5 days*
|
£173.33
£144.44
|
|
|
| Range (mm): 325-350 | Flutes: 3 | Range (inch): 3-4" | Setting Ring: 75mm (included) | Extension Rod: 150mm | l: 107 | Pcs: 6 | Includes: 3203-175A, 3203-200A | Tip Angle: 30° | Travel Heads: 13mm | Number of Measuring Heads: 4 | Number of Setting Rings: 2 | Type: C | Suitable For: stem length L = 13.5cm | b: 15.5 | c: 107 | Accuracy: 9µm | Graduation: 0.01mm/0.001" | Resolution: 0.001mm/0.00005” |
5 days*
|
£171.70
£143.08
|
|
|
| Range (mm): 350-375 | Flutes: 3 | Range (inch): 3-4" | Setting Ring: 75mm (included) | Extension Rod: 150mm | l: 107 | Pcs: 6 | Includes: 3203-175A, 3203-200A | Tip Angle: 30° | Travel Heads: 13mm | Number of Measuring Heads: 4 | Number of Setting Rings: 2 | Type: C | Suitable For: stem length L = 13.5cm | b: 15.5 | c: 107 | Accuracy: 10µm | Graduation: 0.01mm/0.001" | Resolution: 0.001mm/0.00005” |
5 days*
|
£187.90
£156.58
|
|
|
| Range (mm): 400-425 | Flutes: 3 | Range (inch): 3-4" | Setting Ring: 75mm (included) | Extension Rod: 150mm | l: 107 | Pcs: 6 | Includes: 3203-175A, 3203-200A | Tip Angle: 30° | Travel Heads: 13mm | Number of Measuring Heads: 4 | Number of Setting Rings: 2 | Type: C | Suitable For: stem length L = 13.5cm | b: 15.5 | c: 107 | Accuracy: 10µm | Graduation: 0.01mm/0.001" | Resolution: 0.001mm/0.00005” |
5 days*
|
£196.01
£163.34
|
|
|
| Range (mm): 500-525 | Flutes: 3 | Range (inch): 3-4" | Setting Ring: 75mm (included) | Extension Rod: 150mm | l: 107 | Pcs: 6 | Includes: 3203-175A, 3203-200A | Tip Angle: 30° | Travel Heads: 13mm | Number of Measuring Heads: 4 | Number of Setting Rings: 2 | Type: C | Suitable For: stem length L = 13.5cm | b: 15.5 | c: 107 | Accuracy: 11µm | Graduation: 0.01mm/0.001" | Resolution: 0.001mm/0.00005” |
5 days*
|
£218.69
£182.24
|
|
Product Information
Features & Benefits
The Insize 3229 Series Tubular Inside Micrometer has a graduation of 0.01mm and has Carbide measuring faces. It has an accuracy of 5µm and there is a wide rangee of sizes to choose from.
- rangee of micrometers from 75mm-300mm.
- Graduation 0.01mm.
Specification
| Category | Measuring |
|---|---|
| Sub Category | Bore Gauges & Internal Micrometers |
| Sub Category 2 | Tubular Inside Micrometers |
| Read Out | Analogue |
| mm or inch | mm |
| IP Rating | IP67 |
| Individual Or Set | Individual |
| Data Output | No |
| Brand | Insize |
