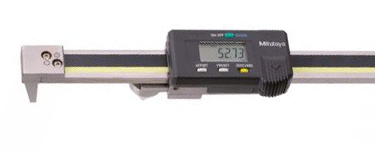

Digital Calipers for Measuring Hole Centres

Vernier Point Caliper - 536-C Series (Mitutoyo)

This 536 Series caliper has narrow-tip jaws which fit into very small grooves and tracks, making many previously difficult outside measurements far easier to obtain. Mitutoyo calipers are robust and o...

Range: up to 150mm.
Accuracy: ±0.05mm.
Graduation: 0.05mm.
Made by Mitutoyo - Market leader in the engineering measuring tool sector.
Narrow-tip jaws fit into very small grooves and tracks, making many previously difficult outside measurements far easier to obtain.
Can measure outside and inside dimensions, depth, and steps.

From £192.32 £160.27

View Products

Digital Universal Caliper - 1125 Series

The 1125 Insize Digital Caliper has a large display with a data output. The Caliper has an aotomatic power off function and is made from Stainless Steel for longer tool life and durability. Available ...

1125 Series Insize.
Automatic power Off.
Made of stainless steel.
Data Ouput

From £995.33 £829.44

View Products

Digital Back-Jaw Centerline Caliper - 1177 Series (Insize)

The 1177 Insize Digital Back-Jaw Centre Line Vernier Caliper is an adjustable caliper to measure hole centres on same or stepped planes. The Caliper is made of stainless steel for longer tool life an...

Measure hole center distance in the same or offset plane.
Resolution: 0.01mm/0.0005”.
Button function: on/off, set, mm/inch, preset (+,-).
Automatic power off (move digital unit to turn on).
Battery CR2032.
Data output.
Made of stainless steel.
Optional Accessory: data output cable (code7302-SPC5A).

From £333.74 £278.12

View Products

Digital Centerline / Edge to Center Caliper - 1525 Series (Insize)

The 1525 Insize Digital Centre line/Edge To Hole Centre Vernier Caliper. The Caliper is made of stainless steel for longer tool life and durability from machine shop wear. With optional SPC cable dat...

Measure hole center distance or edge to hole center distance.
Resolution: 0.01mm/0.0005”.
Button function: on/off, set, mm/inch, preset (+,-).
Automatic power off (move digital unit to turn on).
Battery CR2032.
Data output.
Made of stainless steel.
Optional Accessory: data output cable (code7302-SPC5A).

From £449.46 £374.55

View Products

Digital Back Jaw / Edge to Center Caliper - 1524 Series (Insize)

The 1524 Insize Digital Edge To Hole Centre Vernier Caliper. The Caliper is made of stainless steel for longer tool life and durability from machine shop wear. With optional SPC cable data output. Me...

Measure edge to hole center distance.
Resolution: 0.01mm/0.0005”.
Button function: on/off, set, mm/inch, preset (+,-).
Automatic power off (move digital unit to turn on).
Battery CR2032.
Data output.
Made of stainless steel.
Optional Accessory: data output cable (code7302-SPC5A).

From £375.29 £312.74

View Products

Digital Offset Centerline Caliper - 1192 Series (Insize)

The 1192 Insize Digital Offset Centre Line Vernier Caliper is an adjustable caliper to measure hole centres on same or stepped planes. The Caliper is made of stainless steel for longer tool life and ...

Measure hole center distance in the same or offset plane.
Resolution: 0.01mm/0.0005”.
Button function: on/off, set, mm/inch, preset (+,-).
Automatic power off (move digital unit to turn on).
Battery CR2032.
Data output.
Made of stainless steel.
Optional Accessory: data output cable (code7302-SPC5A).

From £335.24 £279.37

View Products

ABSOLUTE Digimatic IP67 Offset Centreline Digital Caliper - 573-B Series (Mitutoyo)

This 573 Series caliper is specially designed for hole centre-to-centre measurements on the same, or offset, planes. Direct reading of pitch measurements is available due to the offset-value setting f...

Range: up to 310mm (12.4").
Resolution: 0.01mm (.0005").
Made by Mitutoyo - Market leader in the engineering measuring tool sector.
Specially designed for hole Centre-to-Centre measurements on the same, or offset, planes.
Digimatic models feature Mitutoyo's ABSOLUTE system with IP67 ingress protection. No need to reset the origin after switching on.
Direct reading of pitch measurements is available due to the offset-value setting function.
Digimatic models enable integration into statistical process control and measurement systems.

From £431.46 £359.55

View Products

Edge to Centre Type ABSOLUTE Digimatic Back Jaw Centreline Digital Caliper - 573-C Series (Mitutoyo)

This 573 Series caliper is specially designed for hole centre-to-centre measurements on the same, or offset, planes. It is provided with jaws on the back of the slider so measurements can be read easi...

Range: up to 300mm.
Resolution: up to 0.01mm.
Made by Mitutoyo - Market leader in the engineering measuring tool sector.
Specially designed to measure hole Centre-to-Centre and Edge-to-Centre distances.
Provided with jaws on the back of the slider, measurements can be read easily from above.
Direct reading of pitch measurements is possible due to the offset-value setting function.
Data output function allows integration into statistical process control and measurement systems.
Dedicated calibration inspection tools are available.

From £1,109.18 £924.32
