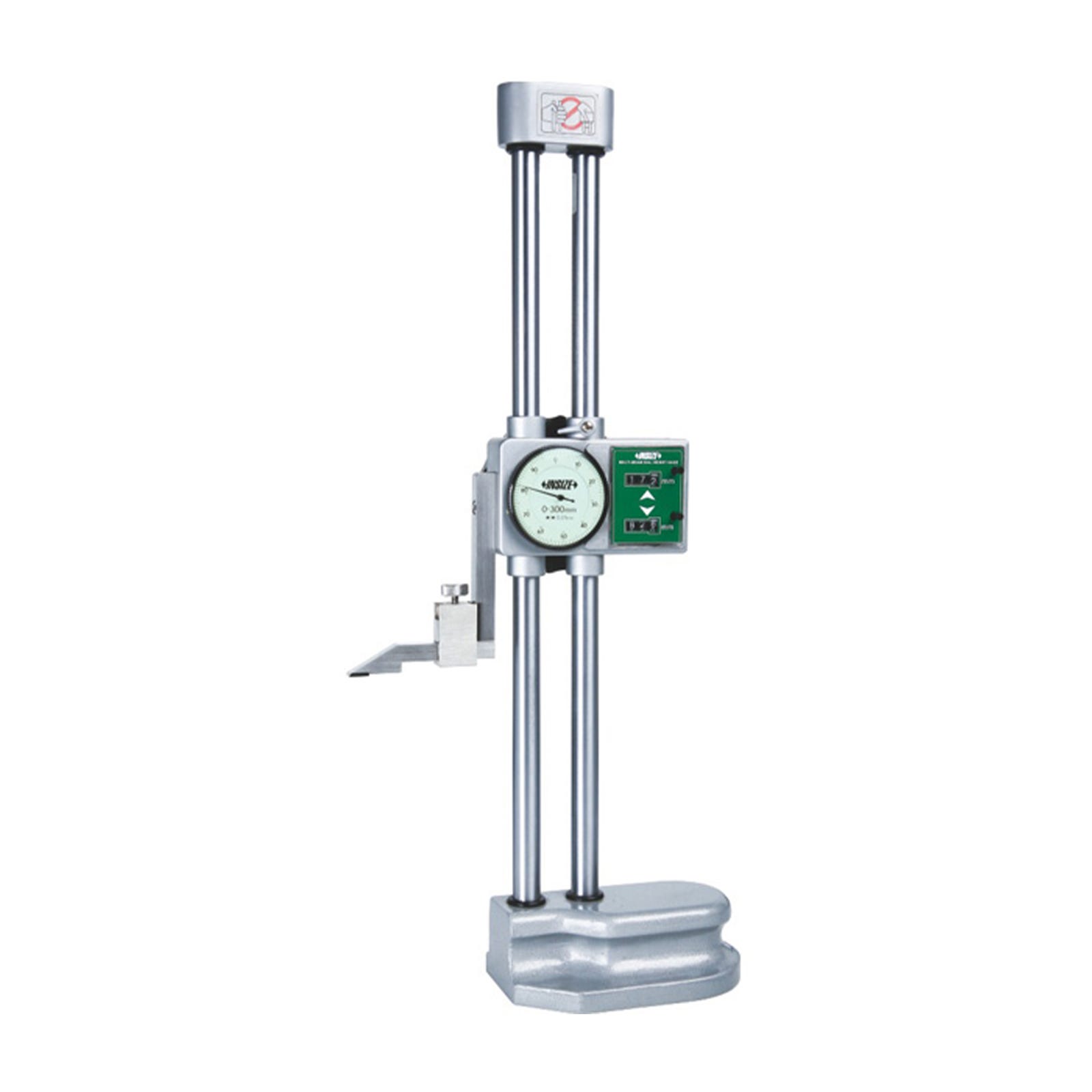

Dial Height Gauge - 1351 Series (Insize)
Dial Height Gauge - 1351 Series (Insize)
Please use the quote request feature to enquire about price and availability.
Related Products

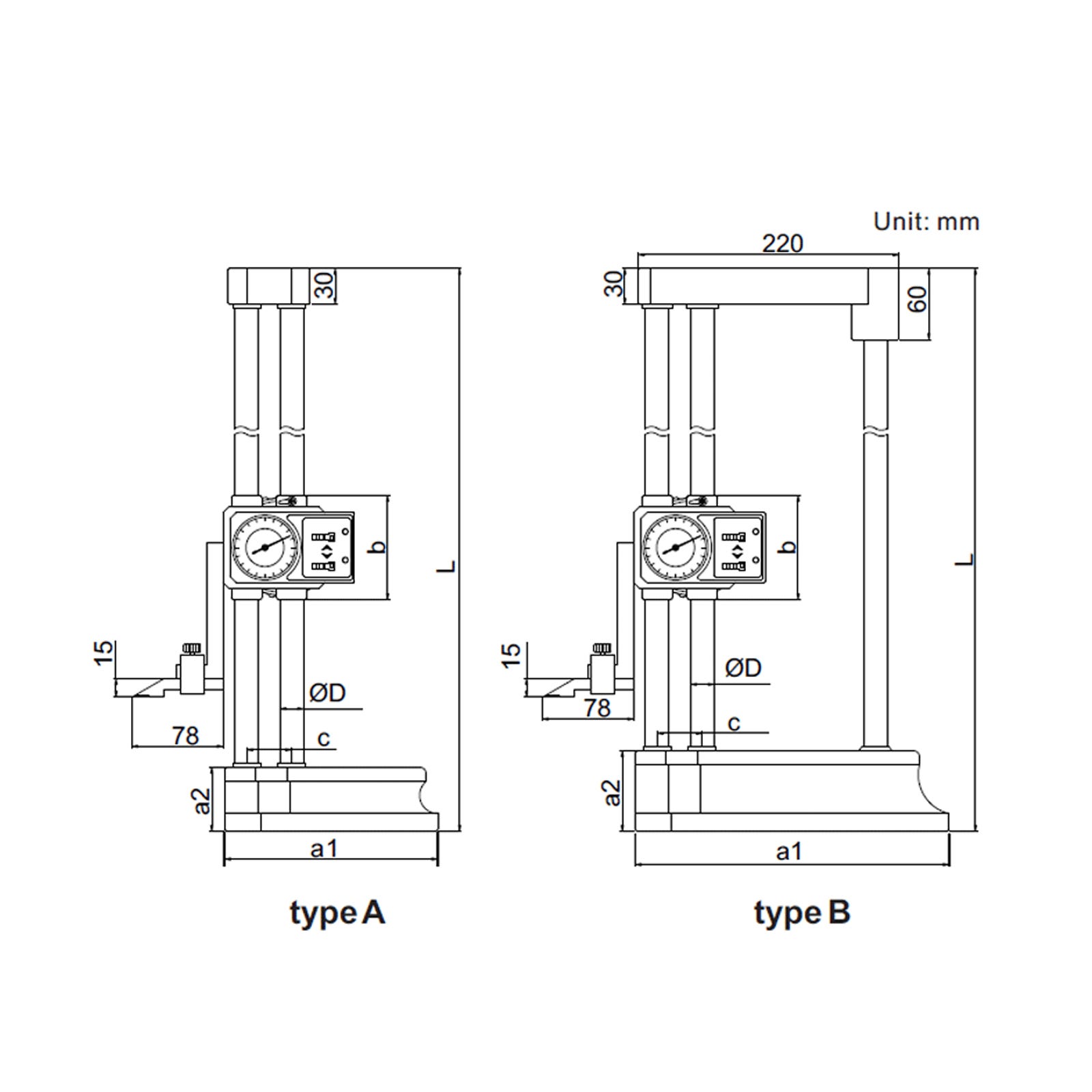

| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Range (mm)
|
L
|
d
|
a1
|
a2
|
b
|
c
|
Accuracy
|
Graduation
|
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Range (mm): 0-300 | L: 475 | d: 15 | a1: 135 | a2: 43 | b: 84 | c: 33 | Accuracy: ±0.04mm | Graduation: 0.01mm | POA |
|
||
| Range (mm): 0-450 | L: 660 | d: 20 | a1: 180 | a2: 54 | b: 88 | c: 38 | Accuracy: ±0.05mm | Graduation: 0.01mm | POA |
|
||
| Range (mm): 0-600 | L: 810 | d: 20 | a1: 180 | a2: 54 | b: 88 | c: 38 | Accuracy: ±0.05mm | Graduation: 0.01mm | POA |
|
Product Information
Features & Benefits
- Range up to 1000mm.
- Resolution 0.01mm.
- One counter reads + direction, other reads - direction.
- Made of stainless steel (except base).
- Carbide tipped scriber.
- Drive wheel.
- Optional accessory: dial test indicator holder (code 6293-6).
Specification
| Category | Measuring & Inspection |
|---|---|
| Sub Category | Height Measurement |
| Read Out | Dial |
| mm or inch | mm |
| Axis | 1D |
