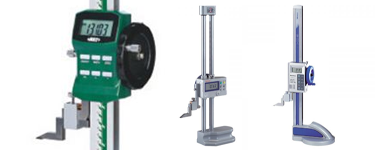

Standard Digital Height Gauges

Standard Digital Height Gauges

Our range of standard precision digital height gauges from Insize and market leaders Mitutoyo includes models with data output, ABS & INC measurement modes and double columns.

Filter By arrow
carrat-down

13 Items

Sort By
carrat-down
sort-descending
ABSOLUTE Digimatic Digital Height Gauge - 570 Series (Mitutoyo)
ABSOLUTE Digimatic Digital Height Gauge - 570 Series (Mitutoyo)

This digital height gauge has both ABS and INC measurement modes to allow efficient operation. Its rigid structure makes the instrument suitable for use in severe work environments. This height gauge ...

  • Range: 0-100mm / 0-40".
  • Accuracy: up to ±0.07mm.
  • Resolution: 0.01 mm (.0005")
  • Made by Mitutoyo - Market leader in the engineering measuring tool sector.
  • ABS and INC measurement modes allow efficient operation.
  • Rigid structure makes instrument suitable for use in severe work environments.
  • The +/- measurement function widens the application range.
  • Allows integration into statistical process control and measurement systems.
  • Carbide-tipped scriber (05GZA033) is provided as a standard accessory.
View Products
Digital Height Gauge - MW-190-DBL Series (Moore & Wright)
Digital Height Gauge - MW-190-DBL Series (Moore & Wright)

The MW-190-DBL Series Digital Height Gauge has an easy to read LCD display and soft keys for maximum operating comfort. Available with fine adjustment for high precision measurements. Available for UK...

  • Digital Height Gauge
  • Easy to read LCD display
  • Soft keys for maximum operating comfort
  • Ground micro-lapped measuring surfaces
  • Functions:mm/inch conversion, on/off, zero-setting, max, min, hold, battery low indication
  • Fine adjustment for high precision measurement
View Products
Double Column Digital Height Gauge -1151 Series (Insize)
Double Column Digital Height Gauge -1151 Series (Insize)

The Insize 1151 Double Column Digital Height Gauge is made from stainless steel for longer tool life and durability from machine shop wear. The height guage also comes with a driving wheel and a dial ...

  • Range of 1000mm.
  • Resolution 0.01mm/0.0005".
  • Buttons: on/off, zero, mm/inch, ABS/INC, preset +/-, set.
  • Made of stainless steel (except base).
  • Carbide tipped scriber.
  • ABS is for absolute and incremental measurements.
  • Battery LR44.
  • Data output.
  • Supplied with dial test indicator holder.
  • Optional accessory: data output cable.
View Products
Digital Height Gauge - MW-193-DDL Series (Moore & Wright)
Digital Height Gauge - MW-193-DDL Series (Moore & Wright)

The MW-193-DDL Series Digital Height Gauge has an easy to read LCD display and hand wheel operation with positive lock. Available with fine adjustment for high precision measurements. Available for UK...

  • Digital Height Gauge
  • Easy to read LCD display
  • Ground micro-lapped measuring surfaces
  • Functions:mm/inch conversion, on/off, zero-setting, max, min, hold, battery low indication
  • Fine adjustment for high precision measurement
  • Supplied with carbide tipped scriber
  • Hand wheel operation with positive lock
View Products
IP54 Digital Mini Height Gauge - 192 Series (Moore & Wright)
IP54 Digital Mini Height Gauge - 192 Series (Moore & Wright)

The Moore & Wright 192 Series Mini Digital Height Gauge is a compact and versatile measuring tool designed to deliver accurate height measurements with ease and efficiency. Whether you need to measure...

  • Standard: Factory standard
  • Easy to read LCD display
  • Solid aluminium alloy base with magnets
  • Hardened stainless steel beam
  • Digital functions: inch/metric/fractional, ABS, HOLD, power saving functions
  • IP54 water, dust and oil resistant protection

From £124.32 £103.60

View Products
IP40 Digital Height Gauge - 197 Series (Moore & Wright)
IP40 Digital Height Gauge - 197 Series (Moore & Wright)

The MW197 series height gauge from Moore & Wright is designed for accuracy and ease of use in any workshop. Featuring a large backlit colour LCD display and wireless data transfer capabilities, this d...

  • Absolute and incremental functions with measurement hold
  • Built in wireless data transfer for data input directly to a Windows application (Excel, Word, Notepad)
  • Large backlit colour LCD display
  • 1.6m/s response speed
  • Tolerance setting for Go/No Go indication
  • Large handwheel for fine raising and lowering of carbide tipped measuring scribe
  • IP40 ingress protection
  • Hard protective plastic case
  • Working temperature = 0-40°C
  • External Power port
  • CR2450 lithium battery
  • Automatic power off

From £556.37 £463.64

View Products
ABSOLUTE Digimatic Digital Height Gauge - 570 Series (Mitutoyo)
ABSOLUTE Digimatic Digital Height Gauge - 570 Series (Mitutoyo)

The ABSOLUTE Digimatic Height Gauge is a precision measuring instrument designed for accuracy and ease of use. It features a resolution of 0.01mm/0.0005” and a large LCD display for clear readings. ...

  • Range: 0-100mm / 0-40".
  • Accuracy: up to: 0.07mm.
  • Resolution: 0.01 mm (.0005")
  • Made by Mitutoyo - Market leader in the engineering measuring tool sector.
  • ABS and INC measurement modes allow efficient operation.
  • Rigid structure makes instrument suitable for use in severe work environments.
  • The +/- measurement function widens the application range.
  • Allows integration into statistical process control and measurement systems.
  • Carbide-tipped scriber (05GZA033) is provided as a standard accessory.

From £808.99 £674.16

View Products
Digimatic Double Column Digital Height Gauge - 192 Series (Mitutoyo)
Digimatic Double Column Digital Height Gauge - 192 Series (Mitutoyo)

This digital height gauge is easy to use due to its ergonomic base which fits comfortably in the hand. The inclined handle improves slider ergonomics whilst the double-column structure ensures high me...

  • Range: up to 0-1000mm / 0-40".
  • Accuracy: up to ±0.02mm.
  • Resolution (switchable): 0.01 / 0.005 mm (.0005 / .0002")
  • Made by Mitutoyo - Market leader in the engineering measuring tool sector.
  • Easy-to-use standard type.
  • Ergonomic base fits comfortably in the hand.
  • Character height of the display has been increased (10 to 11 mm) and the high-contrast LCD display provides improved readability.
  • Inclined handle improves slider ergonomics.
  • Double-column structure ensures high measuring accuracy.
  • Carbide-tipped long scriber (900258) is provided as a standard accessory. (Standard accessory: scriber clamp 901385.)
View Products
Digimatic Multifunction Height Gauge - 192 Series (Mitutoyo)
Digimatic Multifunction Height Gauge - 192 Series (Mitutoyo)

This digital height gauge is easy to use due to its ergonomic base which fits comfortably in the hand. The inclined handle improves slider ergonomics whilst the double-column structure ensures high me...

  • Range: up to 0-1000mm / 0-40".
  • Accuracy: up to ±0.02mm.
  • Resolution (switchable): 0.01 / 0.005 mm (.0005 / .0002")
  • Made by Mitutoyo - Market leader in the engineering measuring tool sector.
  • Easy-to-use standard type.
  • Ergonomic base fits comfortably in the hand.
  • Character height of the display has been increased (10 to 11 mm) and the high-contrast LCD display provides improved readability.
  • Inclined handle improves slider ergonomics.
  • Double-column structure ensures high measuring accuracy.
  • Carbide-tipped long scriber (900258) is provided as a standard accessory. (Standard accessory: scriber clamp 901385.)
View Products
Digital Height Gauge - 1150 Series (Insize)
Digital Height Gauge - 1150 Series (Insize)

The 1150 Digital Height Gage for taller components, is made of stainless steel for longer tool life and durability from machine shop wear. With optional SPC cable data output. Sizes range upto 2000mm...

  • Range up to 2000mm/80".
  • Resolution 0.01mm/0.0005".
  • Buttons: on/off, mm/inch, ABS/INC, hold, TOL, set.
  • Carbide tipped scriber.
  • Made of stainless steel (except base).
  • Battery LR44.
  • Data output.
  • Supplied with dial test indicator holder.
  • Optional accessory: data output cable (code 7302-SPC5A).
View Products
Digital Height Gauge with Driving Wheel - 1156 Series (Insize)
Digital Height Gauge with Driving Wheel - 1156 Series (Insize)

The 1156 Digital Height Gage with drive wheel is made of stainless steel for longer tool life and durability from machine shop wear. With optional SPC cable data output. Sizes range upto 1000mm/40"....

  • Range up to 1000mm/40".
  • Resolution 0.02mm/0.001".
  • Buttons: on/off, mm/inch, preset (+/-), hold.
  • Carbide tipped scriber.
  • Made of stainless steel (except base).
  • Battery CR2032, auto power off (move digital unit to power on).
  • Data output.
  • Supplied with dust cover.
  • Optional accessory: data output cable (code 7302-SPC5A), dial test indicator holder (code 6293-6), clamp for protractors (code 2372-clamp).
View Products
Digital Height Gauge - 1154 Series (Insize)
Digital Height Gauge - 1154 Series (Insize)

The 1154 Digital Height Gage comes with fine adjustment for high speed and accurate measurements. The Caliper is made of stainless steel for longer tool life and durability from machine shop wear. Wi...

  • Range of 150mm/6".
  • Resolution 0.01mm/0.0005".
  • Buttons: on/off, mm/inch, zero.
  • Carbide tipped scriber.
  • Fine adjustment.
  • Made of stainless steel (except base).
  • Battery CR2032, auto power off (move digital unit to power on).
  • Data output.
  • Optional accessory: data output cable (code 7302-SPC5A), dial test indicator holder (code 7151-CL1).
View Products
Minature Digital Height Gauge - 1146 Series (Insize)
Minature Digital Height Gauge - 1146 Series (Insize)

The 1146 Mini Digital Height Gage for measuring height difference of 2 surfaces. The Caliper is made of stainless steel for longer tool life and durability from machine shop wear. With optional SPC c...

  • Range of 20mm/0.8".
  • Resolution 0.01mm/0.0005".
  • Buttons: on/off, mm/inch, zero.
  • Made of stainless steel.
  • Battery CR2032, auto power off (move digital unit to power on).
  • Data output.
  • Optional accessory: data output cable (code 7302-SPC5A).
View Products
