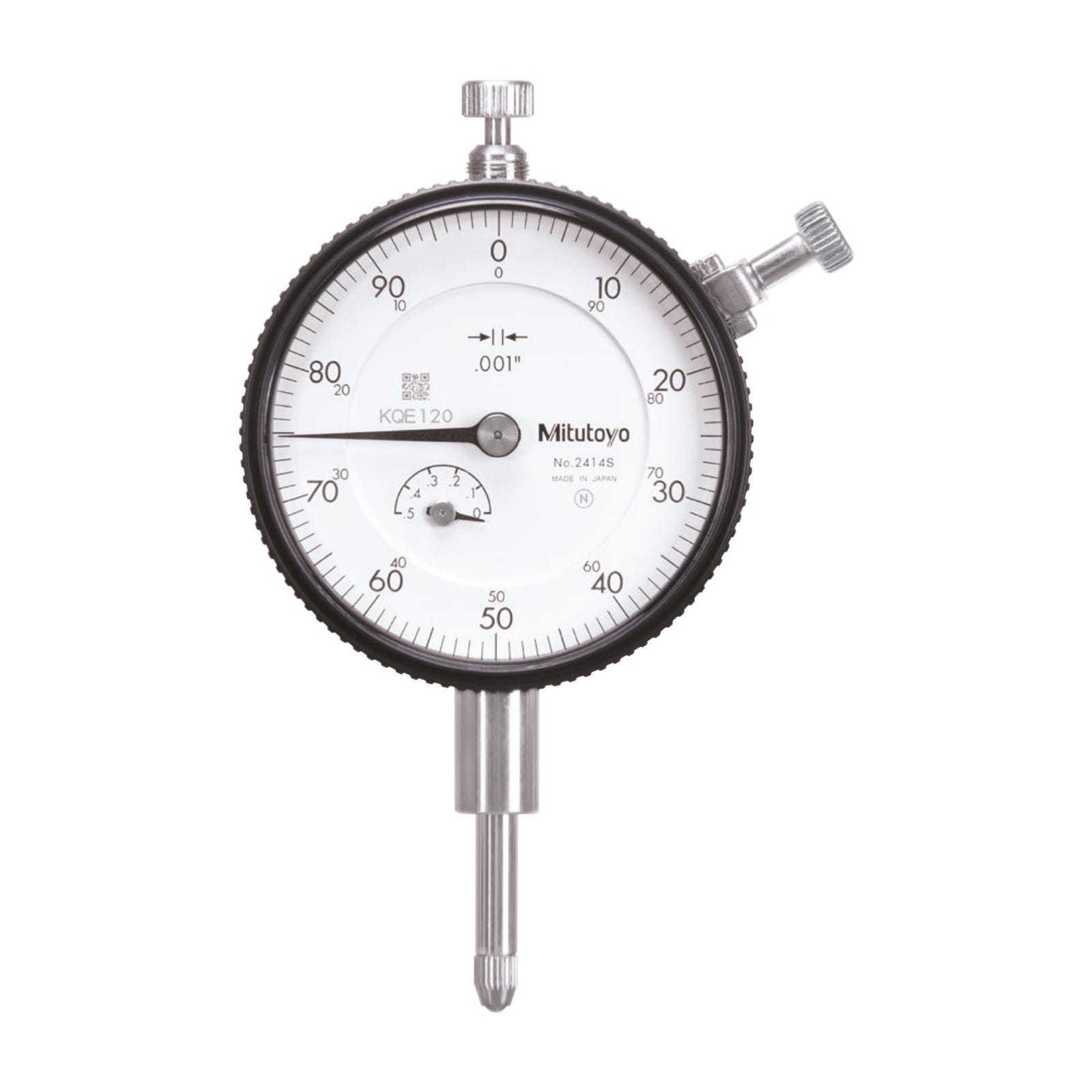

Imperial Inch Reading Dial Indicator- 2 Series (Mitutoyo)
Imperial Inch Reading Dial Indicator- 2 Series (Mitutoyo)
Key Features
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Range
|
Accuracy
|
Graduation
|
||||
|---|---|---|---|---|---|---|
| Range: 0.025" | Accuracy: 0.0001" | Graduation: 0.0001" |
green
Available for
Delivery within 4-5 Days *
|
Special Price
£118.97
£99.14
Was
£164.09
£136.74
|
|
|
| Range: 0.05" | Accuracy: 0.0001" | Graduation: 0.0001" |
green
Available for
Delivery within 4-5 Days *
|
Special Price
£125.42
£104.52
Was
£172.99
£144.16
|
|
*Geographical & product exclusions apply for next day delivery (calculated on checkout). Any other lead times shown are estimated and subject to availability.
Specification
| Category | Measuring |
|---|---|
| Sub Category | Indicators |
| Sub Category 2 | Dial Indicators |
| Read Out | Dial |
| mm or inch | inch |
| Brand | Mitutoyo |
Description
Features & Benefits
- Range: up to .5"
- Graduation: .0001", .001" or .0005".
- Measuring Force: up to 2.0N
- Made by Mitutoyo- Market leader in the engineering measuring tool sector.
- Standard .0001" to 0.001" graduation dial indicators having a bezel with an outside diameter of 57 mm.
- The outer clamp and lifting lever optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
- Secure adhesion between the bezel and crystal as well as the use of an O-ring prevents water or oil penetration.
- A carbide contact point is used.
- The stem and plunger are made of high-strength quench-hardened stainless steel which resists arduous use.
- A special alloy is used for the sector gears to provide improved wear resistance.
- The indicator uses jewelled bearings, providing excellent indication sensitivity and durability.
- Application of a hard coating on the surface of the crystal makes it highly resistant to scratching and chemical attack.
