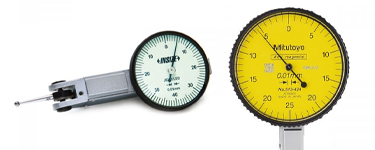

Dial Test Indicators

Dial Test Indicators

Dial test indicators are used to measure concentricity, alignment, parallelism & flatness. High accuracy indicating from Insize and market leaders Mitutoyo with various shapes and styles available.

Read More
Filter By arrow
carrat-down

33 Items

Sort By
carrat-down
sort-descending
Dial Test Indicator - 420 Series (Moore & Wright)
Dial Test Indicator - 420 Series (Moore & Wright)

The Moore & Wright MW-420 Series Dial Test Indicator has carbide points, a rotating dial and two dovetail clamps....

  • Standard: ANSI B89.1.10, DIN2270
  • Rotating dial
  • Two dovetail clamps
  • Dial diameter: 37mm
  • Carbide points
  • Styli length: 12mm / 1/2”, M1.4 thread
  • Automatic reversal of measuring direction

From £61.92 £51.60

View Products
Dial Test Indicator - MarTest 800 S Series (Mahr)
Dial Test Indicator - MarTest 800 S Series (Mahr)

The MarTest 800 S series dial indicator comes with a matt chrome-plated protective casing with three integrated dovetail guide rails for long lasting use, high quality mineral glass viewing panel for ...

  • High contrast dial face, sealed with an O-Ring
  • Mineral glass viewing panel for best protection:
  • Matt chrome-plated protective casing with three integrated dovetail guide rails
  • Shockproof measuring mechanism
  • Anti-magnetic model
  • Automatic adjustment to the contacting direction ensuring infallible readings
  • Ball-bearing mounted double lever
  • Overload protection thanks to friction clutch
  • Made by premium German supplier Mahr for the highest quality & efficiency

From £119.06 £99.22

View Products
Dial Test Indicator - MarTest Series (Mahr)
Dial Test Indicator - MarTest Series (Mahr)

The Martest Dial Test Indicator is for high precision measurements. It is for measuring deviations in concentricity, axial run-out, parallelism and flatness. For centring shafts, boreholes and alignin...

  • High-contrast dial face, sealed with O-ring
  • Mineral glass viewing panel for best protection against cracking, scratching, hot shavings and optimal resistance to solvents
  • Matt chrome plated protective casing with three integrated dovetail guide rails
  • Shockproof measuring mechanism
  • Anti-magnetic model
  • Automatic adjustment to the contacting direction ensures infallible readings
  • Ball bearing mounted double lever
  • Friction clutch overload protection
  • Stylus with carbide ball

From £119.81 £99.84

View Products
Metric Dial Test Indicator - HL Series (Baty)
Metric Dial Test Indicator - HL Series (Baty)

The Baty HL series of lever-type dial test indicators are top quality, Swiss-made precision instruments. Suitable for universal applications, they are supplied with a 2mm diameter contact point – fi...

  • High sensitivity, repeatability and accuracy
  • Meet or exceed BS, DIN, Federal and other national standards
  • Anti-magnetic
  • Automatic reverse action stylus – hand always rotates clockwise
  • Adjustable bezel for zeroing
  • Rugged, satin chrome finished body
  • Three dovetail mountings, top, back and front
  • Fully jewelled and geared movement
  • Precision ball bearing mounted,interchangeable carbide point swivels through 240º
  • Suitable for universal applications in the workshop and inspection departments
  • Supplied in a tough plastic case

From £168.22 £140.18

View Products
Imperial Dial Test Indicator - HL Series (Baty)
Imperial Dial Test Indicator - HL Series (Baty)

The Baty HL series of lever-type dial test indicators are top quality, Swiss-made precision instruments. Suitable for universal applications, they are supplied with a 2mm diameter contact point – fi...

  • High sensitivity, repeatability and accuracy
  • Meet or exceed BS, DIN, Federal and other national standards
  • Anti-magnetic
  • Automatic reverse action stylus – hand always rotates clockwise
  • Adjustable bezel for zeroing
  • Rugged, satin chrome finished body
  • Three dovetail mountings, top, back and front
  • Fully jewelled and geared movement
  • Precision ball bearing mounted,interchangeable carbide point swivels through 240º
  • Suitable for universal applications in the workshop and inspection departments
  • Supplied in a tough plastic case

From £151.84 £126.53

View Products
Dial Test Indicator - MarTest 800 SL Series (Mahr)
Dial Test Indicator - MarTest 800 SL Series (Mahr)

The MarTest 800 SL series dial indicator comes with a matt chrome-plated protective casing with three integrated dovetail guide rails for long lasting use, high quality mineral glass viewing panel for...

  • High contrast dial face, sealed with an O-Ring
  • Mineral glass viewing panel for best protection:
  • Matt chrome-plated protective casing with three integrated dovetail guide rails
  • Shockproof measuring mechanism
  • Anti-magnetic model
  • Automatic adjustment to the contacting direction ensuring infallible readings
  • Ball-bearing mounted double lever
  • Overload protection thanks to friction clutch
  • Made by premium German supplier Mahr for the highest quality & efficiency

From £192.07 £160.06

View Products
Standard Dial Test Indicator - 2380/1 Series (Insize)
Standard Dial Test Indicator - 2380/1 Series (Insize)

The 2380/1 Dial Test Indicator for accurate measurements of surface distortion or run out. Comes complete with carbide contact point, two way measuring direction and dovetail clamping plus 2 extra cl...

  • Carbide contact point.
  • 2 measuring directions.
  • Anti magnetic body.
  • Supplied with 2 clamps.

From £59.00 £49.17

View Products
Long Styli Dial Test Indicator - 2383 Series (Insize)
Long Styli Dial Test Indicator - 2383 Series (Insize)

The 2383 Dial Test Indicator with long styli for accurate measurements of surface distortion or run out. Comes complete with carbide contact point, two way measuring direction and dovetail clamping p...

  • Graduation 0.01mm.
  • Carbide contact point.
  • Jeweled bearing.
  • 2 measuring directions.
  • Anti magnetic body.
  • Supplied with 2 clamps.

From £126.47 £105.39

View Products
Back Plunger Type Dial Test Indicator - 2480 Series (Insize)
Back Plunger Type Dial Test Indicator - 2480 Series (Insize)

The 2480 Back Plunger Dial Test Indicator for large range measurements of surface distortion or run out. Comes complete with carbide contact point, two way measuring direction and dovetail clamping p...

  • Graduation 0.01mm.
  • Carbide contact point.
  • Jeweled bearing.
  • 2 measuring directions.
  • Anti magnetic body.
  • Supplied with 2 clamps.

From £174.44 £145.37

View Products
Tilted Face Dial Test Indicator - 2399 Series (Insize)
Tilted Face Dial Test Indicator - 2399 Series (Insize)

The 2399 Tilted Face Dial Test Indicator for accurate measurements of surface distortion or run out. Comes complete with carbide contact point, two way measuring direction and dovetail clamping plus ...

  • Graduation 0.01mm.
  • Carbide contact point.
  • Jeweled bearing.
  • 2 measuring directions.
  • Anti magnetic body.
  • Supplied with 2 clamps.

From £92.68 £77.23

View Products
Back Plunger Type Dial Test Indicator - 2398 Series (Insize)
Back Plunger Type Dial Test Indicator - 2398 Series (Insize)

The 2398 Back Plunger Dial Test Indicator for accurate measurements of surface distortion or run out. Comes complete with carbide contact point, two way measuring direction and dovetail clamping plus...

  • Graduation 0.01mm.
  • Carbide contact point.
  • Jeweled bearing.
  • 2 measuring directions.
  • Anti magnetic body.
  • Supplied with 2 clamps.

From £92.68 £77.23

View Products
Large Range Dial Test Indicator - 2386 Series (Insize)
Large Range Dial Test Indicator - 2386 Series (Insize)

The 2386 Large Range Dial Test Indicator for measurements of surface distortion or run out. Comes complete with carbide contact point, two way measuring direction and dovetail clamping plus 2 extra c...

  • Carbide contact point.
  • Jeweled bearing.
  • 2 measuring directions.
  • Anti magnetic body.
  • Supplied with 2 clamps.

From £150.13 £125.11

View Products
Horizontal Dial Test Indicator (Full set)- 513 Series (Mitutoyo)
Horizontal Dial Test Indicator (Full set)- 513 Series (Mitutoyo)

The 513 series Mitutoyo Dial Test Indicator provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators and is resistant to water and dust thanks to the one piec...

  • Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators.
  • Resistant to water and dust thanks to the one piece bezel and O-ring seal for the crystal.
  • No-clutch structure for automatic reversal of measuring direction.
  • High sensitivity and quick response due to low-friction jewelled bearings
  • Made by Mitutoyo- Market leader in the engineering measuring tool sector.

From £144.50 £120.42

View Products
Vertical Face Dial Test Indicator (Basic set)- 513 Series (Mitutoyo)
Vertical Face Dial Test Indicator (Basic set)- 513 Series (Mitutoyo)

The Mitutoyo vertical face Indicator (513 series) is useful for centering holes under a machine tool spindle using the universal holder mounted in the spindle chuck. It has a measuring force of 0.3N o...

  • The vertical face indicator is useful for centering holes under a machine tool spindle using the universal holder mounted in the spindle chuck.
  • Made by Mitutoyo- Market leader in the engineering measuring tool sector.

From £104.81 £87.34

View Products
Vertical Face Dial Test Indicator (Basic set)- 513 Series (Mitutoyo)
Vertical Face Dial Test Indicator (Basic set)- 513 Series (Mitutoyo)

The Mitutoyo vertical face Indicator (513 series) is useful for centering holes under a machine tool spindle using the universal holder mounted in the spindle chuck. It has a measuring force of 0.3N o...

  • The vertical face indicator is useful for centering holes under a machine tool spindle using the universal holder mounted in the spindle chuck.
  • Made by Mitutoyo- Market leader in the engineering measuring tool sector.

From £122.11 £101.76

View Products
UDT-2 Dial Test Indicator, Full Set - 170 Series (Mitutoyo)
UDT-2 Dial Test Indicator, Full Set - 170 Series (Mitutoyo)

Dial Indicator Tester (170 series). Accepts ø6 mm, ø8 mm indicator stems. Made by Mitutoyo....

  • Series 170 – UDT-2 Dial Indicator Tester
  • UDT-2 is an accuracy tester for 0.01 mm resolution dial indicators, dial test indicators and bore gauges
  • Accepts ø6 mm, ø8 mm, 1/4" and 3/8" indicator stems
  • Made by Mitutoyo- Market leader in the engineering measuring tool sector.

From £1,920.72 £1,600.60

View Products
Horizontal Dial Test Indicator (Special set)- 513 Series (Mitutoyo)
Horizontal Dial Test Indicator (Special set)- 513 Series (Mitutoyo)

The 513 series Mitutoyo Dial Test Indicator provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators and is resistant to water and dust thanks to the one piec...

  • Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators.
  • Resistant to water and dust thanks to the one piece bezel and O-ring seal for the crystal.
  • No-clutch structure for automatic reversal of measuring direction.
  • High sensitivity and quick response due to low-friction jewelled bearings
  • Made by Mitutoyo- Market leader in the engineering measuring tool sector.

From £177.06 £147.55

View Products
Vertical Face Dial Test Indicator (Full set)- 513 Series (Mitutoyo)
Vertical Face Dial Test Indicator (Full set)- 513 Series (Mitutoyo)

The Mitutoyo vertical face Indicator (513 series) is useful for centering holes under a machine tool spindle using the universal holder mounted in the spindle chuck. It has a measuring force of 0.3N o...

  • The vertical face indicator is useful for centering holes under a machine tool spindle using the universal holder mounted in the spindle chuck.
  • Made by Mitutoyo- Market leader in the engineering measuring tool sector.

From £157.73 £131.44

View Products
Parallel Face Dial Test Indicator (Basic set)- 513 Series (Mitutoyo)
Parallel Face Dial Test Indicator (Basic set)- 513 Series (Mitutoyo)

The Mitutoyo parallel face Indicator (513 series) is convenient to use when the application calls for stylus movement in a plane parallel to that of the dial face. It has a measuring force of 0.3N or...

  • The vertical face indicator is useful for centering holes under a machine tool spindle using the universal holder mounted in the spindle chuck.
  • Made by Mitutoyo- Market leader in the engineering measuring tool sector.

From £112.96 £94.13

View Products
Pocket Dial Test Indicator, Full Set - 513 Series (Mitutoyo)
Pocket Dial Test Indicator, Full Set - 513 Series (Mitutoyo)

Pocket Dial Test Indicator (513 series). Indicator can be mounted by clamping the stem or the body. Jewelled bearings assure higher sensitivity and accuracy. There is an adjustable bezel/dial face and...

  • Jewelled bearings assure higher sensitivity and accuracy. Indicator can be mounted by clamping the stem or the body
  • Reversible measuring direction
  • Stylus is adjustable within 220°.
  • Fully adjustable bezel/dial face.
  • Bezel is sealed with on O-ring to keep out water and oil.
  • Made by Mitutoyo- Market leader in the engineering measuring tool sector.

From £135.34 £112.78

View Products
Lever Indicator - 513 Series (Mitutoyo)
Lever Indicator - 513 Series (Mitutoyo)

The 513 series Mitutoyo Dial Test Indicator provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators and is resistant to water and dust thanks to the one piec...

  • Measuring force is 0.3N or less.
  • Graduation: 0.01mm.
  • High sensitivity.
  • Made by Mitutoyo - Market leader in the engineering measuring tool sector.

From £94.28 £78.57

View Products
Horizontal Dial Test Indicator- 513 Series (Mitutoyo)
Horizontal Dial Test Indicator- 513 Series (Mitutoyo)

The 513 series Mitutoyo Dial Test Indicator provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators and is resistant to water and dust thanks to the one piec...

  • Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators.
  • Resistant to water and dust thanks to the one piece bezel and O-ring seal for the crystal.
  • No-clutch structure for automatic reversal of measuring direction.
  • High sensitivity and quick response due to low-friction jewelled bearings
  • Made by Mitutoyo- Market leader in the engineering measuring tool sector.

From £116.00 £96.67

View Products
Horizontal Dial Test Indicator (Full set)- 513 Series (Mitutoyo)
Horizontal Dial Test Indicator (Full set)- 513 Series (Mitutoyo)

The 513 series Mitutoyo Dial Test Indicator provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators and is resistant to water and dust thanks to the one piec...

  • Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators.
  • Resistant to water and dust thanks to the one piece bezel and O-ring seal for the crystal.
  • No-clutch structure for automatic reversal of measuring direction.
  • High sensitivity and quick response due to low-friction jewelled bearings
  • Made by Mitutoyo- Market leader in the engineering measuring tool sector.

From £139.42 £116.18

View Products
Horizontal Dial Test Indicator (Special Set)- 513 Series (Mitutoyo)
Horizontal Dial Test Indicator (Special Set)- 513 Series (Mitutoyo)

The 513 series Mitutoyo Dial Test Indicator provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators and is resistant to water and dust thanks to the one piec...

  • Provides easy access to shrouded surfaces that cannot be reached with conventional dial indicators.
  • Resistant to water and dust thanks to the one piece bezel and O-ring seal for the crystal.
  • No-clutch structure for automatic reversal of measuring direction.
  • High sensitivity and quick response due to low-friction jewelled bearings
  • Made by Mitutoyo- Market leader in the engineering measuring tool sector.

From £177.06 £147.55

View Products

Dial Test Indicators from Insize & Mahr. Used for accurate measurements of concentricity, alignment, parallelism and flatness.
