Indicator Best Sellers

Indicator Best Sellers

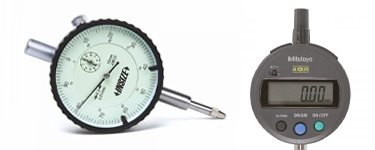

Our range of best selling indicators from Insize and market leaders Mitutoyo cover both dial and digital models with features like IP protection, small graduation and data output.

Filter By

9 Items

Sort By

This Dial Indicator has an 0.01mm graduation and has a bezel with an outside diameter of 57mm. Secure adhesion between the bezel and crystal as well as the use of an O-ring prevents water or oil penet...

  • Range: 5mm or 10mm.
  • Graduation: 0.01mm.
  • Repeatability 3µm
  • Measuring Force: up to 2.5N 2046S-60 or 2044S-60 only).
  • Made by Mitutoyo- Market leader in the engineering measuring tool sector.
  • Standard 0.01 mm graduation dial gauges having a bezel with an outside diameter of 57 mm. All types come with limit markers and a bezel clamp as standard.
  • The bezel clamp and lifting lever optional) can be attached to either the right or left side. These parts can be easily installed and removed without tools.
  • Secure adhesion between the bezel and crystal as well as the use of an O-ring prevents water or oil penetration.
  • The stem and plunger are made of high-strength quench-hardened stainless steel suitable for heavyduty use.
  • A carbide contact point is used.
  • The grand gear is made of stainless steel with high resistance to wear and deformation.
  • Application of a hard coating on the surface of the crystal makes it highly resistant to scratching and chemical attack.

From £33.98 £28.32

This Digital Indicator is IP40 protected It is a cost-effective and user-friendly type which is equipped with the basic functions necessary. Mitutoyo are a market leader in the measuring sector, provi...

  • Range: .5" / 12.7mm.
  • Resolution .0005" / 0.01 mm
  • Accuracy: .0008" / 0.02 mm
  • Measuring Force: 2.0N or less.
  • Made by Mitutoyo- Market leader in the engineering measuring tool sector.
  • GO/NG judgement function: If a judgement result shows an out of tolerance condition, the display backlighting changes from green to red.
  • An analogue bar indicator has been integrated to make upper/lower limit and turnover point reading more comfortable.
  • With the ABSOLUTE Linear Encoder technology, once the measurement reference point has been set it will not be lost when the power is turned off. Also, reliability has been increased due to the elimination of over-speed errors.
  • Easy-to-read large back-lit LCD readout with a character height of 8.5 mm.
  • External power supply type: battery change is not necessary. Power is supplied via the AC adapter supplied as a standard accessory.
  • The resolution can be switched between 0.001 / 0.01 mm or .001" / .0005" / .0001" / .00005").
  • Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.

From £111.26 £92.72

The Insize 6210 Magnetic stand to for use on steel or iron surfaces. The magnet base comes complete with on/off switch for convenient surface mounting. The mechanical arm can be adjusted and locked in...

  • For digital/dial indicators and dial test indicators.
  • Fine adjustment.
  • Dovetail groove.
  • Magnetic force upto 100kgf.

From £71.99 £59.99

The Insize 6208 Magnetic stand to for use on steel or iron surfaces. The magnet base comes complete with on/off switch for convenient surface mounting. The mechanical arm can be adjusted and locked in...

  • For digital/dial indicators and dial test indicators.
  • Fine adjustment.
  • Dovetail groove.
  • Magnetic force 80kgf.

From £55.87 £46.56

The Insize 6295 Dial Test Indicator Centering Holder, designed for centering work pieces on vertical or horizontal machines. With the small diameter stem it make the holder easy to mount in any machin...

  • For dial test indicators.
  • Centre cylinders or holes on a machine tool.

From £31.61 £26.34

The 2112 Digital Indicator offers standard measurement functions for data capture. Available with lug back connection. With optional SPC cable data output, sizes range from 0-12.7mm/0-0.5" with resol...

  • Resolution 0.01mm/0.0005".
  • Buttons: on/off, mm/inch, zero.
  • CR2032 battery, auto power off.
  • Data output.
  • Flat back.
  • Optional accessory: dat output cable (code 7302-SPC3A), contact points.

From £53.29 £44.41

The 2308 Dial Indicator for standard measuring applications. Comes complete with adjustable limit pointers to set tollerance. Available with flat or lug back style. Indicator Sizes range from 0-10mm ...

  • Graduation 0.01mm.
  • Jeweled bearing.
  • Supplied with limit pointers and bezel clamp.

From £19.19 £15.99

The 2314 Shockproof Dial Indicator for more demanding measuring applications. Comes complete with adjustable limit pointers to set tollerance. Available with flat or lug back style. Indicator Sizes r...

  • Graduation 0.01mm.
  • Sockproof.
  • Jeweled bearing.
  • Supplied with limit pointers and bezel clamp.

From £29.81 £24.84

The 2380/1 Dial Test Indicator for accurate measurements of surface distortion or run out. Comes complete with carbide contact point, two way measuring direction and dovetail clamping plus 2 extra cl...

  • Carbide contact point.
  • 2 measuring directions.
  • Anti magnetic body.
  • Supplied with 2 clamps.

From £41.99 £34.99
