Micrometers for Grooves, Splines & Keyways

Micrometers for Grooves, Splines & Keyways

Digital or vernier spine micrometers from Mitutoyo which feature small diameter anvils and spindles for measuring splined shafts, slots and keyways. Available with optional IP65 protection.

Filter By arrow
carrat-down

19 Items

Sort By
carrat-down
sort-descending

The Insize 3230 Point micrometer for measuring the web thickness of drills, small grooves and keyways. With ratchet stop and carbide measuring faces create a durable, ware resistant tool from machine ...

  • Measure the web thickness of drills, small grooves and keyways.
  • Graduation 0.01mm.
  • Ratchet stop.
  • Carbide tips.
  • Supplied With 60° Setting Standards (except 0-25mm).

From £107.40 £89.50

The Insize 3232 Blade micrometer with a non-rotating spindle, for measuring groove diameters of shafts and keyways. The micrometer can be used for quick and accurate measurements which range up to 200...

  • Measure the groove diameter of shafts and keyways.
  • Graduation 0.0001".
  • Non-rotating spindle.
  • Ratchet stop.
  • Setting standards are included (except 0-25mm).

From £194.33 £161.94

The Insize Groove Micrometer has a graduation of 0.01mm and has two graduations for inside and outside measurements....

  • Graduation 0.01mm
  • Measure width of grooves inside bores.
  • Non-rotating spindle
  • Two graduations for inside and outside measurement

From £483.11 £402.59

This vernier point micrometer has a pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways and other hard-to-reach features. It is equippd with a ratchet stop to p...

  • Range: up to 100mm
  • Graduation: 0.01mm
  • Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach features.
  • The measuring points (carbide tipped) have, approximately, a 0.3 mm radius.
  • Equipped with Ratchet Stop for constant measuring force.

From £146.53 £122.11

This vernier blade micrometer has blade-shaped anvils and spindles for measuring the groove diameter of shafts, keyways and other hard-to-reach features. It is equippd with a ratchet stop to provide a...

  • Range: up to 300mm/4"
  • Suited to the measurement of low-volume manufactured parts.
  • Easy to use when operating one-handed due to retractable anvil.
  • In the 25 mm measuring range, models are available that offer left or right positioning of the anvil-retraction button.
  • Water resistant to protection level IP54.
  • Greatly improved accuracy: indication error and graduation of 1 μm.
  • Hard-coated crystal: enhanced oil and scratch resistance.
  • Indicator scale is large and easy-to-read.
  • Easily set zero position and adjustable limit markers for GO/±NG testing.
  • Measuring faces: Carbide.

From £222.85 £185.71

The 3233 Insize Spline Micrometer is for measuring splined shafts, slots and keyways. Measuring from a range of 0-175mm the Spline Micrometer has carbide measuring faces, a ratchet stop and a 0.1mm gr...

  • Measure splined shafts, slots and keyways.
  • Graduation 0.01mm.
  • Ratchet stop.
  • Carbide measuring faces.
  • Supplied with setting standards (except 0-25)

From £107.40 £89.50

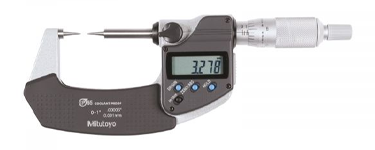

This digital point micrometer has a pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways and other hard-to-reach features. It is equippd with a ratchet stop to p...

  • Range: up to 4" (101.6mm)
  • Resolution:.00005" (0.001mm)
  • Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach features.
  • The measuring points (carbide tipped) have, approximately, a 0.3 mm radius.
  • Equipped with Ratchet Stop for constant measuring force.

From £515.93 £429.94

The Insize 3530 Digital Point micrometer for measuring the web thickness of drills, small grooves and keyways. With ratchet stop and carbide measuring faces create a durable, ware resistant tool from ...

  • Measure the web thickness of drills, small grooves and keyways.
  • Resolution 0.001mm/0.00005".
  • IP54 waterproof.
  • Button function: on/off, set, mm/inch, ABS/INC, data output.
  • Data output.
  • LR44 battery, automatic power off.
  • Carbide tips.
  • Ratchet stop.
  • Supplied with setting standards (except 0-25mm/0-1").
  • Optional accessary: data output cable (code7302-SPC6).

From £280.34 £233.62

The Insize 3532 Digital Point micrometer for measuring diameters of shafts and keyways. With ratchet stop and non-rotating spindle guaranteeing accurate repeated measurements. With optonal data output...

  • Measure the groove diameter of shafts and keyways.
  • Resolution 0.001mm/0.00005".
  • Non-rotating spindle.
  • Button function: on/off, set, mm/inch, ABS/INC, data output.
  • Data output.
  • LR44 battery, automatic power off.
  • Ratchet stop.
  • Supplied with setting standards (except 0-25mm/0-1").
  • Optional accessary: data output cable (code7302-SPC6).

From £412.38 £343.65

The Insize 3232 Blade micrometer with a non-rotating spindle, for measuring groove diameters of shafts and keyways. The micrometer can be used for quick and accurate measurements which range up to 200...

  • Measure the groove diameter of shafts and keyways.
  • Graduation 0.01mm.
  • Non-rotating spindle.
  • Ratchet stop.
  • Setting standards are included (except 0-25mm).

From £175.04 £145.87

The Insize 3233 Digital Spline micrometer for measuring splined shafts, slots and keyways. With ratchet stop and carbide measuring faces create a durable, ware resistant tool which allows for repeatab...

  • Measure splined shafts, slots and keyways.
  • Resolution 0.001mm/0.00005".
  • IP54 dust/waterproof.
  • Button function: on/off, set, mm/inch, ABS/INC, data output.
  • Data output.
  • LR44 battery, automatic power off.
  • Ratchet stop.
  • Carbide measuring faces.
  • Supplied with setting standards (except 0-25mm/0-1").
  • Optional accessary: data output cable (code7302-SPC6).

From £320.40 £267.00

  • Graduation 0.01mm.
  • Non-rotating spindle.
  • Ratchet stop.
  • Carbide measuring faces.
  • Supplied with setting standards (except 0-25mm).

From £186.91 £155.76

This vernier micrometer has a pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways and other hard-to-reach features. It is equipped with a ratchet stop for const...

  • Range: up to 100mm.
  • Accuracy: up to ±3µm
  • Graduation: 0.01mm
  • Made by Mitutoyo - Market leader in the engineering measuring tool sector.
  • Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach features.
  • The measuring points (carbide tipped) have, approximately, a 0.3 mm radius.
  • Equipped with Ratchet Stop for constant measuring force.

From £146.53 £122.11

This vernier crimp height micrometer is designed to measure the height of crimp contacts. It is equippd with a ratchet stop to provide a constant measuring force. Mitutoyo are a market leader in the m...

  • Range: 0-25mm
  • Graduation: 0.01mm
  • Accuracy: ±3µm
  • Measures the height of crimp contacts.
  • Equipped with Ratchet Stop for constant measuring force.

From £204.54 £170.45

This vernier groove micrometer has a flanged spindle and anvil for measuring width and location of grooves inside bores and tubes. Mitutoyo are a market leader in the measuring sector, providing the h...

  • Range: up to 100mm (4")
  • Flanged spindle and anvil for measuring width and location of grooves inside bores and tubes.
  • Two-directional ratchet stop.

From £295.10 £245.92

This non-rotating spindle groove micrometer has a flanged spindle and anvil for measuring width and location of grooves inside bores and tubes. Mitutoyo are a market leader in the measuring sector, pr...

  • Range: up to 100mm (4")
  • Flanged spindle and anvil for measuring width and location of grooves inside bores and tubes.
  • Two-directional ratchet stop.

From £409.08 £340.90

This digital blade micrometer have blade-shaped anvils and spindles for measuring the groove diameter of shafts, keyways and other hard-to-reach features. It is equippd with a ratchet stop to provide ...

  • Range: up to 4" (101.6mm)
  • Resolution: .00005" (0.001mm)
  • The anvil and spindle are blade-shaped for measuring the groove diameter of shafts, keyways, and other hard-to-reach features.
  • Equipped with Ratchet Stop for constant measuring force.
  • Four types of blade shape are available (see diagrams below). Types C and D have carbide-tipped measuring faces.

From £820.19 £683.49

This digital spline micrometer has small diameter anvils and spindles for measuring splined shafts, slots and keyways. It is equippd with a ratchet stop to provide a constant measuring force. Mitutoyo...

  • Range: up to 300mm
  • Graduation: 0.01mm
  • The anvil and spindle are of small diameter for measuring splined shafts, slots, and keyways.
  • Measuring faces: Carbide.
  • Equipped with Ratchet Stop for constant measuring force.

From £172.99 £144.16

This digital spline micrometer has small diameter anvils and spindles for measuring splined shafts, slots and keyways. It is equippd with a ratchet stop to provide a constant measuring force. Mitutoyo...

  • Range: up to 4" (101.6mm)
  • Resolution: .00005" (0.001mm)
  • The anvil and spindle are of small diameter for measuring splined shafts, slots, and keyways.
  • Measuring faces: Carbide.
  • Equipped with Ratchet Stop for constant measuring force.

From £528.13 £440.11
