Outside Indicating Micrometers | Cutwel - Measuring Tool Specialist

IP54 Dial Snap Micrometer - 523 Series (Mitutoyo)

This dial indicating micrometer is suited to the measurement of mass produced parts and is designed for measurements using a stand to enable a more stable measurement. It is IP54 waterproof and has a ...

Range: up to 100m (4")
Accuracy:±2µm
Suited to the measurement of mass produced parts.
Designed for measurement using a stand to enable a more stable measurement.
Greatly improved accuracy: indication error and graduation of 1 μm.
Water resistant to protection level IP54.
Indicator scale is large and easy-to-read.
Hard-coated crystal: enhanced oil and scratch resistance.
Easily settable adjustable limit markers for GO/±NG testing.
Equipped with an elevating workpiece stop as standard.
Measuring faces: Carbide.

From £588.17 £490.14

View Products

Micrometer with Dial Indicator - 3331 Series

The Insize Micrometer has a graduation of 0.01mm and an anvil retracting range of 8mm. Suitable for us with dial or digital indicators (not included)....

Micrometer Head graduation 0.01mm
Anvil Retracting range: 8mm
Carbide Measuring Faces
Supplied with Setting Standards.
Suitable for us with dial or digital indicators (not included).

From £140.53 £117.11

View Products

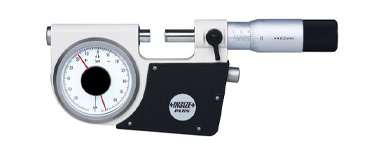

Indicating Micrometerss - 3333 Series

The Insize Indicating Micrometer has a graduation of 0.001mm and has Carbide Measuring Faces...

Carbide measuring faces.
Measuring force 5-10N

From £1,323.00 £1,102.50

View Products

IP54 Indicating Micrometer - 510 Series (Mitutoyo)

This dial indicating micrometer is suited to the measurement of low-volume manufactured parts and is easy to use when operating one-handed due to retractable anvil. It is IP54 waterproof and has a har...

Range: up to 100mm (4")
Accuracy: ±2µm
Suited to the measurement of low-volume manufactured parts.
Easy to use when operating one-handed due to retractable anvil.
In the 25 mm measuring range, models are available that offer left or right positioning of the anvil-retraction button.
Water resistant to protection level IP54.
Greatly improved accuracy: indication error and graduation of 1 μm.
Hard-coated crystal: enhanced oil and scratch resistance.
Indicator scale is large and easy-to-read.
Easily set zero position and adjustable limit markers for GO/±NG testing.
Measuring faces: Carbide.

From £729.62 £608.02

View Products

Insize Indicating Micrometer (3332 Series (Insize)

Indicating micrometer with carbide measuring faces for measuring the thickness of tubes and pIPes. Measurements can be made up to 100mm(4”)....

Micrometer head graduation 0.002mm.
Dial indicator: range ±0.04mm, graduation 0.001mm, accuracy 0.001mm.
Carbide Measuring Faces.
Supplied With Setting Standards (except 0-25mm).

From £415.33 £346.11

View Products
