Pin Gauge Sets (Grade 1) - 4166 Series (Insize)
Scroll back
Scroll back

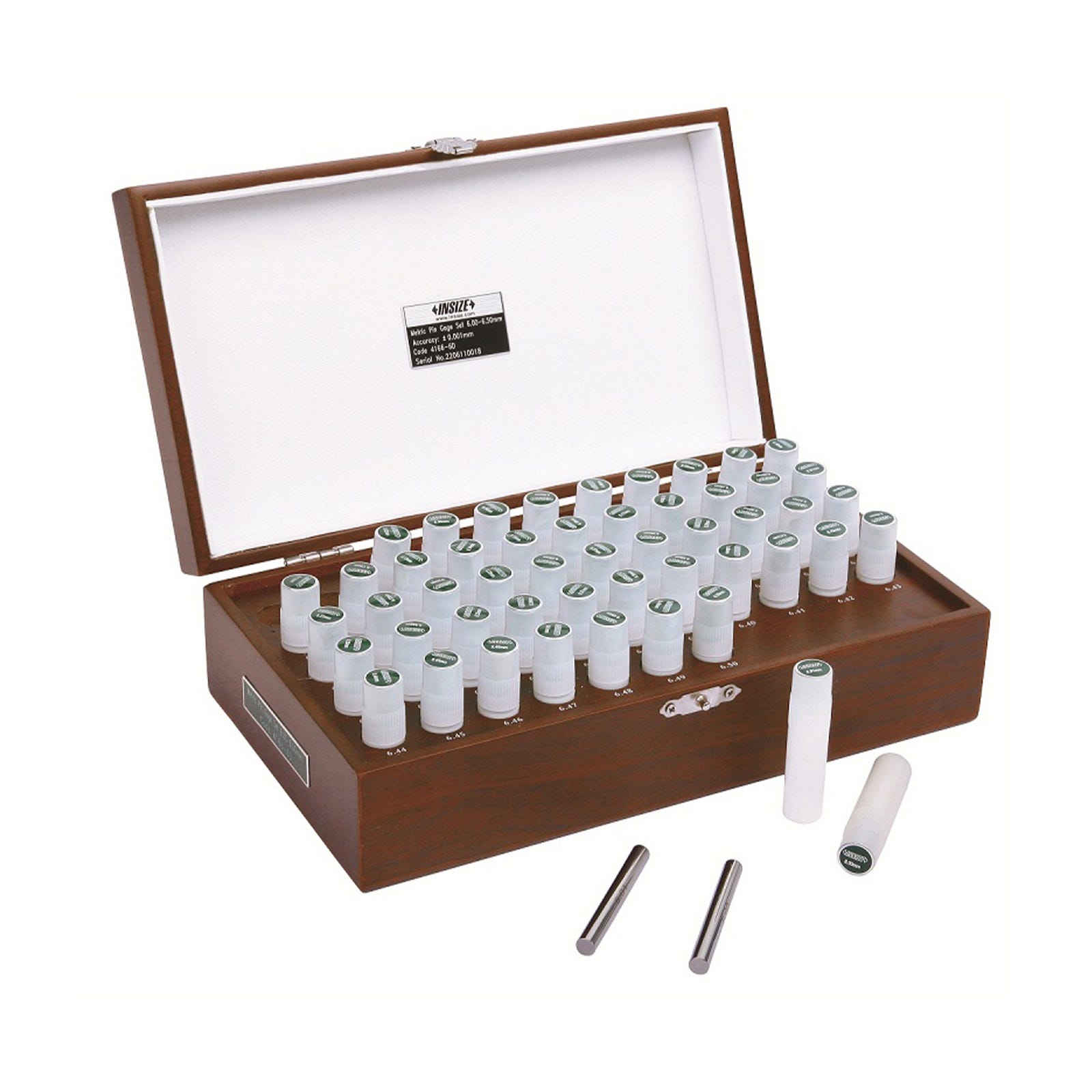

Pin Gauge Sets (Grade 1) - 4166 Series (Insize)
The Insize 4166 Pin Gauge Set for measurements of smaller bore diameters. Made from hardened alloy steel for...
Read more
View Products
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
|
Grade
|
Increments
|
Pcs
|
Includes
|
||||
|---|---|---|---|---|---|---|---|
| Grade: Grade 1 (Workshop) | Increments: 0.1mm | Pcs: 41 | Includes: 1.0mm-5.0mm |
In stock
|
£169.39
£141.16
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.1mm | Pcs: 51 | Includes: 5.0-10.0mm |
In stock
|
£227.78
£189.82
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.1mm | Pcs: 51 | Includes: 10.0mm-15.0mm |
5 days*
|
£316.57
£263.81
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.1mm | Pcs: 51 | Includes: 15.0mm-20.0mm |
5 days*
|
£627.29
£522.74
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 101 | Includes: 1.0mm-2.0mm |
In stock
|
£504.65
£420.54
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 101 | Includes: 2.0mm-3.0mm |
In stock
|
£504.65
£420.54
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 101 | Includes: 3.0-4.0mm |
5 days*
|
£504.65
£420.54
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 101 | Includes: 4.0-5.0mm |
5 days*
|
£504.65
£420.54
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 101 | Includes: 5.0-6.0mm |
5 days*
|
£699.78
£583.15
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 101 | Includes: 6.0-7.0mm |
5 days*
|
£699.78
£583.15
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 101 | Includes: 7.0-8.0mm |
5 days*
|
£699.78
£583.15
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 101 | Includes: 8.0-9.0mm |
5 days*
|
£699.78
£583.15
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 101 | Includes: 9.0-10.0mm |
5 days*
|
£699.78
£583.15
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 31 | Includes: 0.2-0.5mm |
5 days*
|
£164.72
£137.27
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 0.5-1.0mm |
5 days*
|
£254.65
£212.21
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 1.0-1.5mm |
5 days*
|
£254.65
£212.21
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 1.5-2mm |
5 days*
|
£254.65
£212.21
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 2.5-3mm |
5 days*
|
£254.65
£212.21
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 3-3.5mm |
5 days*
|
£254.65
£212.21
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 3.5-4mm |
5 days*
|
£254.65
£212.21
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 4-4.5mm |
5 days*
|
£254.65
£212.21
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 4.5-5mm |
5 days*
|
£353.11
£294.26
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 5-5.5mm |
5 days*
|
£353.11
£294.26
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 5.5-6mm |
5 days*
|
£353.11
£294.26
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 6-6.5mm |
5 days*
|
£353.11
£294.26
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 6.5-7mm |
5 days*
|
£353.11
£294.26
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 7-7.5mm |
5 days*
|
£353.11
£294.26
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 7.5-8mm |
5 days*
|
£353.11
£294.26
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 8-8.5mm |
5 days*
|
£353.11
£294.26
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 8.5-9mm |
5 days*
|
£353.11
£294.26
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 9-9.5mm |
5 days*
|
£379.03
£315.86
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 9.5-10mm |
5 days*
|
£380.65
£317.21
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 10-10.5mm |
5 days*
|
£456.79
£380.66
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 10.5-11mm |
5 days*
|
£471.37
£392.81
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 11-11.5mm |
5 days*
|
£456.79
£380.66
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 11.5-12mm |
5 days*
|
£460.02
£383.35
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 12-12.5mm |
5 days*
|
£460.02
£383.35
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 12.5-13mm |
5 days*
|
£461.66
£384.72
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 13-13.5mm |
5 days*
|
£599.34
£499.45
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 13.5-14mm |
5 days*
|
£602.58
£502.15
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 14-14.5mm |
5 days*
|
£576.65
£480.54
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 14.5-15mm |
5 days*
|
£592.86
£494.05
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 15-15.5mm |
5 days*
|
£578.28
£481.90
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 15.5-16mm |
5 days*
|
£600.95
£500.79
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 16-16.5mm |
5 days*
|
£583.14
£485.95
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 16.5-17mm |
5 days*
|
£604.20
£503.50
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 17-17.5mm |
5 days*
|
£724.08
£603.40
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 17.5-18mm |
5 days*
|
£753.22
£627.68
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 18-18.5mm |
5 days*
|
£727.31
£606.09
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 18.5-19mm |
5 days*
|
£756.47
£630.39
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 19-19.5mm |
5 days*
|
£732.18
£610.15
|
|
|
| Grade: Grade 1 (Workshop) | Increments: 0.01mm | Pcs: 51 | Includes: 19.5-20mm |
5 days*
|
£722.46
£602.05
|
|
|
| Grade: Grade 1 (Workshop) | Increments: | Pcs: 88 | Includes: 1.005mm x1, 1.001-1.009mm (0.001mm step) x9, 1.01-1.49mm (0.01mm Step) x49, 0.5-9.5mm (0.5mm step) x19, 10-100mm (10mm step) |
5 days*
|
£633.13
£527.61
|
|
|
| Grade: Grade 1 (Workshop) | Increments: | Pcs: 83 | Includes: 0.5mm x1, 1mm x1, 1.005mm x1, 1.01-1.49mm (0.01mm step)x 49, 1.5-1.9mm (0.1mm step) x5, 2-9.5mm (0.5mm step) x16, 10-100mm (10mm step)x 10 |
5 days*
|
£497.64
£414.70
|
|
|
| Grade: Grade 1 (Workshop) | Increments: | Pcs: 76 | Includes: 1.005mm x1, 1.01-1.49mm (0.01mm step) x49, 0.5-9.5mm (0.05mm step) x19, 10-40mm (10mm step) x4, 50-100mm (25mm step) x3 |
5 days*
|
£466.09
£388.41
|
|
|
| Grade: Grade 1 (Workshop) | Increments: | Pcs: 47 | Includes: 1.005mm x1, 1.01-1.19mm (0.01mm step) x19, 1.2-1.9mm (0.1mm step) x8, 1-9mm (1mm step) x9, 10-100mm (10mm step) x10 |
5 days*
|
£411.19
£342.66
|
|
|
| Grade: Grade 1 (Workshop) | Increments: | Pcs: 46 | Includes: 1.001-1.009mm (0.001mm step) x9, 1.01-1.09mm (0.01mm step) x9, 1.1-1.9mm (0.1mm step) x9, 1-9m (1mm step), 10-100mm (10mm step) x10 |
5 days*
|
Special Price
£409.50
£341.25
Was
£511.87
£426.56
|
|
|
| Grade: Grade 1 (Workshop) | Increments: | Pcs: 34 | Includes: 1.0005mm x1, 1.01-1.009mm (0.001mm step) x9, 1.01-1.09mm (0.01mm step) x9, 1.1-1.9mm (0.1mm step) x9, 1-5mm (1mm step) x5, 10mm x1. |
5 days*
|
Special Price
£305.83
£254.86
Was
£382.28
£318.57
|
|
|
| Grade: Grade 1 (Workshop) | Increments: | Pcs: 9 | Includes: 1.001-1.009mm (0.001 step) x9 |
5 days*
|
Special Price
£152.92
£127.43
Was
£191.15
£159.29
|
|
|
| Grade: Grade 1 (Workshop) | Increments: | Pcs: 9 | Includes: 1.001-1.009mm (0.001 step) x9 |
In stock
|
£137.84
£114.87
|
|
|
| Grade: Grade 2 (Workshop) | Increments: | Pcs: 88 | Includes: 1.005mm x1, 1.001-1.009mm (0.001mm step) x9, 1.01-1.49mm (0.01mm Step) x49, 0.5-9.5mm (0.5mm step) x19, 10-100mm (10mm step) |
In stock
|
£369.13
£307.61
|
|
|
| Grade: Grade 2 (Workshop) | Increments: | Pcs: 83 | Includes: 0.5mm x1, 1mm x1, 1.005mm x1, 1.01-1.49mm (0.01mm step)x 49, 1.5-1.9mm (0.1mm step) x5, 2-9.5mm (0.5mm step) x16, 10-100mm (10mm step)x 10 |
5 days*
|
£308.40
£257.00
|
|
|
| Grade: Grade 2 (Workshop) | Increments: | Pcs: 76 | Includes: 1.005mm x1, 1.01-1.49mm (0.01mm step) x49, 0.5-9.5mm (0.05mm step) x19, 10-40mm (10mm step) x4, 50-100mm (25mm step) x3 |
5 days*
|
£249.98
£208.32
|
|
|
| Grade: Grade 2 (Workshop) | Increments: | Pcs: 56 | Includes: 0.5mm x1, 1.001-1.009mm (0.001mm step) x9, 1.01-1.09mm (0.01mm step) x9, 1.1-1.9mm (0.1 step) x9, 1-24mm (1mm step) x24, 25-100 (25mm step) x4. |
5 days*
|
£245.30
£204.42
|
|
|
| Grade: Grade 2 (Workshop) | Increments: | Pcs: 47 | Includes: 1.005mm x1, 1.01-1.19mm (0.01mm step) x19, 1.2-1.9mm (0.1mm step) x8, 1-9mm (1mm step) x9, 10-100mm (10mm step) x10 |
5 days*
|
£264.01
£220.01
|
|
|
| Grade: Grade 2 (Workshop) | Increments: | Pcs: 46 | Includes: 1.001-1.009mm (0.001mm step) x9, 1.01-1.09mm (0.01mm step) x9, 1.1-1.9mm (0.1mm step) x9, 1-9m (1mm step), 10-100mm (10mm step) x10 |
5 days*
|
Special Price
£247.51
£206.26
Was
£309.40
£257.83
|
|
|
| Grade: Grade 2 (Workshop) | Increments: | Pcs: 34 | Includes: 1.0005mm x1, 1.01-1.009mm (0.001mm step) x9, 1.01-1.09mm (0.01mm step) x9, 1.1-1.9mm (0.1mm step) x9, 1-5mm (1mm step) x5, 10mm x1. |
5 days*
|
Special Price
£169.76
£141.47
Was
£212.21
£176.84
|
|
|
| Grade: Grade 2 (Workshop) | Increments: | Pcs: 9 | Includes: 1.001-1.009mm (0.001 step) x9 |
In stock
|
£109.00
£90.83
|
|
|
| Grade: Grade 2 (Workshop) | Increments: | Pcs: 8 | Includes: 125-175mm (25mm step) x3, 200-250mm (50mm step) x2, 300-500mm (100mm step) x3 |
5 days*
|
Special Price
£938.22
£781.85
Was
£1,172.77
£977.31
|
|
|
| Grade: Grade 0 (Inspection) | Increments: | Pcs: 122 | Includes: 1.005mm x1, 1.001-1.009mm (0.001mm step) x9, 1.01-1.49mm (0.01mm step) x49, 1.6-1.9mm (0.1mm step) x4, 0.5-24.5mm (0.5mm step) x49, 30-100mm (10mm step) x8, 25-75mm (50mm step) x2 |
5 days*
|
£1,481.21
£1,234.34
|
|
|
| Grade: Grade 0 (Inspection) | Increments: | Pcs: 103 | Includes: 1.005mm x1, 1.001-1.009mm (0.001mm step) x49, 1.01-1.49mm (0.5mm step) x49, 0.5-24.5mm (25mm step) x4 |
5 days*
|
£1,762.39
£1,468.66
|
|
|
| Grade: Grade 0 (Inspection) | Increments: | Pcs: 88 | Includes: 1.005mm x1, 1.001-1.009mm (0.001mm step) x9, 1.01-1.49mm (0.01mm Step) x49, 0.5-9.5mm (0.5mm step) x19, 10-100mm (10mm step) |
5 days*
|
£1,116.74
£930.62
|
|
|
| Grade: Grade 0 (Inspection) | Increments: | Pcs: 83 | Includes: 0.5mm x1, 1mm x1, 1.005mm x1, 1.01-1.49mm (0.01mm step)x 49, 1.5-1.9mm (0.1mm step) x5, 2-9.5mm (0.5mm step) x16, 10-100mm (10mm step)x 10 |
5 days*
|
£902.99
£752.49
|
|
|
| Grade: Grade 0 (Inspection) | Increments: | Pcs: 76 | Includes: 1.005mm x1, 1.01-1.49mm (0.01mm step) x49, 0.5-9.5mm (0.05mm step) x19, 10-40mm (10mm step) x4, 50-100mm (25mm step) x3 |
5 days*
|
£910.00
£758.33
|
|
|
| Grade: Grade 0 (Inspection) | Increments: | Pcs: 56 | Includes: 0.5mm x1, 1.001-1.009mm (0.001mm step) x9, 1.01-1.09mm (0.01mm step) x9, 1.1-1.9mm (0.1 step) x9, 1-24mm (1mm step) x24, 25-100 (25mm step) x4. |
5 days*
|
£677.52
£564.60
|
|
|
| Grade: Grade 0 (Inspection) | Increments: | Pcs: 47 | Includes: 1.005mm x1, 1.01-1.19mm (0.01mm step) x19, 1.2-1.9mm (0.1mm step) x8, 1-9mm (1mm step) x9, 10-100mm (10mm step) x10 |
5 days*
|
£698.54
£582.12
|
|
|
| Grade: Grade 0 (Inspection) | Increments: | Pcs: 46 | Includes: 1.001-1.009mm (0.001mm step) x9, 1.01-1.09mm (0.01mm step) x9, 1.1-1.9mm (0.1mm step) x9, 1-9m (1mm step), 10-100mm (10mm step) x10 |
5 days*
|
£939.49
£782.91
|
|
|
| Grade: Grade 0 (Inspection) | Increments: | Pcs: 9 | Includes: 1.001-1.009mm (0.001 step) x9 |
5 days*
|
Special Price
£176.24
£146.87
Was
£220.31
£183.59
|
|
|
| Grade: Grade 0 (Inspection) | Increments: | Pcs: 9 | Includes: 1.001-1.009mm (0.001 step) x9 |
5 days*
|
£158.88
£132.40
|
|
|
| Grade: Grade 0 (Inspection) | Increments: | Pcs: 8 | Includes: 125-175mm (25mm step) x3, 200-250mm (50mm step) x2, 300-500mm (100mm step) x3 |
5 days*
|
Special Price
£1,493.16
£1,244.30
Was
£1,866.46
£1,555.38
|
|
Product Information
Features & Benefits
The Insize 4166 Pin Gauge Set for measurements of smaller bore diameters. Made from hardened alloy steel for longer tool life and durability from machine shop wear.
- Grade 1 (inspection use).
- Made of alloy steel.
- Hardness HRC 62-65.
Specification
| Category | Measuring |
|---|---|
| Sub Category | Plain Pin & Plug Gauges |
| Sub Category 2 | Pin Gauge Sets |
| Individual Or Set | Set |
| Brand | Insize |
