Digital Caliper Gauges - Thickness, Snap & Caliper Gauges - Small Tool Instruments

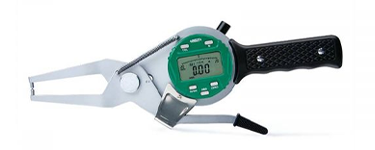

External Dial Caliper Gauge - 2333 Series (Insize)

The Insize 2333 Series Thickness Gauge is designed for accurately measuring thickness with a ranges from 10-60mm. It has a graduation of 0.01mm....

External Dial Caliper Gauge
Ranges up 60mm
Graduation: 0.01mm
Accuracy: ±0.03mm

From £244.74 £203.95

View Products

Internal Digital Caliper Gauge - 2151 Series (Insize)

The Insize 2151 Internal Digital Caliper Gauge can be read in either numerical or analogue format and features carbide measuring tips. The digital display can be rotated 320° giving excellent readabi...

0.01mm/0.0005" resolution.
0.04mm accuracy.
Supplied with carbide measuring tips.
Data output (cable code 7315-50M, 732-50M).
Reading in digits and analogue.
Display can be rotated by 320°.
CR2032 battery. automatic power off.
Button function: tolerance go and no-go display, data preset, measuring direction change, max/min/TIR measurement, inch-metric conversion, absolute/incremental measurement.

From £262.55 £218.79

View Products

Digimatic Coolant Proof Inside Caliper Gauge - 209 Series (Mitutoyo)

The Mitutoyo 209 series Digimatic Coolant Proof Inside Caliper Gauge is a versatile gauge for measuring internal groove diameter. It has a IP67 rating which provides maximum confidence for use in adv...

Digimatic Coolant Proof Inside Caliper Gauge
Ranges up to 90mm
Measuring Force: 0.8N - 1.7N
Accuracy: 0.015mm, 0.03mm, 0.04mm
Resolution: 0.01mm, 0.02mm, 0.005mm
Versatile gauge for measuring internal groove diameter.
IP67 rating provides maximum confidence for use in adverse environments where the gauge is subject to splashing by cutting fluid or coolant.
Bargraph provides a quick analogue view of the result of measurement.
GO/NO-GO judgement function: an in-tolerance judgement result is indicated by the green LED and an out-of-tolerance judgement by the red.
Data output port that enables incorporation into measurementNetworking and statistical process control systems.
Supplied with the Manufacturer Inspection Certificate
Mitutoyo are a market leader in the measuring sector, providing the highest quality measuring tools for a range of applications.

From £764.22 £636.85

View Products

Digital External Caliper Gauge - 2131 Series (Insize)

The 2131 Digital External Caliper Gauge for accurate external measurements. Available with spring loaded trigger for high speed measurements. With optional data output, sizes range from 0-20mm/0-0.8"...

Resolution: 0.005mm/0.0002".
Reading in digit and analog.
Display can be rotated by 170°.
Button function: tolerance Go and No-Go display, data preset, max/min measurement, data holding, inch/metric conversion, ABS/INC.
Battery CR2032, auto power off.
Data output.
Optional accessory: Data output cable 7302-SPC3B.

From £244.74 £203.95

View Products

Digimatic Coolant Proof Outside Caliper Gauge - 209 Series (Mitutoyo)

The Mitutoyo 209 series Digimatic Coolant Proof Outside Caliper Gauge is a versatile gauge with a choice of configurations. It is data output and has a IP67 rating providing maximum confidence....

Digimatic Coolant Proof Outside Caliper Gauge
Ranges from 0-50mm
Measuring Force: 1.1/1.6N or 0.8/1.7N /li>
Resolution: 0.01mm/0.02mm
Accuracy: 0.03mm/0.06mm
Versatile gauge with a choice of arm configurations suitable for measuring grooves and other hard-tomeasure features in addition to rapid measurement of flat stock at some distance from an edge.
IP67 rating provides maximum confidence for use in adverse environments where the gauge is subject to splashing by cutting fluid or coolant.
Bargraph provides a quick analogue view of the result of measurement.
GO/NO-GO judgement function: an in-tolerance judgement result is indicated by the green LED and an out-of-tolerance judgement by the red.
Data output port that enables incorporation into measurementNetworking and statistical process control systems.
Mitutoyo are a market leader in the measuring sector, providing the highest quality measuring tools for a range of applications.

From £764.22 £636.85

View Products

Digital External Caliper Gauge - 2132 Series (Insize)

The 2132 Digital External Caliper Gauge with carbide measuring tips for accurate external measurements. Available with spring loaded trigger for high speed measurements. With optional data output, si...

Carbide measuring tips.
Resolution: 0.01mm/0.0005".
Reading in digit and analog.
Display can be rotated by 320°.
Button function: tolerance Go and No-Go display, data preset, measuring direction change, max/min/TIR measurement, inch/metric conversion, ABS/INC.
Battery CR2032, auto power off.
Data output.
Optional accessory: Data output cable 7302-SPC3B.

From £258.10 £215.08

View Products

Digital Internal Caliper Gauge - 2121 Series (Insize)

The 2121 Digital Internal Caliper Gauge for accurate internal measurements. Available with spring loaded trigger for high speed measurements. With optional data output, sizes range up to 40mm/1.6"....

Resolution: 0.005mm/0.0002".
Reading in digit and analog.
Display can be rotated by 170°.
Button function: tolerance Go and No-Go display, data preset, max/min measurement, data holding, inch/metric conversion, ABS/INC.
Battery CR2032.
Data output.
Optional accessory: Data output cable 7302-SPC3B.

From £226.96 £189.13

View Products
