Digital Snap Gauges

Our range of dial snap gauges from Insize are used to verify or visually gauge critical measurements in production engineering. Various sizes and styles available including step and gap gauges and 3-purpose snap gauges.

Filter By arrow
carrat-down

8 Items

Sort By
carrat-down
sort-descending

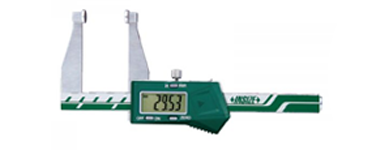

Digital 3-Purpose Snap Gauge - 2164 Series (Insize)
Digital 3-Purpose Snap Gauge - 2164 Series (Insize)

The Insize 2164 Digital Snap Gauge, with inside and outside measuring jaws. The size is permanently or temporarily fixed to verify the Inside/outside diameter of a component. The gauge is made of sta...

  • Resolution 0.01mm/0.0005".
  • Buttons: Zero, mm/inch.
  • Battery LR44.
  • Made from stainless steel.

From £242.96 £202.47

View Products
Digital Snap Gauge - 2166 Series (Insize)
Digital Snap Gauge - 2166 Series (Insize)

The Insize 2166 Digital Snap Gauge comes with a spring load trigger for quicker outside measurements. With optional data output, Sizes range from 0-12mm/0-0.5"....

  • Resolution 0.01mm/0.0005".
  • Buttons: on/off, Zero, mm/inch.
  • Data output.
  • Optional accessory: data output cable.

From £160.54 £133.78

View Products
Step and Gap Gauge - 2168 Series (Insize)
Step and Gap Gauge - 2168 Series (Insize)

The Insize 2168 Digital Snap Gauge for step height or gap width measurements. The size is permanently or temporarily fixed to verify steps heights or gap widths of a component. The gauge is made of s...

  • Resolution 0.01mm/0.0005".
  • Buttons: on/off, Zero, mm/inch.
  • Automatic power off, move digital unit to turn power on.
  • CR2032.
  • Data output.
  • Made of stainless steel.
  • Supplied with zero setting block.
  • Optional accessory: data output cable.

From £280.57 £233.81

View Products
Digital Snap Gauge - 2163 Series (Insize)
Digital Snap Gauge - 2163 Series (Insize)

The Insize 2163 Digital Snap Gauge for thickness and tube wall thickness measurement has a resolution of 0.01mm/0.0005" and a ±0.004mm accuracy. It also has an optional accessory: data output cable (...

  • Resolution 0.01mm/0.0005".
  • Accuracy: ±0.004mm.
  • For thickness and tube wall thickness measurement.
  • Optional accessory: data output cable (code 7306-20, 7302-SPC1 A/SPC1B, 7305-SPC2).

From £102.70 £85.58

View Products
Adjustable Snap Gauge - 2187 Series (Insize)
Adjustable Snap Gauge - 2187 Series (Insize)

The Insize 2187 Adjustable Snap Gauge can be used as a Go/No-Go Gauge by setting upper and lower limts. Flatness ...

  • Used a Go/No-Go gauge by setting upper and lower limits.
  • Flatness of anvil: 1.5 µm.
  • Parallelism between tips and anvil: range 0-32m: 3µm, range 32-89mm: 4µm, range 89-300mm: 5µm.

From £124.96 £104.13

View Products
Digital Snap Gauge - 2167 Series (Insize)
Digital Snap Gauge - 2167 Series (Insize)

The Insize 2167 Digital Snap Gauge has an 0.01mm/0.0005" resolution and 0.03mm accuracy. The gauge is supplied without data output....

  • Range: 0-25mm/0-1".
  • Resolution: 0.01mm/0.0005".
  • Accuracy: 0.03mm.
  • No data output capabilities.

From £248.76 £207.30

View Products
Digital Snap Gauge - 1163 Series (Insize)
Digital Snap Gauge - 1163 Series (Insize)

The Insize 1163 Digital Snap Gauges is supplied either with or without built-in wireless data output. The gauge body is made of a strong stainless steel material....

  • Supplied with or without wireless data output.
  • Buttons: on/off, zero, mm/inch.
  • Automatic power off, move the digital unit to turn on power.
  • CR2032 battery operated.
  • Data output cable for 1163-50A: 7315, 7302, 7305 Series.
  • Made of stainless steel.

From £208.26 £173.55

View Products
IP54 Digital Micrometer/ Snap Gauge (Moore & Wright)
NEW
NEW
IP54 Digital Micrometer/ Snap Gauge (Moore & Wright)

A high-resolution, modern snap micrometer designed with a wide range of advanced features. It includes a large colour LCD that can display measurements either digitally or in a traditional dial format...

  • Snap gauge operation with support bar
  • Large circular, colour LCD display
  • Measuring system with high precision optical linear encoder
  • Resolution of 0.0002mm
  • Configurable as an analogue dial, or as digital display
  • Configurable tolerances, colour indication of Under, In, or Over tolerance
  • Wireless data comms direct to Windows applications – no need for a dongle or software
  • Tungsten carbide anvils, chrome finished thimble with vernier scale
  • Rechargeable internal lithium battery (USB charging cable supplied)
  • Auto power off
  • IP54 Protection
  • Supplied in an aluminium case

From £351.28 £292.73

View Products
