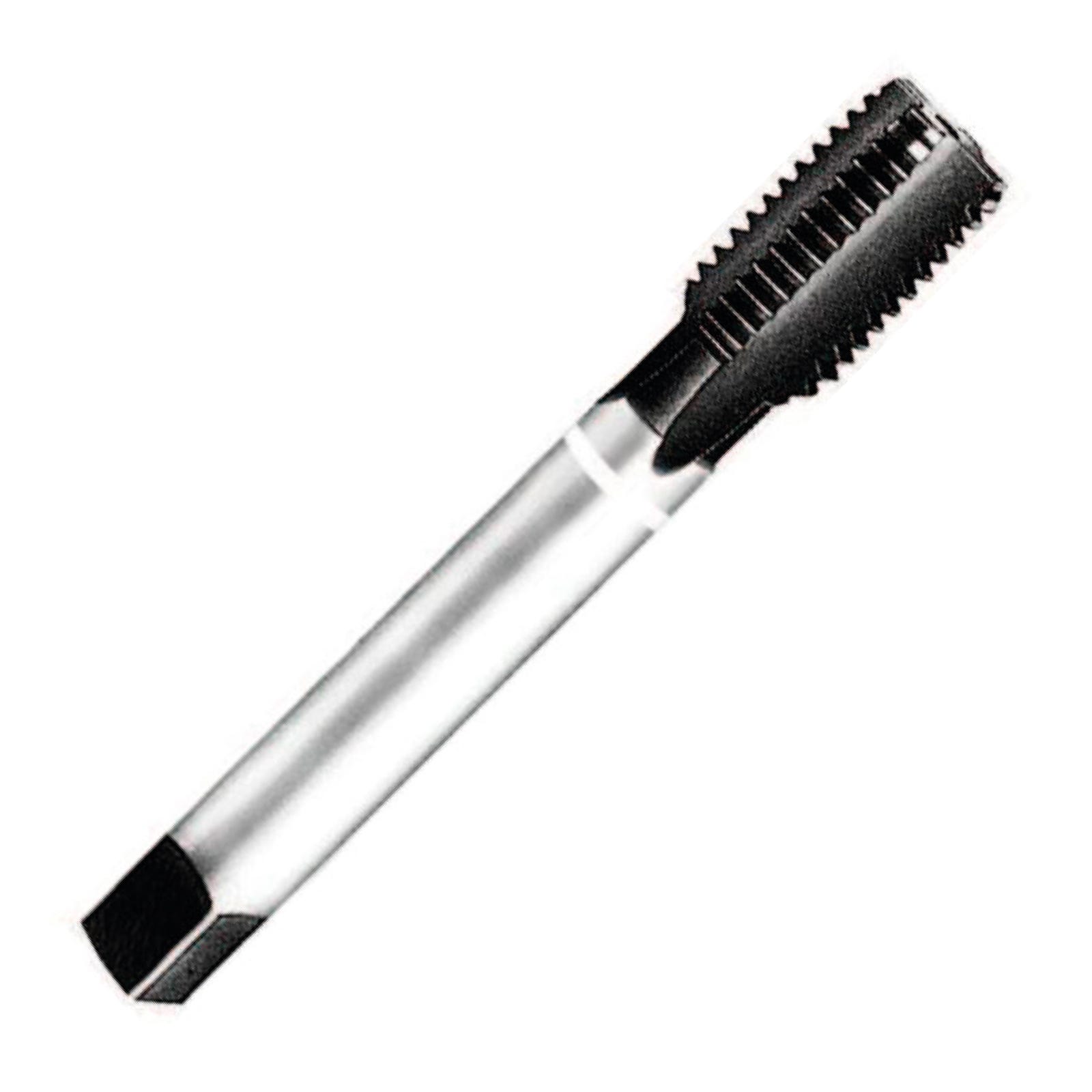

Metric Fine HSSE Straight Flute Machine Tap (6HX Tolerance) for Cast Iron - TE403 Series (YG-1)

Metric Fine HSSE Straight Flute Machine Tap (6HX Tolerance) for Cast Iron - TE403 Series (YG-1)

The YG-1 TE403 series Metric Fine Cast Iron Machine Taps are suitable for tapping grey cast iron, short chipping...
Read more
View Products

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm
Filter Items arrow

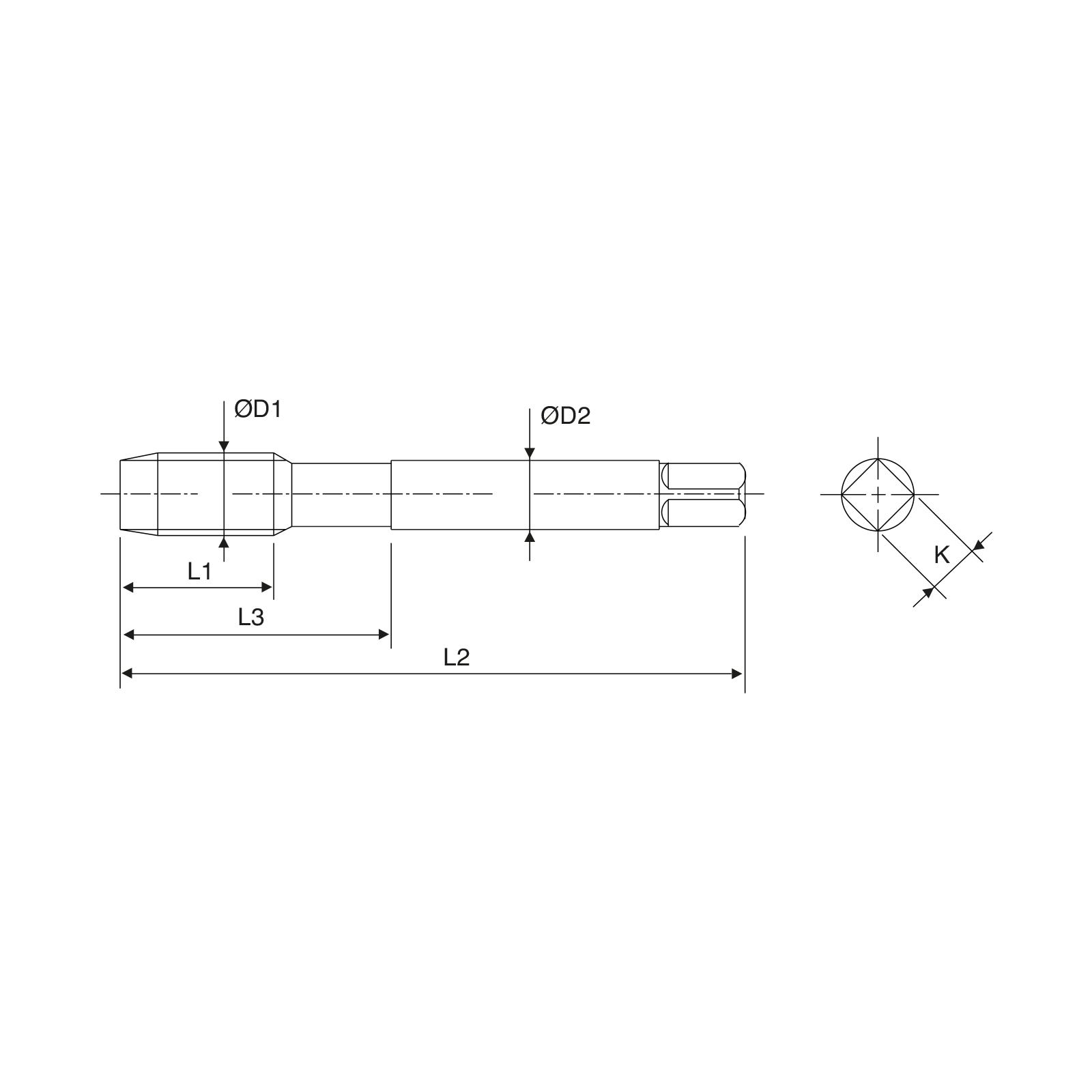

Code Thread Shank (mm) Pitch Flute Length (mm) Overall Length (mm) Flutes L3 Drill Diameter Square Stock Price
(Ex VATInc. VAT)
Filter Items
cross
Thread
carrat-down
Shank (mm)
carrat-down
Pitch
carrat-down
Flute Length (mm)
carrat-down
Overall Length (mm)
carrat-down
Flutes
carrat-down
L3
carrat-down
Drill Diameter
carrat-down
Square
carrat-down
Thread: M4 Shank (mm): 2.8 Pitch: 0.5 Flute Length (mm): 10 Overall Length (mm): 63 Flutes: 3 L3: 21 Drill Diameter: 3.5 Square: 2.1
unavailable 21 days*
£18.05 £15.04
minus plus
Thread: M5 Shank (mm): 3.5 Pitch: 0.5 Flute Length (mm): 11 Overall Length (mm): 70 Flutes: 3 L3: 25 Drill Diameter: 4.5 Square: 2.7
available In stock
£18.30 £15.25
minus plus
Thread: M6 Shank (mm): 4.5 Pitch: 0.75 Flute Length (mm): 13 Overall Length (mm): 80 Flutes: 3 L3: 30 Drill Diameter: 5.2 Square: 3.4
available In stock
£18.05 £15.04
minus plus
Thread: M6 Shank (mm): 4.5 Pitch: 0.5 Flute Length (mm): 13 Overall Length (mm): 80 Flutes: 3 L3: 30 Drill Diameter: 5.5 Square: 3.4
unavailable 21 days*
£18.30 £15.25
minus plus
Thread: M7 Shank (mm): 5.5 Pitch: 0.75 Flute Length (mm): 14 Overall Length (mm): 80 Flutes: 3 L3: 30 Drill Diameter: 6.2 Square: 4.3
unavailable 21 days*
£26.63 £22.19
minus plus
Thread: M8 Shank (mm): 6 Pitch: 1 Flute Length (mm): 17 Overall Length (mm): 90 Flutes: 3 L3: 36 Drill Diameter: 7 Square: 4.9
unavailable 21 days*
£19.67 £16.39
minus plus
Thread: M8 Shank (mm): 6 Pitch: 0.75 Flute Length (mm): 14 Overall Length (mm): 80 Flutes: 3 L3: 30 Drill Diameter: 7.2 Square: 4.9
unavailable 21 days*
£20.90 £17.42
minus plus
Thread: M10 Shank (mm): 7 Pitch: 1.25 Flute Length (mm): 22 Overall Length (mm): 100 Flutes: 3 L3: 40 Drill Diameter: 8.8 Square: 5.5
unavailable 21 days*
£23.92 £19.93
minus plus
Thread: M10 Shank (mm): 7 Pitch: 1 Flute Length (mm): 18 Overall Length (mm): 90 Flutes: 3 L3: 36 Drill Diameter: 9 Square: 5.5
available In stock
£23.03 £19.19
minus plus
Thread: M10 Shank (mm): 7 Pitch: 0.75 Flute Length (mm): 18 Overall Length (mm): 90 Flutes: 3 L3: 36 Drill Diameter: 9.2 Square: 5.5
unavailable 21 days*
£29.04 £24.20
minus plus
Thread: M12 Shank (mm): 9 Pitch: 1.5 Flute Length (mm): 22 Overall Length (mm): 100 Flutes: 3 L3: 40 Drill Diameter: 10.5 Square: 7
available In stock
£25.62 £21.35
minus plus
Thread: M12 Shank (mm): 9 Pitch: 1.25 Flute Length (mm): 22 Overall Length (mm): 100 Flutes: 3 L3: 40 Drill Diameter: 10.8 Square: 7
unavailable 21 days*
£28.00 £23.33
minus plus
Thread: M12 Shank (mm): 9 Pitch: 1 Flute Length (mm): 18 Overall Length (mm): 100 Flutes: 3 L3: 40 Drill Diameter: 11 Square: 7
unavailable 21 days*
£26.65 £22.21
minus plus
Thread: M14 Shank (mm): 11 Pitch: 1.5 Flute Length (mm): 22 Overall Length (mm): 100 Flutes: 3 L3: 40 Drill Diameter: 12.5 Square: 9
unavailable 21 days*
£31.39 £26.16
minus plus
Thread: M14 Shank (mm): 11 Pitch: 1.25 Flute Length (mm): 22 Overall Length (mm): 100 Flutes: 3 L3: 40 Drill Diameter: 12.8 Square: 9
available In stock
£34.07 £28.39
minus plus
Thread: M16 Shank (mm): 12 Pitch: 1.5 Flute Length (mm): 22 Overall Length (mm): 100 Flutes: 3 L3: 40 Drill Diameter: 14.5 Square: 9
available In stock
£39.92 £33.27
minus plus
Thread: M20 Shank (mm): 16 Pitch: 1.5 Flute Length (mm): 25 Overall Length (mm): 125 Flutes: 3 L3: 50 Drill Diameter: 18.5 Square: 12
unavailable 21 days*
£57.54 £47.95
minus plus
Thread: M22 Shank (mm): 18 Pitch: 1.5 Flute Length (mm): 25 Overall Length (mm): 125 Flutes: 3 L3: 50 Drill Diameter: 20.5 Square: 14.5
unavailable 21 days*
£66.34 £55.28
minus plus
Thread: M24 Shank (mm): 18 Pitch: 1.5 Flute Length (mm): 27 Overall Length (mm): 140 Flutes: 3 L3: 54 Drill Diameter: 22.5 Square: 14.5
unavailable 21 days*
£77.51 £64.59
minus plus
Thread: M18 Shank (mm): 14 Pitch: 1.5 Flute Length (mm): 25 Overall Length (mm): 110 Flutes: 4 L3: 44 Drill Diameter: 16.5 Square: 11
available In stock
£50.50 £42.08
minus plus

*Estimated lead time, subject to availability

Product Information

Features & Benefits

The YG-1 TE403 series Metric Fine Cast Iron Machine Taps are suitable for tapping grey cast iron, short chipping brass/bronze and GFRP/CFRP. They come with a NI (Nitrided) Finish, HSSE substrate and a straight flute geometry for blind and through holes.
  • Metric Fine Machine Tap for Cast Iron
  • HSSE Substrate
  • Straight Flute for Blind & Through Holes
  • NI (Nitrided) Finish
  • Suitable for Grey Cast Iron, Short Chipping Brass/Bronze and GFRP/CFRP

Specification

Category Threading
Sub Category Machine Taps
Sub Category 2 Cast Iron & Abrasive Machine Taps
Substrate HSS
Oil Grooves No
Surface Treatment Coated (PVD/CVD)
Depth 2xD
Applicable Materials Cast Iron, Exotics
Flute Geometry Straight Flute
Performance 3
Coating Description NI Treated
Substrate Description HSS 5% Cobalt
Helix Angle 60°
Thread Form Metric ISO
Brand YG-1
