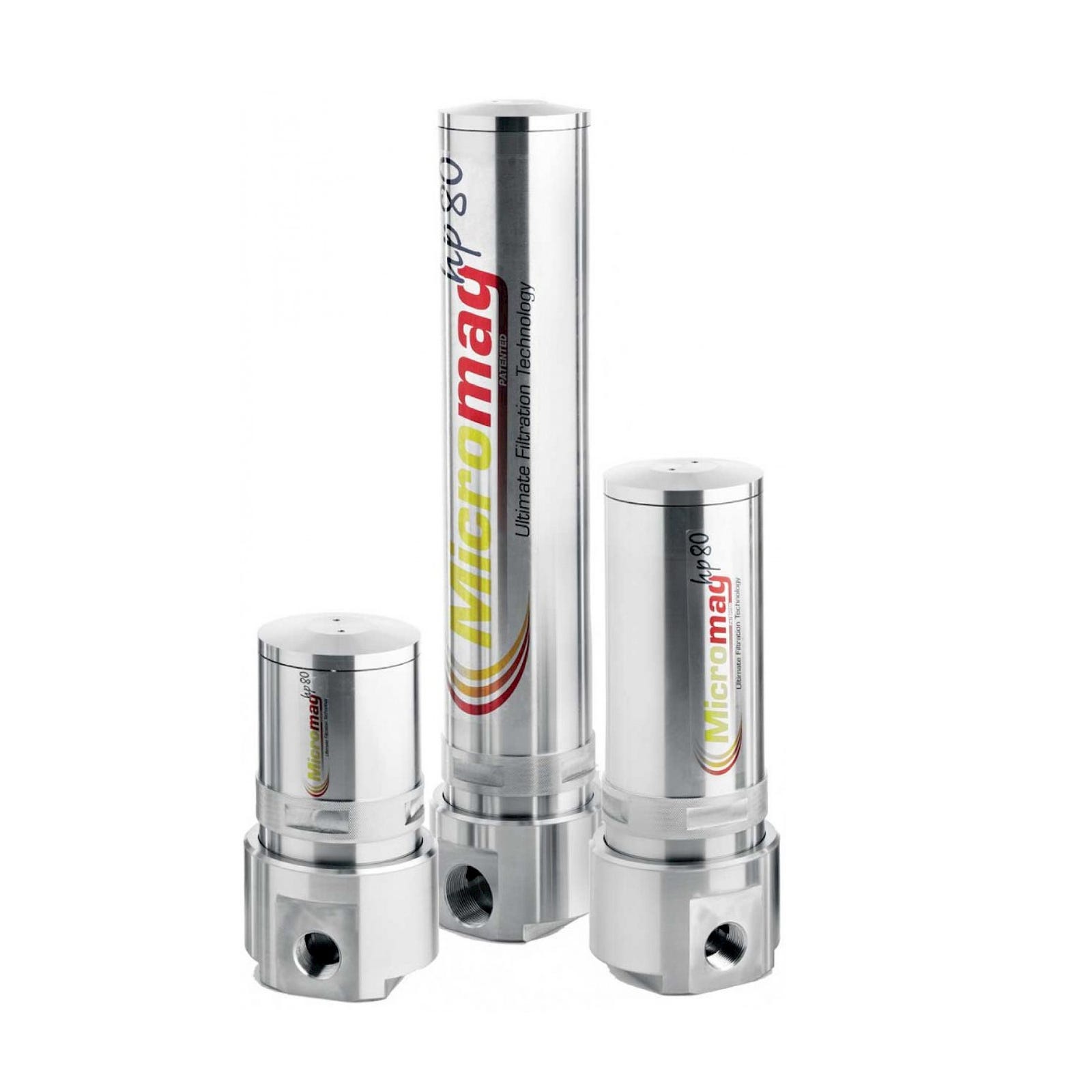

Micromag HP80 Magnetic Filter, 100 ltrs/min (Eclipse Magnetics)

Cutwel Sku
ECL-MM10/HP/80

Micromag HP80 Magnetic Filter, 100 ltrs/min (Eclipse Magnetics)

Cutwel Sku
ECL-MM10/HP/80
The Micromag HP/80 follows on from the standard Micromag and has all of the same incredible benefits. This unit...
Read more
minus plus

*Estimated lead time, subject to availability

View Full Range
unavailable 5 days*

Need Help?

Contact Sales

01924 869660 Mon - Thurs 8am - 6pm Fri 8am - 5:30pm

Product Information

Features & Benefits

The Micromag HP/80 follows on from the standard Micromag and has all of the same incredible benefits. This unit was developed to suit high pressure through spindle coolant applications, where the smallest of particles can damage seals, spindles and even the efficiency of the cutting tool. Micromag HP/80 can be installed anywhere in the fluid delivery system and will ensure that even sub micron magnetic and paramagnetic particles are removed before they can cause any expensive damage.
  • High pressure: 80 Bar

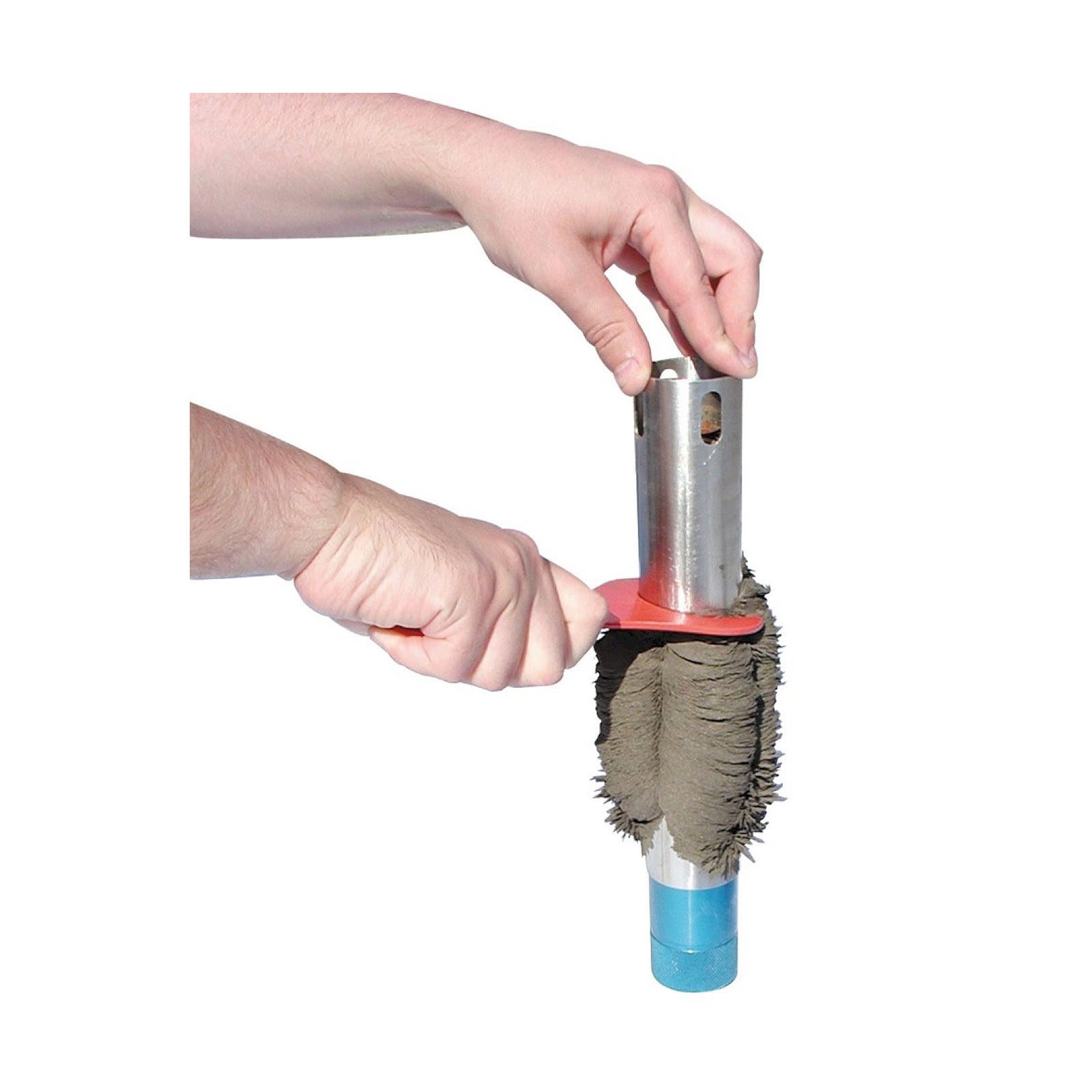

  • Includes: magnetic filter, cleaning tool, manual and bowl spanner
  • Compact, high-performance machine tool filter, rapid return on investment

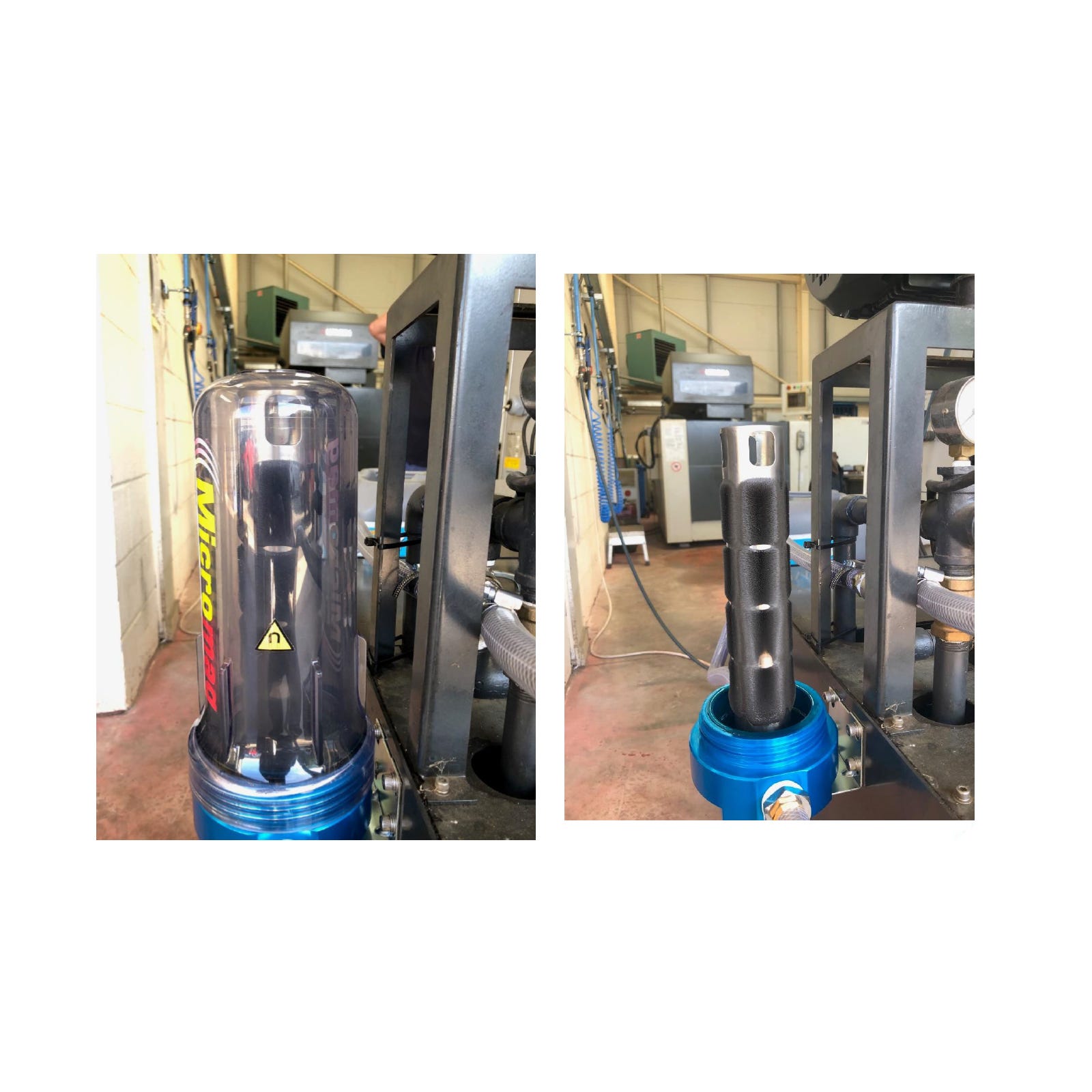

  • Manual clean magnetic coolant filter can be easily installed on new or existing equipment
  • Environmentally friendly filter system - promotes waste reduction
  • High-intensity Neodymium magnetic core and optimised fluid flow orientation
  • Removes almost 100% of ferrous contamination including fine particles
  • High collection capacity relative to size
  • Non-block magnetic circuit design
  • Rapid return on investment, low-cost option
  • Housing: 316 Grade stainless steel
  • Lid: 316 Grade stainless steel
  • Tube: 316 Grade stainless steel - Aerospace Qaulity
  • Seal: Viton rubber

Specification

Category Magnetics
Flow Rate 100L/min
Output 80 bar max operating pressure

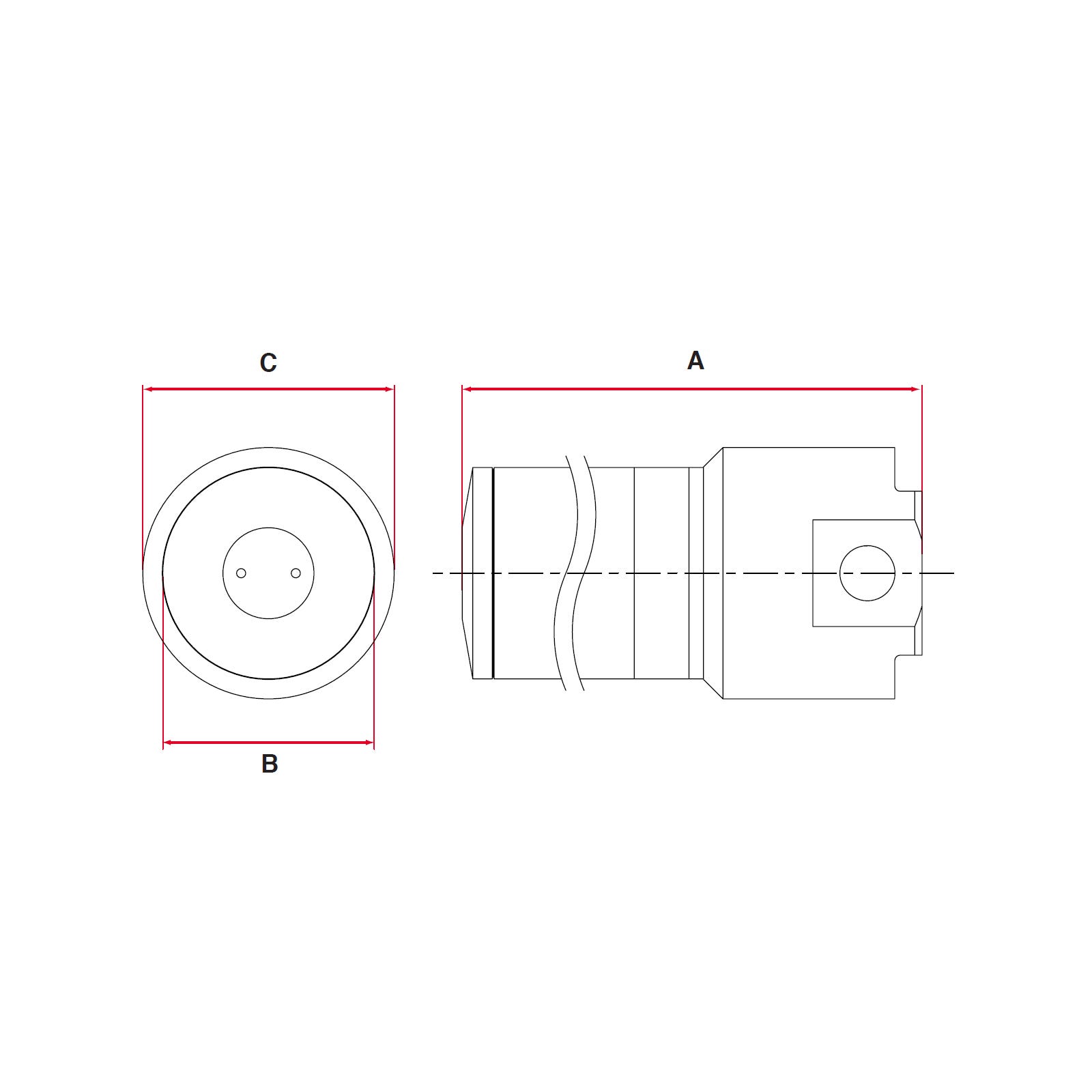

A 365
B 116
C 125
Brand Eclipse Magnetics
