What is chamfer milling?

Chamfer milling is a machining process used to create a bevelled edge, or chamfer, on a workpiece. The chamfer is an angled cut that removes the sharp edge or burr left after cutting or drilling operations. Chamfer milling is commonly applied to improve the appearance and functionality of the workpiece, as it helps reduce stress concentration and makes assembly easier. This process is often performed using specialised chamfer mills, which are cutting tools designed to create precise angles on the material.

What types of chamfer mills are used?

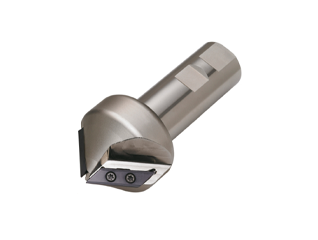

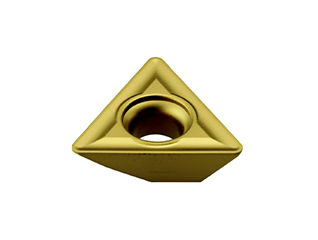

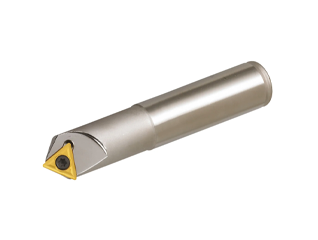

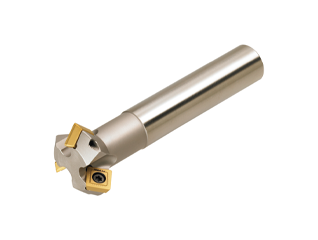

Chamfer mills come in various types, each designed for specific applications and materials. The most common types include single-flute, multi-flute, and indexable chamfer mills. Single-flute chamfer mills are suitable for low-speed applications where precision is essential. Multi-flute chamfer mills are used in high-speed operations, providing smoother finishes due to multiple cutting edges. Indexable chamfer mills have replaceable cutting inserts, allowing for quick changes and cost efficiency, especially when working with hard materials. The choice of chamfer mill depends on the material, desired finish, and production speed requirements.

What materials can be chamfer milled?

Chamfer milling can be applied to a wide range of materials, including metals, plastics, and composites. Commonly machined metals include aluminium, steel, stainless steel, and titanium. Plastics such as nylon and acrylic, as well as composite materials like carbon fibre, can also be chamfer milled. The choice of material affects the selection of cutting tools and machining parameters. For example, harder materials like steel may require carbide or coated tools, while softer materials like plastics might need tools with a sharper edge to prevent melting or deformation.

What are the key considerations in chamfer milling?

Several key factors must be considered when performing chamfer milling to ensure quality and efficiency. Tool selection is crucial, as the right chamfer mill must be chosen based on material type, desired angle, and finish. Cutting speed and feed rate also play a significant role in achieving the optimal surface finish and prolonging tool life. Additionally, workpiece fixturing is important to maintain stability during machining, preventing vibration and misalignment. Proper coolant use can also affect the outcome, especially when machining hard materials.

What are the common applications of chamfer milling?

Chamfer milling is widely used in various industries, including automotive, aerospace, and manufacturing. In automotive applications, chamfering helps in the assembly of parts by creating smooth, bevelled edges that fit together without interference. In aerospace, chamfer milling reduces stress concentrations on critical components, enhancing safety and durability. In general manufacturing, chamfer milling is used for deburring edges, improving aesthetics, and preparing parts for welding or bonding. The versatility of chamfer milling makes it an essential process in many production environments.

How does chamfer milling improve the functionality of a workpiece?

Chamfer milling improves functionality by eliminating sharp edges and burrs that could cause injury or interfere with assembly. The bevelled edge created by chamfer milling reduces stress concentration, which enhances the structural integrity of the workpiece. This is particularly important in components subject to high stress or impact, as it helps distribute the load more evenly. Additionally, chamfer milling can make assembly processes more efficient by ensuring parts fit together seamlessly, reducing the likelihood of misalignment or damage.

What are the challenges associated with chamfer milling?

Chamfer milling presents several challenges that must be managed to achieve desired results. One challenge is tool wear, especially when machining hard materials like stainless steel or titanium. Tool wear can lead to poor surface finishes and dimensional inaccuracies. Managing cutting speeds and feed rates is crucial to mitigate this issue. Another challenge is ensuring the consistency of the chamfer angle across the entire workpiece, which requires precise control of the machining parameters and tool path. Additionally, vibration during machining can lead to tool chatter, compromising the surface quality.
