Solid Carbide & HSS Chamfer Mills

Solid Carbide & HSS Chamfer Mills

2-6 flute 15°, 30°, 45°, 60° & 90° degree solid chamfer mills. Micrograin solid carbide substrate for excellent wear resistance and tool life in chamfering all materials

Filter By arrow
carrat-down

16 Items

Sort By
carrat-down
sort-descending
2 Flute 45° Solid Carbide Chamfer Drill Mill - G9400 Series (YG-1)
2 Flute 45° Solid Carbide Chamfer Drill Mill - G9400 Series (YG-1)

G9400 Series 45° Chamfer Drill Mill is an excellent general purpose tool designed for performing multiple applications including drilling, milling, spotting, chamfering and engraving....

  • Uncoated solid carbide.
  • Can drill, slot NC mill, slot, profile and chamfer.
  • Performs many drilling and milling operations that standard end mills cannot.
  • 45° approach angle.
  • Suitable for steel, stainless steel, cast iron and aluminium.
  • Plain shank.

Size

Diameter (mm)3 - 20
Overall Length (mm)50 - 100
Flute Length (mm)6 - 32
Shank (mm)4 - 20

From £35.60 £29.67

View Products
Metric HSSE Chamfer-Drill-Spot Mill (ORION)
Metric HSSE Chamfer-Drill-Spot Mill (ORION)

CMC200-60 Series Chamfer Mill is an excellent general purpose tool designed for performing multiple applications including Centre Cutting for Spotting, 60° Chamfering & Deburring...

The ATORN 1102 series is suitable for centring, drilling, countersinking, chamfering and peripheral milling and has universal point geometry which ensures a broad range of uses

Size

Diameter (mm)3 - 16
Overall Length (mm)50 - 115
Flute Length (mm)6 - 24
Shank (mm)3 - 16

From £22.93 £19.11

View Products
60° Solid Carbide Chamfer Mill - CMC200-60 Series (Cutwel Pro)
60° Solid Carbide Chamfer Mill - CMC200-60 Series (Cutwel Pro)

CMC200-60 Series Chamfer Mill is an excellent general purpose tool designed for performing multiple applications including Centre Cutting for Spotting, 60° Chamfering & Deburring...

  • 60° Chamfer Angle
  • Centre Cutting for Spotting, 60° Chamfering & Deburring
  • ULTRA Coated Surface
  • Solid Carbide
  • Available for UK next day delivery

Size

Diameter (mm)1 - 12
Overall Length (mm)39 - 83
Flute Length (mm)3 - 12

From £22.92 £19.10

View Products
30° Solid Carbide Chamfer Mill - CMC200-30 Series (Cutwel Pro)
30° Solid Carbide Chamfer Mill - CMC200-30 Series (Cutwel Pro)

CMC200-30 Series Chamfer Mill is an excellent general purpose tool designed for performing multiple applications including Centre Cutting for Spotting, 30° Chamfering & Deburring...

  • 30° Chamfer Angle
  • Centre Cutting for Spotting, 30° Chamfering & Deburring
  • ULTRA Coated Surface
  • Solid Carbide
  • Available for UK next day delivery

Size

Diameter (mm)1 - 12
Overall Length (mm)39 - 83
Flute Length (mm)3 - 12

From £22.92 £19.10

View Products
45° Solid Carbide Front and Back Chamfer Mills - CMFB-45 Series (Cutwel Pro)
45° Solid Carbide Front and Back Chamfer Mills - CMFB-45 Series (Cutwel Pro)

CMFB-45 Series Chamfer Mill is an excellent general purpose tool designed for performing multiple applications including Chamfering, Back Chamfering, Groove Milling, Countersinking & Deburring...

  • 45° Chamfer Angle
  • Suitable for: Chamfering, Back Chamfering, Groove Milling, Countersinking & Deburring
  • TiAlN Coated Surface
  • 3 Flute
  • Solid Carbide
  • Available for UK next day delivery

Size

Diameter (mm)1.4 - 15.8
Overall Length (mm)39 - 100
Flute Length (mm)3 - 6
Shank (mm)3 - 6

From £27.41 £22.84

View Products
15° Solid Carbide Chamfer Mill - CMC200-15 Series (Cutwel Pro)
15° Solid Carbide Chamfer Mill - CMC200-15 Series (Cutwel Pro)

CMC200-15 Series Chamfer Mill is an excellent general purpose tool designed for performing multiple applications including Chamfering & Deburring...

  • 15° Chamfer Angle
  • Suitable for: Chamfering & Deburring
  • ULTRA Coated Surface
  • 3 Flute
  • Solid Carbide
  • Available for UK next day delivery

Size

Diameter (mm)1 - 12
Overall Length (mm)39 - 83
Flute Length (mm)3 - 12

From £25.01 £20.84

View Products

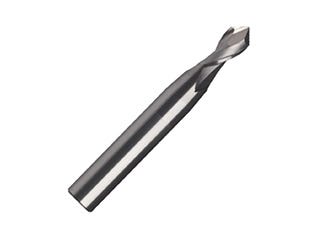

60° Solid Carbide Chamfer Mill - DM200-60 Series (Cutwel Pro)
60° Solid Carbide Chamfer Mill - DM200-60 Series (Cutwel Pro)

DM200-60 Series Chamfer Mill is an excellent general purpose tool designed for performing multiple applications including V-Slot Milling, Countersinking, Angle Milling, Chamfering, Spot Drilling, Dril...

  • 60° Chamfer Angle
  • Suitable for: V-Slot milling, Countersinking, Angle Milling, Chamfering, Spot Drilling, Drilling, Profiling & Bevel Milling
  • Uncoated Surface
  • 2 Flute
  • Solid Carbide
  • Available for UK next day delivery

Size

Diameter (mm)3 - 12
Overall Length (mm)50 - 70
Flute Length (mm)6 - 20
Shank (mm)4 - 12

From £26.80 £22.33

View Products
45° Solid Carbide Chamfer Mill - DM200-45 Series (Cutwel Pro)
45° Solid Carbide Chamfer Mill - DM200-45 Series (Cutwel Pro)

DM200-45 Series Chamfer Mill is an excellent general purpose tool designed for performing multiple applications including V-Slot Milling, Countersinking, Angle Milling, Chamfering, Spot Drilling, Dril...

  • 45° Chamfer Angle
  • Suitable for: V-Slot milling, Countersinking, Angle Milling, Chamfering, Spot Drilling, Drilling, Profiling & Bevel Milling
  • Uncoated Surface
  • 2 Flute
  • Solid Carbide
  • Available for UK next day delivery

Size

Diameter (mm)1 - 20
Overall Length (mm)39 - 100
Flute Length (mm)2 - 32
Shank (mm)3 - 20

From £21.73 £18.11

View Products
30° Solid Carbide Chamfer Mill - DM200-30 Series (Cutwel Pro)
30° Solid Carbide Chamfer Mill - DM200-30 Series (Cutwel Pro)

DM200-30 Series Chamfer Mill is an excellent general purpose tool designed for performing multiple applications including V-Slot Milling, Countersinking, Angle Milling, Chamfering, Spot Drilling, Dril...

  • 30° Chamfer Angle
  • Suitable for: V-Slot milling, Countersinking, Angle Milling, Chamfering, Spot Drilling, Drilling, Profiling & Bevel Milling
  • Uncoated Surface
  • 2 Flute
  • Solid Carbide
  • Available for UK next day delivery

Size

Diameter (mm)3 - 12
Overall Length (mm)50 - 70
Flute Length (mm)6 - 20
Shank (mm)4 - 12

From £26.80 £22.33

View Products
3 Tooth 45° Coated Carbide Front and Back Chamfer Mills - MA3.45 Series (Simtek)
3 Tooth 45° Coated Carbide Front and Back Chamfer Mills - MA3.45 Series (Simtek)

The MA3.45 series coated solid front and back chamfer mills from Simtek have a 45 degree chamfer angle and range from 5.8-7.8mm in diameter. These 3 tooth chamfer mills are ideal for high performance ...

  • Suitable for grooving, threading and chamfering applications
  • Micrograin carbide
  • High groove depths in smallest bores

Size

Diameter (mm)5.8 - 7.8
Overall Length (mm)58 - 78
Flute Length (mm)15 - 35
Shank (mm)6 - 8

From £57.58 £47.98

View Products

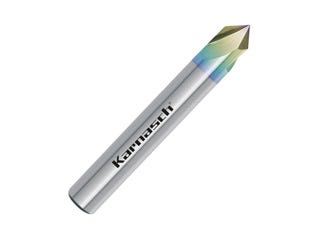

4 & 6 Tooth 45° UFX Coated Carbide Front and Back Chamfer Mills - 30.6491 Series (Karnasch)
4 & 6 Tooth 45° UFX Coated Carbide Front and Back Chamfer Mills - 30.6491 Series (Karnasch)

The 30.6491 series coated solid chamfer mills from Karnasch have a 45 degree chamfer angle and range from 1.8-11.8mm in diameter. These 4 & 6 tooth chamfer mills are ideal for high performance front &...

  • Suitable for machining materials up to HRc68
  • High performance
  • TiAlN coating
  • Micrograin carbide

Size

Diameter (mm)1.8 - 11.8
Overall Length (mm)80 - 100
Flute Length (mm)1.4 - 6
Shank (mm)6 - 6

From £88.22 £73.52

View Products
3 Flute 45° High Performance Uncoated Solid Carbide Chamfer Mill for Aluminium - 30.6200 Series (Karnasch)
3 Flute 45° High Performance Uncoated Solid Carbide Chamfer Mill for Aluminium - 30.6200 Series (Karnasch)

The 30.6200 series uncoated solid chamfer mills from Karnasch have a 45 degree chamfer angle and range from 4-12mm in diameter. These high performance 3 flute chamfer mills have a lapped flute design ...

  • TiALN Coated solid chamfer mills
  • 45 degree chamfer angle
  • Range from 6-12mm in diameter.
  • CMC100-45 series
  • For more information please call 01924 869 610

Size

Diameter (mm)4 - 12
Overall Length (mm)54 - 83
Shank (mm)4 - 12

From £69.06 £57.55

View Products
4-6 Flute 45° High Performance UFX Coated Solid Carbide Chamfer Mill - 30.6493 Series (Karnasch)
4-6 Flute 45° High Performance UFX Coated Solid Carbide Chamfer Mill - 30.6493 Series (Karnasch)

The 30.6493 series UFX coated solid chamfer mills from Karnasch have a 45 degree chamfer angle and range from 4-12mm in diameter. These high performance 4-6 flute chamfer mills are ideal for high perf...

  • Suitable for machining materials up to HRc55
  • High performance
  • TiAlN coating
  • Micrograin

Size

Diameter (mm)4 - 12
Overall Length (mm)54 - 83
Shank (mm)4 - 12

From £47.00 £39.17

View Products
4-6 Flute 30° High Performance UFX Coated Solid Carbide Chamfer Mill - 30.6492 Series (Karnasch)
4-6 Flute 30° High Performance UFX Coated Solid Carbide Chamfer Mill - 30.6492 Series (Karnasch)

The 30.6492 series UFX coated solid chamfer mills from Karnasch have a 30 degree chamfer angle and range from 4-12mm in diameter. These high performance 4-6 flute chamfer mills are ideal for high perf...

  • Suitable for machining materials up to HRc55
  • High performance
  • TiAlN coating
  • Micrograin carbide

Size

Diameter (mm)4 - 12
Overall Length (mm)54 - 83
Shank (mm)4 - 12

From £47.00 £39.17

View Products
4 Flute TiALN Coated Solid Carbide 45 Degree Chamfer Mill - CMC200-45 Series (Cutwel Pro)
4 Flute TiALN Coated Solid Carbide 45 Degree Chamfer Mill - CMC200-45 Series (Cutwel Pro)

The CMC200-45 series TiALN coated solid chamfer mills from Cutwel have a 45 degree chamfer angle and range from 6-12mm in diameter. These 4 flute chamfer mills is also available uncoated (CMC100-45 se...

  • TiALN Coated solid chamfer mills
  • 45 degree chamfer angle
  • Range from 6-12mm in diameter.
  • CMC100-45 series
  • For more information please call 01924 869 610

Size

Diameter (mm)6 - 12
Overall Length (mm)38 - 60
Shank (mm)6 - 12

From £21.42 £17.85

View Products
4 Flute Uncoated Solid Carbide 45 Degree Chamfer Mill - CMC100-45 Series (Cutwel Pro)
4 Flute Uncoated Solid Carbide 45 Degree Chamfer Mill - CMC100-45 Series (Cutwel Pro)

The CMC100-45 series uncoated solid chamfer mills from Cutwel have a 45 degree chamfer angle and range from 6-12mm in diameter. These 4 flute chamfer mills is also available with a TiALN coating (CMC2...

  • Uncoated solid chamfer mills
  • 45 degree chamfer angle
  • Range from 6-12mm in diameter.
  • CMC100-45 series
  • For more information please call 01924 869 610

Size

Diameter (mm)6 - 12
Overall Length (mm)38 - 60
Shank (mm)6 - 12

From £15.46 £12.88

View Products
