Rich Mill RM16
45° face milling system with double sided inserts & 16 cutting edges
Ultra thick & strong inserts allow for feed rates up to 0.4mm per tooth.
P
M
K
N
Browse the Range

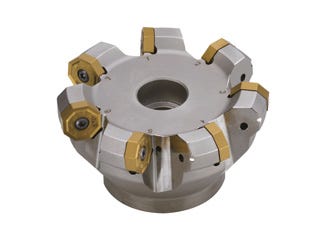

Rich Mill RM16
45° Face Mill
| Application |
|
| Diameters | 63-200mm |
Double core geometry for slotting and profiling, long tool life and best all-round performance
Advantages
Ultra Economical
The most economical indexable milling system with 16 cutting edges per insert
Strong Insert Design
Durable negative geometry inserts ideal for medium-heavy machining applications
High Feed Rates
Feed rates up to 0.4mm per tooth for high feed face milling
For Universal Use
Suitable for both conventional and CNC machining
Features
Ultra Thick Inserts
6mm thick inserts allow for high feed rates and aggressive machining
Direct Coolant
Through coolant is directed straight to the cutting edge for optimum effectiveness
Range of Chipbreakers
5 chipbreakers for a wide range of applications including wiper geometry for fine finishing
Edge Preparation
Inserts feature a chamfered edge to protect the cutting edge from chipping

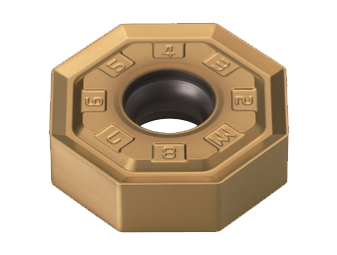

Rich Mill RM16 Inserts
Insert Designation:
Â
ONMX, ONHX
Rich Mill RM16 inserts are double sided and have 16 usable cutting edges in total making them the most cost effective milling inserts.
The depth of cut can be increased from 5.5mm to 13mm by using only 8 corners for added versatility.
Chipbreaker Guide
| Chipbreaker | Cutting Edge | Application | Description |
|---|---|---|---|
| MA |  |
Aluminium | Optimal cutting edge, high positive rake and buffed surface prevents built up edge and smooth chip flow in aluminium machining |
| ML |  |
Stainless Steel / HRSA's | Chip breaker with low cutting load is ideal for machining hard‑to‑cut materials such as stainless steel, titanium, inconel and hastelloy |
| MF |  |
Light Cutting / Finishing / Soft Steel | Chip breaker with low cutting load and sharper cutting edge. Excellent for finishing operations, general milling of soft steels and also ideal for low power machines due to low cutting resistance |
| MM |  |
General Machining | Optimal for milling in general machining conditions |
| (W) Wiper* |  |
Finishing | Special geometry provide excellent surface roughness |
*Wiper geometry to be used in conjunction with alternative chip breakers e.g. a 5 tooth holder would take 4x ONMX08/ONHX08 (MF) inserts and 1x Wiper, a 10 tooth holder could take 8x ONMX08/ONHX08 (MF) inserts and 2x Wipers. For more information please contact technical.
Grade Guide
| Grade | Chipbreaker | Materials | Features & Benefits |
|---|---|---|---|
| PC3700 | MM MF |
Steel <40 HRC |
Dedicated steel grade for continuous-light interrupted cutting at medium-high surface speeds. Provides advanced performance & maximum efficiency. |
| PC5300 | MM MF ML W |
Steel <40 HRC
Stainless Steel
HRSA's
Cast Iron
|
General PVD coated grade with high toughness for longer tool life. Suitable for light-heavy interrupted cutting at medium-high surface speeds. |
| PC5400 | MM MF ML |
Steel <35 HRC
Stainless Steel
HRSA's
Cast Iron
|
General purpose grade with excellent wear resistance & surface roughness when low speed machining. Ideal for continuous-heavy interrupted cutting. |
| PC6510 | MM MF W |
Cast Iron |
Specialised grade for multi-purpose milling applications of cast iron. Suitable for continuous-light interrupted cutting at medium-high surface speeds. |
| PC9530 | MM MF W |
Stainless Steel |
Ultra fine substrate for medium & roughing in stainless steel milling. Ideal for high feed continuous-light interrupted cutting. |
| H01 (Uncoated) | MA | Non-Ferrous |
Dedicated non ferrous grade for high speed, high feed milling & mirror surface finish. Uncoated polished grade for maximum swarf control in medium-high speed cutting. |
Application
Material Suitability
| Material | Excellent | Good |
|---|---|---|
|
P
Steel
|
• | • |
|
H
Hardened Steel
|
• | • |
|
M
Stainless Steel
|
• | • |
|
S
HRSA's
|
• | • |
|
K
Cast Iron
|
• | • |
|
N
Aluminium & Non-Ferrous
|
• | • |
Possible Machining Methods
Face Milling
Trochoidal Milling
Side Cutting
Slotting
Circular Interpolation
