Alpha Mill 90° Milling System

The BEST all round 90° milling system for a wide range of applications

90° helical milling system with the widest range of diameters, insert sizes, holder types, grades & geometries.

★★★☆☆

Diameter
Range (mm)

Insert
Sizes (mm)

Metal Removal
Rates

Material Versatility

Surface
Finish

High Accuracy Machining

Square Shoulder Milling

Chip
Control

10-100 6, 11, 16 ★★★☆☆ ★★★★★ ★★★☆☆ ★★★☆☆ ★★★★☆ ★★★★☆

Browse the Range

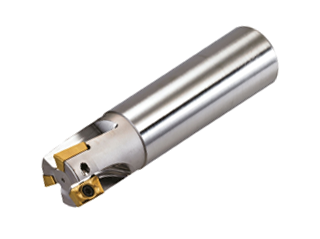

Alpha Mill
90° End Mill

Application
Diameters 10-63mm

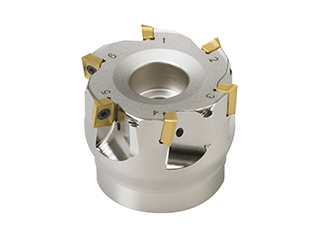

Alpha Mill
90° Face Mill

Application
Diameters 32-100mm

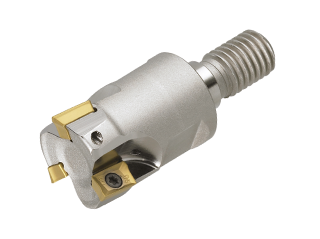

Alpha Mill
90° Modular End Mill

Application
Diameters 12-40mm

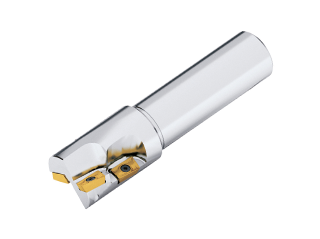

Alpha Mill
90° Plunge Mill

Application
Diameters 14-32mm

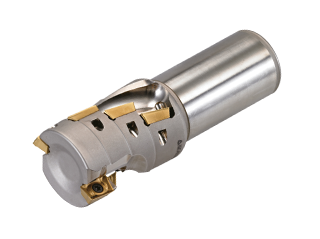

Alpha Mill
90° Porcupine End Mill

Application
Diameters 20-40mm

Double core geometry for slotting and profiling, long tool life and best all-round performance

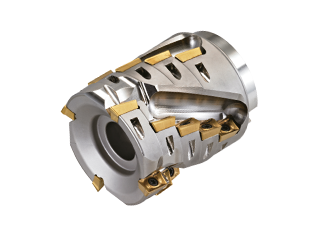

Alpha Mill
90° Porcupine Face Mill

Application
Diameters 50-100mm

Best for profiling offering high feed rates and tool stability

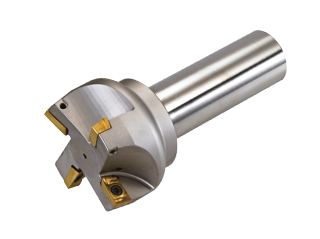

Alpha Mill
75° End Mill

Application
Diameters 25-63mm

With 45° chamfer preparation for
added corner protection

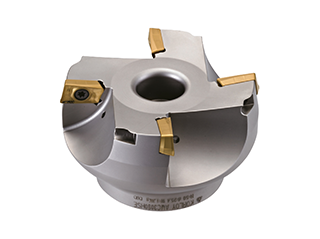

Alpha Mill
75° Face Mill

Application
Diameters 40-100mm

Special profile with corner protection for roughing stainless steel and titanium

Advantages

Wide Chip Pocket

To prevent swarf build up and allow effective chip control

Low Cutting Load

Ideal for lightweight machines or difficult to cut materials

Strong Cutting Edge

Suitable for large depths of cut and higher feed rates

All Round Machining

Optimal chip breakers for general, light cutting, finishing, aluminium, stainless steel & exotics

Features

Alpha Curve Insert

Unique geometry with 15° positive rake for smooth chip flow

Various Edge Lengths

APMT inserts available in 6mm, 11mm or 16mm

Multifunctional Tool

Wide range of holders that use the same inserts for reduced costs

Versatile Materials

Ideal for general purpose 90° milling a wide range of materials

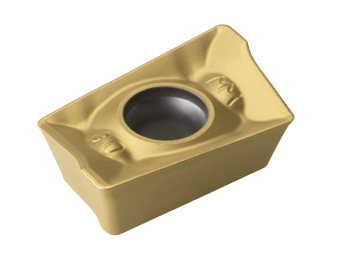

Alpha Mill Inserts

Insert Designation:

APMT

Alpha Mill APMT inserts feature a unique alpha curve geometry with a 15° positive rake for smooth chip flow and low cutting resistance across a wide range of materials.

Chip Breaker Guide

Chipbreaker Cutting Edge Application Description
MA Aluminium Optimal cutting edge, high positive rake and buffed surface prevents built up edge and smooth chip flow in aluminium machining.
ML Stainless Steel / HRSA's Chip breaker with low cutting load is ideal for machining hard‑to‑cut materials such as stainless steel, titanium, inconel and hastelloy.
MF Light Cutting / Finishing / Soft Steel Chip breaker with low cutting load and sharper cutting edge. Excellent for finishing operations, general milling of soft steels and also ideal for low power machines due to low cutting resistance.
MM General Machining Optimal for milling in general machining conditions.

Grade Guide

Grade Chipbreaker Materials Features & Benefits
PC2505 MM
Hardened Steel 45-60HRC
Ideal for continuous-light interrupted cutting at medium-low surface speeds on heat treated steel & high hardened steel with excellent wear resistance.
PC2510 MM
Hardened Steel / Pre-Hardened Steel 35-50HRC
Ideal for continuous-light interrupted cutting at medium-low surface speeds on high hardened steel & pre-hardened steel with excellent impact resistance.
PC3700 MF
MM
Steel <40 HRC
Dedicated steel grade for continuous-light interrupted cutting at medium-high surface speeds. Provides advanced performance & maximum efficiency.
PC5300 MM
MF
ML
Steel <40 HRC
Stainless Steel
HRSA's
Cast Iron
General PVD coated grade with high toughness for longer tool life. Suitable for light-heavy interrupted cutting at medium-high surface speeds.
PC5400 MM
MF
ML
Steel <35 HRC
Stainless Steel
HRSA's
Cast Iron
General purpose grade with excellent wear resistance & surface roughness when low speed machining. Ideal for continuous-heavy interrupted cutting.
PC6510 MM
Cast Iron
Specialised grade for multi-purpose milling applications of cast iron. Suitable for continuous-light interrupted cutting at medium-high surface speeds.
PC9530 MM
Stainless Steel
Ultra fine substrate for medium & roughing in stainless steel milling. Ideal for high feed continuous-light interrupted cutting.
H01 (Uncoated) MA
Non-Ferrous
Dedicated non ferrous grade for high speed, high feed milling & mirror surface finish. Uncoated polished grade for maximum swarf control in medium-high speed cutting.
UNC840 (CVD) ML
HRSA's
Premium grade for machining of HRSA including Inconel, Hastelloy, Titanium alloy etc. Ideal for continuous-light interrupted cutting at high speed-low feed machining.

Application

Material Suitability

Material Excellent Good
P
Steel
H
Hardened Steel
M
Stainless Steel
S
HRSA's
K
Cast Iron
N
Aluminium & Non-Ferrous

Possible Machining Methods

Face Milling

Trochoidal Milling

Side Cutting

Slotting

Circular Interpolation
