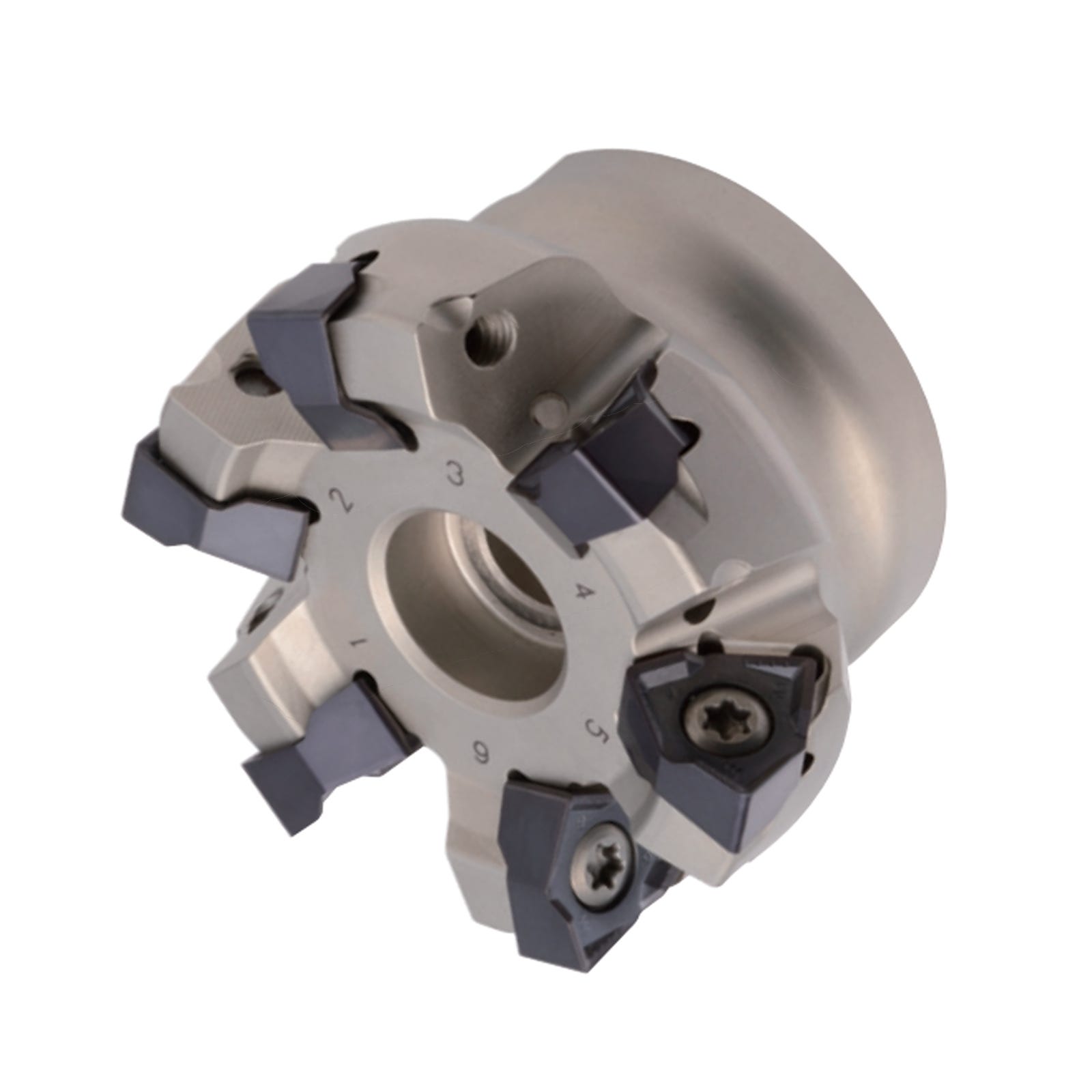

125mm Rich Mill RM6 90 Degree Face Mill for WNGX08 Inserts - RM6PCM Series (Korloy) - RM6PCM125R-40-11-WN08
125mm Rich Mill RM6 90 Degree Face Mill for WNGX08 Inserts - RM6PCM Series (Korloy) - RM6PCM125R-40-11-WN08
| Diameter (mm) | 125 |
|---|---|
| Overall Length (mm) | 50 |
| Shank (mm) | 40 |
Related Products
| Image | Code | Stock | Price (Ex VATInc. VAT) |
|---|
Product Information
Features & Benefits
- Double sided inserts with 6 usable cutting edges
- Stable insert clamping with 3 clamping surfaces and strong clamping screws
- High rake angle chip breakers offer smooth chip flow
- Wider cutting edge for improved surface finish
- Ideal for medium to finishing machining in face milling, shoulder milling, slotting, ramping, helical cutting and plunging
- Through coolant improves swarf evacuation and offers direct cooling of the cutting edge
- Improved chip evacuation due to hikder and insert design
- Suitable for WNGX Inserts
- Exceptional surface finish
- Suitable for Steel, Stainless Steel, Cast Iron, Aluminium and HRSA's
Specification
| Category | Milling |
|---|---|
| Sub Category | Indexable Milling |
| Sub Category 2 | Rich Mill RM6 Indexable Milling System |
| Diameter (mm) | 125 |
| Shank (mm) | 40 |
| Overall Length (mm) | 50 |
| Depth of Cut | 8.2 |
| Teeth | 11 |
| Inserts | WNGX08 |
| Weight | 2.94kg |

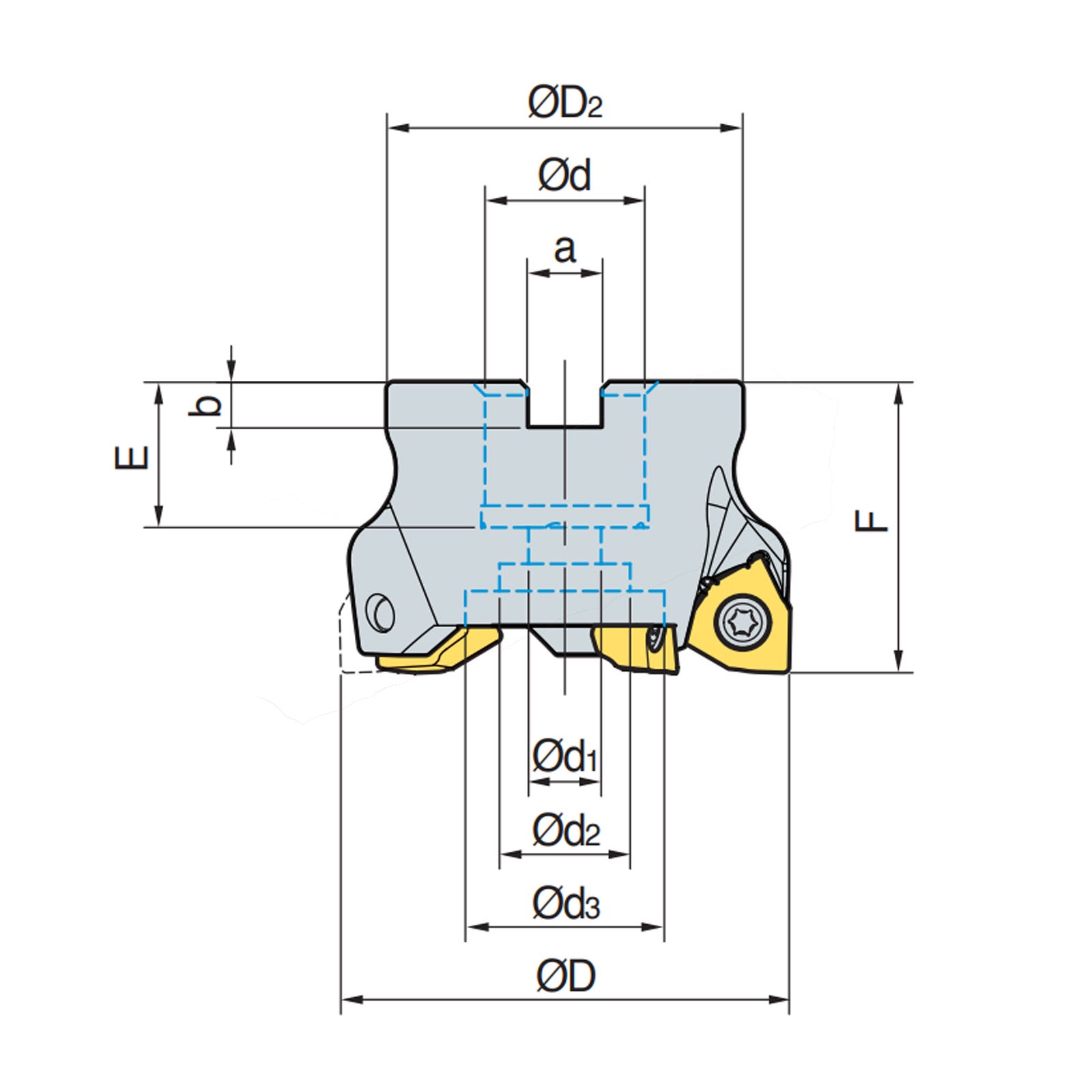

| Ød1 | 22 |
| Ød2 | 32 |
| ØD2 | 90 |
| Ød3 | 52 |
| a | 16.4 |
| b | 9 |
| E | 29 |
| Screw | FTNA0513 |
| Wrench | TW20-100 |
| Insert Series | WNGX08 |
| Brand | Korloy |
